Каталог

Япония

Модель

HIACE VAN,WAGON

VIN

Дата

1987/08

Двигатель

2,4 литра, дизель

Кузов

V(MODEL MARK)

Класс

GL SPECIFICATION

Фрейм

LH51V

КПП

механика МКПП, 5 скоростей

Опции

STANDARD ROOF 4-дверный вэн SIDE GLASS VAN 5-местный ST DSL

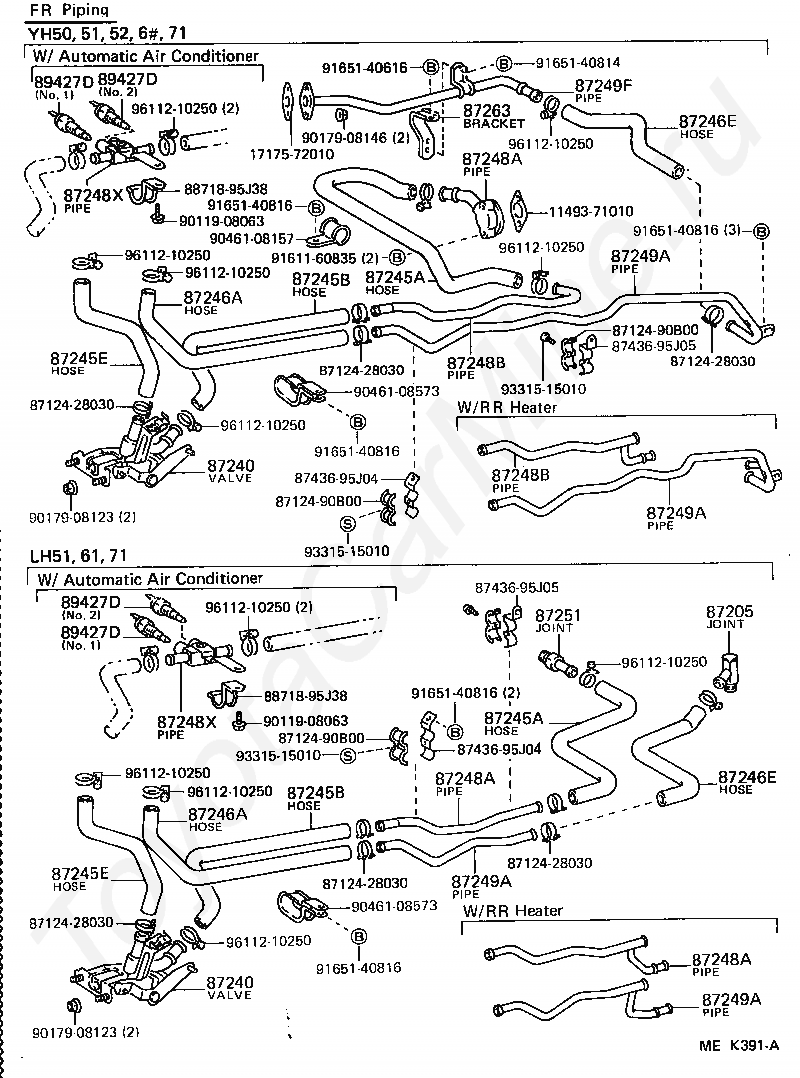

Кондиционер: водяные трубки TOYOTA HIACE VAN,WAGON

Код

Описание

1149371010

Крепеж

1717572010

Крепеж

8712428030

Крепеж

8712428030

Крепеж

8712428030

Крепеж

8712428030

Крепеж

8712428030

Крепеж

8712428030

Крепеж

8712490B00

Крепеж

8712490B00

Крепеж

8712490B00

Крепеж

87205

JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

87240

VALVE ASSY, HEATER WATER

87240

VALVE ASSY, HEATER WATER

87245A

HOSE, HEATER WATER, INLET A

87245A

HOSE, HEATER WATER, INLET A

87245B

HOSE, HEATER WATER, INLET B

87245B

HOSE, HEATER WATER, INLET B

87245E

HOSE, HEATER WATER, INLET E

87245E

HOSE, HEATER WATER, INLET E

87246A

HOSE, HEATER WATER, OUTLET A

87246A

HOSE, HEATER WATER, OUTLET A

87246E

HOSE, HEATER WATER, OUTLET E

87246E

HOSE, HEATER WATER, OUTLET E

87248A

PIPE, HEATER WATER INLET, A

87248A

PIPE, HEATER WATER INLET, A

87248A

PIPE, HEATER WATER INLET, A

87248B

PIPE, HEATER WATER INLET, B

87248B

PIPE, HEATER WATER INLET, B

87248X

PIPE, HEATER WATER

87248X

PIPE, HEATER WATER

87249A

PIPE, HEATER WATER OUTLET, A

87249A

PIPE, HEATER WATER OUTLET, A

87249A

PIPE, HEATER WATER OUTLET, A

87249A

PIPE, HEATER WATER OUTLET, A

87249F

PIPE, HEATER WATER OUTLET, F

87251

JOINT OR UNION, WATER HOSE THROUGH

87263

BRACKET, HEATER WATER PIPE, NO.1

8743695J04

Крепеж

8743695J04

Крепеж

8743695J05

Крепеж

8743695J05

Крепеж

8871895J38

Крепеж

8871895J38

Крепеж

89427D

SWITCH, TEMPERATURE

89427D

SWITCH, TEMPERATURE

89427D

SWITCH, TEMPERATURE

89427D

SWITCH, TEMPERATURE

9011908063

Крепеж

9011908063

Крепеж

9017908123

Крепеж

9017908123

Крепеж

9017908146

Крепеж

9046108157

Крепеж

9046108573

Крепеж

9046108573

Крепеж

9161160835

Крепеж

9165140616

Крепеж

9165140814

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9331515010

Крепеж

9331515010

Крепеж

9331515010

Крепеж

9611210250

Крепеж

9611210250

Крепеж

9611210250

Крепеж

9611210250

Крепеж

9611210250

Крепеж

9611210250

Крепеж

9611210250

Крепеж

9611210250

Крепеж

9611210250

Крепеж

9611210250

Крепеж

9611210250

Крепеж

Код

Описание

8712428040

Крепеж

8712428040

Крепеж

8712428040

Крепеж

8712428040

Крепеж

8712428040

Крепеж

8712495J12

Крепеж

8712495J12

Крепеж

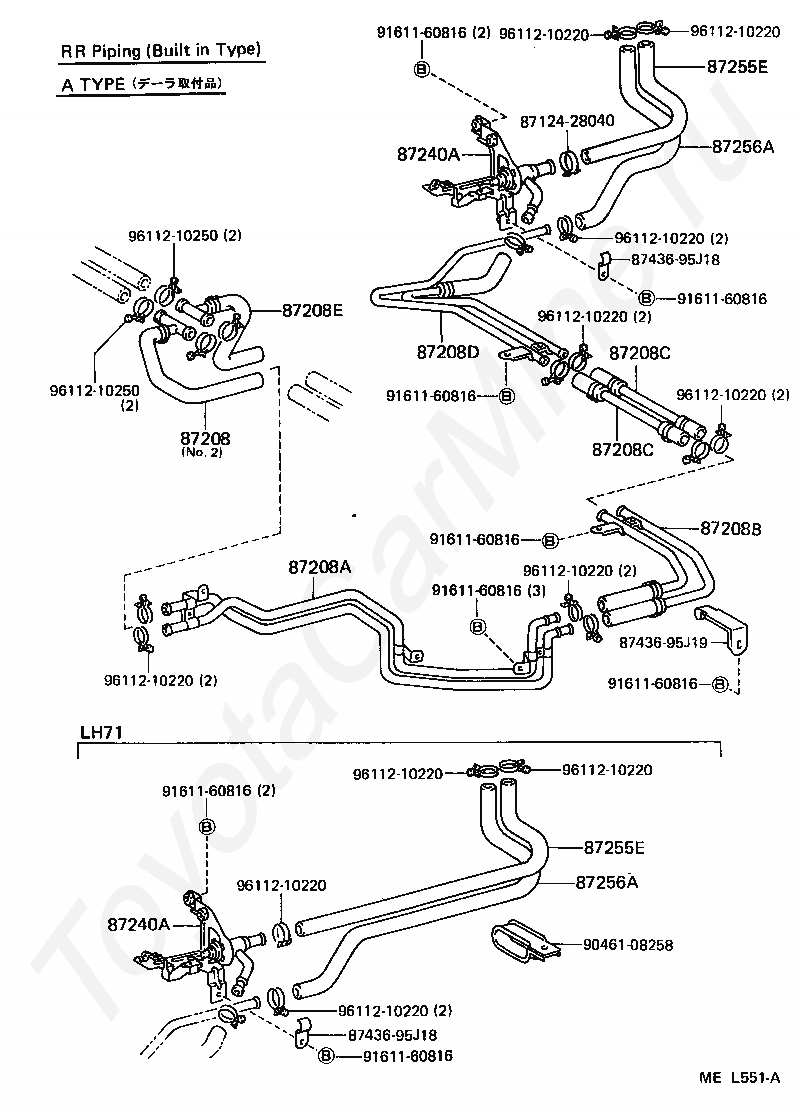

87240A

VALVE ASSY, REAR HEATER WATER

87248B

PIPE, HEATER WATER INLET, B

87249B

PIPE, HEATER WATER OUTLET, B

87249C

PIPE, HEATER WATER OUTLET, C

87255A

HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)

87255B

HOSE, REAR HEATER WATER INLET, B

87255C

HOSE, REAR HEATER WATER INLET, C

87255E

HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)

87255E

HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)

87256A

HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)

87256A

HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)

87256C

HOSE, REAR HEATER WATER OUTLET, C

87256E

HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)

8739895A00

Крепеж

8739895A00

Крепеж

8743695J13

Крепеж

8743695J22

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9611210220

Крепеж

9611210220

Крепеж

9611210220

Крепеж

9611210220

Крепеж

9611210220

Крепеж

9611210220

Крепеж

9611210220

Крепеж

9846108258

Крепеж

Код

Описание

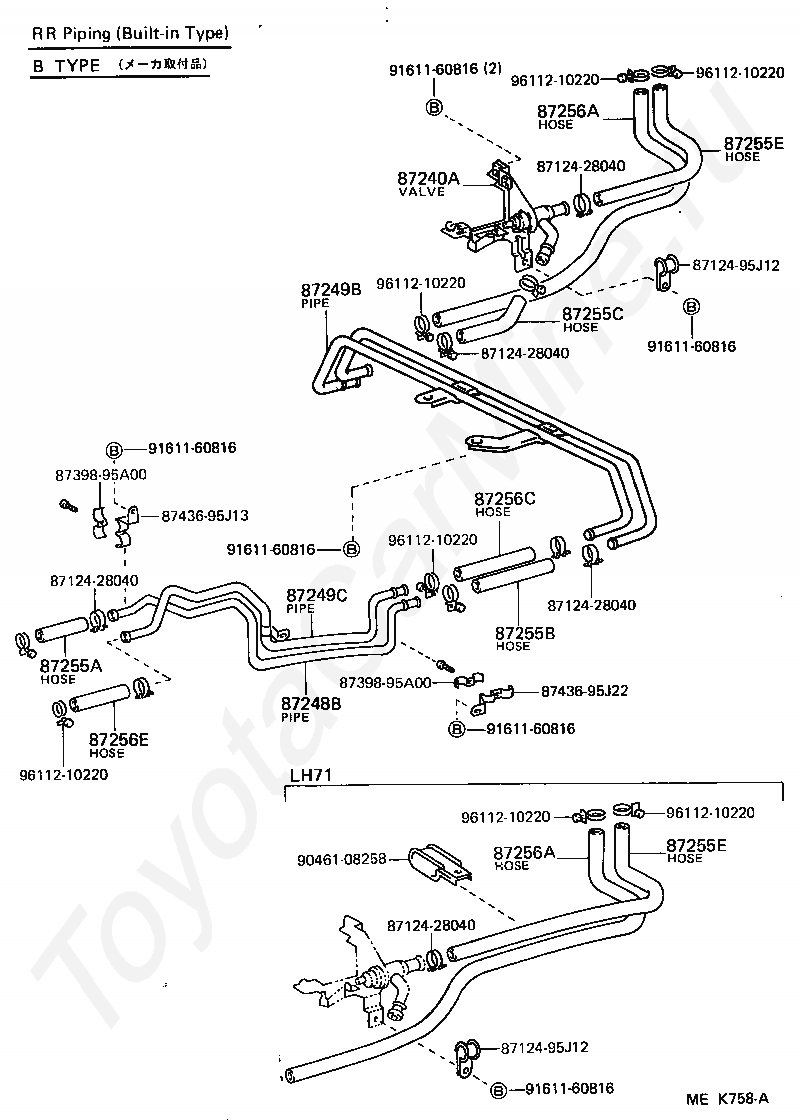

8712428040

Крепеж

87208

PIPE SUB-ASSY, HEATER WATER

87208A

PIPE SUB-ASSY, HEATER WATER, A

87208B

PIPE SUB-ASSY, HEATER WATER, B

87208C

PIPE SUB-ASSY, HEATER WATER, C

87208C

PIPE SUB-ASSY, HEATER WATER, C

87208D

PIPE SUB-ASSY, HEATER WATER, D

87208E

PIPE SUB-ASSY, HEATER WATER, E

87240A

VALVE ASSY, REAR HEATER WATER

87240A

VALVE ASSY, REAR HEATER WATER

87255E

HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)

87255E

HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)

87256A

HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)

87256A

HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)

8743695J18

Крепеж

8743695J18

Крепеж

8743695J19

Крепеж

9046108258

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9611210220

Крепеж

9611210220

Крепеж

9611210220

Крепеж

9611210220

Крепеж

9611210220

Крепеж

9611210220

Крепеж

9611210220

Крепеж

9611210220

Крепеж

9611210220

Крепеж

9611210220

Крепеж

9611210220

Крепеж

9611210250

Крепеж

9611210250

Крепеж

Кондиционер: водяные трубки TOYOTA HIACE VAN,WAGON
