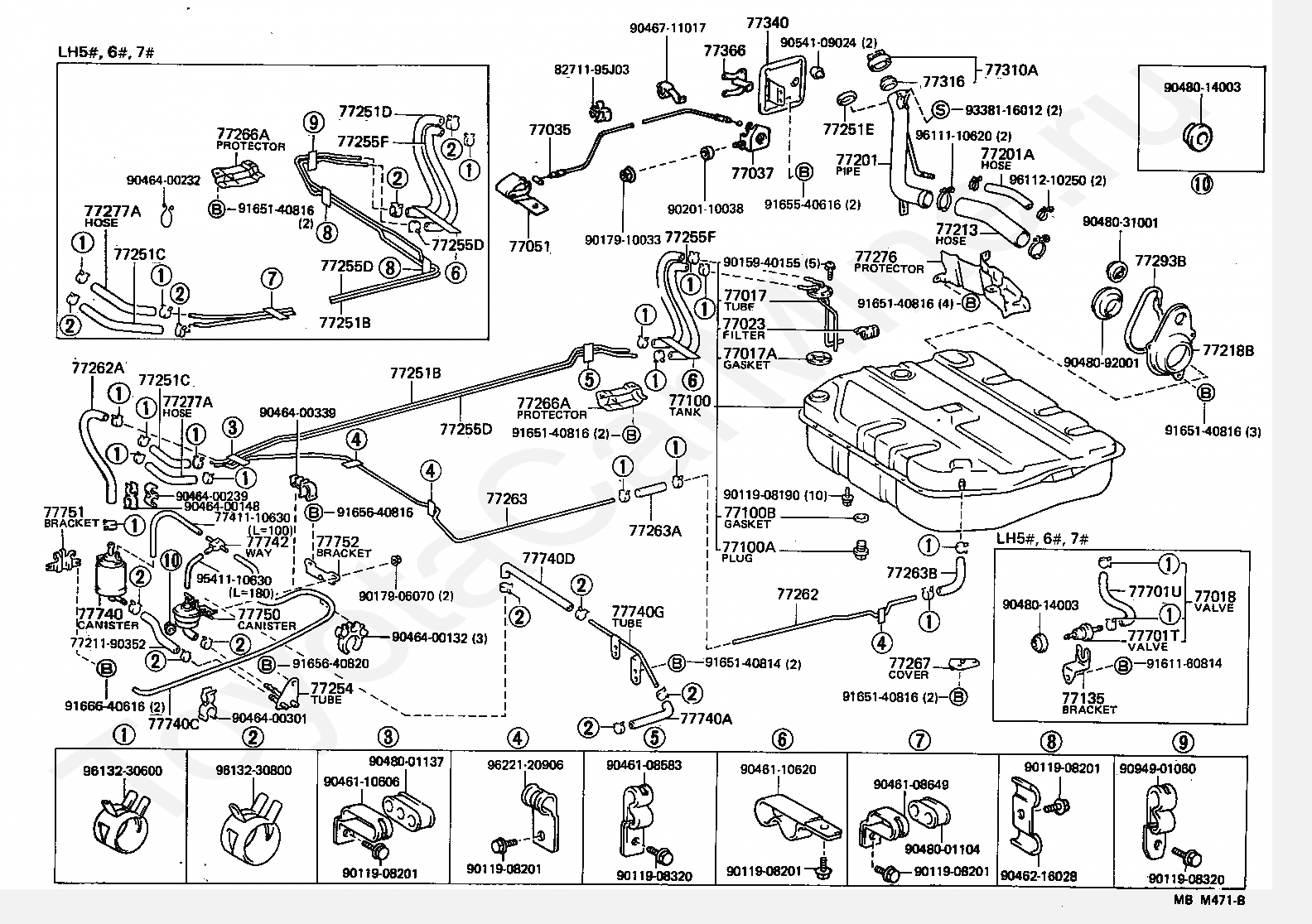

77017
TUBE SUB-ASSY, FUEL AND EVAPORATION VENT
77017A
GASKET, FUEL TANK VENT
77018
VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77023
FILTER SUB-ASSY, FUEL SUCTION TUBE
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77037
LOCK SUB-ASSY, FUEL FILLER OPENING LID
77051
LEVER SUB-ASSY, FUEL LID OPEN
77100A
PLUG(FOR FUEL TANK)
77100B
GASKET(FOR FUEL TANK)
77135
BRACKET, CHECK VALVE
77201
PIPE SUB-ASSY, FUEL TANK INLET
77201A
HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77213
HOSE, FUEL TANK SUB INLET
77218B
PLATE, FUEL INLET PIPE LOWER SHIELD
77251C
HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
77251C
HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
77251D
HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
77251E
SHIELD, FUEL TANK INLET PIPE
77254
TUBE, FUEL EMISSION, NO.1
77255F
HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
77255F
HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
77262
TUBE, FUEL EMISSION, NO.2
77262A
HOSE, FUEL, NO.1(FOR FUEL TANK TO CANISTER CENTER TUBE)
77263
TUBE, FUEL TANK TO CANISTER, NO.3
77263A
HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER NO.3 TUBE)
77263B
HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER NO.3 TUBE)
77266A
PROTECTOR, FUEL TUBE, NO.1
77266A
PROTECTOR, FUEL TUBE, NO.1
77267
COVER, FUEL EVAPORATIVE TUBE
77276
PROTECTOR, FUEL HOSE
77277A
HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
77277A
HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
77293B
PACKING, FUEL INLET PIPE LOWER SHIELD PLATE
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77340
DOOR ASSY, FUEL INLET BOX
77366
SPRING, FUEL FILLER OPENING LID HINGE
77701T
VALVE, CHECK (FOR MAIN FUEL TANK)
77701U
HOSE, FUEL (FOR CHECK VALVE)
77740
CANISTER ASSY, CHARCOAL
77740A
HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
77740C
HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
77740D
HOSE, FUEL, NO.4(FOR CHARCOAL CANISTER)
77740G
TUBE, FUEL, NO.2(FOR CHARCOAL CANISTER)
77742
WAY, 3(FOR CANISTER)
77750
CANISTER ASSY, CHARCOAL
77751
BRACKET, CHARCOAL CANISTER BASE
77752
BRACKET, CHARCOAL CANISTER SUPPORT
