Каталог

Япония

Модель

HIACE VAN,WAGON

VIN

Дата

1987/08

Двигатель

2,4 литра, дизель

Кузов

V(MODEL MARK)

Класс

GL SPECIFICATION

Фрейм

LH51V

КПП

механика МКПП, 5 скоростей

Опции

STANDARD ROOF 4-дверный вэн SIDE GLASS VAN 5-местный ST DSL

Молдинги TOYOTA HIACE VAN,WAGON

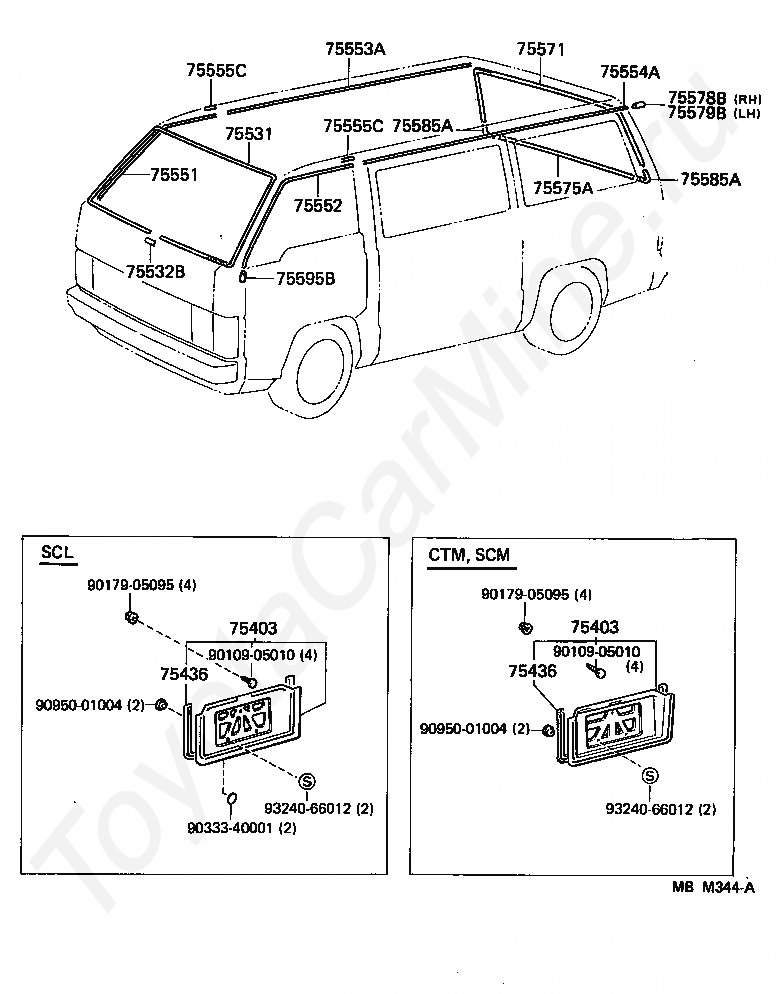

Код

Описание

75403

ORNAMENT SUB-ASSY, BACK DOOR

75403

ORNAMENT SUB-ASSY, BACK DOOR

75436

PROTECTOR, BACK DOOR ORNAMENT

75436

PROTECTOR, BACK DOOR ORNAMENT

75531

MOULDING, WINDSHIELD, OUTER UPPER

75532B

COVER, FRONT WINDSHIELD MOULDING

75551

MOULDING, ROOF DRIP SIDE FINISH, RH

75552

MOULDING, ROOF DRIP SIDE FINISH, LH

75553A

MOULDING, ROOF DRIP SIDE FINISH, REAR RH

75554A

MOULDING, ROOF DRIP SIDE FINISH, REAR LH

75555C

CONNECTOR, ROOF DRIP MOULDING

75555C

CONNECTOR, ROOF DRIP MOULDING

75571

MOULDING, BACK WINDOW, OUTSIDE UPPER

75575A

MOULDING, BACK WINDOW, OUTSIDE LOWER

75578B

COVER, ROOF DRIP MOULDING END, REAR RH

75579B

COVER, ROOF DRIP MOULDING END, REAR LH

75585A

COVER, BACK DOOR WINDSHIELD MOULDING

75585A

COVER, BACK DOOR WINDSHIELD MOULDING

75595B

COVER, ROOF DRIP SIDE MOULDING END, FRONT

9010905010

Крепеж

9010905010

Крепеж

9017905095

Крепеж

9017905095

Крепеж

9033340001

Крепеж

9095001004

Крепеж

9095001004

Крепеж

9324066012

Крепеж

9324066012

Крепеж

Код

Описание

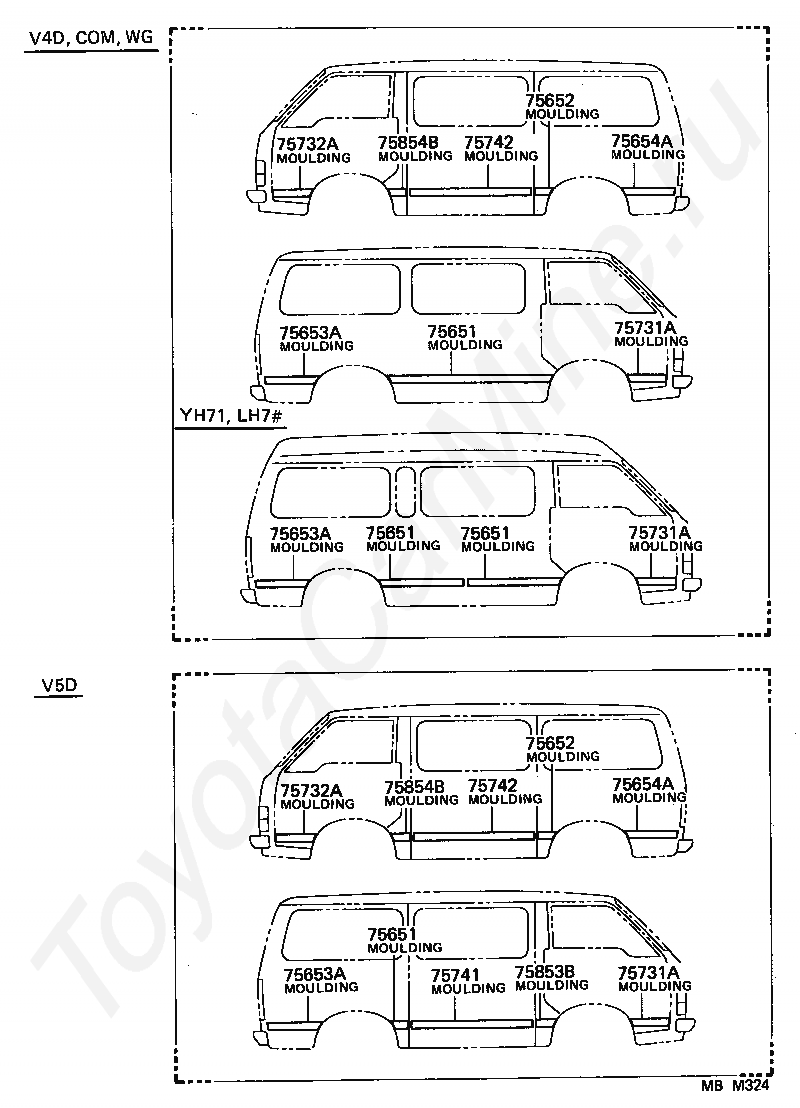

75651

MOULDING, QUARTER, OUTSIDE RH

75651

MOULDING, QUARTER, OUTSIDE RH

75651

MOULDING, QUARTER, OUTSIDE RH

75651

MOULDING, QUARTER, OUTSIDE RH

75652

MOULDING, QUARTER, OUTSIDE LH

75652

MOULDING, QUARTER, OUTSIDE LH

75653A

MOULDING, QUARTER, OUTSIDE REAR RH

75653A

MOULDING, QUARTER, OUTSIDE REAR RH

75653A

MOULDING, QUARTER, OUTSIDE REAR RH

75654A

MOULDING, QUARTER, OUTSIDE REAR LH

75654A

MOULDING, QUARTER, OUTSIDE REAR LH

75731A

MOULDING, FRONT DOOR, OUTSIDE RH

75731A

MOULDING, FRONT DOOR, OUTSIDE RH

75731A

MOULDING, FRONT DOOR, OUTSIDE RH

75732A

MOULDING, FRONT DOOR, OUTSIDE LH

75732A

MOULDING, FRONT DOOR, OUTSIDE LH

75741

MOULDING, REAR DOOR, OUTSIDE RH

75742

MOULDING, REAR DOOR, OUTSIDE LH

75742

MOULDING, REAR DOOR, OUTSIDE LH

75853B

MOULDING, CENTER PILLAR, RH

75854B

MOULDING, CENTER PILLAR, LH

75854B

MOULDING, CENTER PILLAR, LH
