Каталог

Япония

Модель

HIACE VAN,WAGON

VIN

Дата

1987/08

Двигатель

2,4 литра, дизель

Кузов

V(MODEL MARK)

Класс

GL SPECIFICATION

Фрейм

LH51V

КПП

механика МКПП, 5 скоростей

Опции

STANDARD ROOF 4-дверный вэн SIDE GLASS VAN 5-местный ST DSL

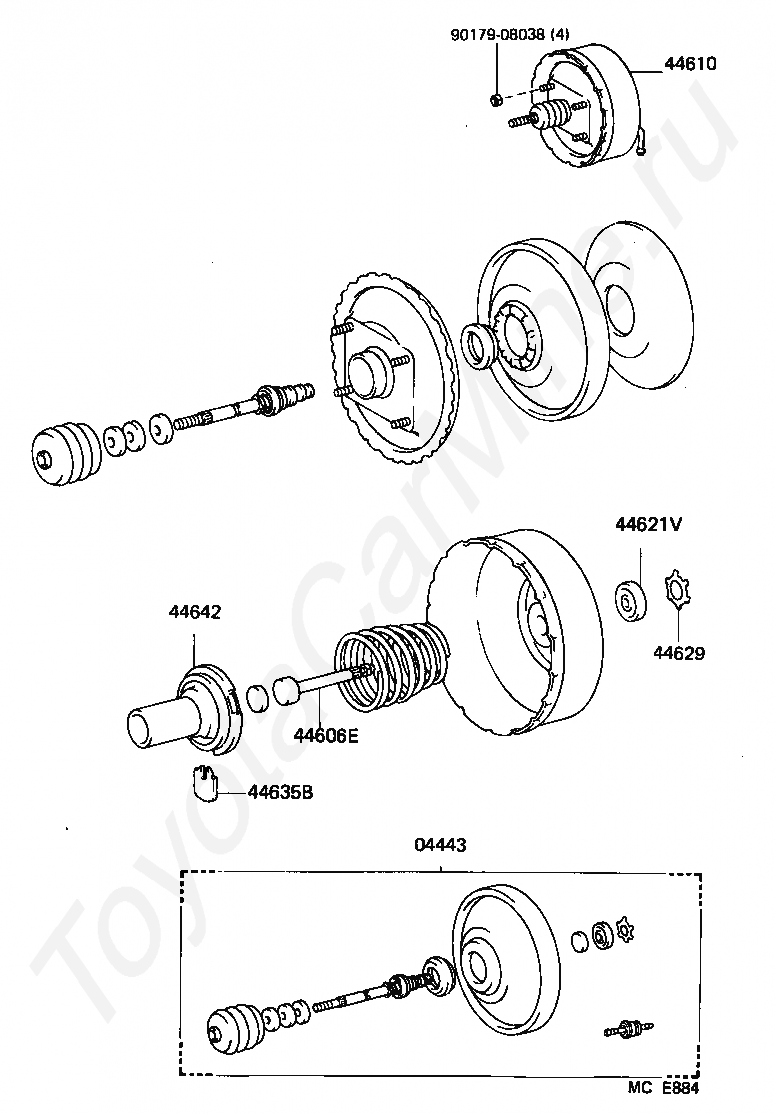

Вакуумный тормозной цилиндр TOYOTA HIACE VAN,WAGON

Код

Описание

04443

BOOSTER KIT, BRAKE

44606E

ROD SUB-ASSY, BRAKE BOOSTER PISTON

44610

BOOSTER ASSY, BRAKE

44621V

SEAL, BOOSTER BODY

44629

RING, CIRCULAR INTERNAL

44635B

KEY, VALVE STOPPER

44642

PISTON, BRAKE BOOSTER

9017908038

Крепеж

Код

Описание

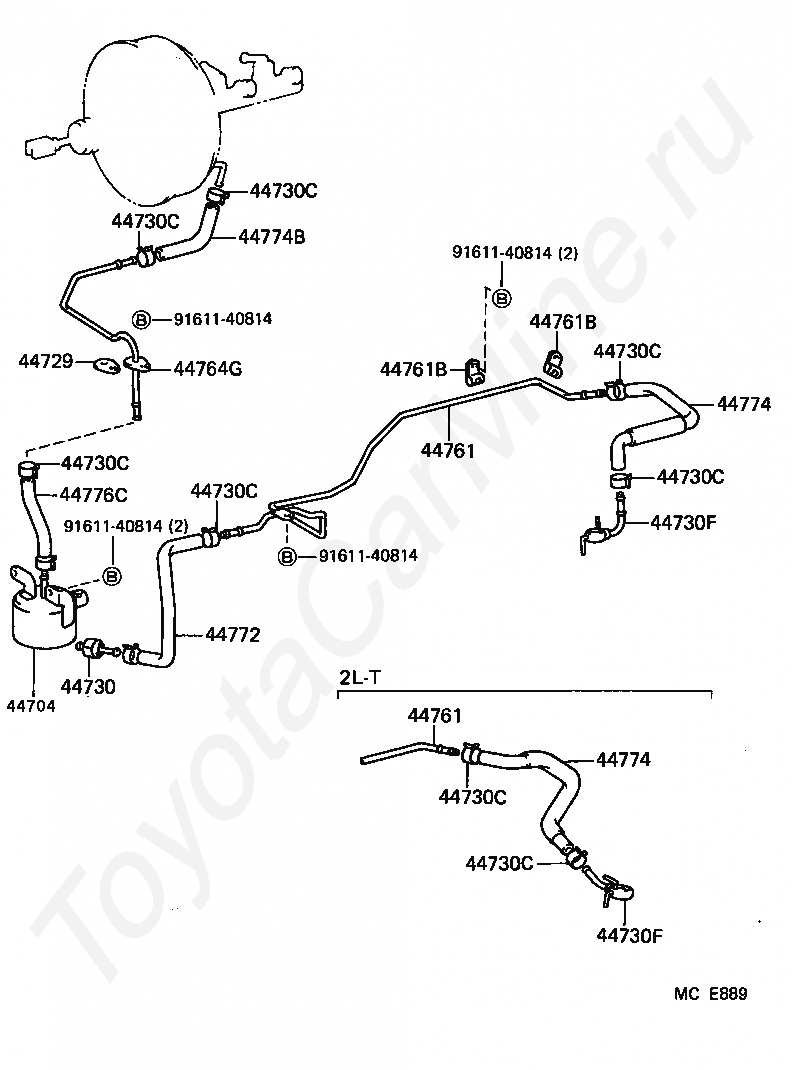

44704

RESERVOIR SUB-ASSY, VACUUM

44729

GASKET, VACUUM TUBE

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44761

TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR

44761

TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR

44761B

CLAMP, CONNEECTOR TUBE

44761B

CLAMP, CONNEECTOR TUBE

44764G

TUBE, CONNECTOR TO BRAKE BOOSTER

44772

HOSE, CHECK VALVE TO CONNECTOR TUBE

44774

HOSE, UNION TO CONNECTOR TUBE

44774

HOSE, UNION TO CONNECTOR TUBE

44774B

HOSE, UNION TO CONNECTOR TUBE

44776C

HOSE, VACUUM RESERVOIR TO CONNECTOR

9161140814

Крепеж

9161140814

Крепеж

9161140814

Крепеж

9161140814

Крепеж

Вакуумный тормозной цилиндр TOYOTA HIACE VAN,WAGON
