Каталог

Япония

Модель

HIACE VAN,WAGON

VIN

Дата

1987/08

Двигатель

2,4 литра, дизель

Кузов

V(MODEL MARK)

Класс

GL SPECIFICATION

Фрейм

LH51V

КПП

механика МКПП, 5 скоростей

Опции

STANDARD ROOF 4-дверный вэн SIDE GLASS VAN 5-местный ST DSL

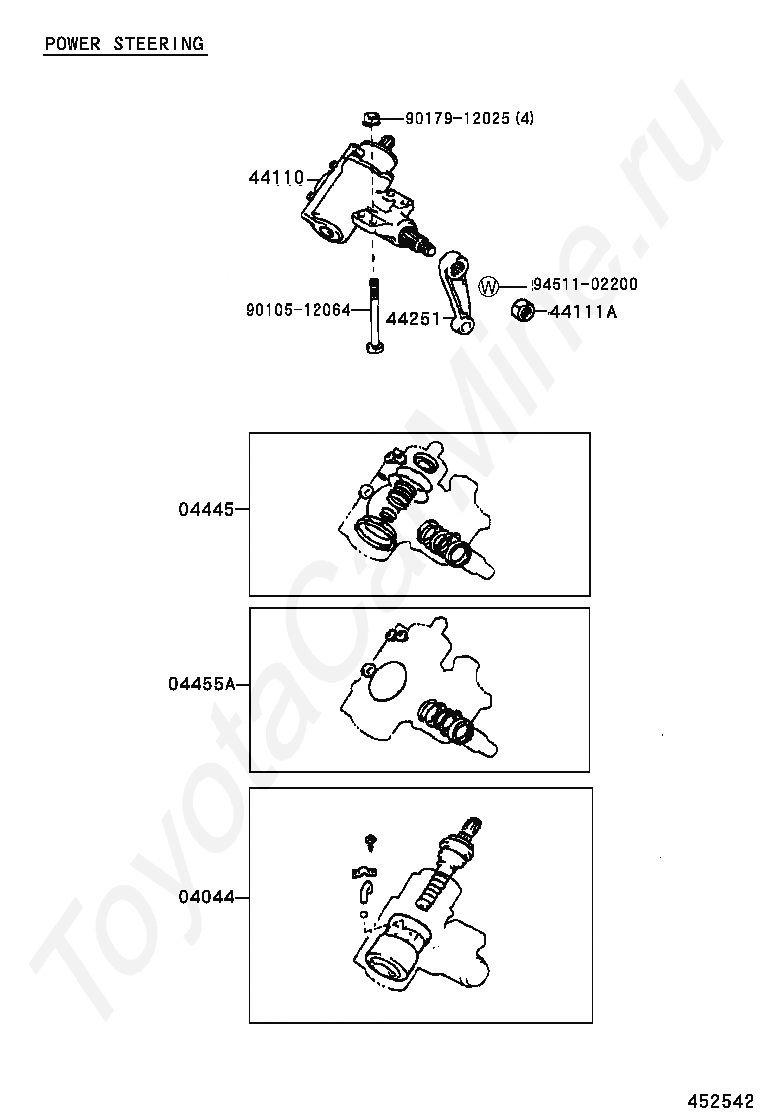

Рулевая рейка и наконечники TOYOTA HIACE VAN,WAGON

Код

Описание

04044

WARM KIT, POWER STEERING

04445

GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)

04455A

GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE

44110

GEAR ASSY, POWER STEERING

44111A

NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING)

44251

ARM, PITMAN

9010512064

Крепеж

9017912025

Крепеж

9451102200

Крепеж

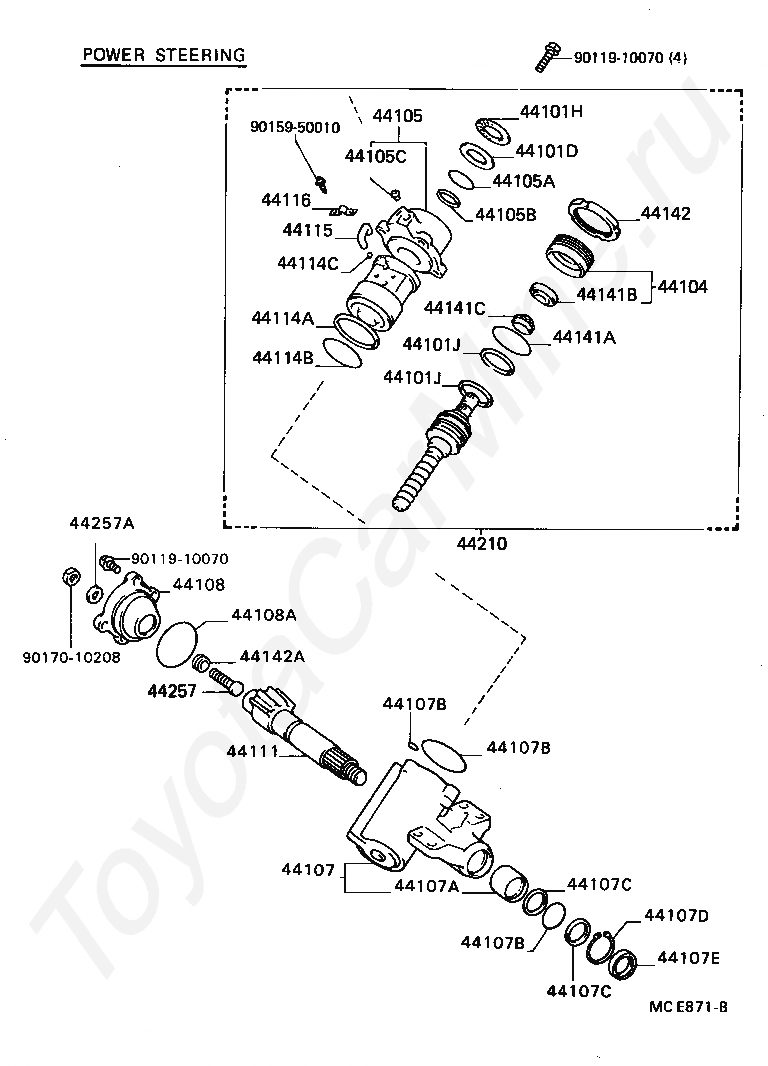

Код

Описание

44101D

WASHER, PLATE(FOR STEERING WORM)

44101H

BEARING, THRUST NEEDLE ROLLER(FOR STEERING WORM)

44101J

RING(FOR STEERING WORM)

44101J

RING(FOR STEERING WORM)

44104

PLUG SUB-ASSY, ADJUSTER

44105

HOUSING SUB-ASSY, VALVE

44105A

RING, O(FOR VALVE HOUSING)

44105B

RING(FOR VALVE HOUSING)

44105C

SEAT, UNION(FOR VALVE BODY HOUSING)

44107

HOUSING SUB-ASSY, POWER STEERING GEAR

44107A

BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING)

44107B

RING, O(FOR POWER STEERING GEAR HOUSING)

44107B

RING, O(FOR POWER STEERING GEAR HOUSING)

44107B

RING, O(FOR POWER STEERING GEAR HOUSING)

44107C

RING(FOR POWER STEERING GEAR HOUSING)

44107C

RING(FOR POWER STEERING GEAR HOUSING)

44107D

RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING)

44107E

SEAL, OIL(FOR POWER STEERING GEAR HOUSING)

44108

COVER SUB-ASSY, SIDE

44108A

RING, O(FOR SIDE COVER)

44111

SHAFT, CROSS

44114A

RING(FOR POWER PISTON NUT)

44114B

RING, O(FOR POWER PISTON NUT)

44114C

BALL(FOR POWER PISTON NUT)

44115

GUIDE, BALL

44116

CLAMP, BALL GUIDE

44141A

RING, O(FOR ADJUSTER PLUG)

44141B

SEAL, OIL(FOR ADJUSTER PLUG)

44141C

BEARING(FOR ADJUSTER PLUG)

44142

NUT, LOCK

44142A

NUT, LOCK, NO.1

44210

VALVE ASSY, POWER STEERING CONTROL

44257

SCREW, CROSS SHAFT ADJUSTING

44257A

WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW)

9011910070

Крепеж

9011910070

Крепеж

9015950010

Крепеж

9017010208

Крепеж

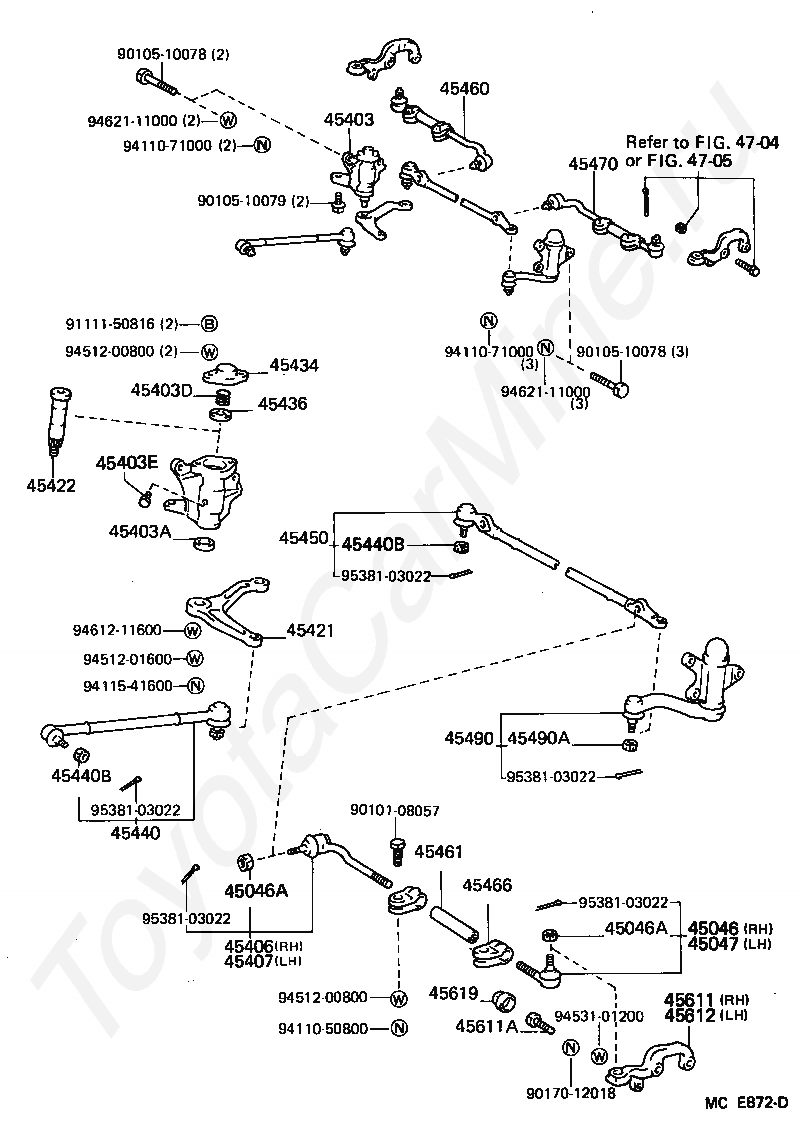

Код

Описание

45046

END SUB-ASSY, TIE ROD, RH

45046A

NUT, CASTLE(FOR TIE ROD END)

45046A

NUT, CASTLE(FOR TIE ROD END)

45047

END SUB-ASSY, TIE ROD, LH

45403

BRACKET SUB-ASSY, CENTER ARM

45403A

SEAL, OIL(FOR CENTER ARM BRACKET)

45403D

SPRING, COMPRESSION(FOR CENTER ARM SHAFT SET)

45403E

PLUG, W/HEAD TAPER SCREW(FOR CENTER ARM SHAFT)

45406

ROD SUB-ASSY, TIE, RH

45407

ROD SUB-ASSY, TIE, LH

45421

ARM, STEERING CENTER

45422

SHAFT, CENTER ARM

45434

CAP, CENTER ARM BRACKET

45436

SEAT, CENTER ARM SHAFT

45440

LINK ASSY, STEERING DRAG

45440B

NUT, CASTLE(FOR STEERING DRAG LINK)

45440B

NUT, CASTLE(FOR STEERING DRAG LINK)

45450

ROD ASSY, STEERING RELAY

45460

ROD ASSY, TIE, RH

45461

ROD, STEERING TIE

45466

CLAMP, TIE ROD END

45470

ROD ASSY, TIE, LH

45490

ARM ASSY, STEERING IDLER

45490A

NUT, CASTLE(FOR IDLER ARM)

45611

ARM, STEERING KNUCKLE, RH

45611A

BOLT, KNUCKLE STOPPER

45612

ARM, STEERING KNUCKLE, LH

45619

COVER, KNUCKLE STOPPER

4704

переход к группе запчастей

4705

переход к группе запчастей

9010108057

Крепеж

9010510078

Крепеж

9010510078

Крепеж

9010510079

Крепеж

9017012018

Крепеж

9111150816

Крепеж

9411050800

Крепеж

9411071000

Крепеж

9411071000

Крепеж

9411541600

Крепеж

9451200800

Крепеж

9451200800

Крепеж

9451201600

Крепеж

9453101200

Крепеж

9461211600

Крепеж

9462111000

Крепеж

9462111000

Крепеж

9538103022

Крепеж

9538103022

Крепеж

9538103022

Крепеж

9538103022

Крепеж

9538103022

Крепеж

Рулевая рейка и наконечники TOYOTA HIACE VAN,WAGON
