Каталог

Европа

Модель

HIACE VAN,COMMUTER

VIN

Дата

1982/12

Двигатель

1,8 литра

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

YH50

КПП

механика МКПП, 4 ступени, на руле

Опции

правый руль STANDARD ROOF 4-дверный вэн SIDE GLASS VAN 03S GEN

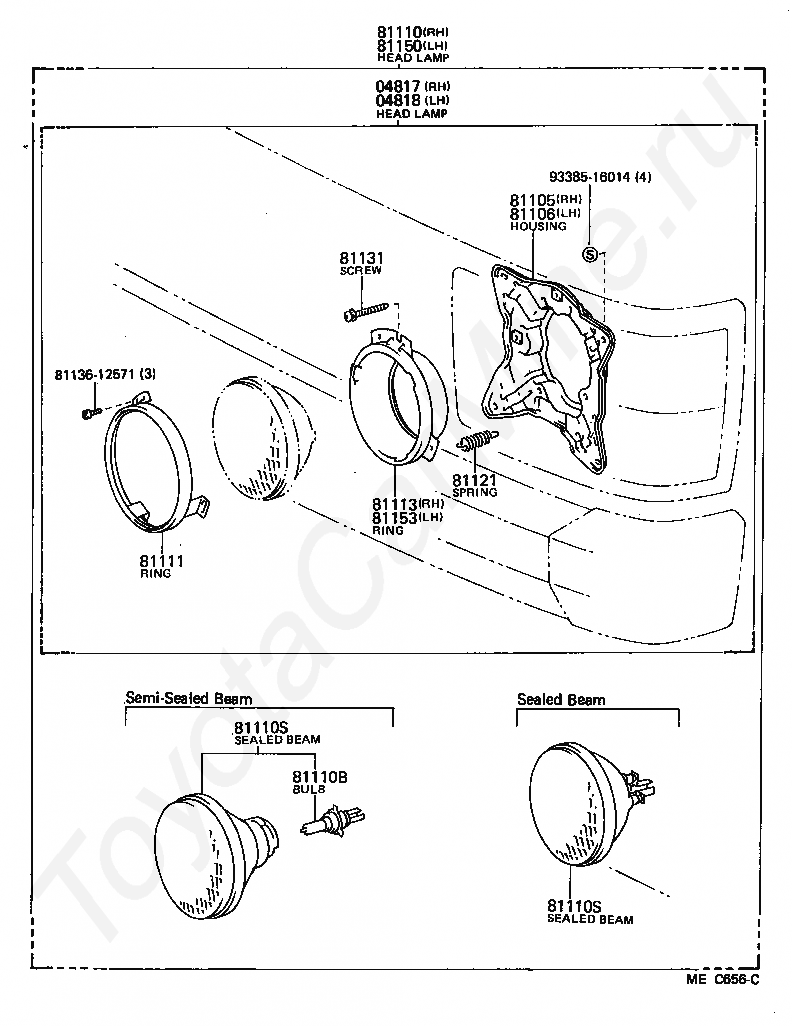

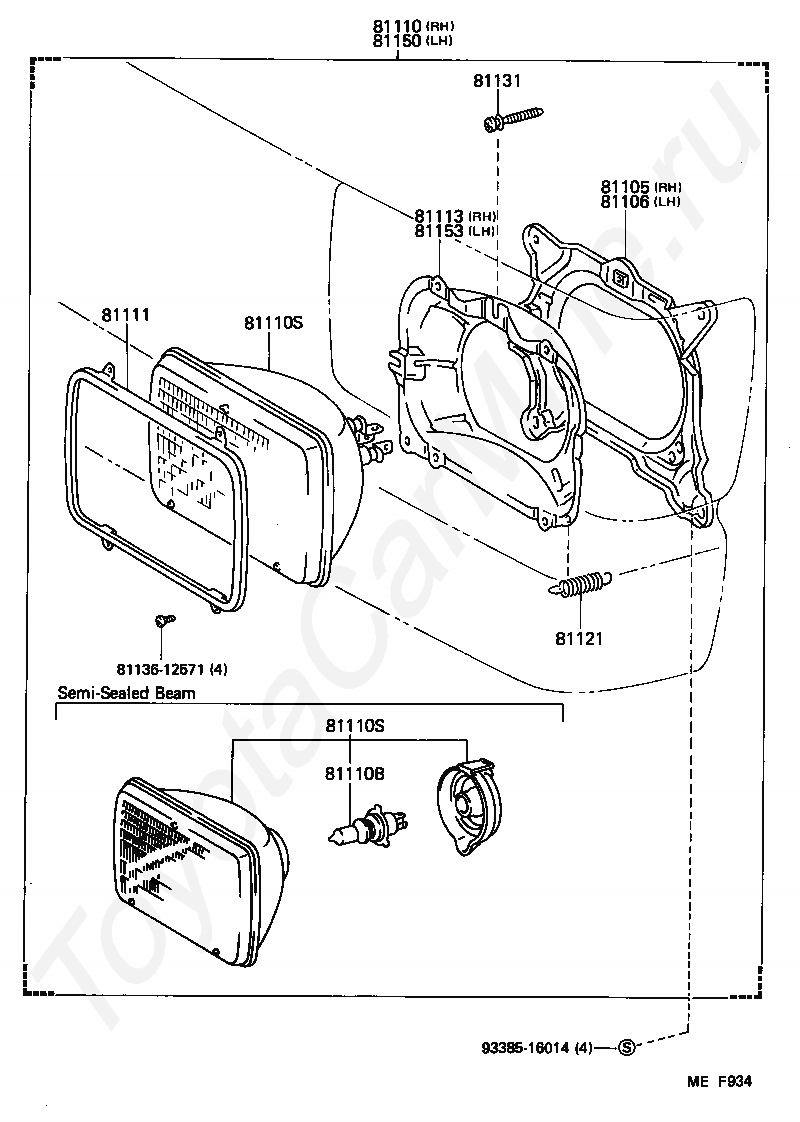

Фары TOYOTA HIACE VAN,COMMUTER

Код

Описание

04817

HEADLAMP KIT, W/O SEALED BEAM, RH

04818

HEADLAMP KIT, W/O SEALED BEAM, LH

81105

HOUSING SUB-ASSY, HEADLAMP, RH

81106

HOUSING SUB-ASSY, HEADLAMP, LH

81110

HEADLAMP ASSY, RH

81110B

BULB(FOR HEADLAMP, NO.1)

81110S

SEALED BEAM UNIT, NO.1

81110S

SEALED BEAM UNIT, NO.1

81111

RING, SEALED BEAM RETAINING

81113

RING, SEALED BEAM MOUNTING, NO.1 RH

81121

SPRING, HEADLAMP TENSION

81131

SCREW, HEADLAMP ADJUSTING

8113612571

Крепеж

81150

HEADLAMP ASSY, LH

81153

RING, SEALED BEAM MOUNTING, NO.1 LH

9338516014

Крепеж

Код

Описание

04817

HEADLAMP KIT, W/O SEALED BEAM, RH

04818

HEADLAMP KIT, W/O SEALED BEAM, LH

81105

HOUSING SUB-ASSY, HEADLAMP, RH

81106

HOUSING SUB-ASSY, HEADLAMP, LH

81110

HEADLAMP ASSY, RH

81110B

BULB(FOR HEADLAMP, NO.1)

81110S

SEALED BEAM UNIT, NO.1

81110S

SEALED BEAM UNIT, NO.1

81111

RING, SEALED BEAM RETAINING

81113

RING, SEALED BEAM MOUNTING, NO.1 RH

81121

SPRING, HEADLAMP TENSION

81131

SCREW, HEADLAMP ADJUSTING

8113612571

Крепеж

81150

HEADLAMP ASSY, LH

81153

RING, SEALED BEAM MOUNTING, NO.1 LH

9338516014

Крепеж

Код

Описание

81105

HOUSING SUB-ASSY, HEADLAMP, RH

81106

HOUSING SUB-ASSY, HEADLAMP, LH

81110

HEADLAMP ASSY, RH

81110B

BULB(FOR HEADLAMP, NO.1)

81110S

SEALED BEAM UNIT, NO.1

81110S

SEALED BEAM UNIT, NO.1

81111

RING, SEALED BEAM RETAINING

81113

RING, SEALED BEAM MOUNTING, NO.1 RH

81121

SPRING, HEADLAMP TENSION

81131

SCREW, HEADLAMP ADJUSTING

8113612571

Крепеж

81150

HEADLAMP ASSY, LH

81153

RING, SEALED BEAM MOUNTING, NO.1 LH

9338516014

Крепеж
