Каталог

Европа

Модель

HIACE VAN,COMMUTER

VIN

Дата

1982/12

Двигатель

1,8 литра

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

YH50

КПП

механика МКПП, 4 ступени, на руле

Опции

правый руль STANDARD ROOF 4-дверный вэн SIDE GLASS VAN 03S GEN

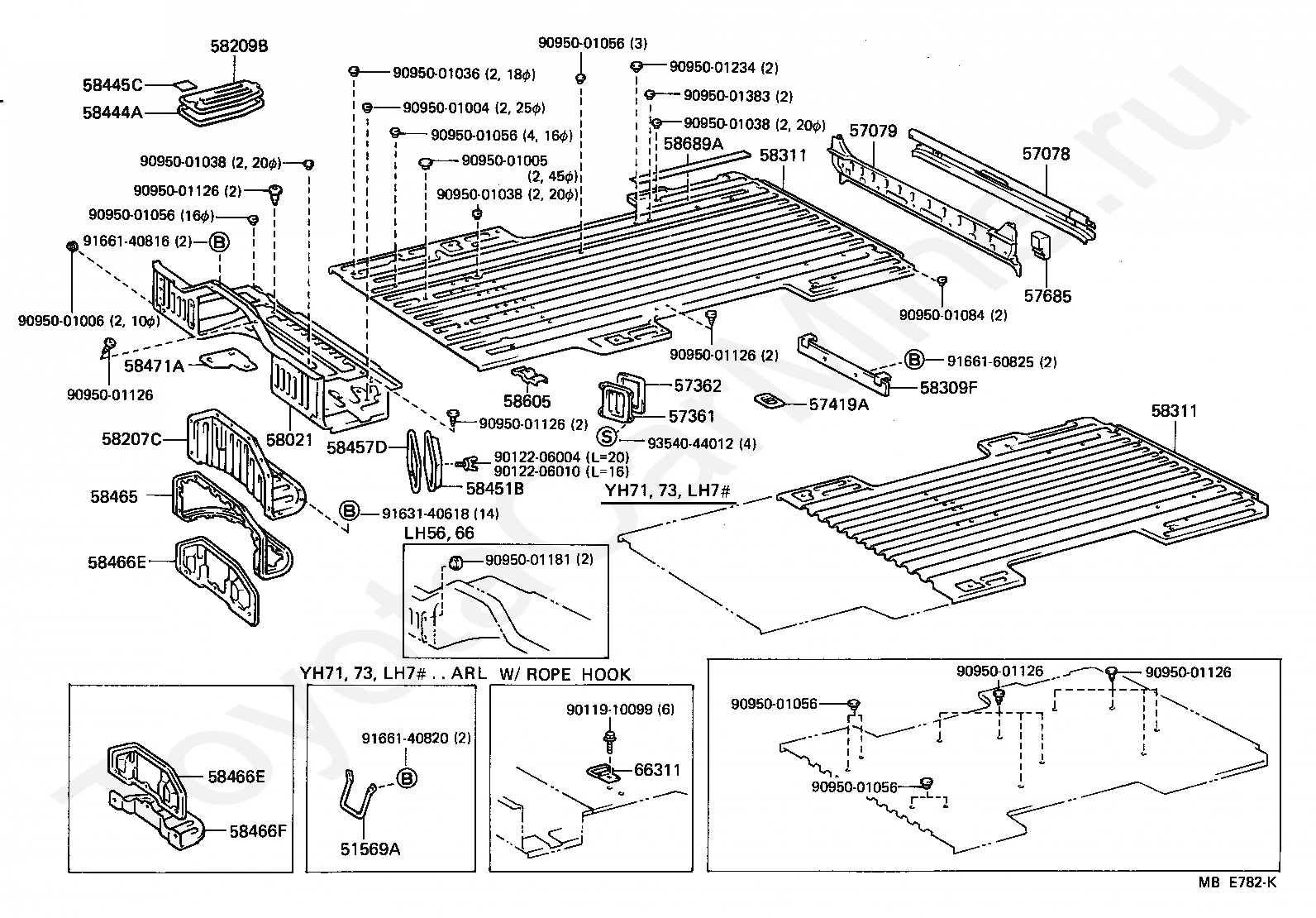

Задняя панель пола TOYOTA HIACE VAN,COMMUTER

Код

Описание

51569A

GUARD, PROPELLER SHAFT

57078

MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER

57079

MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER

57361

COVER, OUTRIGGER HOLE

57362

PACKING, OUTRIGGER HOLE COVER

57419A

PLATE, REAR SEAT LOCK

57685

DUST PROOF, REAR FLOOR CROSSMEMBER

58021

PANEL SUB-ASSY, HEADER

58207C

COVER SUB-ASSY, TRANSMISSION SERVICE HOLE

58209B

COVER SUB-ASSY, BATTERY SERVICE HOLE

58309F

BALANCER SUB-ASSY, REAR FLOOR

58311

PAN, REAR FLOOR

58311

PAN, REAR FLOOR

58444A

PACKING, BATTERY SERVICE HOLE COVER

58445C

PAD, BATTERY SERVICE HOLE COVER

58451B

COVER, AIR CLEANER SERVICE HOLE

58457D

PACKING, AIR CLEANER SERVICE HOLE COVER

58465

PACKING, TRANSMISSION SERVICE HOLE COVER, NO.1

58466E

SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1

58466E

SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1

58466F

SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.2

58471A

SILENCER, HEADER PANEL

58605

RETAINER SUB-ASSY, REAR SEAT, NO.1

58689A

WEIGHT, REAR FLOOR

66311

HOOK, ROPE

9011910099

Крепеж

9012206004

Крепеж

9012206010

Крепеж

9095001004

Крепеж

9095001005

Крепеж

9095001006

Крепеж

9095001036

Крепеж

9095001038

Крепеж

9095001038

Крепеж

9095001038

Крепеж

9095001056

Крепеж

9095001056

Крепеж

9095001056

Крепеж

9095001056

Крепеж

9095001056

Крепеж

9095001084

Крепеж

9095001126

Крепеж

9095001126

Крепеж

9095001126

Крепеж

9095001126

Крепеж

9095001126

Крепеж

9095001126

Крепеж

9095001181

Крепеж

9095001234

Крепеж

9095001383

Крепеж

9163140618

Крепеж

9166140816

Крепеж

9166140820

Крепеж

9166160825

Крепеж

9354044012

Крепеж

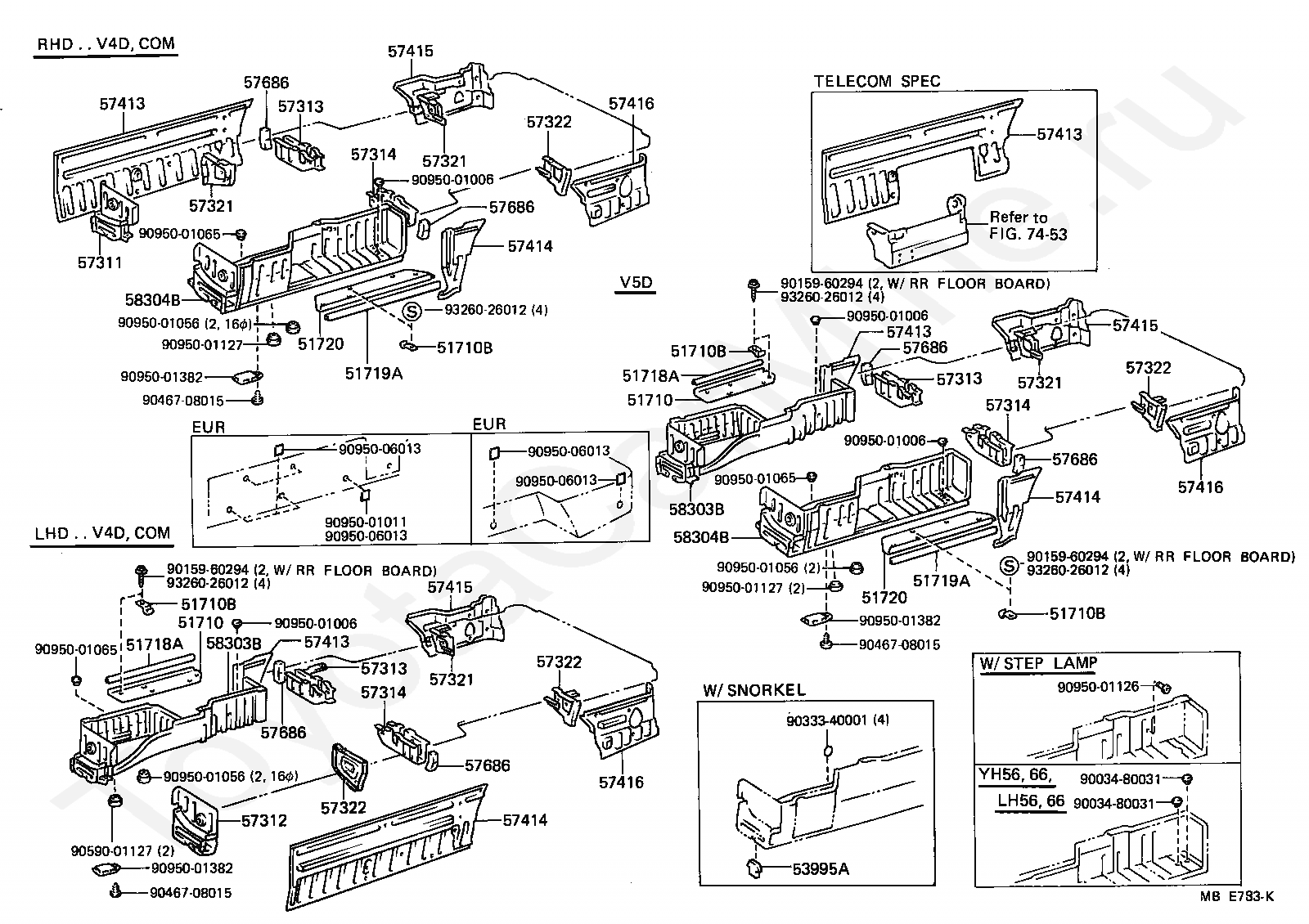

Код

Описание

51710

COVER ASSY, SIDE DOOR STEP PLATE, RH

51710

COVER ASSY, SIDE DOOR STEP PLATE, RH

51710B

CLAMP, SIDE DOOR STEP OPENING

51710B

CLAMP, SIDE DOOR STEP OPENING

51710B

CLAMP, SIDE DOOR STEP OPENING

51710B

CLAMP, SIDE DOOR STEP OPENING

51718A

PROTECTOR, STEP COVER, RH

51718A

PROTECTOR, STEP COVER, RH

51719A

PROTECTOR, STEP COVER, LH

51719A

PROTECTOR, STEP COVER, LH

51720

COVER ASSY, SIDE DOOR STEP PLATE, LH

51720

COVER ASSY, SIDE DOOR STEP PLATE, LH

53995A

PLUG, AIR CLEANER INLET

57311

OUTRIGGER, NO.1 RH

57312

OUTRIGGER, NO.1 LH

57313

OUTRIGGER, NO.2 RH

57313

OUTRIGGER, NO.2 RH

57313

OUTRIGGER, NO.2 RH

57314

OUTRIGGER, NO.2 LH

57314

OUTRIGGER, NO.2 LH

57314

OUTRIGGER, NO.2 LH

57321

OUTRIGGER, NO.4 RH

57321

OUTRIGGER, NO.4 RH

57321

OUTRIGGER, NO.4 RH

57321

OUTRIGGER, NO.4 RH

57322

OUTRIGGER, NO.4 LH

57322

OUTRIGGER, NO.4 LH

57322

OUTRIGGER, NO.4 LH

57322

OUTRIGGER, NO.4 LH

57413

RAIL, FLOOR SIDE, CENTER RH

57413

RAIL, FLOOR SIDE, CENTER RH

57413

RAIL, FLOOR SIDE, CENTER RH

57413

RAIL, FLOOR SIDE, CENTER RH

57414

RAIL, FLOOR SIDE, CENTER LH

57414

RAIL, FLOOR SIDE, CENTER LH

57414

RAIL, FLOOR SIDE, CENTER LH

57415

RAIL, FLOOR SIDE, REAR RH

57415

RAIL, FLOOR SIDE, REAR RH

57415

RAIL, FLOOR SIDE, REAR RH

57416

RAIL, FLOOR SIDE, REAR LH

57416

RAIL, FLOOR SIDE, REAR LH

57416

RAIL, FLOOR SIDE, REAR LH

57686

DUST PROOF, OUTRIGGER

57686

DUST PROOF, OUTRIGGER

57686

DUST PROOF, OUTRIGGER

57686

DUST PROOF, OUTRIGGER

57686

DUST PROOF, OUTRIGGER

57686

DUST PROOF, OUTRIGGER

58303B

STEP SUB-ASSY, REAR FLOOR, RH

58303B

STEP SUB-ASSY, REAR FLOOR, RH

58304B

STEP SUB-ASSY, REAR FLOOR, LH

58304B

STEP SUB-ASSY, REAR FLOOR, LH

7453

переход к группе запчастей

9003480031

Крепеж

9003480031

Крепеж

9015960294

Крепеж

9015960294

Крепеж

9015960294

Крепеж

9033340001

Крепеж

9046708015

Крепеж

9046708015

Крепеж

9046708015

Крепеж

9059001127

Крепеж

9095001006

Крепеж

9095001006

Крепеж

9095001006

Крепеж

9095001006

Крепеж

9095001011

Крепеж

9095001056

Крепеж

9095001056

Крепеж

9095001056

Крепеж

9095001065

Крепеж

9095001065

Крепеж

9095001065

Крепеж

9095001126

Крепеж

9095001127

Крепеж

9095001127

Крепеж

9095001382

Крепеж

9095001382

Крепеж

9095001382

Крепеж

9095006013

Крепеж

9095006013

Крепеж

9095006013

Крепеж

9095006013

Крепеж

9326026012

Крепеж

9326026012

Крепеж

9326026012

Крепеж

9326026012

Крепеж

Задняя панель пола TOYOTA HIACE VAN,COMMUTER
