Каталог

Европа

Модель

HIACE VAN,COMMUTER

VIN

Дата

1982/12

Двигатель

1,8 литра

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

YH50

КПП

механика МКПП, 4 ступени, на руле

Опции

правый руль STANDARD ROOF 4-дверный вэн SIDE GLASS VAN 03S GEN

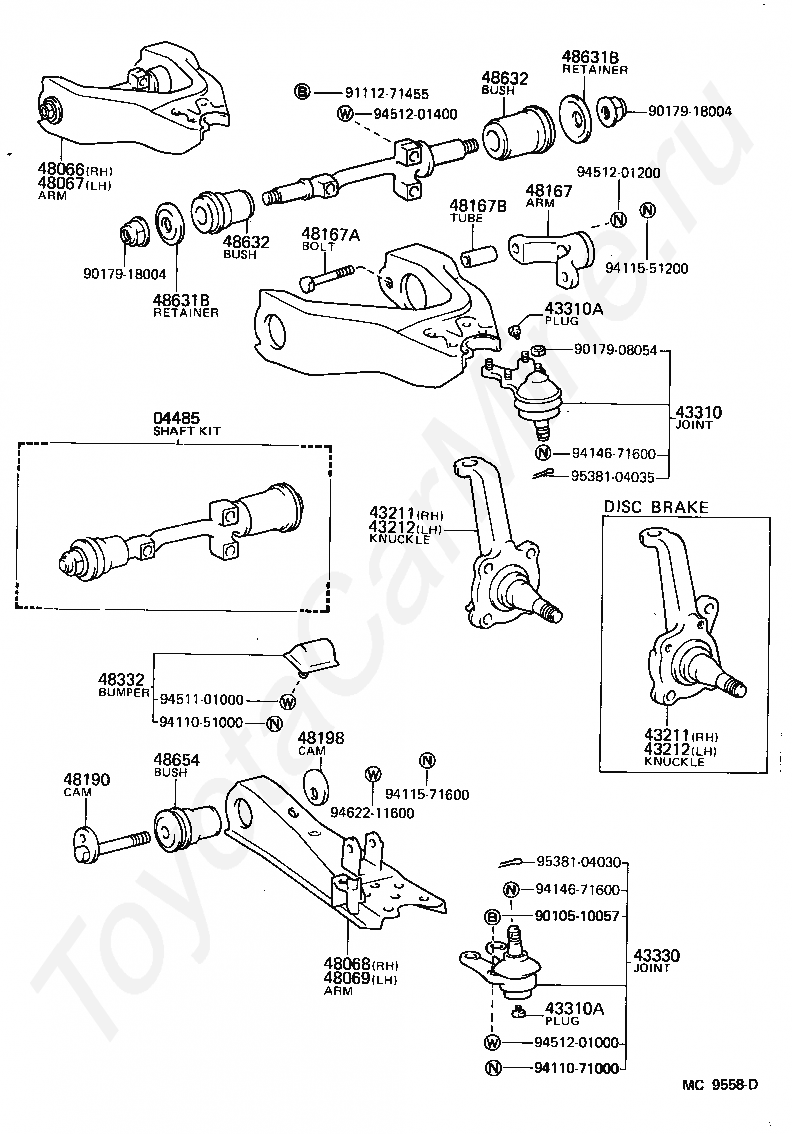

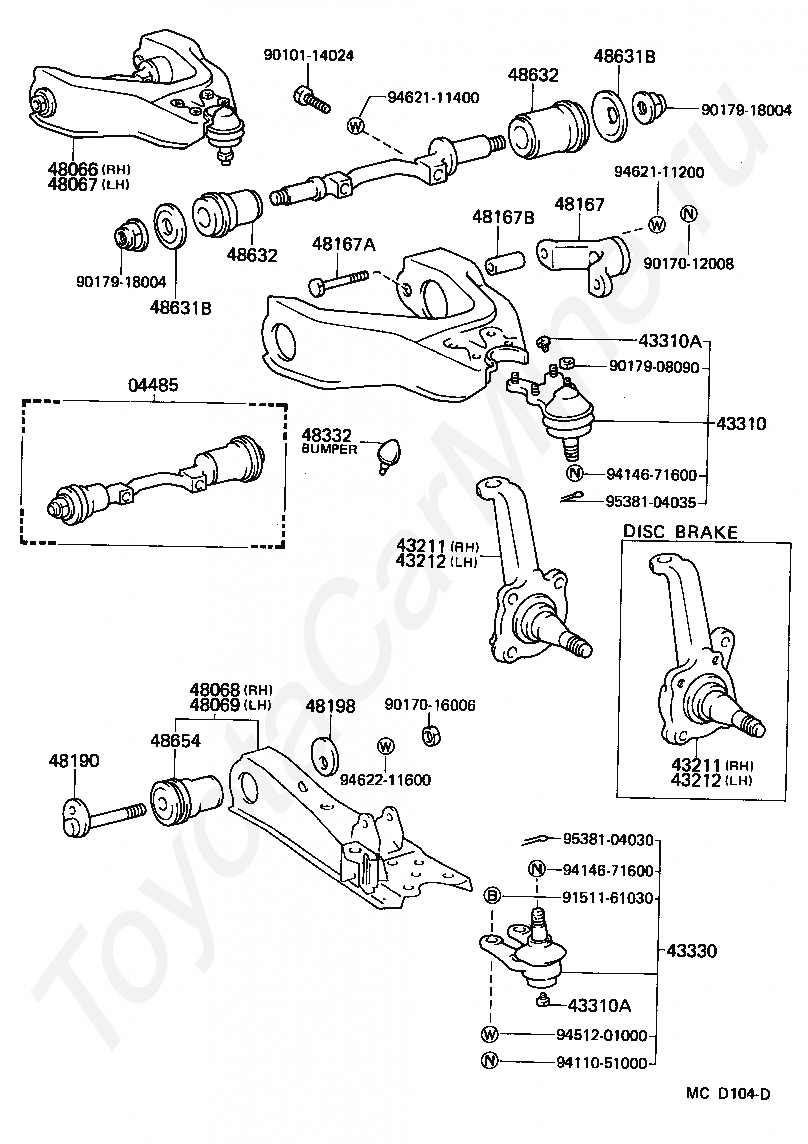

Рычаги передней подвески TOYOTA HIACE VAN,COMMUTER

Код

Описание

04485

SHAFT KIT, UPPER SUSPENSION ARM

43211

KNUCKLE, STEERING, RH

43211

KNUCKLE, STEERING, RH

43212

KNUCKLE, STEERING, LH

43212

KNUCKLE, STEERING, LH

43310

JOINT ASSY, UPPER BALL

43310A

PLUG (FOR BALL JOINT)

43310A

PLUG (FOR BALL JOINT)

43330

JOINT ASSY, LOWER BALL, FRONT

48066

ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

48067

ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

48068

ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

48069

ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

48167

ARM, TORQUE

48167A

BOLT(FOR TORQUE ARM SETTING)

48167B

TUBE(FOR TORQUE ARM SETTING BOLT)

48190

CAM ASSY, CAMBER ADJUST

48198

CAM, CAMBER ADJUST, NO.2

48332

BUMPER, FRONT SPRING, NO.2

48631B

RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)

48631B

RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)

48632

BUSH, UPPER ARM

48632

BUSH, UPPER ARM

48654

BUSH, LOWER ARM

9010510057

Крепеж

9017908054

Крепеж

9017918004

Крепеж

9017918004

Крепеж

9111271455

Крепеж

9411051000

Крепеж

9411071000

Крепеж

9411551200

Крепеж

9411571600

Крепеж

9414671600

Крепеж

9414671600

Крепеж

9451101000

Крепеж

9451201000

Крепеж

9451201200

Крепеж

9451201400

Крепеж

9462211600

Крепеж

9538104030

Крепеж

9538104035

Крепеж

Код

Описание

04485

SHAFT KIT, UPPER SUSPENSION ARM

43211

KNUCKLE, STEERING, RH

43211

KNUCKLE, STEERING, RH

43212

KNUCKLE, STEERING, LH

43212

KNUCKLE, STEERING, LH

43310

JOINT ASSY, UPPER BALL

43310A

PLUG (FOR BALL JOINT)

43310A

PLUG (FOR BALL JOINT)

43330

JOINT ASSY, LOWER BALL, FRONT

48066

ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

48067

ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

48068

ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

48069

ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

48167

ARM, TORQUE

48167A

BOLT(FOR TORQUE ARM SETTING)

48167B

TUBE(FOR TORQUE ARM SETTING BOLT)

48190

CAM ASSY, CAMBER ADJUST

48198

CAM, CAMBER ADJUST, NO.2

48332

BUMPER, FRONT SPRING, NO.2

48631B

RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)

48631B

RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)

48632

BUSH, UPPER ARM

48632

BUSH, UPPER ARM

48654

BUSH, LOWER ARM

9010114024

Крепеж

9017012008

Крепеж

9017016006

Крепеж

9017908090

Крепеж

9017918004

Крепеж

9017918004

Крепеж

9151161030

Крепеж

9411051000

Крепеж

9414671600

Крепеж

9414671600

Крепеж

9451201000

Крепеж

9462111200

Крепеж

9462111400

Крепеж

9462211600

Крепеж

9538104030

Крепеж

9538104035

Крепеж
