Каталог

Европа

Модель

HIACE VAN,COMMUTER

VIN

Дата

1982/12

Двигатель

1,8 литра

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

YH50

КПП

механика МКПП, 4 ступени, на руле

Опции

правый руль STANDARD ROOF 4-дверный вэн SIDE GLASS VAN 03S GEN

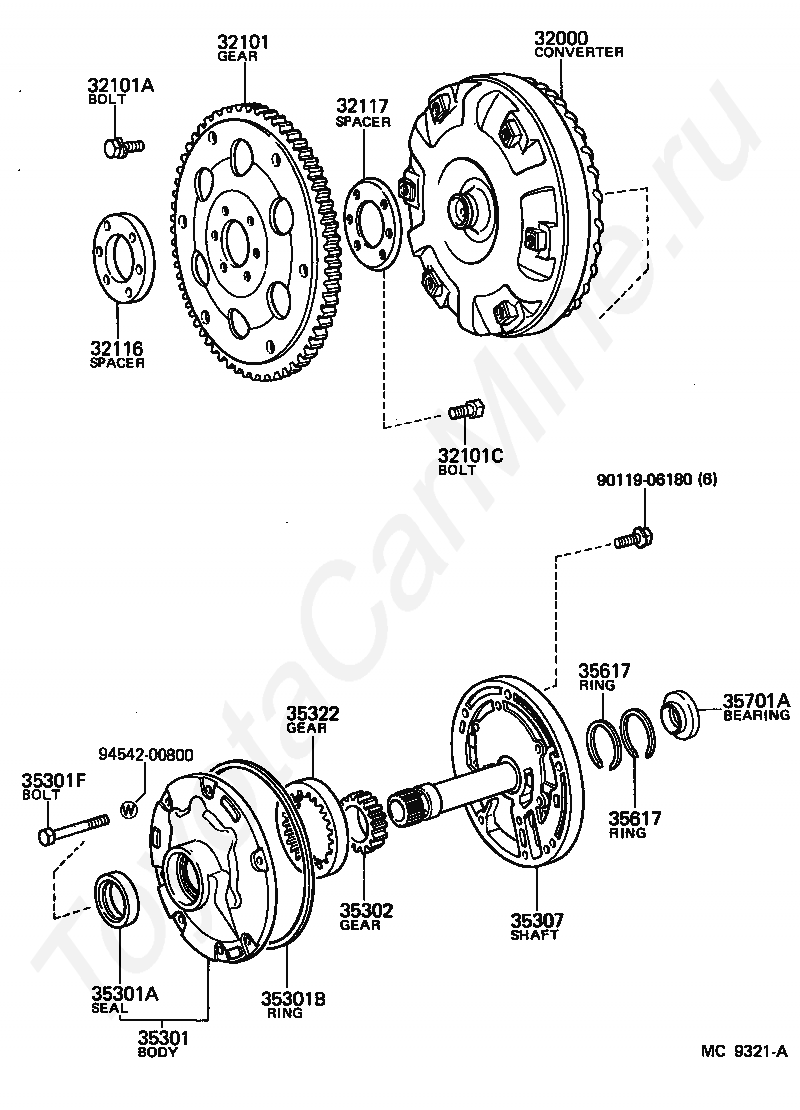

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM) TOYOTA HIACE VAN,COMMUTER

Код

Описание

32000

CONVERTER ASSY, TORQUE

32101

GEAR SUB-ASSY, DRIVE PLATE & RING

32101A

BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

32101C

BOLT, HEXAGON(FOR DRIVE PLATE SETTING)

32116

SPACER, DRIVE PLATE, FRONT

32117

SPACER, DRIVE PLATE, REAR

35301

BODY SUB-ASSY, FRONT OIL PUMP

35301A

SEAL, OIL (FOR FRONT OIL PUMP)

35301B

RING, O (FOR FRONT OIL PUMP BODY)

35301F

BOLT (FOR FRONT OIL PUMP SETTING)

35302

GEAR SUB-ASSY, FRONT OIL PUMP DRIVE

35307

SHAFT SUB-ASSY, STATOR

35322

GEAR, FRONT OIL PUMP DRIVEN

35617

RING, CLUTCH DRUM OIL SEAL

35617

RING, CLUTCH DRUM OIL SEAL

35701A

BEARING, THRUST (FOR INPUT SHAFT FRONT)

9011906180

Крепеж

9454200800

Крепеж

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM) TOYOTA HIACE VAN,COMMUTER
