Каталог

Европа

Модель

HIACE VAN,COMMUTER

VIN

Дата

1982/12

Двигатель

1,8 литра

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

YH50

КПП

механика МКПП, 4 ступени, на руле

Опции

правый руль STANDARD ROOF 4-дверный вэн SIDE GLASS VAN 03S GEN

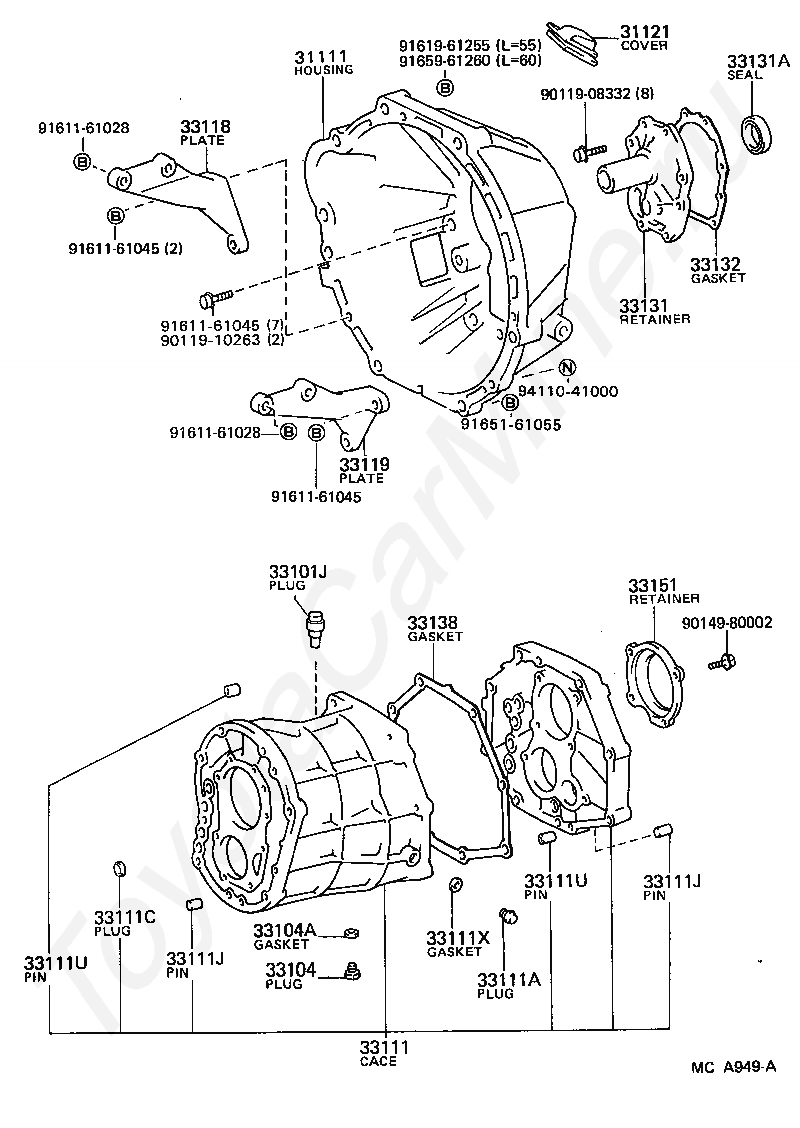

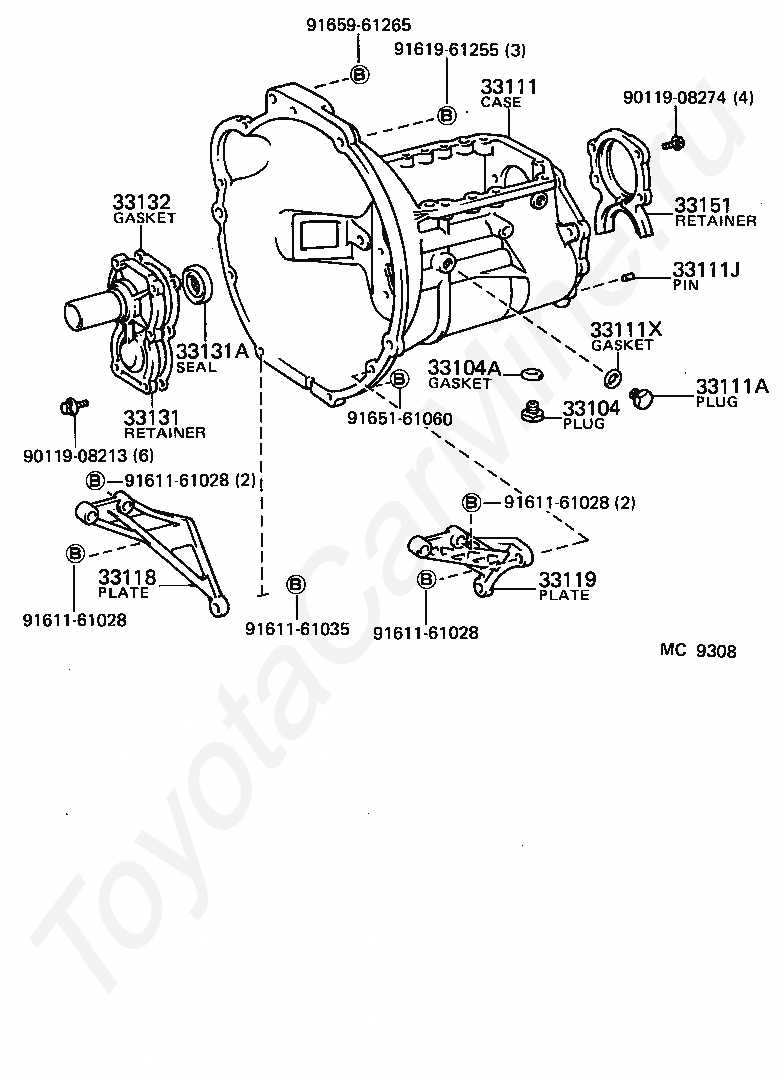

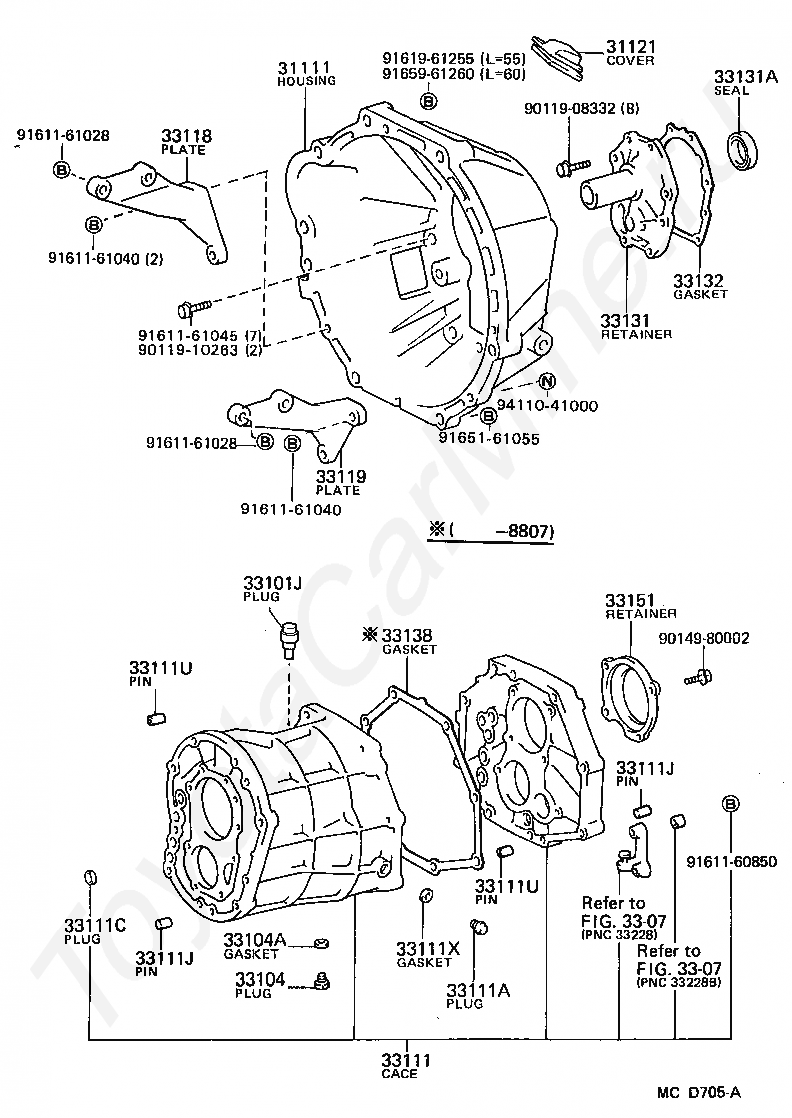

CLUTCH HOUSING & TRANSMISSION CASE (MTM) TOYOTA HIACE VAN,COMMUTER

Код

Описание

33104

PLUG SUB-ASSY, DRAIN(MTM)

33104A

GASKET, DRAIN PLUG(MTM)

33111

CASE, MANUAL TRANSMISSION

33111A

PLUG, MANUAL TRANSMISSION CASE

33111J

PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

33111X

GASKET, TRANSMISSION CASE PLUG

33118

PLATE, STIFFENER, RH(MTM)

33119

PLATE, STIFFENER, LH(MTM)

33131

RETAINER, BEARING, FRONT(MTM)

33131A

SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

33132

GASKET, FRONT BEARING RETAINER(MTM)

33151

RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

9011908213

Крепеж

9011908274

Крепеж

9161161028

Крепеж

9161161028

Крепеж

9161161028

Крепеж

9161161028

Крепеж

9161161035

Крепеж

9161961255

Крепеж

9165161060

Крепеж

9165961265

Крепеж

Код

Описание

31111

HOUSING, CLUTCH

31121

COVER, CLUTCH HOUSING, NO.1

33101J

PLUG, BREATHER

33104

PLUG SUB-ASSY, DRAIN(MTM)

33104A

GASKET, DRAIN PLUG(MTM)

33111

CASE, MANUAL TRANSMISSION

33111A

PLUG, MANUAL TRANSMISSION CASE

33111C

PLUG(FOR TRANSMISSION CASE)

33111J

PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

33111J

PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

33111U

PIN, RING(FOR MANUAL TRANSMISSION CASE)

33111U

PIN, RING(FOR MANUAL TRANSMISSION CASE)

33111X

GASKET, TRANSMISSION CASE PLUG

33118

PLATE, STIFFENER, RH(MTM)

33119

PLATE, STIFFENER, LH(MTM)

33131

RETAINER, BEARING, FRONT(MTM)

33131A

SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

33132

GASKET, FRONT BEARING RETAINER(MTM)

33138

GASKET, INTERMEDIATE PLATE

33151

RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

9011908332

Крепеж

9011910263

Крепеж

9014980002

Крепеж

9161161028

Крепеж

9161161028

Крепеж

9161161045

Крепеж

9161161045

Крепеж

9161161045

Крепеж

9161961255

Крепеж

9165161055

Крепеж

9165961260

Крепеж

9411041000

Крепеж

Код

Описание

31111

HOUSING, CLUTCH

31121

COVER, CLUTCH HOUSING, NO.1

3307

переход к группе запчастей

3307

переход к группе запчастей

33101J

PLUG, BREATHER

33104

PLUG SUB-ASSY, DRAIN(MTM)

33104A

GASKET, DRAIN PLUG(MTM)

33111

CASE, MANUAL TRANSMISSION

33111A

PLUG, MANUAL TRANSMISSION CASE

33111C

PLUG(FOR TRANSMISSION CASE)

33111J

PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

33111J

PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

33111U

PIN, RING(FOR MANUAL TRANSMISSION CASE)

33111U

PIN, RING(FOR MANUAL TRANSMISSION CASE)

33111X

GASKET, TRANSMISSION CASE PLUG

33118

PLATE, STIFFENER, RH(MTM)

33119

PLATE, STIFFENER, LH(MTM)

33131

RETAINER, BEARING, FRONT(MTM)

33131A

SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

33132

GASKET, FRONT BEARING RETAINER(MTM)

33138

GASKET, INTERMEDIATE PLATE

33151

RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

9011908332

Крепеж

9011910263

Крепеж

9014980002

Крепеж

9161160850

Крепеж

9161161028

Крепеж

9161161028

Крепеж

9161161040

Крепеж

9161161040

Крепеж

9161161045

Крепеж

9161961255

Крепеж

9165161055

Крепеж

9165961260

Крепеж

9411041000

Крепеж

CLUTCH HOUSING & TRANSMISSION CASE (MTM) TOYOTA HIACE VAN,COMMUTER
