Каталог

Европа

Модель

HIACE VAN,COMMUTER

VIN

Дата

1982/12

Двигатель

1,8 литра

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

YH50

КПП

механика МКПП, 4 ступени, на руле

Опции

правый руль STANDARD ROOF 4-дверный вэн SIDE GLASS VAN 03S GEN

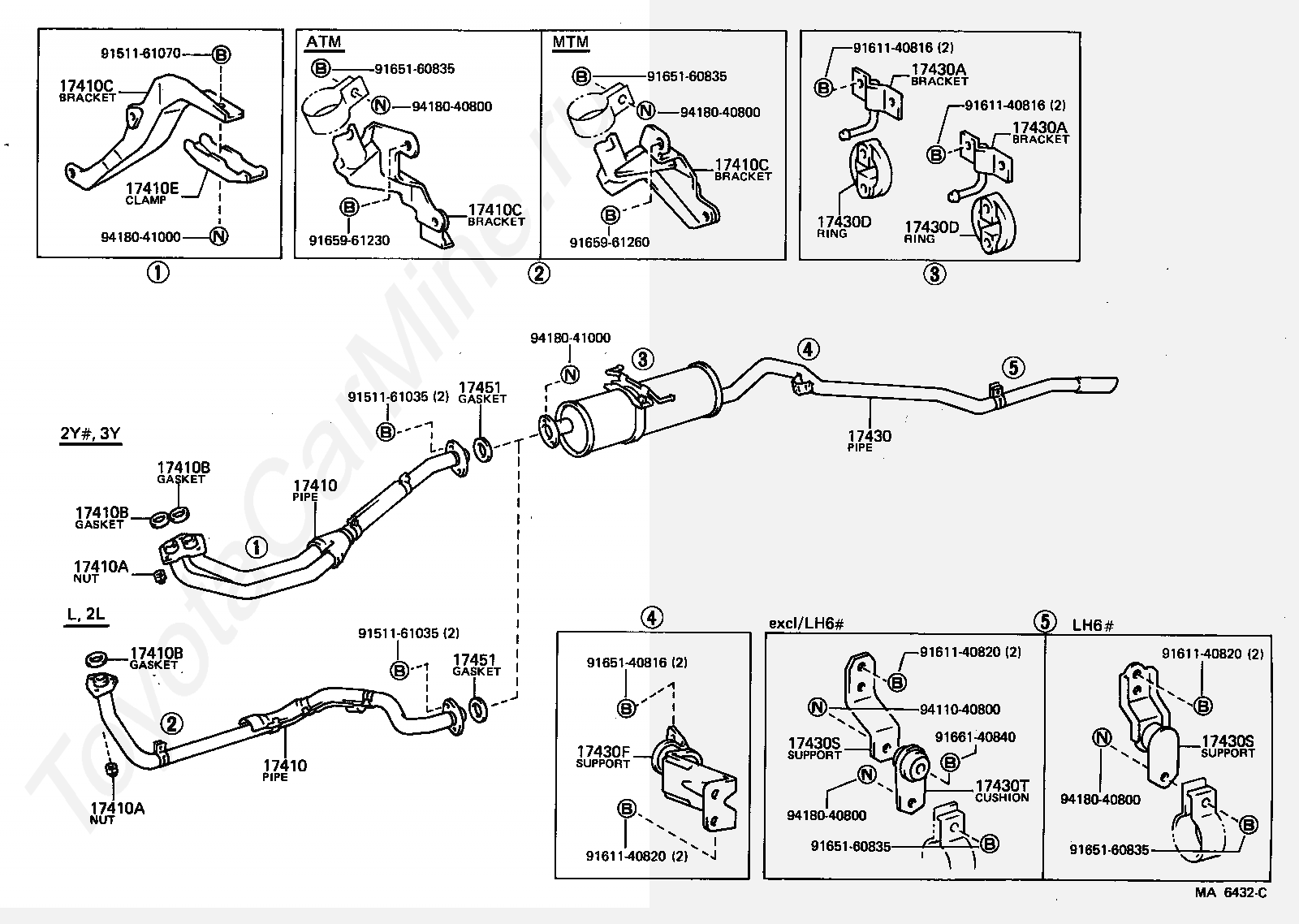

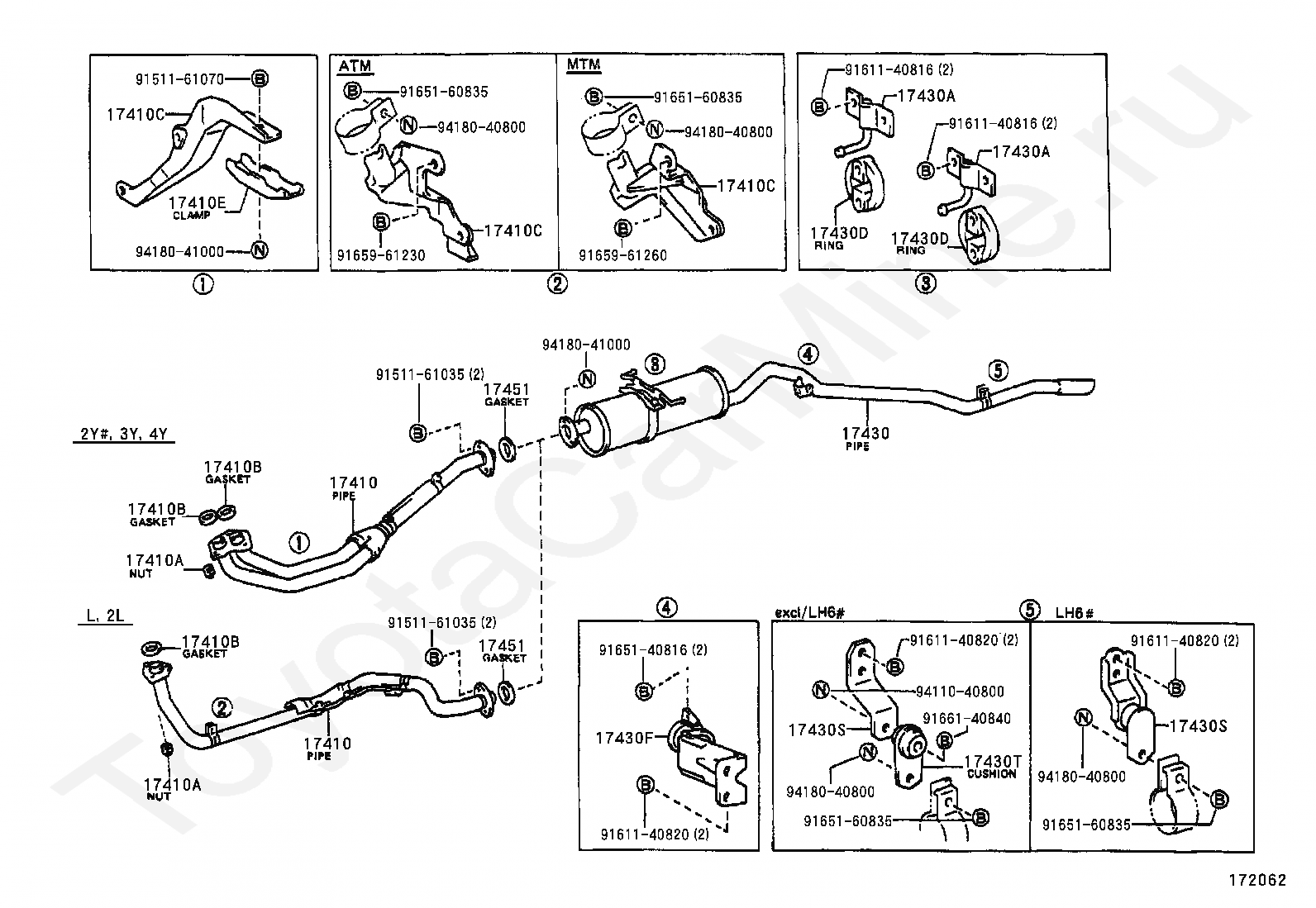

Глушитель TOYOTA HIACE VAN,COMMUTER

Код

Описание

17410

PIPE ASSY, EXHAUST, FRONT

17410

PIPE ASSY, EXHAUST, FRONT

17410A

NUT, EXHAUST PIPE SET STUD BOLT

17410A

NUT, EXHAUST PIPE SET STUD BOLT

17410B

GASKET, EXHAUST PIPE

17410B

GASKET, EXHAUST PIPE

17410B

GASKET, EXHAUST PIPE

17410C

BRACKET, EXHAUST PIPE FRONT (FOR FRONT)

17410C

BRACKET, EXHAUST PIPE FRONT (FOR FRONT)

17410C

BRACKET, EXHAUST PIPE FRONT (FOR FRONT)

17410E

CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)

17430

PIPE ASSY, EXHAUST, TAIL

17430A

BRACKET, EXHAUST TAIL PIPE(FOR FRONT)

17430A

BRACKET, EXHAUST TAIL PIPE(FOR FRONT)

17430D

BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)

17430D

BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)

17430F

BRACKET, EXHAUST TAIL PIPE(FOR CENTER)

17430S

BRACKET, EXHAUST TAIL PIPE (FOR REAR)

17430S

BRACKET, EXHAUST TAIL PIPE (FOR REAR)

17430T

CUSHION, EXHAUST TAIL PIPE (FOR REAR)

17451

GASKET, EXHAUST PIPE

17451

GASKET, EXHAUST PIPE

9151161035

Крепеж

9151161035

Крепеж

9151161070

Крепеж

9161140816

Крепеж

9161140816

Крепеж

9161140820

Крепеж

9161140820

Крепеж

9161140820

Крепеж

9165140816

Крепеж

9165160835

Крепеж

9165160835

Крепеж

9165160835

Крепеж

9165160835

Крепеж

9165961230

Крепеж

9165961260

Крепеж

9166140840

Крепеж

9411040800

Крепеж

9418040800

Крепеж

9418040800

Крепеж

9418040800

Крепеж

9418040800

Крепеж

9418041000

Крепеж

9418041000

Крепеж

Код

Описание

17410

PIPE ASSY, EXHAUST, FRONT

17410

PIPE ASSY, EXHAUST, FRONT

17410A

NUT, EXHAUST PIPE SET STUD BOLT

17410A

NUT, EXHAUST PIPE SET STUD BOLT

17410B

GASKET, EXHAUST PIPE

17410B

GASKET, EXHAUST PIPE

17410B

GASKET, EXHAUST PIPE

17410C

BRACKET, EXHAUST PIPE FRONT (FOR FRONT)

17410C

BRACKET, EXHAUST PIPE FRONT (FOR FRONT)

17410C

BRACKET, EXHAUST PIPE FRONT (FOR FRONT)

17410E

CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)

17430

PIPE ASSY, EXHAUST, TAIL

17430A

BRACKET, EXHAUST TAIL PIPE(FOR FRONT)

17430A

BRACKET, EXHAUST TAIL PIPE(FOR FRONT)

17430D

BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)

17430D

BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)

17430F

BRACKET, EXHAUST TAIL PIPE(FOR CENTER)

17430S

BRACKET, EXHAUST TAIL PIPE (FOR REAR)

17430S

BRACKET, EXHAUST TAIL PIPE (FOR REAR)

17430T

CUSHION, EXHAUST TAIL PIPE (FOR REAR)

17451

GASKET, EXHAUST PIPE

17451

GASKET, EXHAUST PIPE

9151161035

Крепеж

9151161035

Крепеж

9151161070

Крепеж

9161140816

Крепеж

9161140816

Крепеж

9161140820

Крепеж

9161140820

Крепеж

9161140820

Крепеж

9165140816

Крепеж

9165160835

Крепеж

9165160835

Крепеж

9165160835

Крепеж

9165160835

Крепеж

9165961230

Крепеж

9165961260

Крепеж

9166140840

Крепеж

9411040800

Крепеж

9418040800

Крепеж

9418040800

Крепеж

9418040800

Крепеж

9418040800

Крепеж

9418041000

Крепеж

9418041000

Крепеж
