Каталог

Европа

Модель

HIACE VAN,COMMUTER

VIN

Дата

1999/07

Двигатель

2,4 литра, EFI

Кузов

COMMUTER

Класс

GL SPECIFICATION

Фрейм

RZH115

КПП

МКПП, 5 скоростей

Опции

левый руль высокая крыша 4 двери боковое стекло 15S GEN EFI

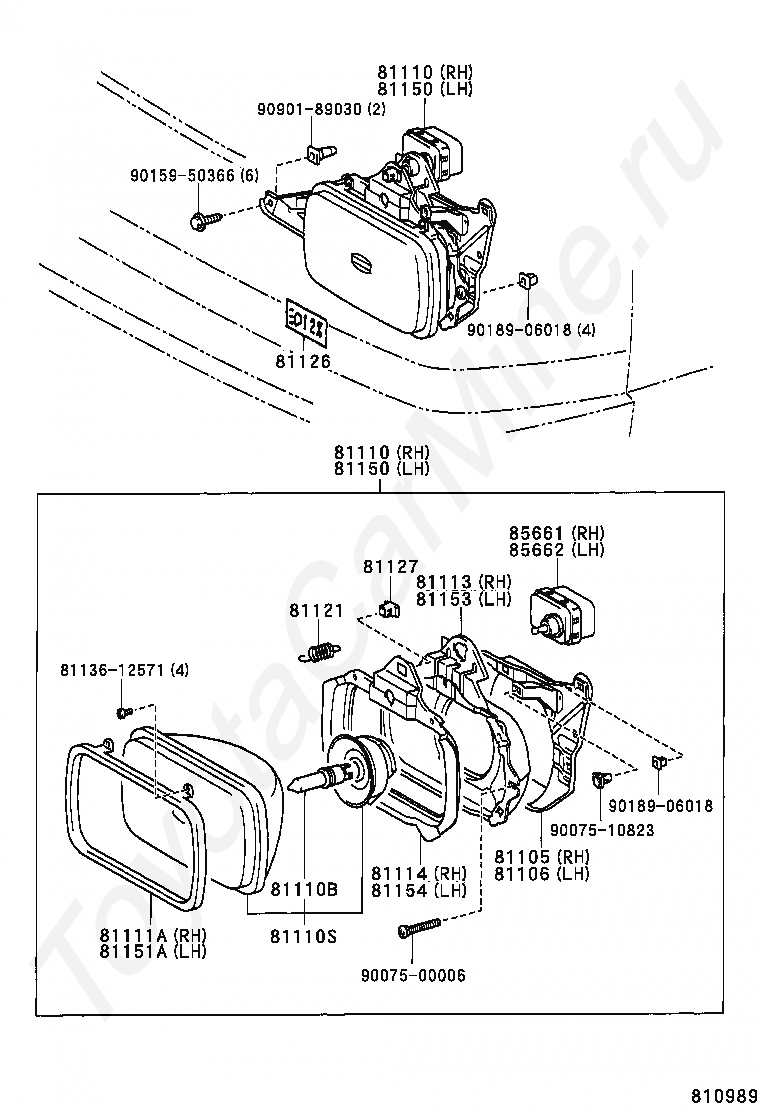

Фары TOYOTA HIACE VAN,COMMUTER

Код

Описание

7119626040

Крепеж

81110

HEADLAMP ASSY, RH

81110

HEADLAMP ASSY, RH

81110B

BULB(FOR HEADLAMP, NO.1)

81135

UNIT ASSY, HEADLAMP, RH

81144

COVER, HEADLAMP, NO.1

81150

HEADLAMP ASSY, LH

81150

HEADLAMP ASSY, LH

81175

UNIT ASSY, HEADLAMP, LH

81610F

BULB(FOR CLEARANCE LAMP)

81615D

SOCKET, CLEARANCE LAMP

9015960008

Крепеж

Код

Описание

81105

HOUSING SUB-ASSY, HEADLAMP, RH

81106

HOUSING SUB-ASSY, HEADLAMP, LH

81110

HEADLAMP ASSY, RH

81110

HEADLAMP ASSY, RH

81110B

BULB(FOR HEADLAMP, NO.1)

81110S

SEALED BEAM UNIT, NO.1

81111A

RING, SEALED BEAM RETAINING, NO.1 RH

81113

RING, SEALED BEAM MOUNTING, NO.1 RH

81114

RING, SEALED BEAM MOUNTING, NO.2 RH

81121

SPRING, HEADLAMP TENSION

81126

PLATE, HEADLAMP

81127

BEARING, HEADLAMP, NO.1

8113612571

Крепеж

81150

HEADLAMP ASSY, LH

81150

HEADLAMP ASSY, LH

81151A

RING, SEALED BEAM RETAINING, NO.1 LH

81153

RING, SEALED BEAM MOUNTING, NO.1 LH

81154

RING, SEALED BEAM MOUNTING, NO.2 LH

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

9007500006

Крепеж

9007510823

Крепеж

9015950366

Крепеж

9018906018

Крепеж

9018906018

Крепеж

9090189030

Крепеж

Код

Описание

81105

HOUSING SUB-ASSY, HEADLAMP, RH

81106

HOUSING SUB-ASSY, HEADLAMP, LH

81110

HEADLAMP ASSY, RH

81110

HEADLAMP ASSY, RH

81110B

BULB(FOR HEADLAMP, NO.1)

81110S

SEALED BEAM UNIT, NO.1

81111A

RING, SEALED BEAM RETAINING, NO.1 RH

81113

RING, SEALED BEAM MOUNTING, NO.1 RH

81114

RING, SEALED BEAM MOUNTING, NO.2 RH

81121

SPRING, HEADLAMP TENSION

81126

PLATE, HEADLAMP

81127

BEARING, HEADLAMP, NO.1

8113612571

Крепеж

81150

HEADLAMP ASSY, LH

81150

HEADLAMP ASSY, LH

81151A

RING, SEALED BEAM RETAINING, NO.1 LH

81153

RING, SEALED BEAM MOUNTING, NO.1 LH

81154

RING, SEALED BEAM MOUNTING, NO.2 LH

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

9007500006

Крепеж

9007510823

Крепеж

9015950366

Крепеж

9018906018

Крепеж

9018906018

Крепеж

9090189030

Крепеж

Код

Описание

7119626040

Крепеж

81110B

BULB(FOR HEADLAMP, NO.1)

81135

UNIT ASSY, HEADLAMP, RH

81144

COVER, HEADLAMP, NO.1

81175

UNIT ASSY, HEADLAMP, LH

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

9010906303

Крепеж

9018906111

Крепеж
