Каталог

Европа

Модель

HIACE VAN,COMMUTER

VIN

Дата

1991/08

Двигатель

2 литра

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

RZH112

КПП

МКПП, 5 скоростей

Опции

правый руль STANDARD ROOF 4 двери SEPARATE SEAT 03S GEN CBR

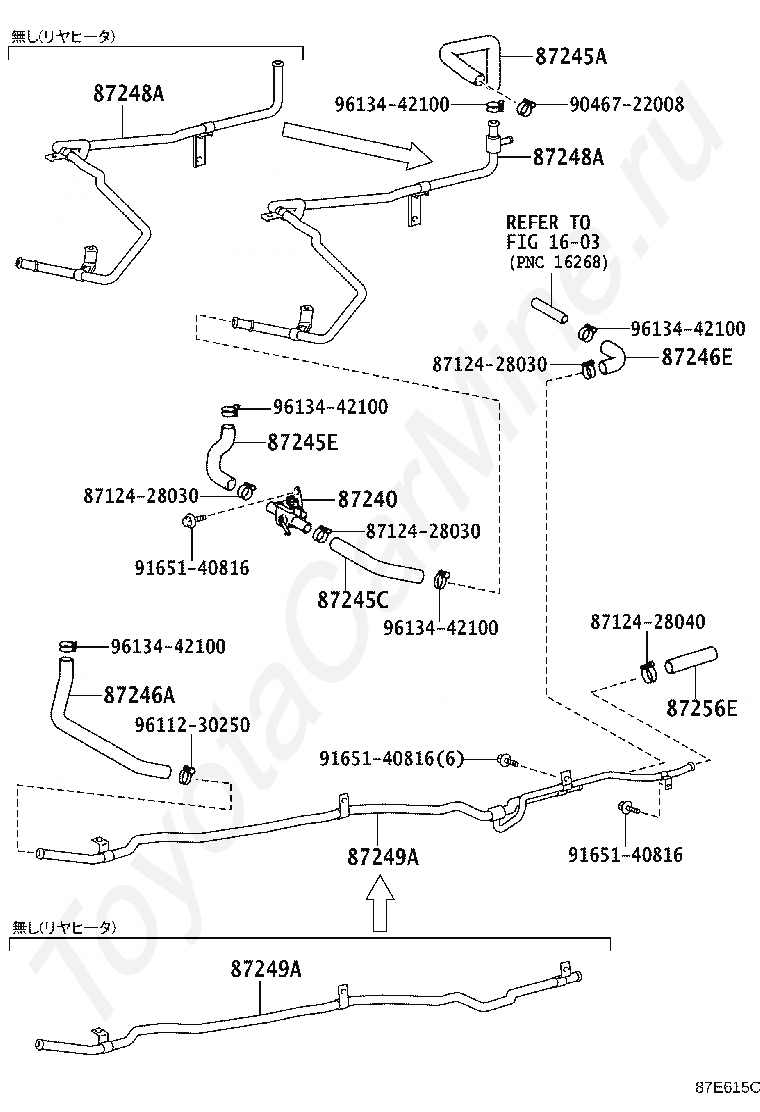

Кондиционер: водяные трубки TOYOTA HIACE VAN,COMMUTER

Код

Описание

8712495J14

Крепеж

87240

VALVE ASSY, HEATER WATER

87240

VALVE ASSY, HEATER WATER

87245A

HOSE, HEATER WATER, INLET A

87245B

HOSE, HEATER WATER, INLET B

87245C

HOSE, HEATER WATER ,INLET C

87245C

HOSE, HEATER WATER ,INLET C

87245E

HOSE, HEATER WATER, INLET E

87245E

HOSE, HEATER WATER, INLET E

87246A

HOSE, HEATER WATER, OUTLET A

87246A

HOSE, HEATER WATER, OUTLET A

87246E

HOSE, HEATER WATER, OUTLET E

87248A

PIPE, HEATER WATER INLET, A

87248A

PIPE, HEATER WATER INLET, A

87249A

PIPE, HEATER WATER OUTLET, A

87249A

PIPE, HEATER WATER OUTLET, A

87249A

PIPE, HEATER WATER OUTLET, A

87256E

HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)

9046722011

Крепеж

9046722011

Крепеж

9046722011

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9611230250

Крепеж

9611230250

Крепеж

9611230250

Крепеж

9611230250

Крепеж

9611230250

Крепеж

9611230250

Крепеж

9613442100

Крепеж

9613442100

Крепеж

9613442100

Крепеж

9613442100

Крепеж

Код

Описание

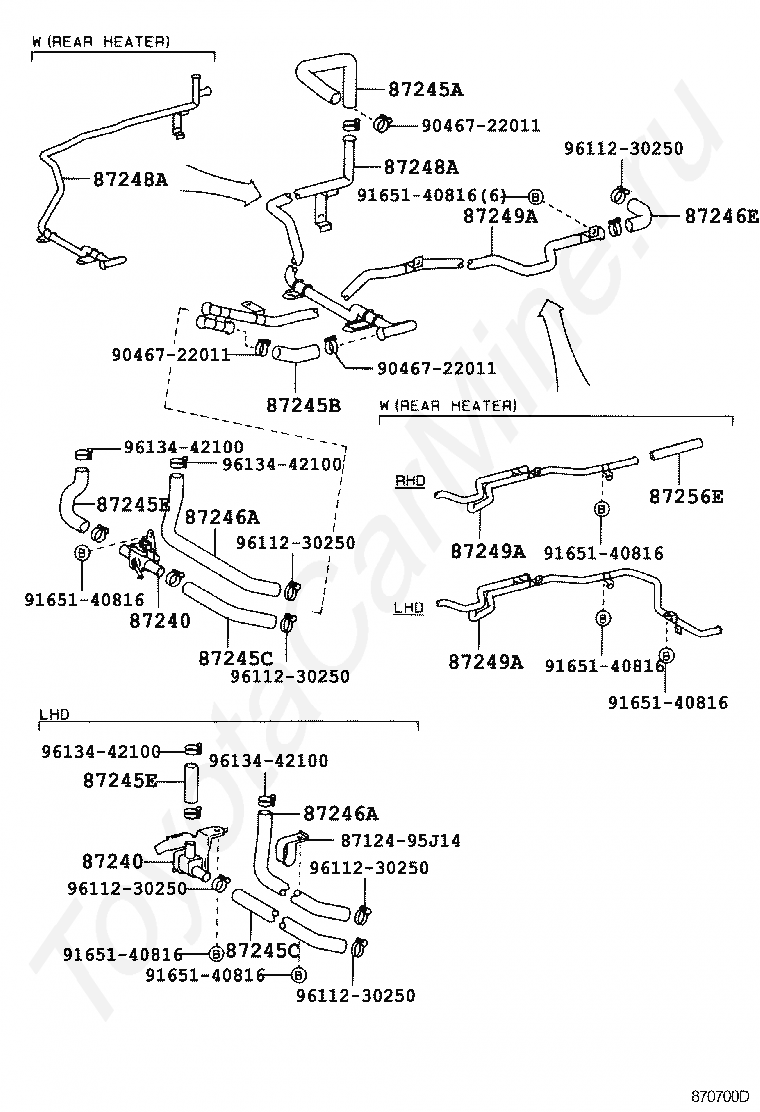

1603

переход к группе запчастей

8712428030

Крепеж

8712428030

Крепеж

8712428030

Крепеж

8712428040

Крепеж

87240

VALVE ASSY, HEATER WATER

87245A

HOSE, HEATER WATER, INLET A

87245C

HOSE, HEATER WATER ,INLET C

87245E

HOSE, HEATER WATER, INLET E

87246A

HOSE, HEATER WATER, OUTLET A

87246E

HOSE, HEATER WATER, OUTLET E

87248A

PIPE, HEATER WATER INLET, A

87248A

PIPE, HEATER WATER INLET, A

87249A

PIPE, HEATER WATER OUTLET, A

87249A

PIPE, HEATER WATER OUTLET, A

87256E

HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)

9046722008

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9611230250

Крепеж

9613442100

Крепеж

9613442100

Крепеж

9613442100

Крепеж

9613442100

Крепеж

9613442100

Крепеж

Код

Описание

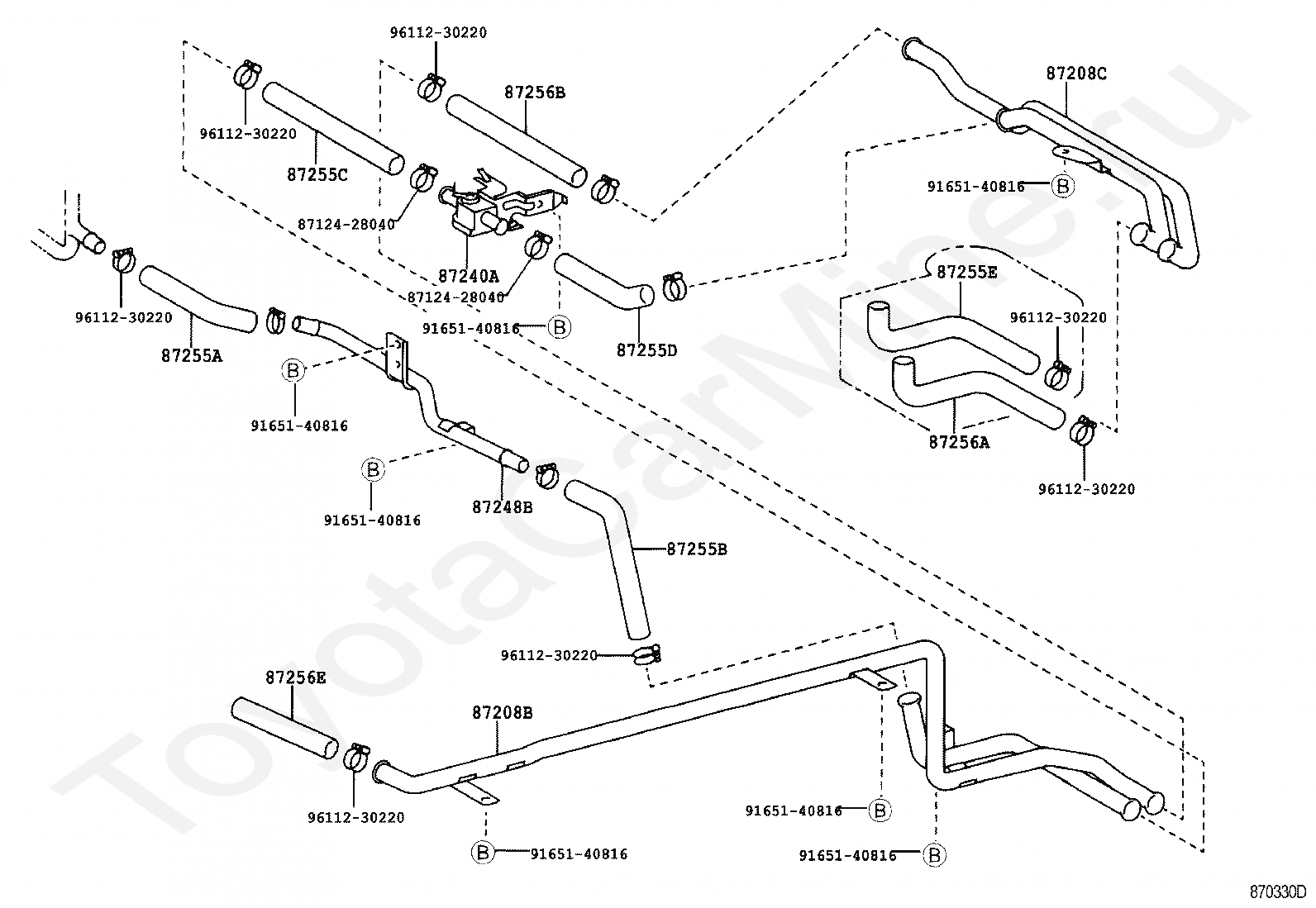

8712428040

Крепеж

8712428040

Крепеж

87208B

PIPE SUB-ASSY, HEATER WATER, B

87208C

PIPE SUB-ASSY, HEATER WATER, C

87240A

VALVE ASSY, REAR HEATER WATER

87248B

PIPE, HEATER WATER INLET, B

87255A

HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)

87255B

HOSE, REAR HEATER WATER INLET, B

87255C

HOSE, REAR HEATER WATER INLET, C

87255D

HOSE, REAR HEATER WATER INLET, D

87255E

HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)

87256A

HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)

87256B

HOSE, REAR HEATER WATER OUTLET, B

87256E

HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)

9165140816

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9611230220

Крепеж

9611230220

Крепеж

9611230220

Крепеж

9611230220

Крепеж

9611230220

Крепеж

9611230220

Крепеж

9611230220

Крепеж
