Каталог

Европа

Модель

HIACE VAN,COMMUTER

VIN

Дата

1991/08

Двигатель

2 литра

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

RZH112

КПП

МКПП, 5 скоростей

Опции

правый руль STANDARD ROOF 4 двери SEPARATE SEAT 03S GEN CBR

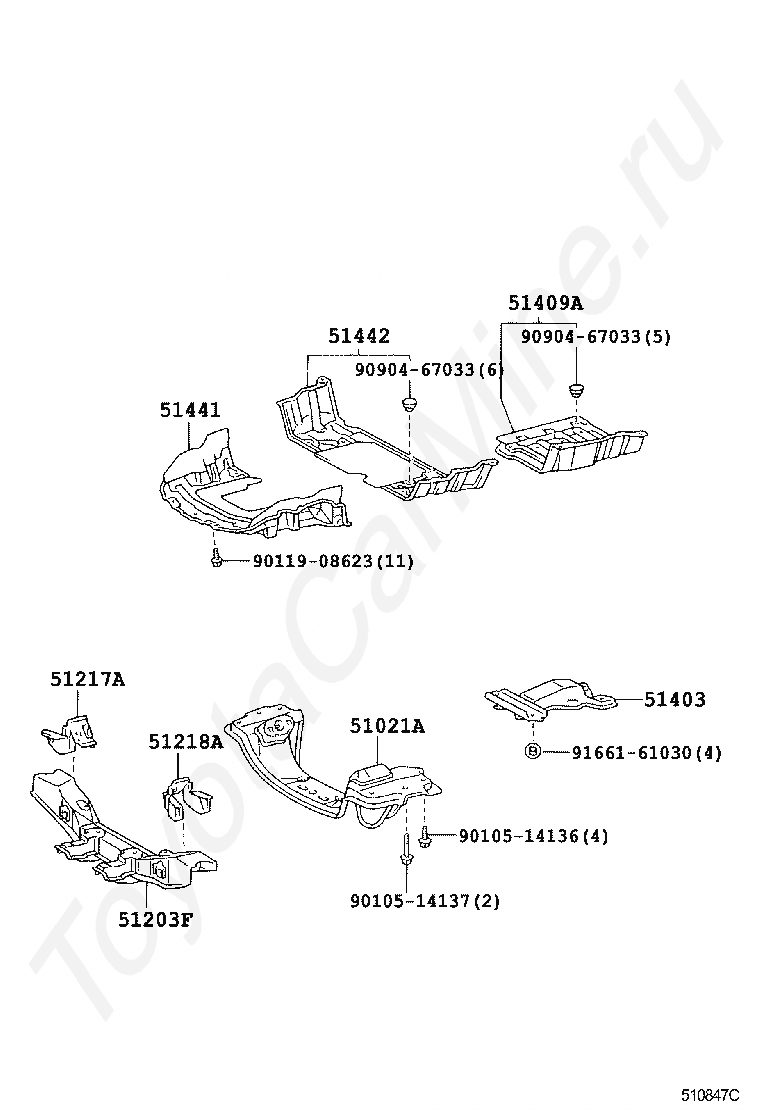

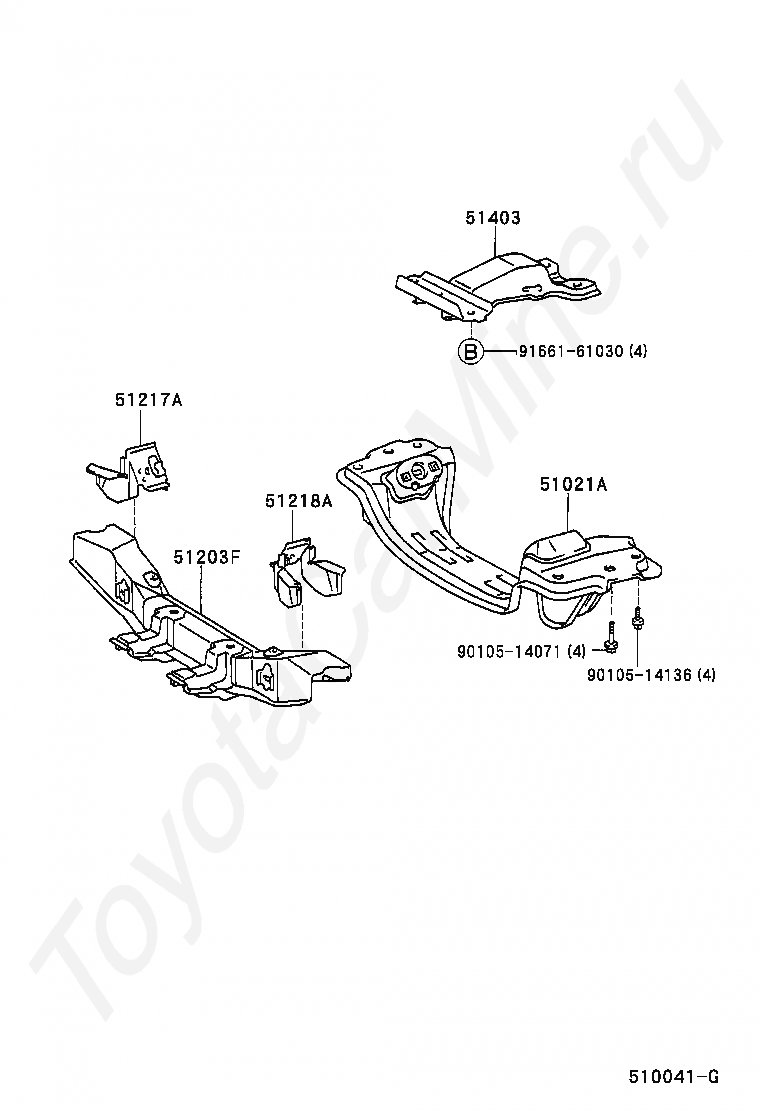

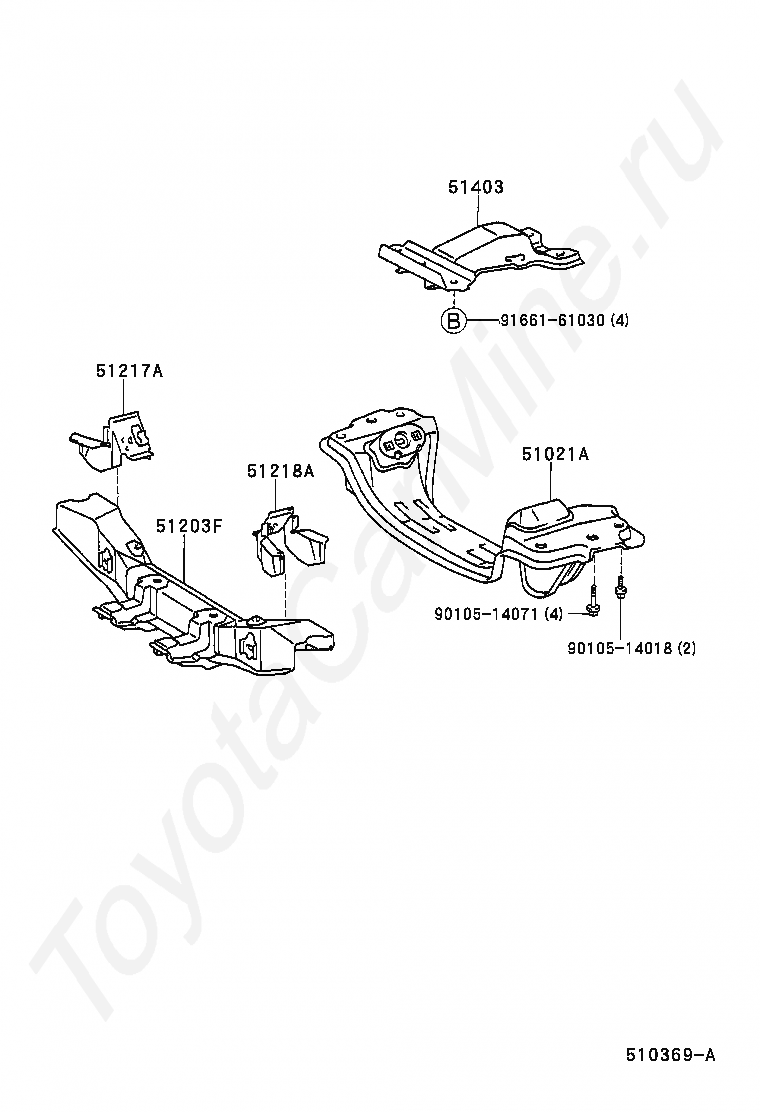

SUSPENSION CROSSMEMBER & UNDER COVER TOYOTA HIACE VAN,COMMUTER

Код

Описание

51021A

MEMBER SUB-ASSY, ENGINE FRONT SUPPORT

51203F

CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

51217A

REINFORCEMENT, FRONT SUSPENSION MEMBER, RH

51218A

REINFORCEMENT, FRONT SUSPENSION MEMBER, LH

51403

BRACKET SUB-ASSY, ENGINE REAR MOUNTING

9010514018

Крепеж

9010514071

Крепеж

9166161030

Крепеж

Код

Описание

51021A

MEMBER SUB-ASSY, ENGINE FRONT SUPPORT

51203F

CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

51217A

REINFORCEMENT, FRONT SUSPENSION MEMBER, RH

51218A

REINFORCEMENT, FRONT SUSPENSION MEMBER, LH

51403

BRACKET SUB-ASSY, ENGINE REAR MOUNTING

9010514071

Крепеж

9010514136

Крепеж

9166161030

Крепеж

Код

Описание

51021A

MEMBER SUB-ASSY, ENGINE FRONT SUPPORT

51203F

CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

51217A

REINFORCEMENT, FRONT SUSPENSION MEMBER, RH

51218A

REINFORCEMENT, FRONT SUSPENSION MEMBER, LH

51403

BRACKET SUB-ASSY, ENGINE REAR MOUNTING

51409A

COVER SUB-ASSY, ENGINE UNDER, NO.4

51436

PROTECTOR, ENGINE FRONT SUPPORT

51441

COVER, ENGINE UNDER, NO.1

51442

COVER, ENGINE UNDER, NO.2

51446B

BRACKET, ENGINE UNDER COVER, NO.2

51480

SHUTTER ASSY, ENGINE REAR SIDE, RH

9010514071

Крепеж

9010514136

Крепеж

9010514137

Крепеж

9011908623

Крепеж

9011908623

Крепеж

904670601711

Крепеж

9090467033

Крепеж

9090467033

Крепеж

9166140820

Крепеж

9166140820

Крепеж

9166161030

Крепеж

Код

Описание

51021A

MEMBER SUB-ASSY, ENGINE FRONT SUPPORT

51203F

CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

51217A

REINFORCEMENT, FRONT SUSPENSION MEMBER, RH

51218A

REINFORCEMENT, FRONT SUSPENSION MEMBER, LH

51403

BRACKET SUB-ASSY, ENGINE REAR MOUNTING

51409A

COVER SUB-ASSY, ENGINE UNDER, NO.4

51441

COVER, ENGINE UNDER, NO.1

51442

COVER, ENGINE UNDER, NO.2

9010514136

Крепеж

9010514137

Крепеж

9011908623

Крепеж

9090467033

Крепеж

9090467033

Крепеж

9166161030

Крепеж
