Каталог

Европа

Модель

HIACE VAN,COMMUTER

VIN

Дата

1991/08

Двигатель

2 литра

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

RZH112

КПП

МКПП, 5 скоростей

Опции

правый руль STANDARD ROOF 4 двери SEPARATE SEAT 03S GEN CBR

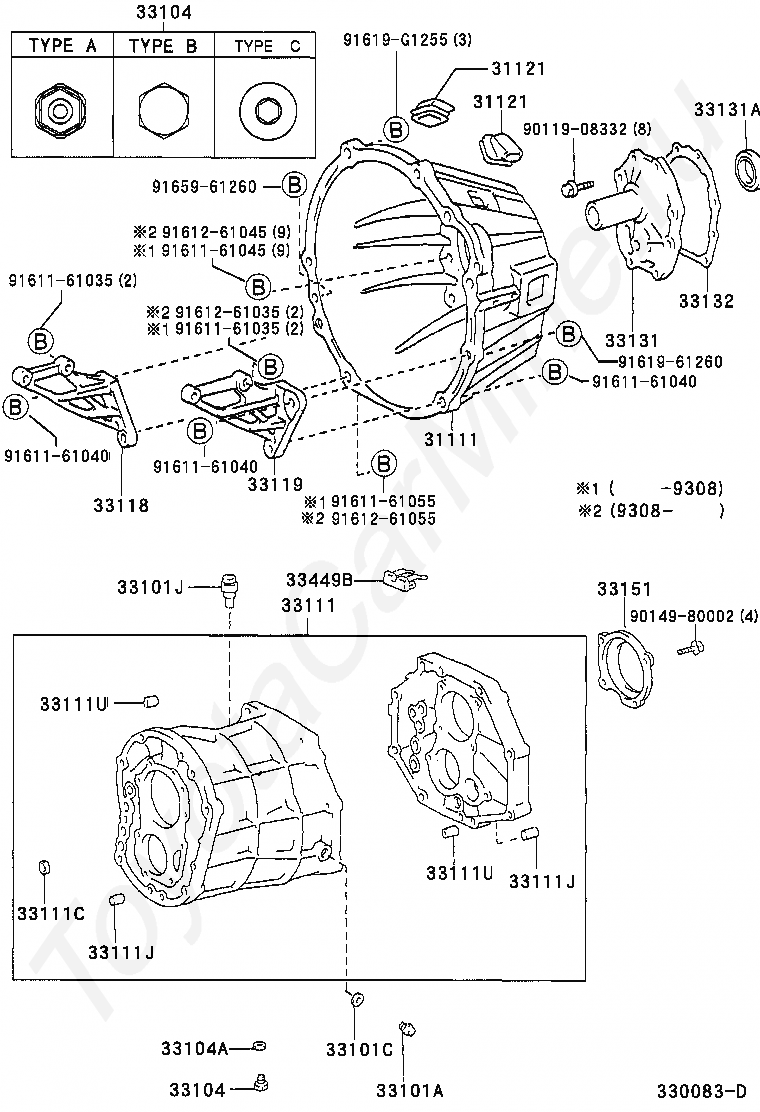

CLUTCH HOUSING & TRANSMISSION CASE (MTM) TOYOTA HIACE VAN,COMMUTER

Код

Описание

31111

HOUSING, CLUTCH

31121

COVER, CLUTCH HOUSING, NO.1

31121

COVER, CLUTCH HOUSING, NO.1

33101A

PLUG(FOR MANUAL TRANSMISSION FILLER)

33101C

GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

33101J

PLUG, BREATHER

33104

PLUG SUB-ASSY, DRAIN(MTM)

33104

PLUG SUB-ASSY, DRAIN(MTM)

33104A

GASKET, DRAIN PLUG(MTM)

33111

CASE, MANUAL TRANSMISSION

33111C

PLUG(FOR TRANSMISSION CASE)

33111J

PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

33111J

PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

33111U

PIN, RING(FOR MANUAL TRANSMISSION CASE)

33111U

PIN, RING(FOR MANUAL TRANSMISSION CASE)

33118

PLATE, STIFFENER, RH(MTM)

33119

PLATE, STIFFENER, LH(MTM)

33131

RETAINER, BEARING, FRONT(MTM)

33131A

SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

33132

GASKET, FRONT BEARING RETAINER(MTM)

33151

RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

33449B

MAGNET, TRANSMISSION

9011908332

Крепеж

9014980002

Крепеж

9161161035

Крепеж

9161161035

Крепеж

9161161040

Крепеж

9161161040

Крепеж

9161161040

Крепеж

9161161045

Крепеж

9161161055

Крепеж

9161261035

Крепеж

9161261045

Крепеж

9161261055

Крепеж

9161961260

Крепеж

91619G1255

Крепеж

9165961260

Крепеж

CLUTCH HOUSING & TRANSMISSION CASE (MTM) TOYOTA HIACE VAN,COMMUTER
