Каталог

Европа

Модель

HIACE VAN,COMMUTER

VIN

Дата

1991/08

Двигатель

2 литра

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

RZH112

КПП

МКПП, 5 скоростей

Опции

правый руль STANDARD ROOF 4 двери SEPARATE SEAT 03S GEN CBR

Воздушный фильтр TOYOTA HIACE VAN,COMMUTER

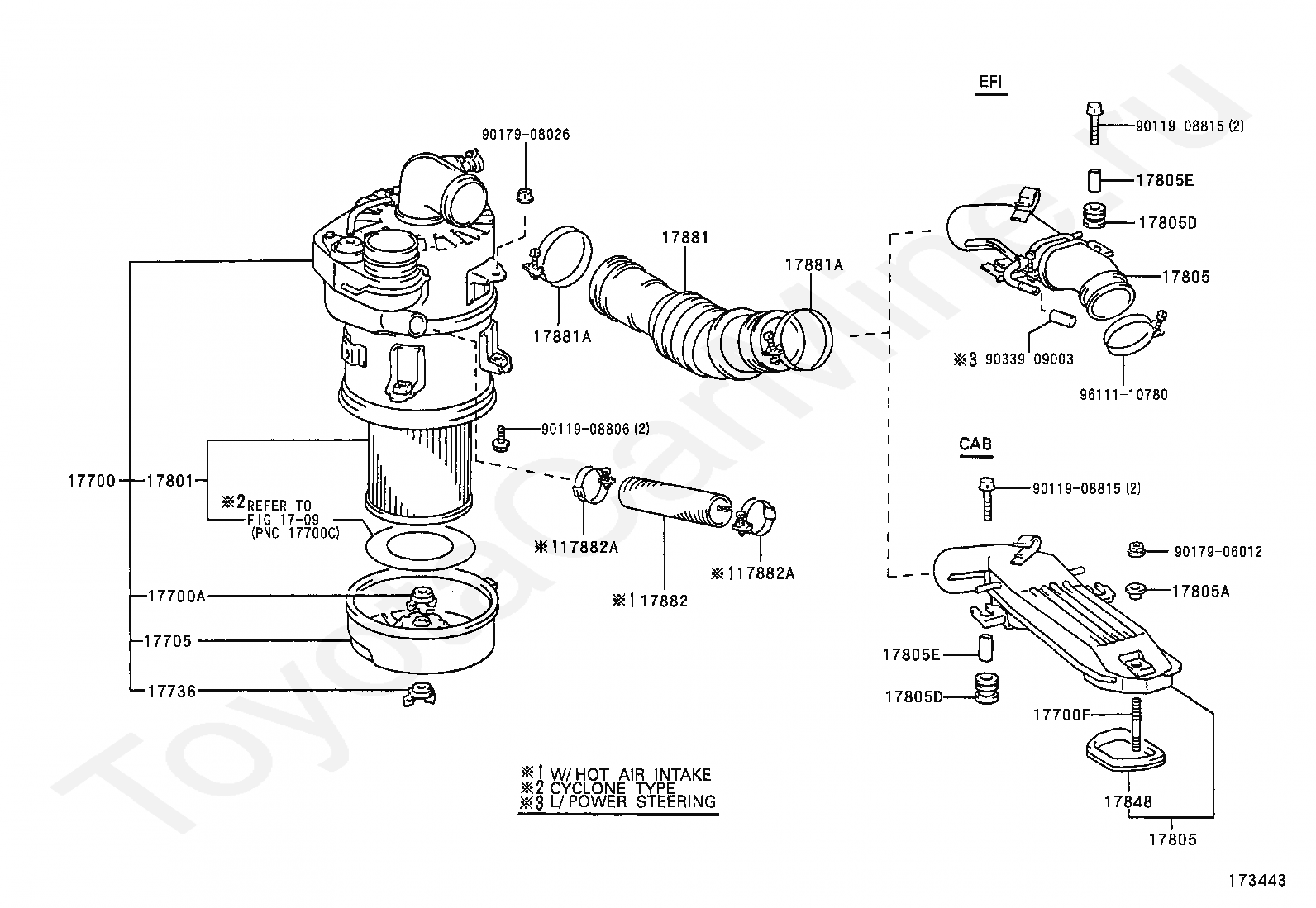

Код

Описание

1709

переход к группе запчастей

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17705

CAP SUB-ASSY, AIR CLEANER

17736

NUT, AIR CLEANER CASE

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17805

CONNECTOR SUB-ASSY, INTAKE AIR

17805A

GASKET & WASHER, SEAL

17805D

GROMMET(FOR INTAKE AIR CONNECTOR)

17805E

COLLAR(FOR INTAKE AIR CONNECTOR)

17848

GASKET, AIR CLEANER TO CARBURETOR

17881

HOSE, AIR CLEANER, NO.1

17881

HOSE, AIR CLEANER, NO.1

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17882

HOSE, AIR CLEANER, NO.2

17882

HOSE, AIR CLEANER, NO.2

17882A

CLAMP(FOR AIR CLEANER HOSE, NO.2)

17882A

CLAMP(FOR AIR CLEANER HOSE, NO.2)

17885

PIPE, AIR CLEANER

17885A

HOSE, AIR CLEANER, NO.5

9011908806

Крепеж

9011908815

Крепеж

9017906012

Крепеж

9017908026

Крепеж

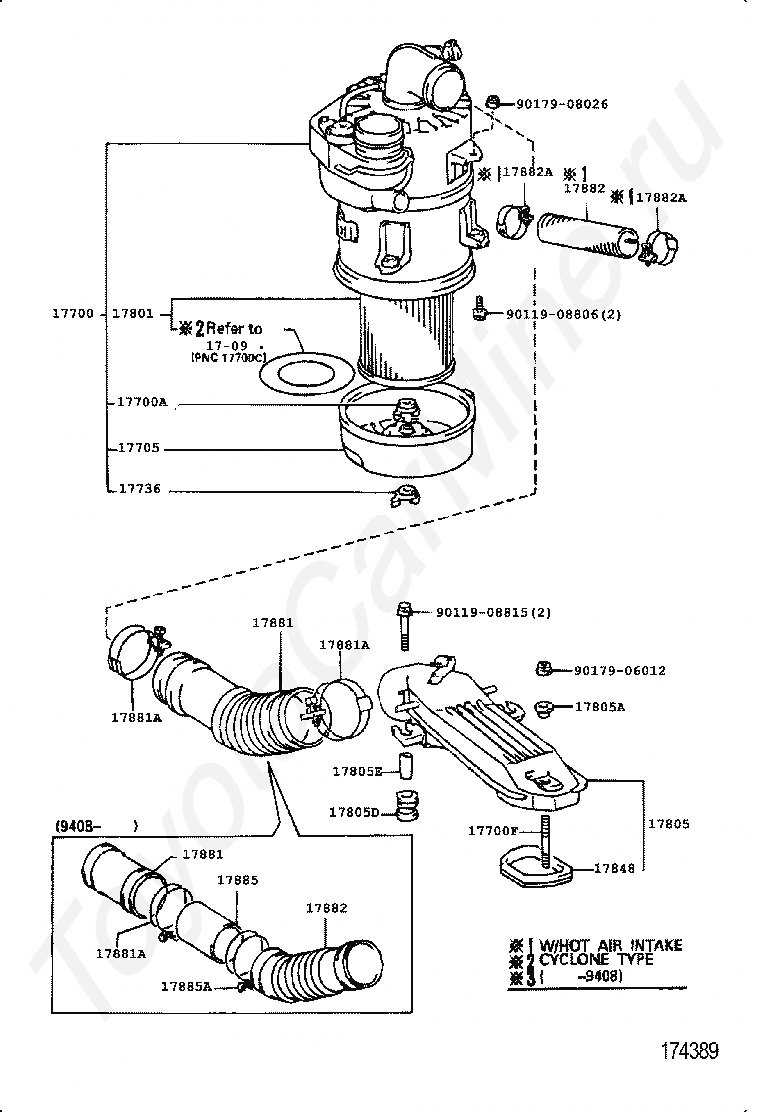

Код

Описание

1709

переход к группе запчастей

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17705

CAP SUB-ASSY, AIR CLEANER

17736

NUT, AIR CLEANER CASE

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17805

CONNECTOR SUB-ASSY, INTAKE AIR

17805

CONNECTOR SUB-ASSY, INTAKE AIR

17805A

GASKET & WASHER, SEAL

17805D

GROMMET(FOR INTAKE AIR CONNECTOR)

17805D

GROMMET(FOR INTAKE AIR CONNECTOR)

17805E

COLLAR(FOR INTAKE AIR CONNECTOR)

17805E

COLLAR(FOR INTAKE AIR CONNECTOR)

17848

GASKET, AIR CLEANER TO CARBURETOR

17881

HOSE, AIR CLEANER, NO.1

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17882

HOSE, AIR CLEANER, NO.2

17882A

CLAMP(FOR AIR CLEANER HOSE, NO.2)

17882A

CLAMP(FOR AIR CLEANER HOSE, NO.2)

9011908806

Крепеж

9011908815

Крепеж

9011908815

Крепеж

9017906012

Крепеж

9017908026

Крепеж

9033909003

Крепеж

9611110780

Крепеж

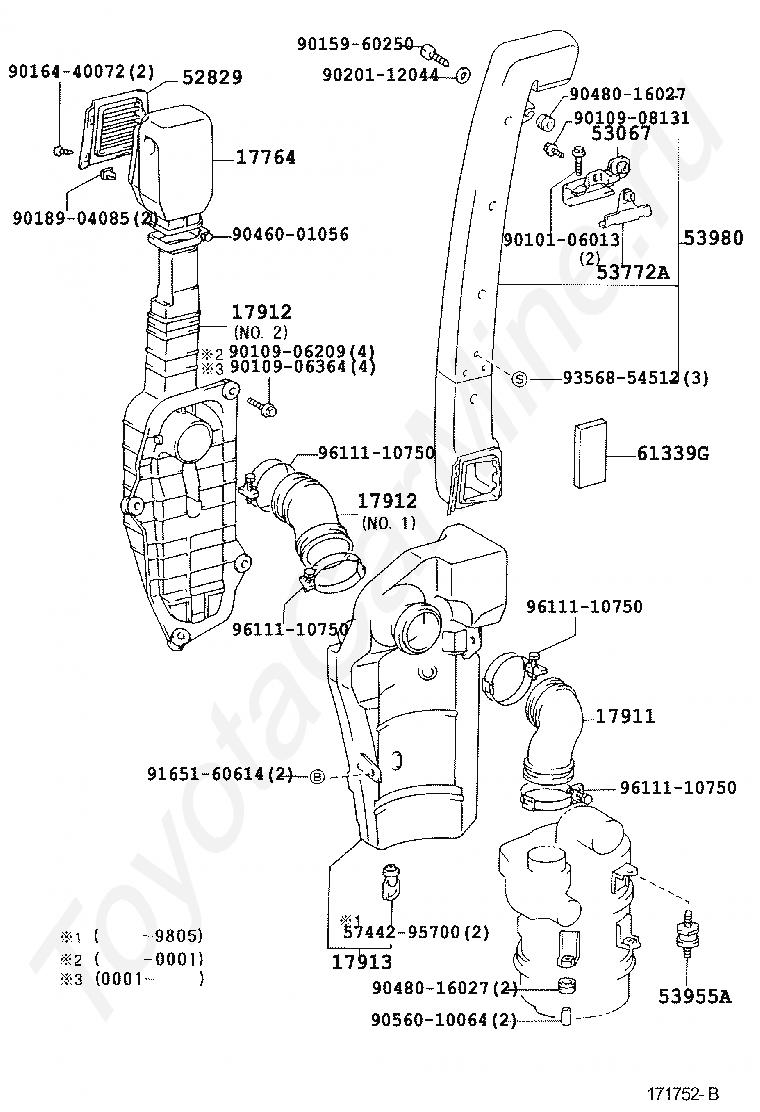

Код

Описание

17764

DUCT, AIR CLEANER

17911

DUCT, COOL AIR INTAKE, NO.1

17912

DUCT, COOL AIR INTAKE, NO.2

17912

DUCT, COOL AIR INTAKE, NO.2

17913

DUCT, COOL AIR INTAKE, NO.3

52829

GRILLE, COOL AIR INTAKE

53067

BRACKET SUB-ASSY, AIR CLEANER INLET

53772A

BRACKET, AIR CLEANER INLET, NO.2

53955A

CUSHION, AIR CLEANER INLET NO.1

53980

INLET ASSY, AIR CLEANER PIPE

5744295700

Крепеж

61339G

SEAL, CENTER BODY PILLAR, INNER

9010106013

Крепеж

9010906209

Крепеж

9010906364

Крепеж

9010908131

Крепеж

9015960250

Крепеж

9016440072

Крепеж

9018904085

Крепеж

9020112044

Крепеж

9046001056

Крепеж

9048016027

Крепеж

9048016027

Крепеж

9056010064

Крепеж

9165160614

Крепеж

9356854512

Крепеж

9611110750

Крепеж

9611110750

Крепеж

9611110750

Крепеж

9611110750

Крепеж
