Реле и кнопки Тойота HIACE VAN,COMMUTER, Европа, 1993/08 - 1995/08, 2,4 литра, EFI, V(MODEL MARK), DELUX SPECIFICATION, RZH103, МКПП, 5 скоростей, левый руль, 4 двери, боковое стекло, 9-местный, ФРГ

Код

Описание

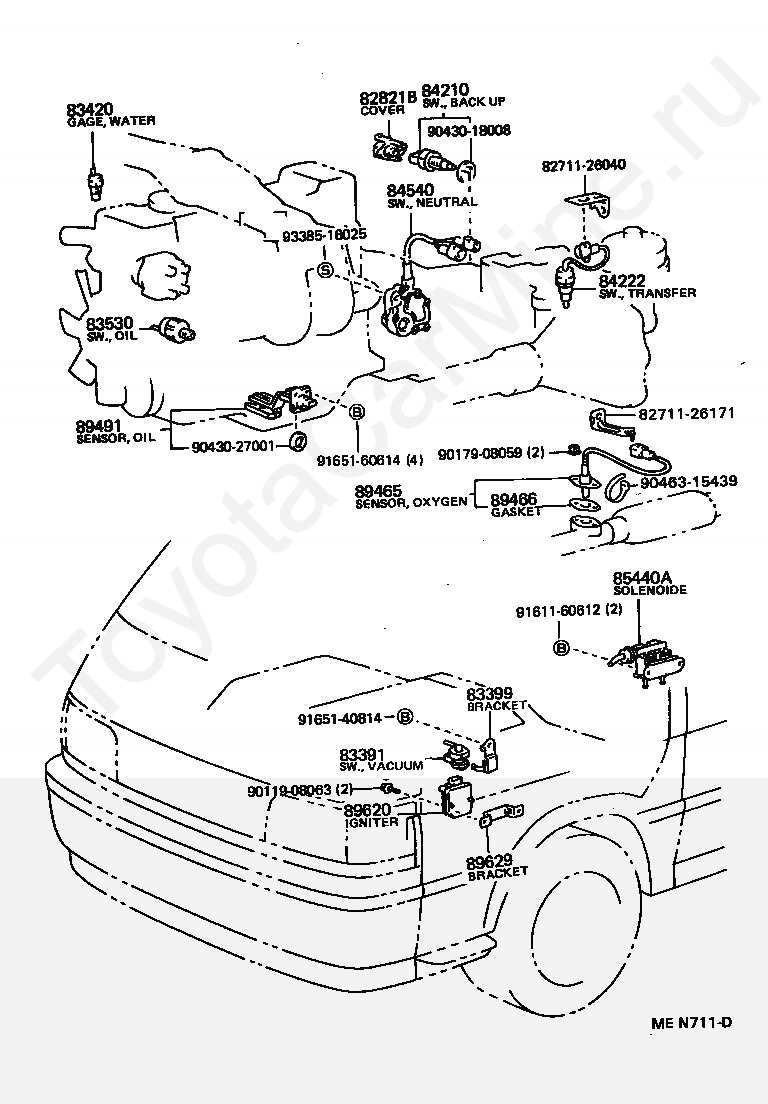

8271126040

Крепеж

8271126171

Крепеж

82821B

COVER, CONNECTOR

83391

SWITCH, VACUUM

83399

BRACKET, VACUUM SWITCH

83420

GAGE ASSY, WATER TEMPERATURE SENDER

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

84210

SWITCH ASSY, BACK-UP LAMP

84222

SWITCH, TRANSFER INDICATOR, NO.1

84540

SWITCH ASSY, NEUTRAL START

85440A

SOLENOID ASSY, FOUR WHEEL DRIVE CONTROL

89465

SENSOR, OXYGEN

89466

GASKET, OXYGEN SENSOR

89491

SENSOR, ENGINE OIL LEVEL

89620

IGNITER ASSY

89629

BRACKET, IGNITER ASSY

9011908063

Крепеж

9017908059

Крепеж

9043018008

Крепеж

9043027001

Крепеж

9046315439

Крепеж

9161160612

Крепеж

9165140814

Крепеж

9165160614

Крепеж

9338516025

Крепеж

Код

Описание

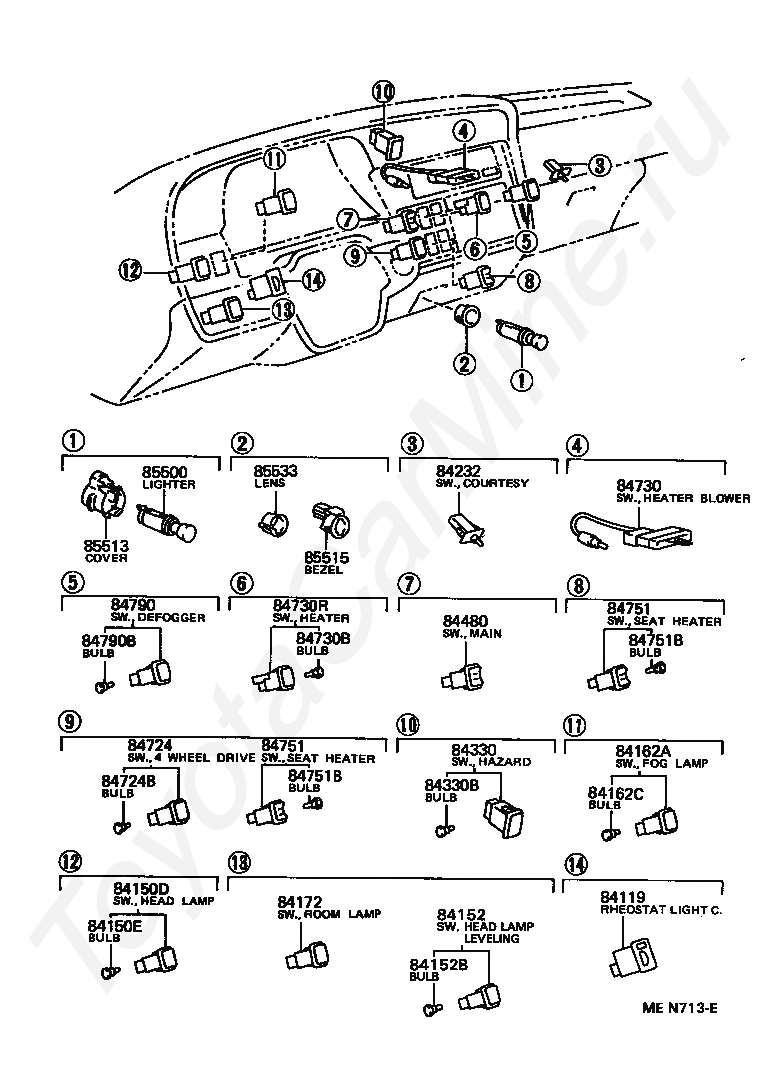

84119

RHEOSTAT, LIGHT CONTROL

84150D

SWITCH ASSY, HEADLAMP CLEANER

84150E

BULB, HEADLAMP CLEANER SWITCH

84152

SWITCH, HEADLAMP LEVELING

84152B

BULB (FOR HEADLAMP LEVELING SWITCH)

84162A

SWITCH, REAR FOG LAMP

84162C

BULB (FOR REAR FOG LAMP SWITCH)

84172

SWITCH, ROOM LAMP

84232

SWITCH ASSY, COURTESY LAMP (FOR GLOVE BOX)

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84330B

BULB, HAZARD WARNING SIGNAL SWITCH

84480

SWITCH ASSY, MAIN

84724

SWITCH, 4 WHEEL DRIVE CONTROL

84724B

BULB, 4 WHEEL DRIVE CONTROL SWITCH

84730

SWITCH ASSY, HEATER BLOWER

84730B

BULB, HEATER BLOWER SWITCH

84730R

SWITCH ASSY, HEATER BLOWER

84751

SWITCH, SEAT HEATER

84751

SWITCH, SEAT HEATER

84751B

BULB, SEAT HEATER SWITCH

84751B

BULB, SEAT HEATER SWITCH

84790

SWITCH ASSY, REAR WINDOW DEFOGGER

84790B

BULB(FOR REAR WINDOW DEFOGGER SWITCH)

85500

LIGHTER ASSY, CIGARETTE

85513

COVER, CIGARETTE LIGHTER

85515

STAY, CIGARETTE LIGHTER BEZEL

85533

LENS, CIGARETTE LIGHTER INDICATOR

Код

Описание

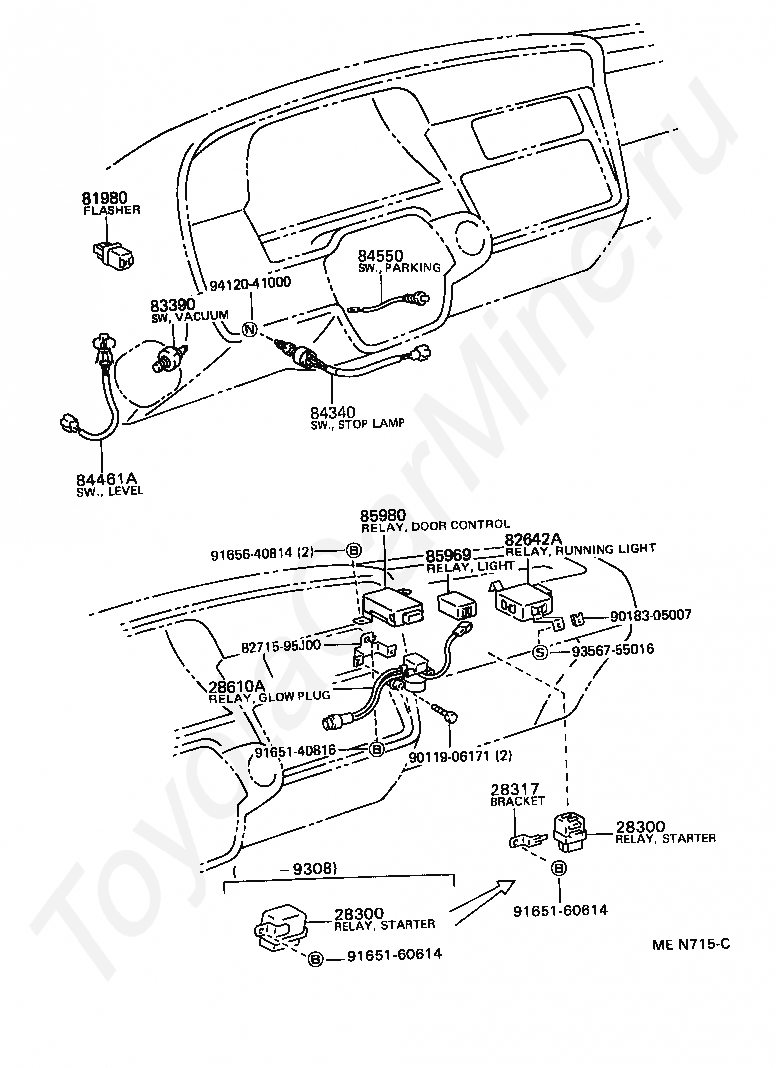

28300

RELAY ASSY, STARTER

28300

RELAY ASSY, STARTER

28317

BRACKET, STARTER RELAY

28610A

RELAY ASSY, GLOW PLUG(SUB)

81980

FLASHER ASSY, TURN SIGNAL

82642A

RELAY, RUNNING LIGHT

8271595J00

Крепеж

83390

SWITCH ASSY, VACUUM WARNING

84340

SWITCH ASSY, STOP LAMP

84461A

SWITCH, BRAKE RESERVOIR LEVEL WARNING

84550

SWITCH ASSY, PARKING BRAKE

85969

RELAY, LIGHT REMINDER

85980

RELAY ASSY, DOOR CONTROL

9011906171

Крепеж

9018305007

Крепеж

9165140816

Крепеж

9165160614

Крепеж

9165160614

Крепеж

9165640814

Крепеж

9356755016

Крепеж

9412041000

Крепеж

Код

Описание

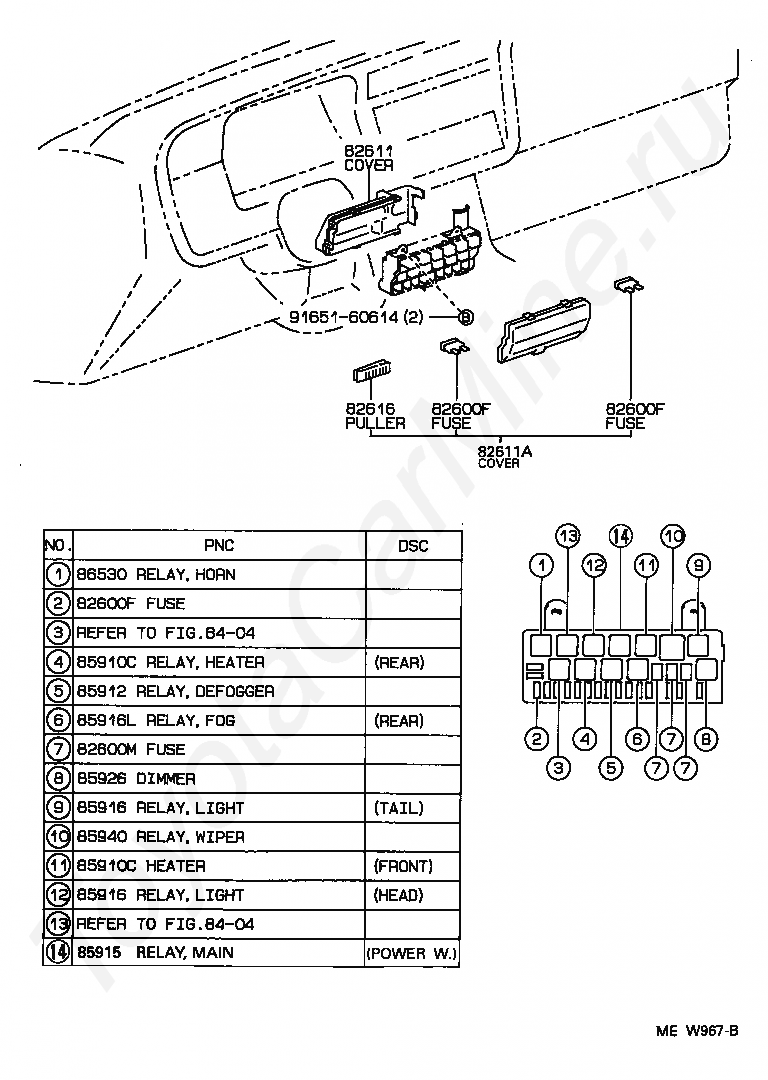

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82600M

FUSE, MEDIUM CURRENT

82611

COVER, FUSE BLOCK

82611A

COVER, FUSE BLOCK, NO.2

82616

PULLER, FUSE

8404

переход к группе запчастей

8404

переход к группе запчастей

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85912

RELAY, DEFOGGER

85915

RELAY, MAIN

85916

RELAY, LIGHT CONTROL

85916

RELAY, LIGHT CONTROL

85916L

RELAY, REAR FOG LAMP

85926

RELAY, HEADLAMP DIMMER

85940

RELAY ASSY, WINDSHIELD WIPER

86530

RELAY ASSY, HORN

9165160614

Крепеж

Код

Описание

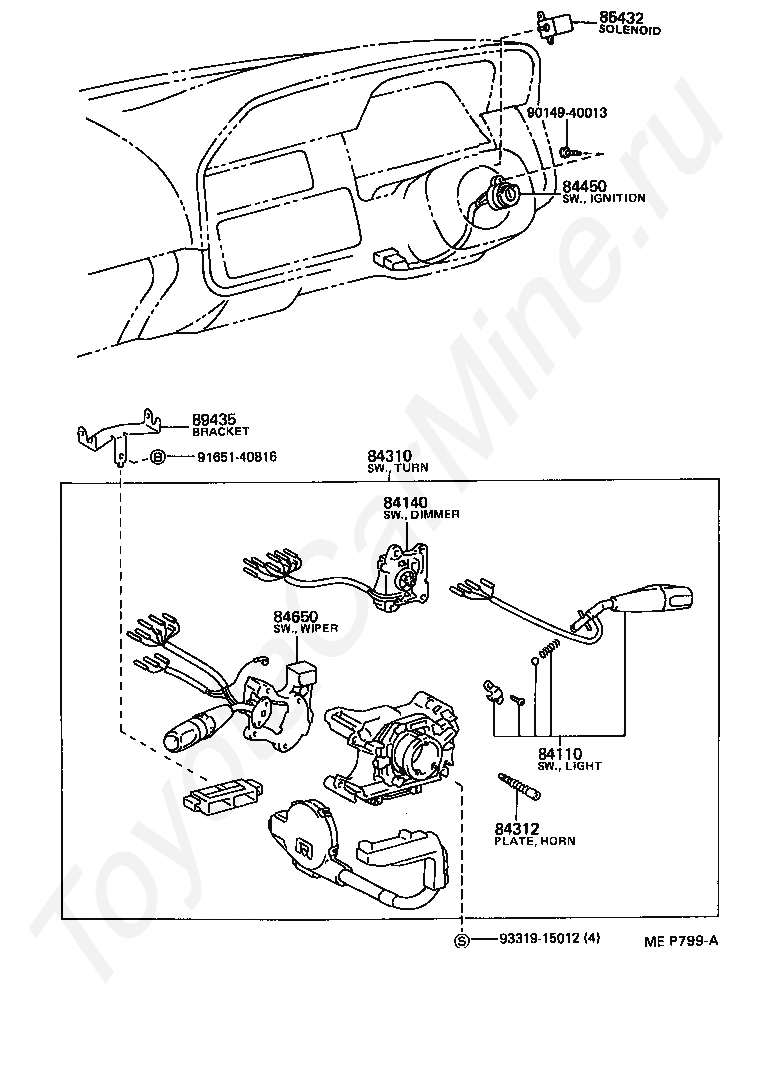

84110

SWITCH ASSY, LIGHT CONTROL, NO.1

84140

SWITCH ASSY, HEADLAMP DIMMER

84310

SWITCH ASSY, TURN SIGNAL

84312

PLATE, HORN CONTACT

84450

SWITCH ASSY, IGNITION OR STARTER

84650

SWITCH ASSY, WINDSHIELD WIPER

85432

SOLENOID, KEY INTER LOCK

89435

BRACKET, CONNECTOR COVER

9014940013

Крепеж

9165140816

Крепеж

9331915012

Крепеж

Код

Описание

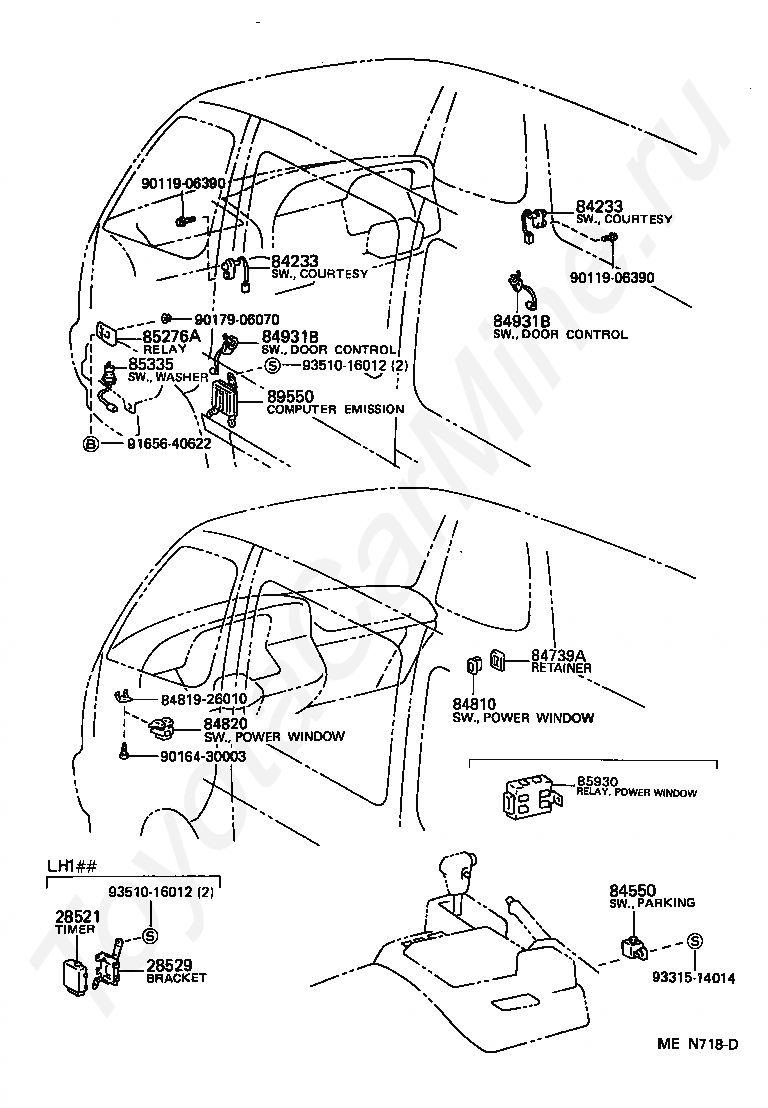

28521

TIMER, PREHEATING

28529

BRACKET, PREHEATING TIMER, NO.1

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84550

SWITCH ASSY, PARKING BRAKE

84739A

RETAINER, SWITCH

84810

SWITCH ASSY, POWER WINDOW REGULATOR

8481926010

Крепеж

84820

MASTER SWITCH ASSY, POWER WINDOW REGULATOR

84931B

SWITCH, DOOR CONTROL

84931B

SWITCH, DOOR CONTROL

85276A

RELAY, CLEANER CONTROL

85335

SWITCH ASSY, WASHER LEVEL WARNING

85930

RELAY ASSY, POWER WINDOW

89550

COMPUTER ASSY, EMISSION CONTROL

9011906390

Крепеж

9011906390

Крепеж

9016430003

Крепеж

9017906070

Крепеж

9165640622

Крепеж

9331514014

Крепеж

9351016012

Крепеж

9351016012

Крепеж

Код

Описание

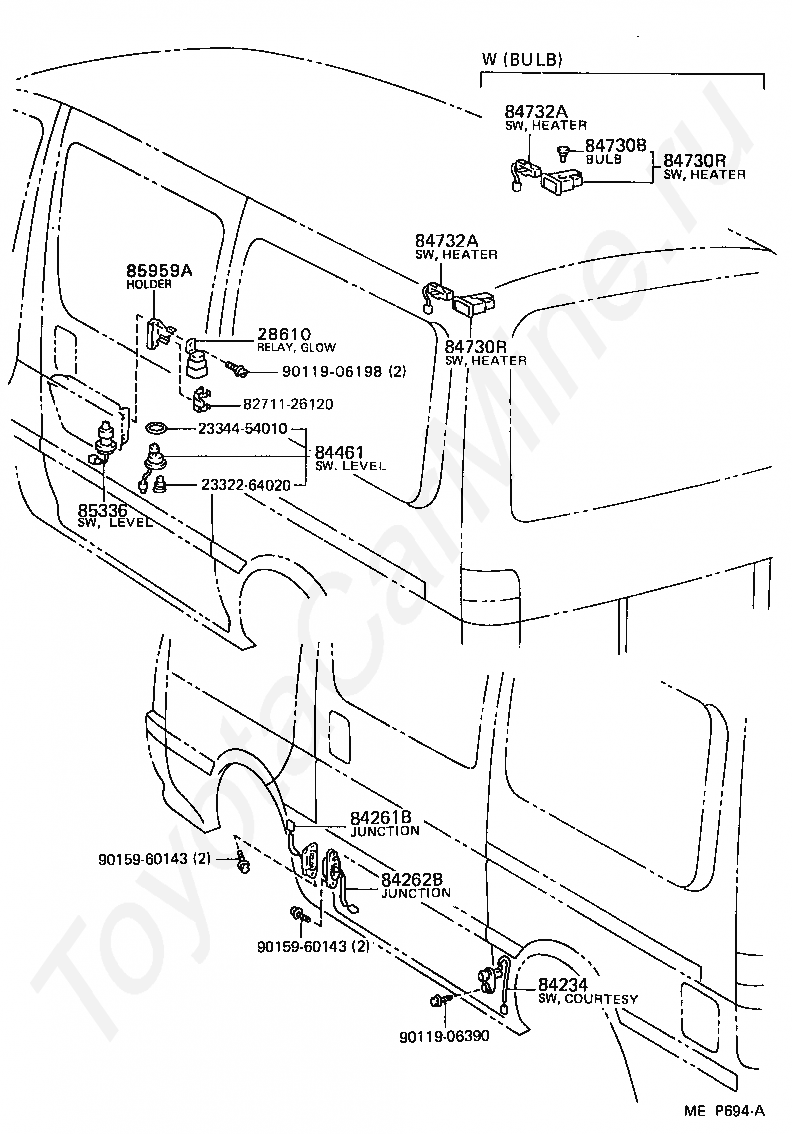

2332264020

Крепеж

2334454010

Крепеж

28610

RELAY ASSY, INTAKE HEATER OR GLOW PLUG

8271126120

Крепеж

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84261B

JUNCTION, SLIDE DOOR CONTROL,MALE

84262B

JUNCTION, SLIDE DOOR CONTROL, FEMALE

84461

SWITCH, LEVEL WARNING

84730B

BULB, HEATER BLOWER SWITCH

84730R

SWITCH ASSY, HEATER BLOWER

84730R

SWITCH ASSY, HEATER BLOWER

84732A

SWITCH, REAR HEATER BLOWER

84732A

SWITCH, REAR HEATER BLOWER

85336

SWITCH ASSY, RESERVE TANK LEVEL WARNING

85959A

HOLDER, RELAY

9011906198

Крепеж

9011906390

Крепеж

9015960143

Крепеж

9015960143

Крепеж

Код

Описание

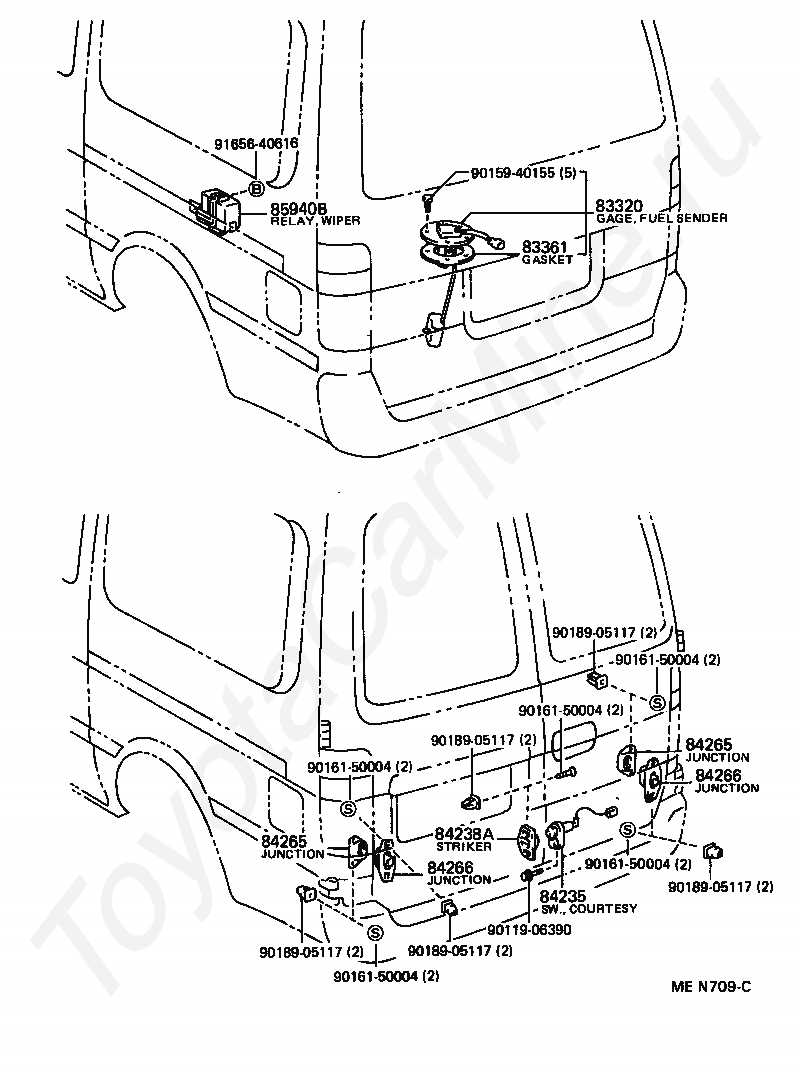

83320

GAGE ASSY, FUEL SENDER

83361

GASKET, FUEL SENDER GAGE

84235

SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR)

84238A

STRIKER, COURTESY LAMP SWITCH

84265

JUNCTION, BACK DOOR MALE

84265

JUNCTION, BACK DOOR MALE

84266

JUNCTION, BACK DOOR FEMALE

84266

JUNCTION, BACK DOOR FEMALE

85940B

RELAY ASSY, REAR WIPER

9011906390

Крепеж

9015940155

Крепеж

9016150004

Крепеж

9016150004

Крепеж

9016150004

Крепеж

9016150004

Крепеж

9016150004

Крепеж

9018905117

Крепеж

9018905117

Крепеж

9018905117

Крепеж

9018905117

Крепеж

9018905117

Крепеж

9165640616

Крепеж

Реле и кнопки TOYOTA HIACE VAN,COMMUTER
