Каталог

Европа

Модель

HIACE VAN,COMMUTER

VIN

Дата

1993/08

Двигатель

2,4 литра, EFI

Кузов

V(MODEL MARK)

Класс

DELUX SPECIFICATION

Фрейм

RZH103

КПП

МКПП, 5 скоростей

Опции

левый руль 4 двери боковое стекло 9-местный ФРГ

Задние амортизаторы TOYOTA HIACE VAN,COMMUTER

Код

Описание

04483

SHACKLE KIT, REAR SPRING

48037

SPACER SUB-ASSY, REAR SPRING

48046

SEAT SUB-ASSY, SPRING U BOLT, RH

48046A

BOLT, U(FOR REAR SPRING)

48047

SEAT SUB-ASSY, SPRING U BOLT, LH

48210A

BUSH(FOR REAR SPRING SHACKLE UPPER)

48210A

BUSH(FOR REAR SPRING SHACKLE UPPER)

48341

BUMPER, REAR SPRING

48370

DAMPER ASSY, LEAF SPRING DYNAMIC

48371

RETAINER, REAR SPRING PAD

48372

PAD, REAR SPRING

48372

PAD, REAR SPRING

48530

ABSORBER ASSY, SHOCK, REAR RH

48530B

WASHER, REAR SHOCK ABSORBER CUSHION, NO.1

48530C

WASHER, REAR SHOCK ABSORBER CUSHION, NO.2

48530D

WASHER, REAR SHOCK ABSORBER CUSHION, NO.3

48530E

WASHER, REAR SHOCK ABSORBER CUSHION, NO.4

48530F

RETAINER, SHOCK ABSORBER CUSHION(FOR REAR)

48530H

BUSH, REAR SHOCK ABSORBER

48540

ABSORBER ASSY, SHOCK, REAR LH

9010114021

Крепеж

9010514020

Крепеж

9010514020

Крепеж

9017914023

Крепеж

9038714011

Крепеж

9161161020

Крепеж

9161260820

Крепеж

9161961220

Крепеж

9411551400

Крепеж

9411551400

Крепеж

9413001002

Крепеж

9451201400

Крепеж

9461211001

Крепеж

9462111400

Крепеж

9462111400

Крепеж

9462111400

Крепеж

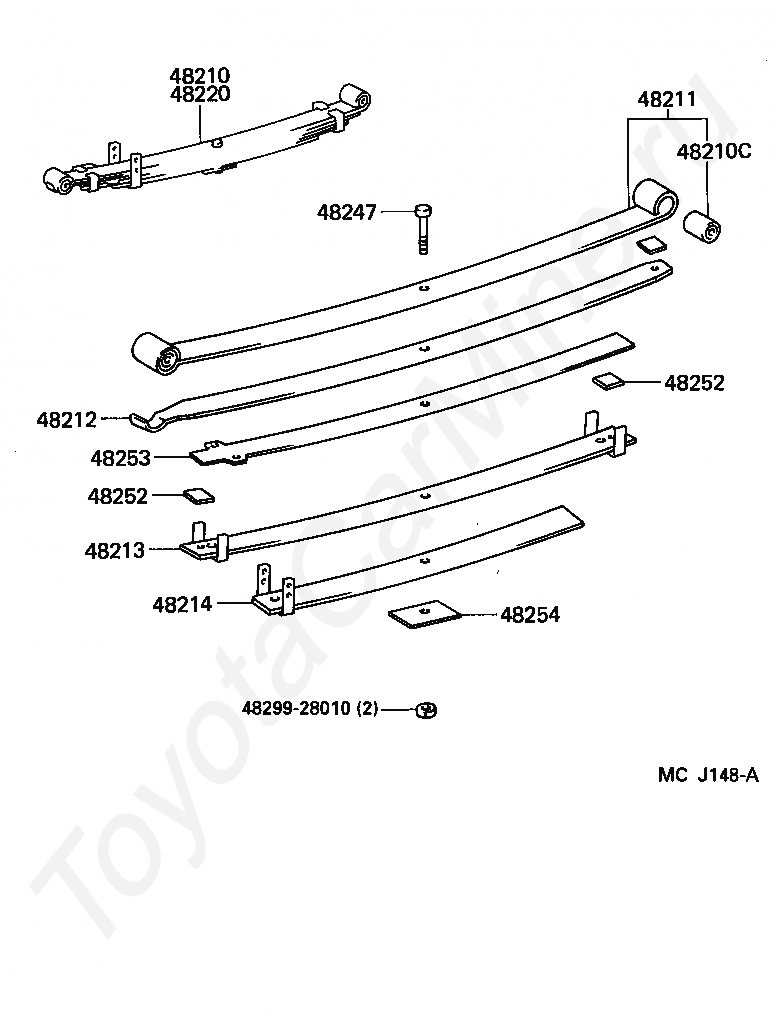

Код

Описание

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48213

LEAF, REAR SPRING, NO.3

48214

LEAF, REAR SPRING, NO.4

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48252

SILENCER, REAR SPRING

48252

SILENCER, REAR SPRING

48253

SPACER, REAR SPRING, NO.1

48254

SPACER, REAR SPRING LEAF

4829928010

Крепеж
