Каталог

Европа

Модель

HIACE VAN,COMMUTER

VIN

Дата

1993/08

Двигатель

2,4 литра, EFI

Кузов

V(MODEL MARK)

Класс

DELUX SPECIFICATION

Фрейм

RZH103

КПП

МКПП, 5 скоростей

Опции

левый руль 4 двери боковое стекло 9-местный ФРГ

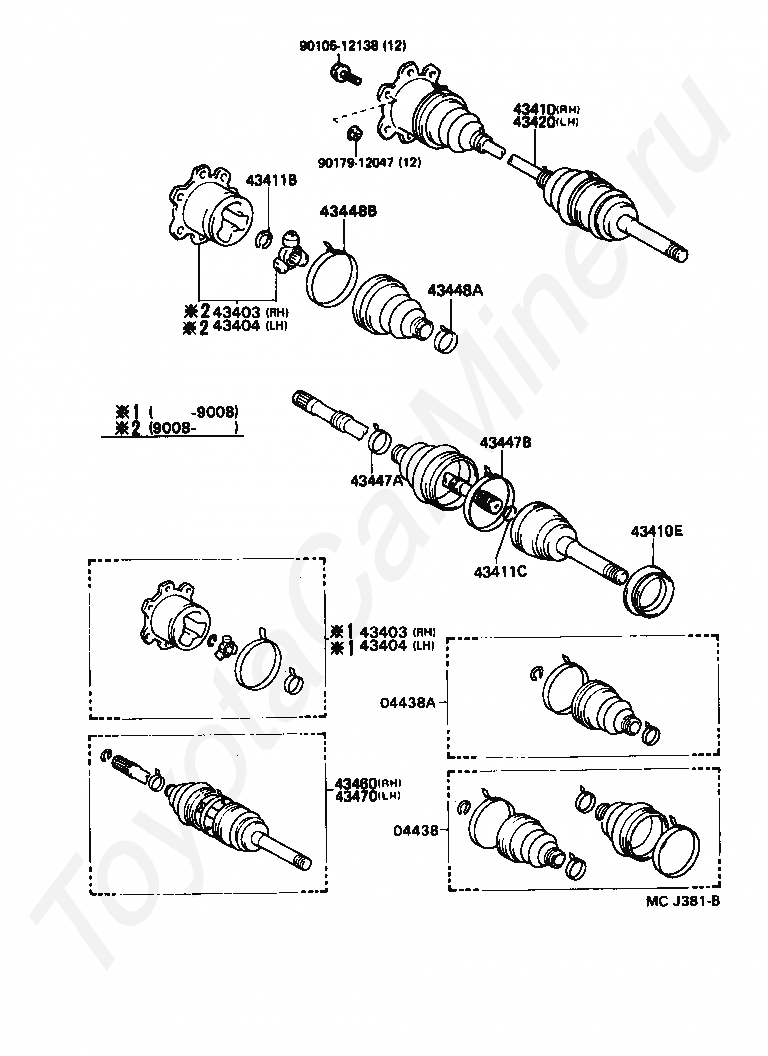

Шрус TOYOTA HIACE VAN,COMMUTER

Код

Описание

04438

BOOT KIT, FRONT DRIVE SHAFT

04438A

BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

43403

JOINT SET, FRONT AXLE INBOARD, RH

43403

JOINT SET, FRONT AXLE INBOARD, RH

43404

JOINT SET, FRONT AXLE INBOARD, LH

43404

JOINT SET, FRONT AXLE INBOARD, LH

43410

SHAFT ASSY, FRONT DRIVE, RH

43410E

COVER, DUST (FOR FRONT DRIVE SHAFT)

43411B

RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

43411C

RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT OUTER)

43420

SHAFT ASSY, FRONT DRIVE, LH

43447A

CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

43447B

CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

43448A

CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

43448B

CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

43460

SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

43470

SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

9010512138

Крепеж

9017912047

Крепеж
