Каталог

Европа

Модель

HIACE VAN,COMMUTER

VIN

Дата

2000/08

Двигатель

3 литра, дизель

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

LH162

КПП

АКПП, 4 ступени

Опции

правый руль STANDARD ROOF 4 двери SEPARATE SEAT 03S ARL DSL

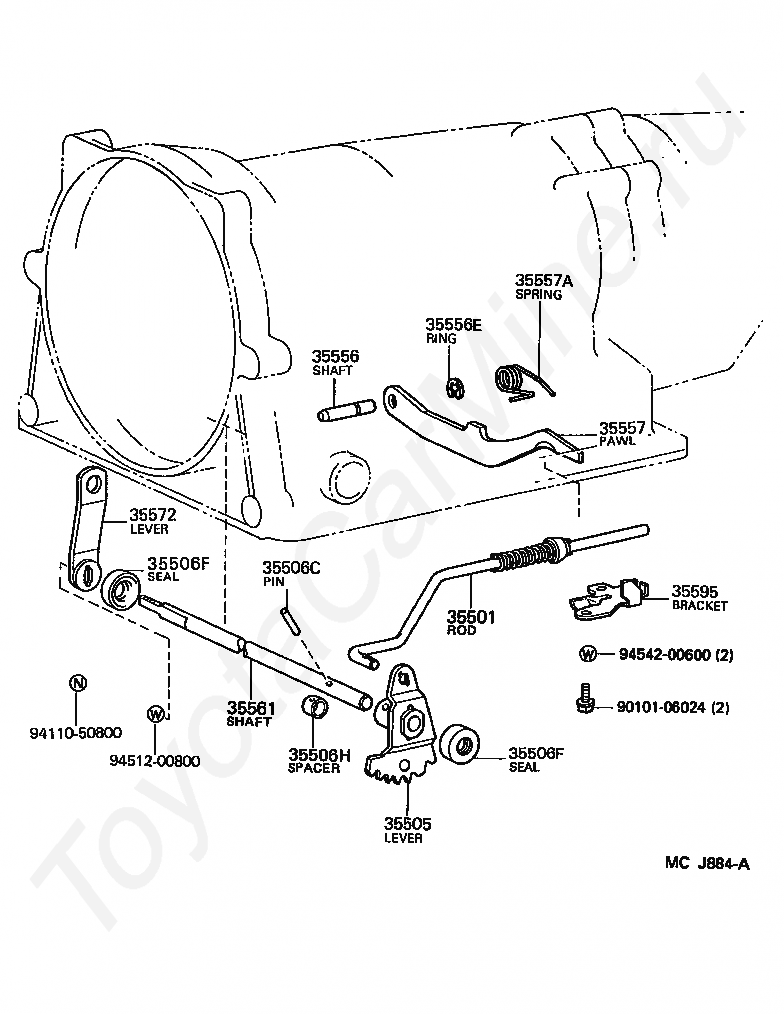

THROTTLE LINK & VALVE LEVER (ATM) TOYOTA HIACE VAN,COMMUTER

Код

Описание

35501

ROD SUB-ASSY, PARKING LOCK

35505

LEVER SUB-ASSY, MANUAL VALVE

35506C

PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

35506F

SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

35506F

SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

35506H

SPACER (FOR MANUAL VALVE LEVER SHAFT)

35556

SHAFT, PARKING LOCK PAWL

35556E

RING, E (FOR PARKING LOCK PAWL SHAFT)

35557

PAWL, PARKING LOCK

35557A

SPRING, TORSION (FOR PARKING LOCK PAWL)

35561

SHAFT, MANUAL VALVE LEVER

35572

LEVER, TRANSMISSION CONTROL SHAFT, RH

35595

BRACKET, PARKING LOCK PAWL

9010106024

Крепеж

9411050800

Крепеж

9451200800

Крепеж

9454200600

Крепеж

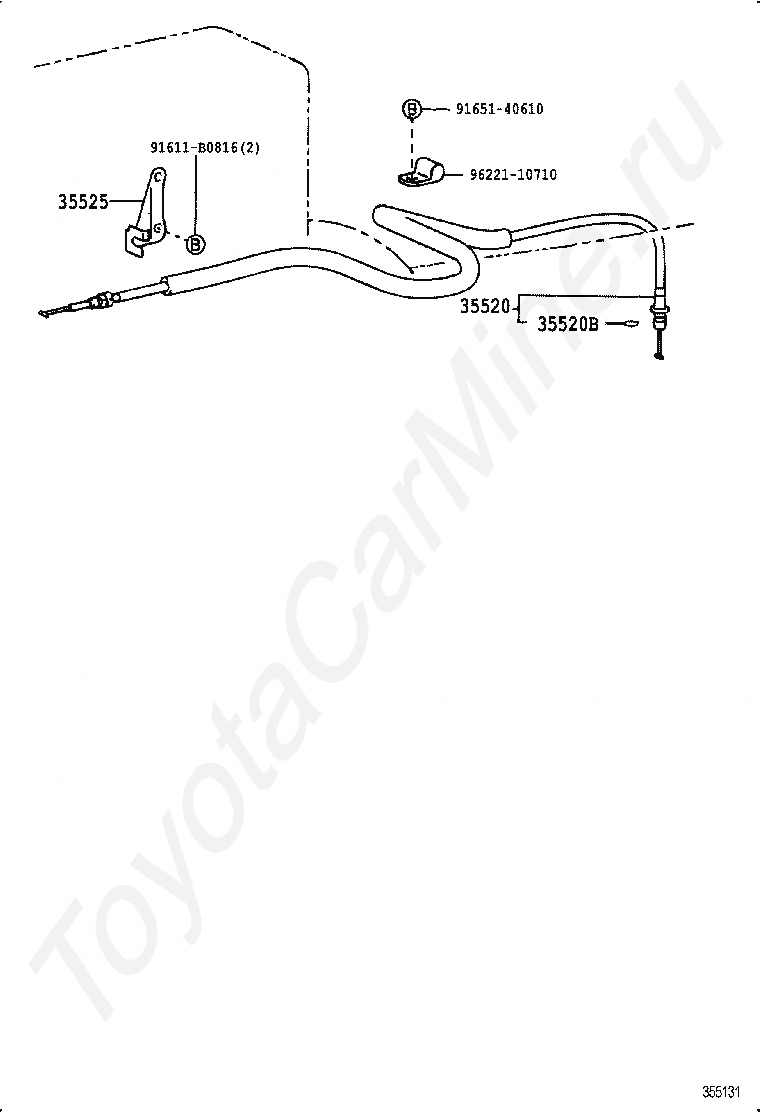

Код

Описание

35520

CABLE ASSY, THROTTLE

35520B

RING, O(FOR THROTTLE CABLE)

35525

BRACKET, THROTTLE CABLE

91611B0816

Крепеж

9165140610

Крепеж

9622110710

Крепеж

THROTTLE LINK & VALVE LEVER (ATM) TOYOTA HIACE VAN,COMMUTER
