Кондиционер: охлаждающие трубки Тойота HIACE VAN,COMMUTER, Европа, 1997/07 - 1998/08, 2,8 литра, дизель, COMMUTER, GL SPECIFICATION, LH125, МКПП, 5 скоростей, правый руль, высокая крыша, 4 двери, боковое стекло, 15S GEN DSL

Код

Описание

88453

FAN, COOLING (FOR CONDENSER)

88454A

SHROUD, FAN

88460

CONDENSER ASSY, COOLER

88461A

CORE, COOLER CONDENSER

88463

BRACKET, COOLER CONDENSER, NO.1

88550D

MOTOR ASSY, BLOWER

88584B

GUIDE, COOLER AIR

88590

BLOWER ASSY, W/SHROUD

88605L

HARNESS SUB-ASSY, WIRING AIR CONDITIONER

88635A

RESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR)

8868826310

Крепеж

8868826310

Крепеж

8868826330

Крепеж

88715A

PIPE, COOLER REFRIGERANT DISCHARGE, A

88716A

PIPE, COOLER REFRIGERANT LIQUID, A

8871812280

Крепеж

9009120609

Крепеж

9009904117

Крепеж

9009904376

Крепеж

9011908354

Крепеж

9017908126

Крепеж

Код

Описание

8271110380

Крепеж

88453

FAN, COOLING (FOR CONDENSER)

88454A

SHROUD, FAN

88460

CONDENSER ASSY, COOLER

88461A

CORE, COOLER CONDENSER

88463

BRACKET, COOLER CONDENSER, NO.1

88550D

MOTOR ASSY, BLOWER

88584B

GUIDE, COOLER AIR

88590

BLOWER ASSY, W/SHROUD

88635A

RESISTOR, BLOWER (FOR COOLER CONDENSER MOTOR)

8868826310

Крепеж

8868826310

Крепеж

8868826330

Крепеж

88715A

PIPE, COOLER REFRIGERANT DISCHARGE, A

88716A

PIPE, COOLER REFRIGERANT LIQUID, A

8871812280

Крепеж

8889226020

Крепеж

9009120609

Крепеж

9009904117

Крепеж

9009904376

Крепеж

9011908354

Крепеж

9017908126

Крепеж

Код

Описание

88471

TANK, RECEIVER AIR CONDITIONER

88472

BRACKET, RECEIVER TANK, NO.1

88605L

HARNESS SUB-ASSY, WIRING AIR CONDITIONER

88645H

SWITCH, PRESSURE NO.1

8868826140

Крепеж

8868895J77

Крепеж

88711

HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

88712

HOSE, COOLER REFRIGERANT SUCTION, NO.1

88716A

PIPE, COOLER REFRIGERANT LIQUID, A

88716B

PIPE, COOLER REFRIGERANT LIQUID, B

88716E

PIPE, COOLER REFRIGERANT LIQUID, E

88717A

PIPE, COOLER REFRIGERANT SUCTION, A

88717E

PIPE, COOLER REFRIGERANT SUCTION, E

8871826070

Крепеж

8871826120

Крепеж

8871826150

Крепеж

8871826170

Крепеж

887182A230

Крепеж

8871832220

Крепеж

8871895J72

Крепеж

9011906462

Крепеж

9011906675

Крепеж

9017906274

Крепеж

9017908204

Крепеж

9046313003

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9165160635

Крепеж

91651B0822

Крепеж

9338516016

Крепеж

9338516025

Крепеж

Код

Описание

88471

TANK, RECEIVER AIR CONDITIONER

88472

BRACKET, RECEIVER TANK, NO.1

88605L

HARNESS SUB-ASSY, WIRING AIR CONDITIONER

88645H

SWITCH, PRESSURE NO.1

8868826140

Крепеж

8868895J77

Крепеж

88691W

VALVE, MAGNET

88711

HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

88712

HOSE, COOLER REFRIGERANT SUCTION, NO.1

88716A

PIPE, COOLER REFRIGERANT LIQUID, A

88716B

PIPE, COOLER REFRIGERANT LIQUID, B

88716B

PIPE, COOLER REFRIGERANT LIQUID, B

88716E

PIPE, COOLER REFRIGERANT LIQUID, E

88717E

PIPE, COOLER REFRIGERANT SUCTION, E

8871826070

Крепеж

8871826120

Крепеж

8871826170

Крепеж

887182A230

Крепеж

8871895J31

Крепеж

8871895J72

Крепеж

9011906462

Крепеж

9011906675

Крепеж

9017906274

Крепеж

9017908204

Крепеж

9046313003

Крепеж

9165140816

Крепеж

9165141020

Крепеж

9165160635

Крепеж

91651B0822

Крепеж

9338516016

Крепеж

9338516025

Крепеж

9338516025

Крепеж

Код

Описание

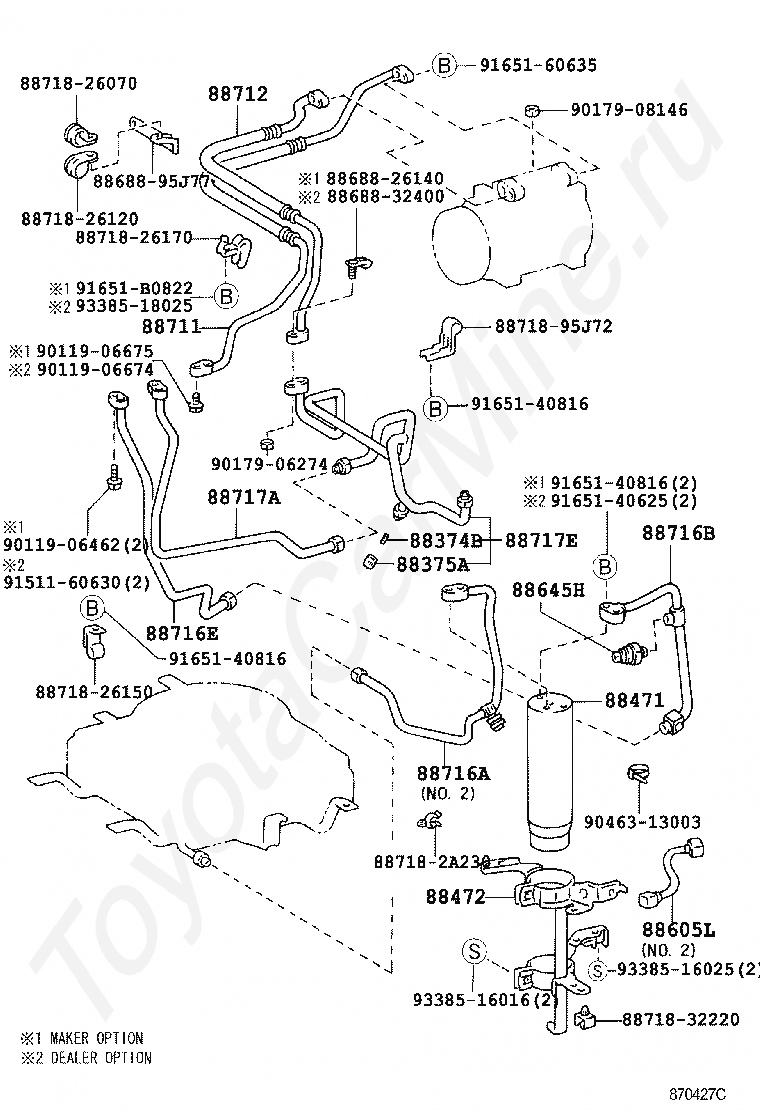

88374B

VALVE, SERVICE, NO.1

88375A

CAP, SERVICE VALVE (FOR COOLER PIPE)

88471

TANK, RECEIVER AIR CONDITIONER

88472

BRACKET, RECEIVER TANK, NO.1

88605L

HARNESS SUB-ASSY, WIRING AIR CONDITIONER

88645H

SWITCH, PRESSURE NO.1

8868826140

Крепеж

8868832400

Крепеж

8868895J77

Крепеж

88711

HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

88712

HOSE, COOLER REFRIGERANT SUCTION, NO.1

88716A

PIPE, COOLER REFRIGERANT LIQUID, A

88716B

PIPE, COOLER REFRIGERANT LIQUID, B

88716E

PIPE, COOLER REFRIGERANT LIQUID, E

88717A

PIPE, COOLER REFRIGERANT SUCTION, A

88717E

PIPE, COOLER REFRIGERANT SUCTION, E

8871826070

Крепеж

8871826120

Крепеж

8871826150

Крепеж

8871826170

Крепеж

887182A230

Крепеж

8871832220

Крепеж

8871895J72

Крепеж

9011906462

Крепеж

9011906674

Крепеж

9011906675

Крепеж

9017906274

Крепеж

9017908146

Крепеж

9046313003

Крепеж

9151160630

Крепеж

9165140625

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9165160635

Крепеж

91651B0822

Крепеж

9338516016

Крепеж

9338516025

Крепеж

9338518025

Крепеж

Код

Описание

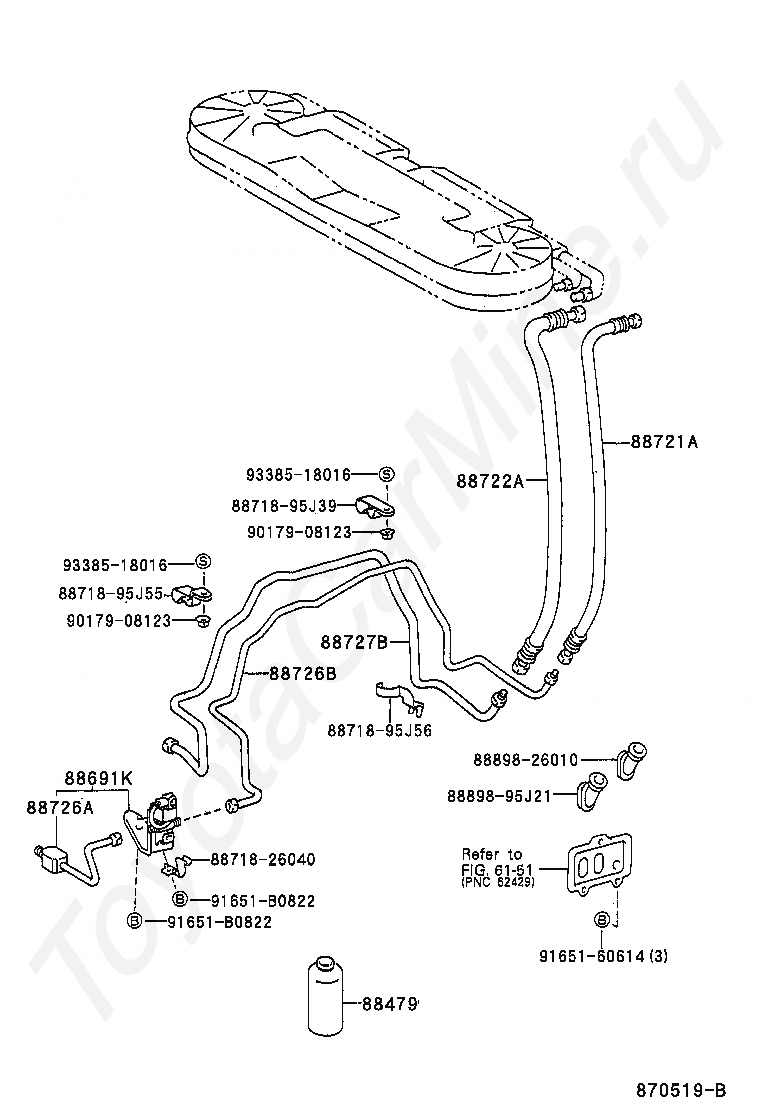

88479

FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

88691K

VALVE ASSY, MAGNET

8871826040

Крепеж

8871895J39

Крепеж

8871895J55

Крепеж

8871895J56

Крепеж

88721A

HOSE, LIQUID, A

88722A

HOSE, SUCTION, A

88726A

PIPE, COOLER REFRIGERANT LIQUID, A

88726B

PIPE, COOLER REFRIGERANT LIQUID, B

88727B

PIPE, COOLER REFRIGERANT SUCTION, B

8889826010

Крепеж

8889895J21

Крепеж

9017908123

Крепеж

9017908123

Крепеж

9165160614

Крепеж

91651B0822

Крепеж

91651B0822

Крепеж

9338518016

Крепеж

9338518016

Крепеж

Код

Описание

88691K

VALVE ASSY, MAGNET

8871495J00

Крепеж

88717J

PIPE, COOLER REFRIGERANT SUCTION, J

8871826040

Крепеж

8871826210

Крепеж

8871826230

Крепеж

8871826730

Крепеж

8871895A39

Крепеж

8871895J26

Крепеж

8871895J39

Крепеж

8871895J72

Крепеж

88721A

HOSE, LIQUID, A

88722A

HOSE, SUCTION, A

88726A

PIPE, COOLER REFRIGERANT LIQUID, A

88726A

PIPE, COOLER REFRIGERANT LIQUID, A

88726B

PIPE, COOLER REFRIGERANT LIQUID, B

88726F

PIPE, COOLER REFRIGERANT LIQUID, F

88727B

PIPE, COOLER REFRIGERANT SUCTION, B

8889826010

Крепеж

8889895J21

Крепеж

9095001047

Крепеж

9095001047

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9165160614

Крепеж

91651B0820

Крепеж

91651B0820

Крепеж

91651B0820

Крепеж

91651B0820

Крепеж

91651B0820

Крепеж

91651B0820

Крепеж

9331514012

Крепеж

9331915008

Крепеж

Код

Описание

88375A

CAP, SERVICE VALVE (FOR COOLER PIPE)

88479

FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

88723B

LABEL, COOLER SERVICE CAUTION

Код

Описание

9009914119

Крепеж

9009914120

Крепеж

9009914121

Крепеж

9009914122

Крепеж

Кондиционер: охлаждающие трубки TOYOTA HIACE VAN,COMMUTER
