Каталог

Европа

Модель

HIACE VAN,COMMUTER

VIN

Дата

1997/07

Двигатель

2,8 литра, дизель

Кузов

COMMUTER

Класс

GL SPECIFICATION

Фрейм

LH125

КПП

МКПП, 5 скоростей

Опции

правый руль высокая крыша 4 двери боковое стекло 15S GEN DSL

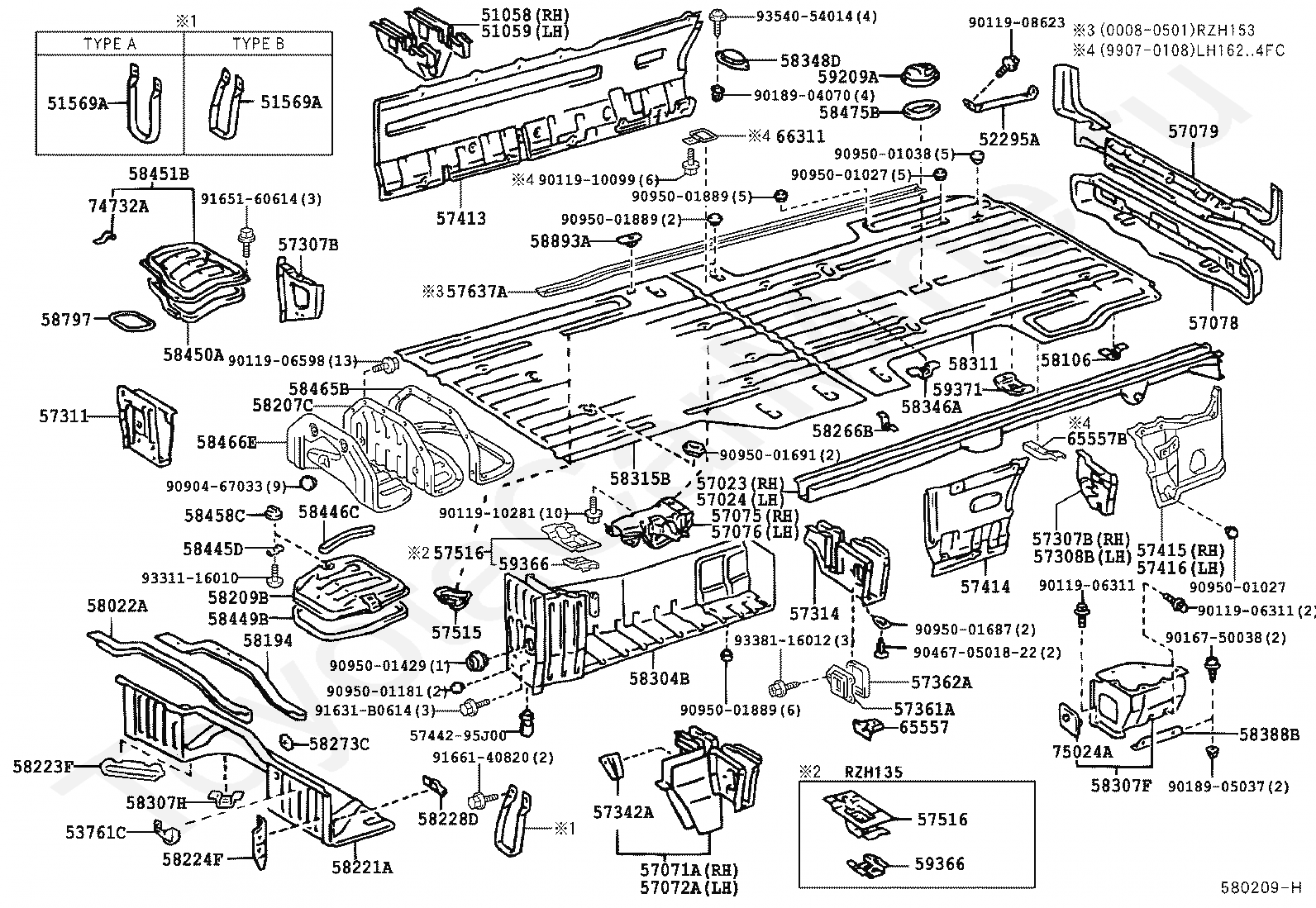

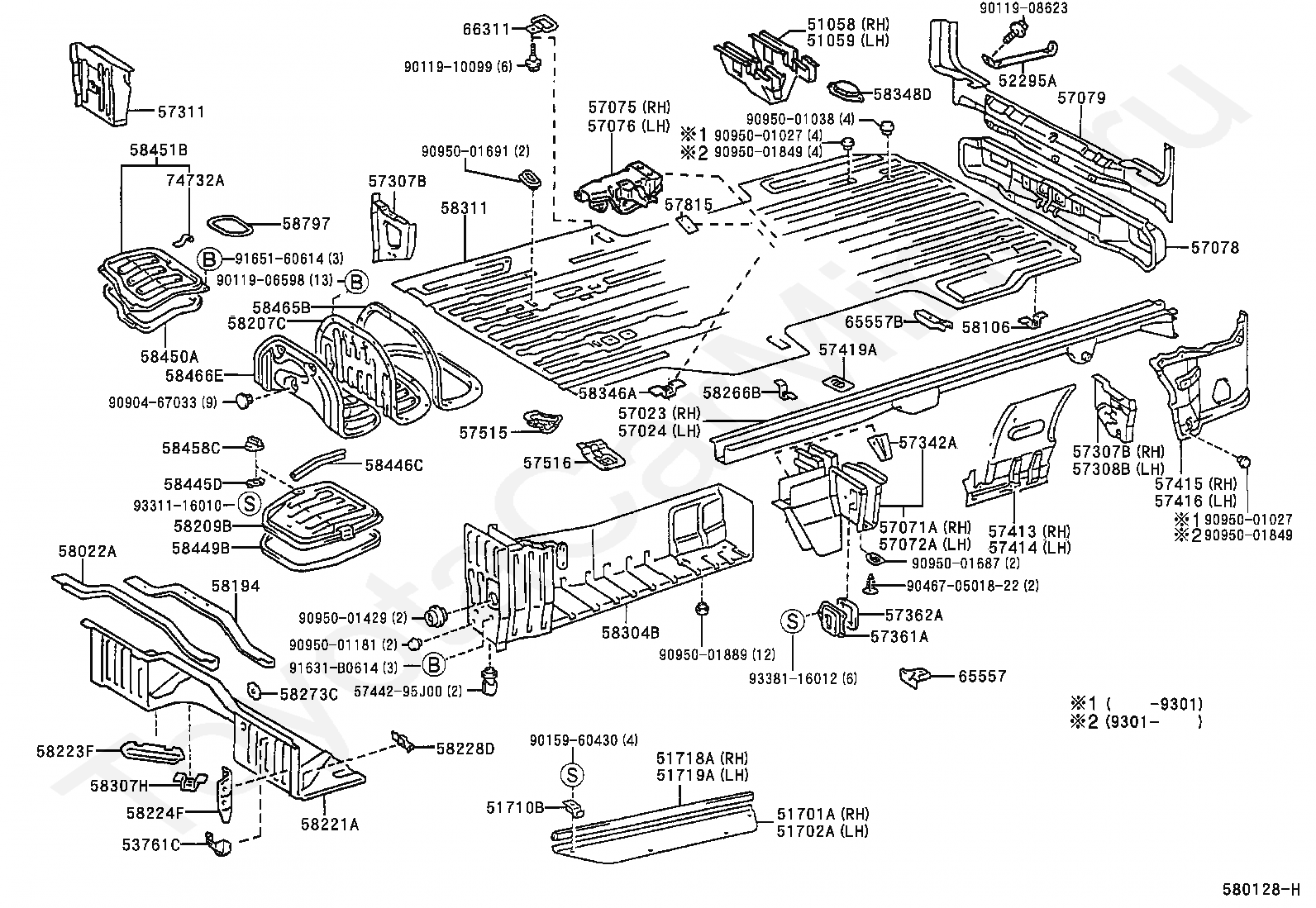

Задняя панель пола TOYOTA HIACE VAN,COMMUTER







Код

Описание

5744295J00

Крепеж

5744295J00

Крепеж

5744295J00

Крепеж

9033320001

Крепеж

9033340001

Крепеж

9095001126

Крепеж

9095001126

Крепеж

9095001181

Крепеж

9095001269

Крепеж

9095001272

Крепеж

9095001272

Крепеж

9095001429

Крепеж

9095001510

Крепеж

9095001510

Крепеж

9095001691

Крепеж

9095001759

Крепеж

9095001759

Крепеж

9095001759

Крепеж

9095001759

Крепеж

9095001759

Крепеж

9095001759

Крепеж

9095001759

Крепеж

9095001759

Крепеж

9095001824

Крепеж

9095001824

Крепеж

9095001824

Крепеж

9095001824

Крепеж

9095001824

Крепеж

9095001824

Крепеж

9095001824

Крепеж

9095001849

Крепеж

9095001849

Крепеж

9095001849

Крепеж

9095001849

Крепеж

9095001849

Крепеж

9095001849

Крепеж

9095001849

Крепеж

9095001849

Крепеж

9095001864

Крепеж

9095001864

Крепеж

9095001864

Крепеж

9095001864

Крепеж

9095001889

Крепеж

9095001889

Крепеж

9095001889

Крепеж

9095001889

Крепеж

9095001913

Крепеж

9095001913

Крепеж

9095001913

Крепеж

9095006001

Крепеж

9165140814

Крепеж

Код

Описание

51058

BRACKET SUB-ASSY, LOWER CONTROL LINK, RH

51059

BRACKET SUB-ASSY, LOWER CONTROL LINK, LH

51701A

COVER SUB-ASSY, SIDE DOOR STEP PANEL, RH

51702A

COVER SUB-ASSY, SIDE DOOR STEP PANEL, LH

51710B

CLAMP, SIDE DOOR STEP OPENING

51718A

PROTECTOR, STEP COVER, RH

51719A

PROTECTOR, STEP COVER, LH

52295A

BRACE, REAR SUSPENSION MEMBER, RH

53761C

BRACKET, BATTERY CLAMP

57023

MEMBER SUB-ASSY, REAR SIDE, RH

57024

MEMBER SUB-ASSY, REAR SIDE, LH

57071A

HANGER SUB-ASSY, REAR SPRING, FRONT, RH

57072A

HANGER SUB-ASSY, REAR SPRING, FRONT, LH

57075

BRACKET SUB-ASSY, UPPER CONTROL LINK, RH

57076

BRACKET SUB-ASSY, UPPER CONTROL LINK, LH

57078

MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER

57079

MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER

57307B

OUTRIGGER SUB-ASSY, NO.4 RH

57307B

OUTRIGGER SUB-ASSY, NO.4 RH

57308B

OUTRIGGER SUB-ASSY, NO.4 LH

57311

OUTRIGGER, NO.1 RH

57342A

GUSSET, OUTRIGGER, NO.2 LH

57361A

COVER, NO.2 OUTERIGGER HOLE

57362A

PACKING, NO.2 OUTRIGGER HOLE COVER

57413

RAIL, FLOOR SIDE, CENTER RH

57414

RAIL, FLOOR SIDE, CENTER LH

57415

RAIL, FLOOR SIDE, REAR RH

57416

RAIL, FLOOR SIDE, REAR LH

57419A

PLATE, REAR SEAT LOCK

5744295J00

Крепеж

57515

BRACKET, PARKING BRAKE, RH

57516

BRACKET SUB-ASSY, PARKING BRAKE, LH

57815

REINFORCEMENT, BELT ANCHOR, NO.1

58022A

REINFORCEMENT SUB-ASSY, HEADER PANEL

58106

BRACKET SUB-ASSY, BRAKE TUBE CONNECTOR, NO.2

58194

RETAINER, ENGINE COVER HINGE

58207C

COVER SUB-ASSY, TRANSMISSION SERVICE HOLE

58209B

COVER SUB-ASSY, BATTERY SERVICE HOLE

58221A

PANEL, HEADER

58223F

REINFORCEMENT, HEADER PANEL, NO.2

58224F

REINFORCEMENT, HEADER PANEL, NO.3

58228D

PATCH, HEADER PANEL, LH

58266B

BRACKET, FUEL TUBE CLAMP

58273C

REINFORCEMENT, BELT ANCHOR TO CENTER FLOOR

58304B

STEP SUB-ASSY, REAR FLOOR, LH

58307H

BRACKET SUB-ASSY, BRAKE TUBE CONN, NO.1

58311

PAN, REAR FLOOR

58346A

BRACKET, REAR FLOOR HEAT INSULATOR, NO.2

58348D

COVER, REAR ABSORBER SERVICE HOLE, RH

58445D

LOCK, BATTERY SERVICE HOLE COVER

58446C

PROTECTOR, BATTERY

58449B

PACKING, BATTERY SERVICE HOLE COVER

58450A

PACKING, BATTERY SERVICE HOLE COVER

58451B

COVER, AIR CLEANER SERVICE HOLE

58458C

KNOB, BATTERY SERVICE HOLE COVER

58465B

PACKING, TRANSMISSION SERVICE HOLE COVER

58466E

SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1

58797

BRACKET, JACK CLAMP BAND

65557

RETAINER, ROPE HOOK

65557B

RETAINER, ROPE HOOK

66311

HOOK, ROPE

74732A

BRACKET, TOOL BAG SET BAND

9011906598

Крепеж

9011908623

Крепеж

9011910099

Крепеж

9015960430

Крепеж

904670501822

Крепеж

9090467033

Крепеж

9095001027

Крепеж

9095001027

Крепеж

9095001038

Крепеж

9095001181

Крепеж

9095001429

Крепеж

9095001687

Крепеж

9095001691

Крепеж

9095001849

Крепеж

9095001849

Крепеж

9095001889

Крепеж

91631B0614

Крепеж

9165160614

Крепеж

9331116010

Крепеж

9338116012

Крепеж

Код

Описание

51058

BRACKET SUB-ASSY, LOWER CONTROL LINK, RH

51059

BRACKET SUB-ASSY, LOWER CONTROL LINK, LH

51569A

GUARD, PROPELLER SHAFT

51569A

GUARD, PROPELLER SHAFT

52295A

BRACE, REAR SUSPENSION MEMBER, RH

53761C

BRACKET, BATTERY CLAMP

57023

MEMBER SUB-ASSY, REAR SIDE, RH

57024

MEMBER SUB-ASSY, REAR SIDE, LH

57071A

HANGER SUB-ASSY, REAR SPRING, FRONT, RH

57072A

HANGER SUB-ASSY, REAR SPRING, FRONT, LH

57075

BRACKET SUB-ASSY, UPPER CONTROL LINK, RH

57076

BRACKET SUB-ASSY, UPPER CONTROL LINK, LH

57078

MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER

57079

MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER

57307B

OUTRIGGER SUB-ASSY, NO.4 RH

57307B

OUTRIGGER SUB-ASSY, NO.4 RH

57308B

OUTRIGGER SUB-ASSY, NO.4 LH

57311

OUTRIGGER, NO.1 RH

57314

OUTRIGGER, NO.2 LH

57342A

GUSSET, OUTRIGGER, NO.2 LH

57361A

COVER, NO.2 OUTERIGGER HOLE

57362A

PACKING, NO.2 OUTRIGGER HOLE COVER

57413

RAIL, FLOOR SIDE, CENTER RH

57414

RAIL, FLOOR SIDE, CENTER LH

57415

RAIL, FLOOR SIDE, REAR RH

57416

RAIL, FLOOR SIDE, REAR LH

5744295J00

Крепеж

57515

BRACKET, PARKING BRAKE, RH

57516

BRACKET SUB-ASSY, PARKING BRAKE, LH

57516

BRACKET SUB-ASSY, PARKING BRAKE, LH

57637A

REINFORCEMENT, REAR FLOOR SIDE, RH

58022A

REINFORCEMENT SUB-ASSY, HEADER PANEL

58106

BRACKET SUB-ASSY, BRAKE TUBE CONNECTOR, NO.2

58194

RETAINER, ENGINE COVER HINGE

58207C

COVER SUB-ASSY, TRANSMISSION SERVICE HOLE

58209B

COVER SUB-ASSY, BATTERY SERVICE HOLE

58221A

PANEL, HEADER

58223F

REINFORCEMENT, HEADER PANEL, NO.2

58224F

REINFORCEMENT, HEADER PANEL, NO.3

58228D

PATCH, HEADER PANEL, LH

58266B

BRACKET, FUEL TUBE CLAMP

58273C

REINFORCEMENT, BELT ANCHOR TO CENTER FLOOR

58304B

STEP SUB-ASSY, REAR FLOOR, LH

58307F

COVER SUB-ASSY, REAR FLOOR STEP

58307H

BRACKET SUB-ASSY, BRAKE TUBE CONN, NO.1

58311

PAN, REAR FLOOR

58315B

PANEL, REAR FLOOR, FRONT

58346A

BRACKET, REAR FLOOR HEAT INSULATOR, NO.2

58348D

COVER, REAR ABSORBER SERVICE HOLE, RH

58388B

BRACKET, PLATE REAR FLOOR

58445D

LOCK, BATTERY SERVICE HOLE COVER

58446C

PROTECTOR, BATTERY

58449B

PACKING, BATTERY SERVICE HOLE COVER

58450A

PACKING, BATTERY SERVICE HOLE COVER

58451B

COVER, AIR CLEANER SERVICE HOLE

58458C

KNOB, BATTERY SERVICE HOLE COVER

58465B

PACKING, TRANSMISSION SERVICE HOLE COVER

58466E

SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1

58475B

PACKING, INSPECTION HOLE COVER

58797

BRACKET, JACK CLAMP BAND

58893A

RETAINER, REAR SEAT NO.2, REAR RH

59209A

COVER SUB-ASSY, INSPECTION HOLE

59366

RETAINER, REAR SEAT, NO.2

59366

RETAINER, REAR SEAT, NO.2

59371

RETAINER, REAR SEAT, NO.3

65557

RETAINER, ROPE HOOK

65557B

RETAINER, ROPE HOOK

66311

HOOK, ROPE

74732A

BRACKET, TOOL BAG SET BAND

75024A

LID SUB-ASSY, TOOL BOX, LH

9011906311

Крепеж

9011906311

Крепеж

9011906598

Крепеж

9011908623

Крепеж

9011910099

Крепеж

9011910281

Крепеж

9016750038

Крепеж

9018904070

Крепеж

9018905037

Крепеж

904670501822

Крепеж

9090467033

Крепеж

9095001027

Крепеж

9095001027

Крепеж

9095001038

Крепеж

9095001181

Крепеж

9095001429

Крепеж

9095001687

Крепеж

9095001691

Крепеж

9095001889

Крепеж

9095001889

Крепеж

9095001889

Крепеж

91631B0614

Крепеж

9165160614

Крепеж

9166140820

Крепеж

9331116010

Крепеж

9338116012

Крепеж

9354054014

Крепеж

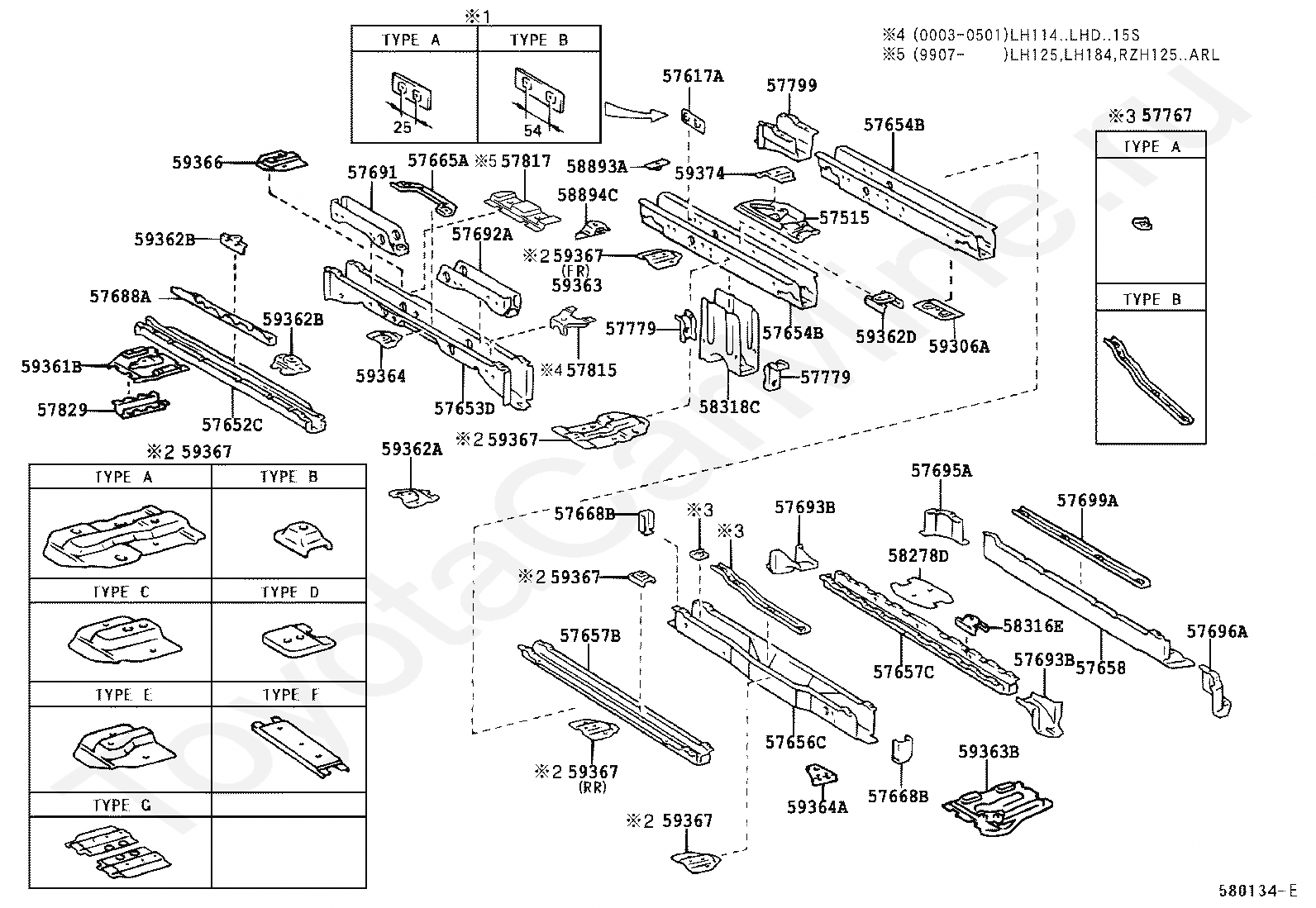

Код

Описание

57515

BRACKET, PARKING BRAKE, RH

57617A

RETAINER, EXHAUST PIPE BRACKET

57652C

MEMBER, REAR FLOOR CROSS, NO.1

57653D

MEMBER, REAR FLOOR CROSS, NO.2

57654B

MEMBER, REAR FLOOR CROSS, NO.3

57654B

MEMBER, REAR FLOOR CROSS, NO.3

57656C

MEMBER, REAR FLOOR CROOS, NO.5

57657B

MEMBER, REAR FLOOR CROSS, NO.6

57657C

CROSSMEMBER, REAR FLOOR, NO.6

57658

MEMBER, REAR FLOOR CROSS, NO.7

57665A

REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2

57668B

REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.5

57668B

REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.5

57688A

REINFORCEMENT, REAR FLOOR CROSSMEMBER

57691

BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER RH

57692A

BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER LH

57693B

BRACE, REAR FLOOR NO.6 CROSSMEMBER

57693B

BRACE, REAR FLOOR NO.6 CROSSMEMBER

57695A

EXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, RH

57696A

EXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, LH

57699A

RETAINER, FUEL TANK SET BAND

57767

RETAINER, FUEL TANK BAND

57779

RETAINER, UPPER CONTROL LINK, UPPER

57779

RETAINER, UPPER CONTROL LINK, UPPER

57799

GUSSET, REAR FLOOR CROSSMEMBER

57815

REINFORCEMENT, BELT ANCHOR, NO.1

57817

REINFORCEMENT, BELT ANCHOR, NO.2

57829

REINFORCEMENT, SEAT LEG

58278D

PROTECTOR, FUEL TANK, UPPER

58316E

RETAINER, REAR SEAT SET

58318C

BRACKET, REAR FLOOR CROSSMEMBER

58893A

RETAINER, REAR SEAT NO.2, REAR RH

58894C

RETAINER, REAR SEAT NO.2, REAR LH

59306A

RETAINER SUB-ASSY, REAR SEAT, NO.1 A

59361B

RETAINER, REAR SEAT, NO.1 A

59362A

RETAINER, REAR SEAT, NO.1 B

59362B

RETAINER, REAR SEAT, NO.1 B

59362B

RETAINER, REAR SEAT, NO.1 B

59362D

RETAINER, REAR SEAT, NO.1 B

59363

RETAINER, REAR SEAT, NO.1 C

59363B

RETAINER, REAR SEAT, NO.1 C

59364

RETAINER, REAR SEAT, NO.1 D

59364A

RETAINER, REAR SEAT, NO.1 D

59366

RETAINER, REAR SEAT, NO.2

59367

RETAINER, REAR SEAT, NO.2 C

59367

RETAINER, REAR SEAT, NO.2 C

59367

RETAINER, REAR SEAT, NO.2 C

59367

RETAINER, REAR SEAT, NO.2 C

59367

RETAINER, REAR SEAT, NO.2 C

59367

RETAINER, REAR SEAT, NO.2 C

59374

RETAINER, SEAT BELT ANCHOR, NO.3
