Каталог

Европа

Модель

HIACE VAN,COMMUTER

VIN

Дата

1989/08

Двигатель

2,4 литра, дизель

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

LH102

КПП

МКПП, 5 скоростей

Опции

правый руль 4 двери SEPARATE SEAT 3-местный Европа

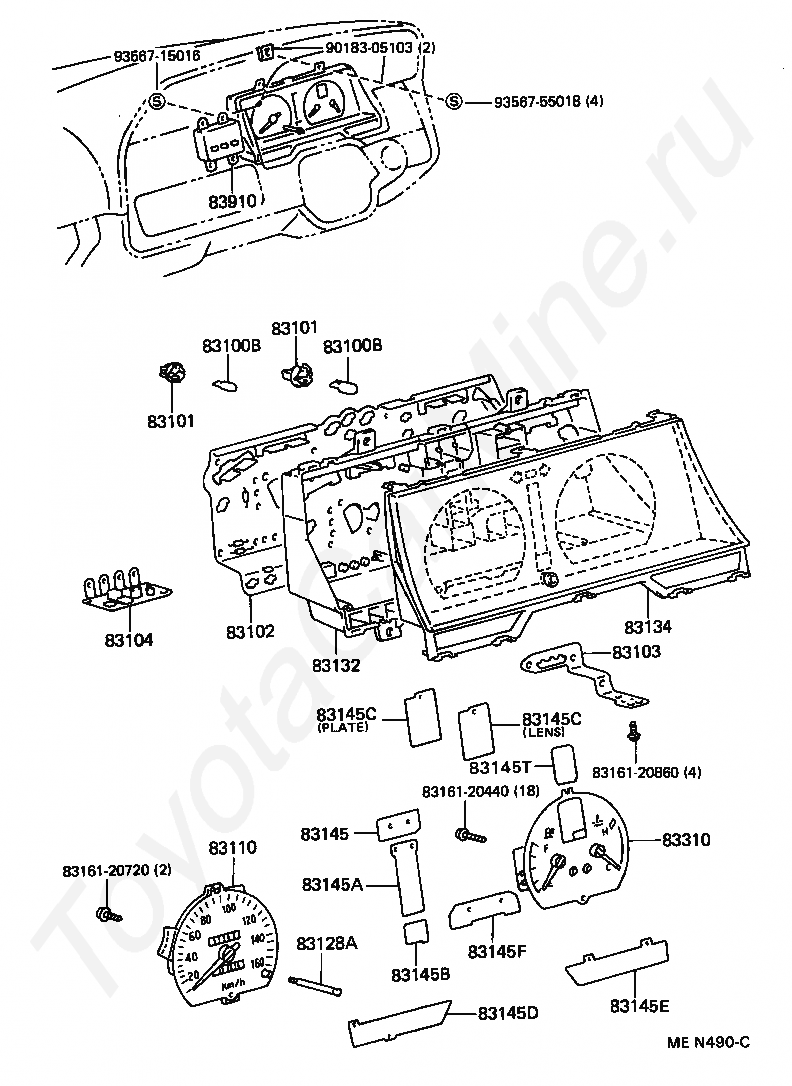

Спидометр TOYOTA HIACE VAN,COMMUTER

Код

Описание

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83102

PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

83103

PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2

83104

PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.3

83110

SPEEDOMETER ASSY

83128A

KNOB, METER

83132

CASE, COMBINATION METER

83134

COVER, COMBINATION METER, NO.1

83145

LENS, METER, NO.1

83145A

LENS, METER, NO.2

83145B

LENS, METER, NO.3

83145C

LENS, METER, NO.4

83145C

LENS, METER, NO.4

83145D

LENS, METER, NO.5

83145E

LENS, METER, NO.6

83145F

LENS, METER, NO.7

83145T

LENS, METER, NO.8

8316120440

Крепеж

8316120720

Крепеж

8316120860

Крепеж

83310

GAGE ASSY, FUEL RECEIVER

83910

CLOCK ASSY

9018305103

Крепеж

9356715016

Крепеж

9356755018

Крепеж

Код

Описание

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83102

PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

83110

SPEEDOMETER ASSY

83132

CASE, COMBINATION METER

83134

COVER, COMBINATION METER, NO.1

83145

LENS, METER, NO.1

83145

LENS, METER, NO.1

83145A

LENS, METER, NO.2

83145B

LENS, METER, NO.3

83145C

LENS, METER, NO.4

83145D

LENS, METER, NO.5

83145F

LENS, METER, NO.7

83149

PLATE, METER CIRCUIT

8316120440

Крепеж

8316120880

Крепеж

8316126060

Крепеж

83243B

GAUGE ASSY, COMBINATION

83910

CLOCK ASSY

83970

BUZZER ASSY, REVERSE WARNING

9018305103

Крепеж

9356715016

Крепеж

9356755018

Крепеж

Код

Описание

83100B

BULB, COMBINATION METER, NO.1

83100B

BULB, COMBINATION METER, NO.1

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83101

SOCKET SUB-ASSY, COMBINATION METER BULB

83102

PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

83110

SPEEDOMETER ASSY

83132

CASE, COMBINATION METER

83134

COVER, COMBINATION METER, NO.1

83145

LENS, METER, NO.1

83145

LENS, METER, NO.1

83145

LENS, METER, NO.1

83145A

LENS, METER, NO.2

83145B

LENS, METER, NO.3

8316120440

Крепеж

8316120880

Крепеж

8316126060

Крепеж

8316220140

Крепеж

83243B

GAUGE ASSY, COMBINATION

83270

TACHOMETER ASSY, ENGINE

83910

CLOCK ASSY

9018305103

Крепеж

9356715016

Крепеж

9356755018

Крепеж

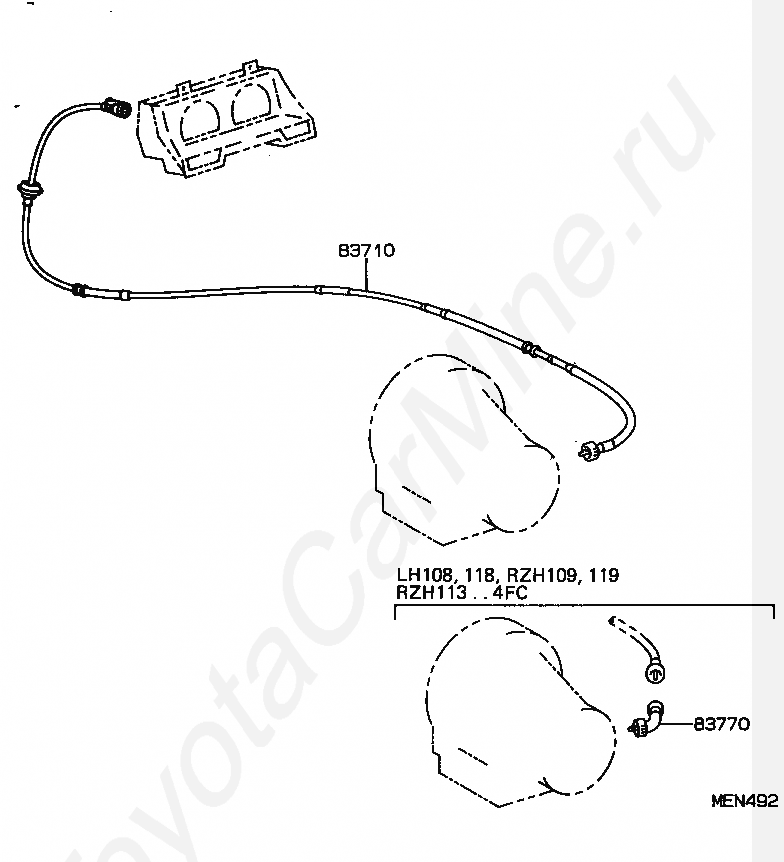

Код

Описание

83710

CABLE ASSY, SPEEDOMETER DRIVE, NO.1

83770

ADAPTER ASSY, SPEEDOMETER CABLE

Код

Описание

83181A

SENSOR, SPEEDOMETER

83181B

RING, O (FOR SPEEDOMETER SENSOR)

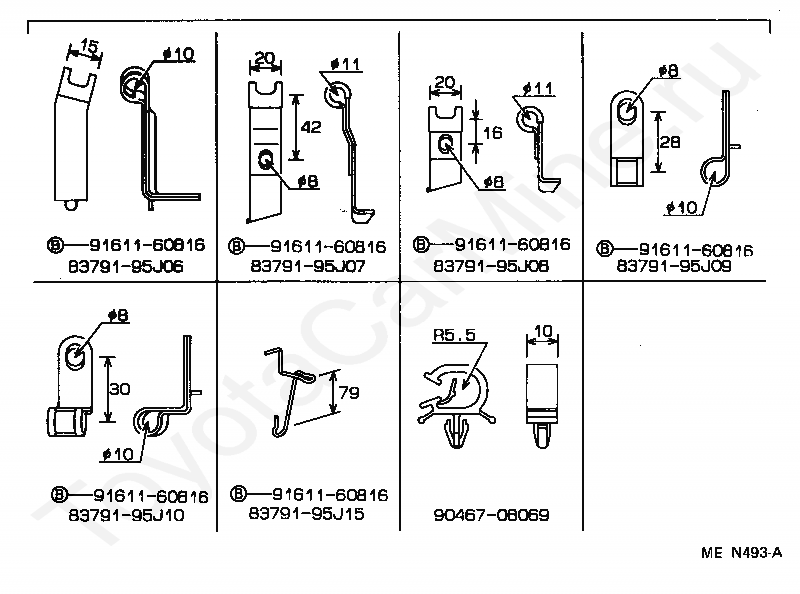

Код

Описание

8379195J06

Крепеж

8379195J07

Крепеж

8379195J08

Крепеж

8379195J09

Крепеж

8379195J10

Крепеж

8379195J15

Крепеж

9046708069

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9161160816

Крепеж
