Кондиционер: управление и воздуховод Тойота HIACE VAN,COMMUTER, Европа, 1989/08 - 2004/08, 2,4 литра, дизель, V(MODEL MARK), STANDARD TYPE, LH102, МКПП, 5 скоростей, левый руль, STANDARD ROOF, 4 двери, SEPARATE SEAT, 03S GEN DSL

Код

Описание

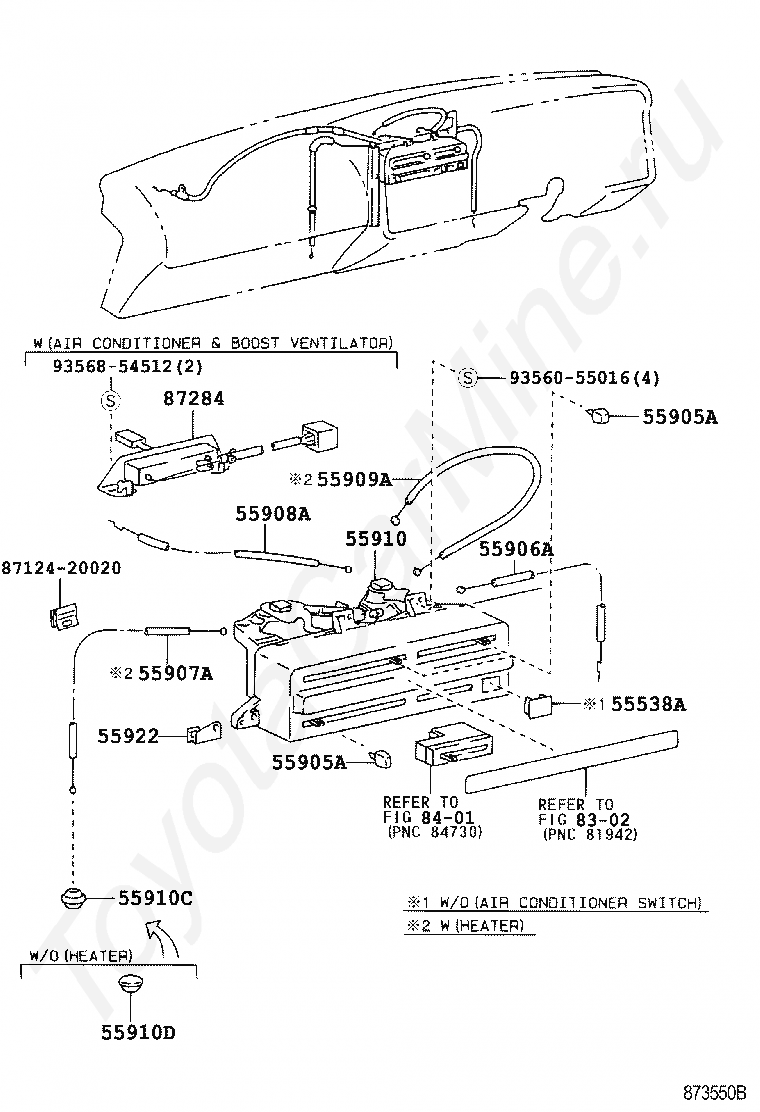

55538A

COVER, COOLER SWITCH HOLE

55905A

KNOB, HEATER CONTROL

55905A

KNOB, HEATER CONTROL

55906A

CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

55907A

CABLE SUB-ASSY, WATER VALVE CONTROL

55908A

CABLE SUB-ASSY, AIR INLET DAMPER CONTROL

55909A

CABLE SUB-ASSY, AIRMIX DAMPER CONTROL

55910

CONTROL ASSY, HEATER OR BOOST VENTILATOR

55910C

GROMMET(FOR HEATER CONTROL CABLE)

55910D

PLUG, HOLE(FOR HEATER CONTROL CABLE HOLE)

55922

BRACKET, HEATER CONTROL BASE

8302

переход к группе запчастей

8401

переход к группе запчастей

8712420020

Крепеж

87284

RESISTOR SUB-ASSY, VARIABLE

9356055016

Крепеж

9356854512

Крепеж

Код

Описание

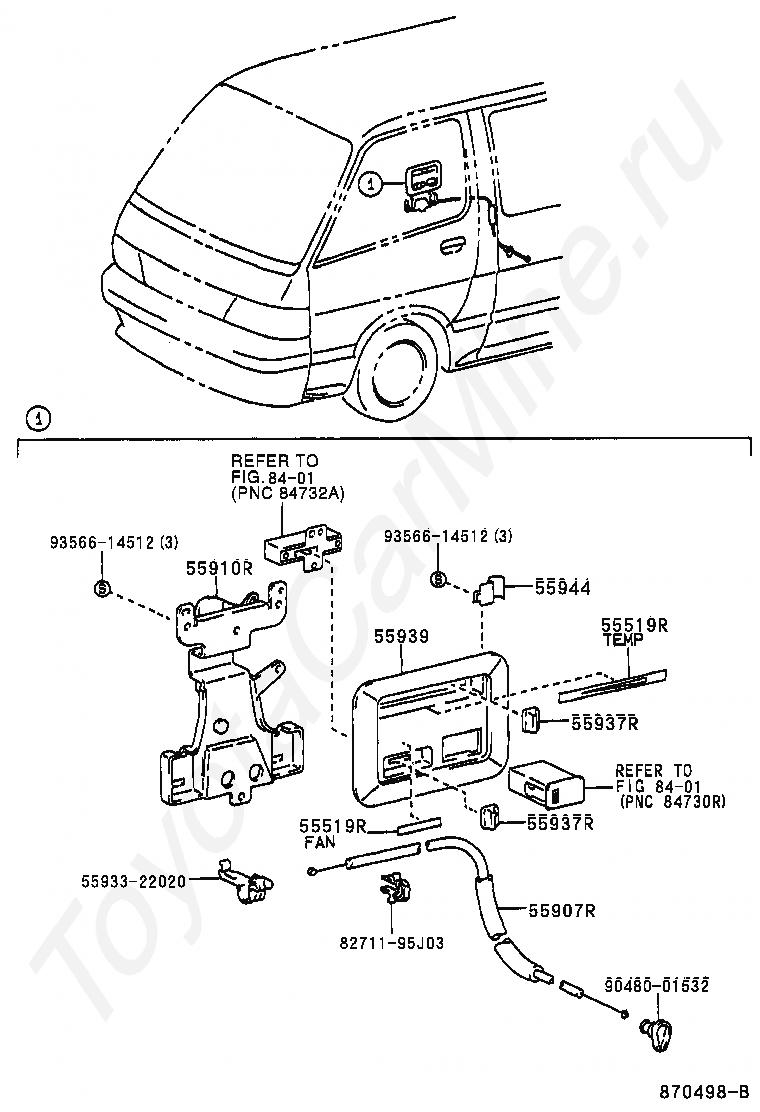

55519R

PLATE, HEATER CONTROL NAME

55519R

PLATE, HEATER CONTROL NAME

55907R

CABLE SUB-ASSY, TEMPERATURE CONTROL

55910R

CONTROL ASSY, HEATER

5593322020

Крепеж

55937R

KNOB, HEATER CONTROL LEVER

55937R

KNOB, HEATER CONTROL LEVER

55939

ORNAMENT, HEATER CONTROL

55944

PLATE, HEATER CONTROL SUPPORT

8271195J03

Крепеж

8401

переход к группе запчастей

8401

переход к группе запчастей

9048001532

Крепеж

9356614512

Крепеж

9356614512

Крепеж

Код

Описание

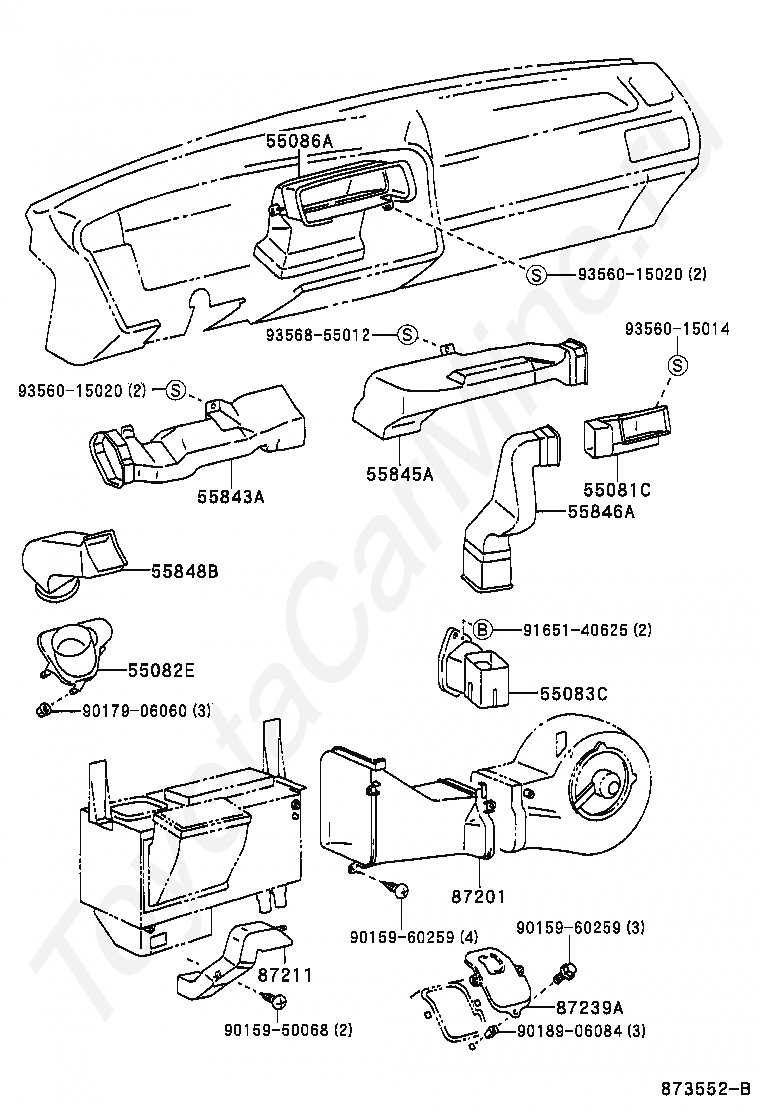

55081C

DUCT SUB-ASSY, COWL TO REGISTER, NO.1

55082E

DUCT SUB-ASSY, COWL TO REGISTER, NO.2

55083C

DUCT SUB-ASSY, FRONT VENTILATOR

55086A

DUCT SUB-ASSY, HEATER TO REGISTER, CENTER

55843A

DUCT, HEATER TO REGISTER, NO.1

55845A

DUCT, HEATER TO REGISTER, NO.3

55846A

DUCT, HEATER TO REGISTER, NO.4

55848B

DUCT, HEATER TO REGISTER, NO.6

87201

DUCT SUB-ASSY, AIR, NO.1

87211

DUCT, AIR, NO.1

87239A

COVER, HEATER INLET HOLE

9015950068

Крепеж

9015960259

Крепеж

9015960259

Крепеж

9017906060

Крепеж

9018906084

Крепеж

9165140625

Крепеж

9356015014

Крепеж

9356015020

Крепеж

9356015020

Крепеж

9356855012

Крепеж

Код

Описание

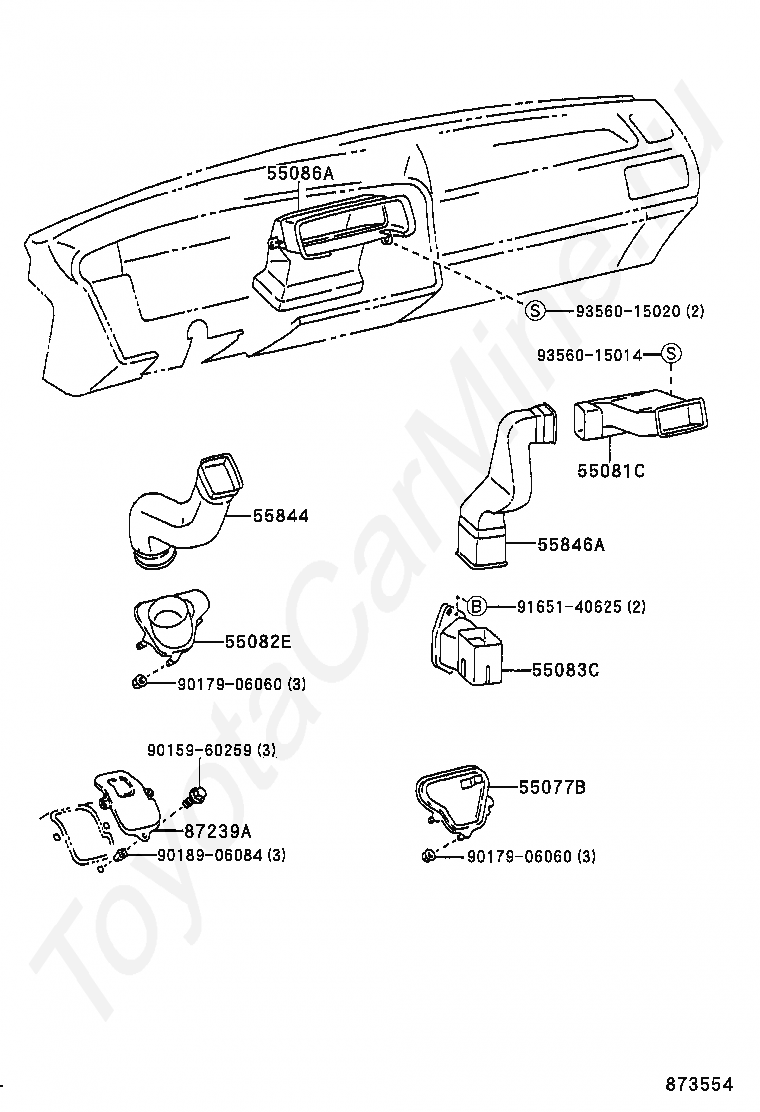

55077B

COVER SUB-ASSY, HEATER AIR DUCT HOLE

55081C

DUCT SUB-ASSY, COWL TO REGISTER, NO.1

55082E

DUCT SUB-ASSY, COWL TO REGISTER, NO.2

55083C

DUCT SUB-ASSY, FRONT VENTILATOR

55086A

DUCT SUB-ASSY, HEATER TO REGISTER, CENTER

55844

DUCT, HEATER TO REGISTER, NO.2

55846A

DUCT, HEATER TO REGISTER, NO.4

87239A

COVER, HEATER INLET HOLE

9015960259

Крепеж

9017906060

Крепеж

9017906060

Крепеж

9018906084

Крепеж

9165140625

Крепеж

9356015014

Крепеж

9356015020

Крепеж

Код

Описание

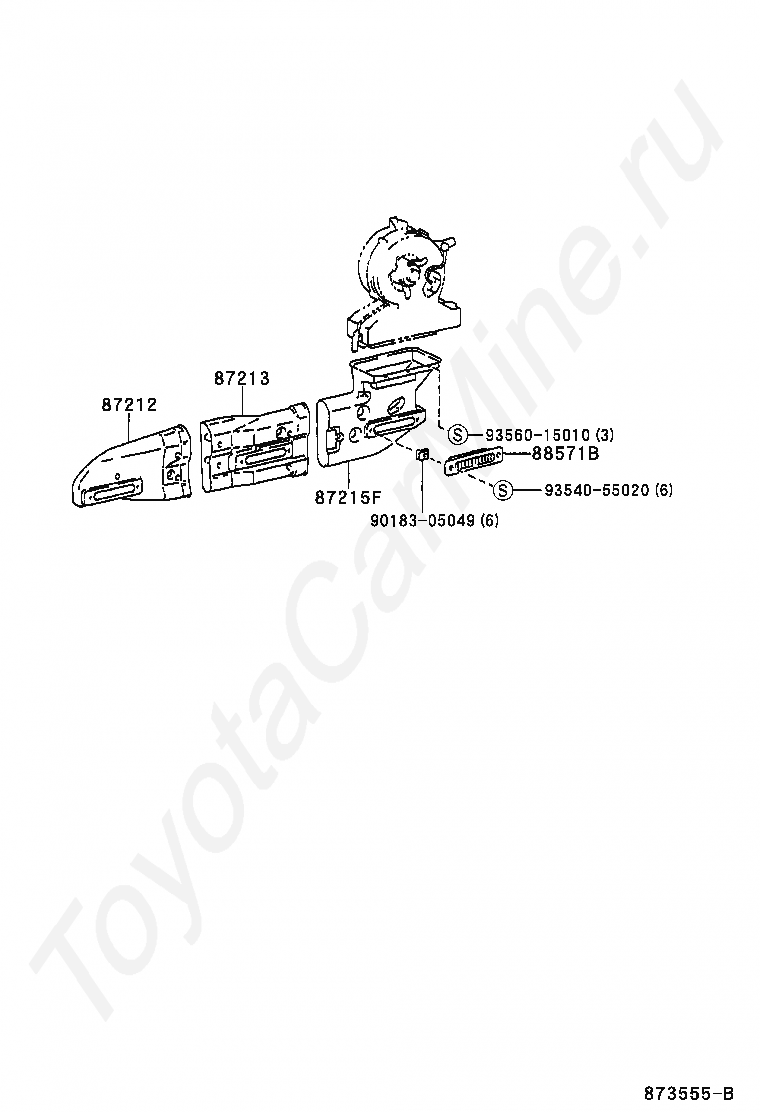

87212

DUCT, AIR, REAR NO.1

87213

DUCT, AIR, REAR NO.2

87215F

DUCT, AIR, REAR NO.3

88571B

GRILLE, AIR OUTLET

9018305049

Крепеж

9354055020

Крепеж

9356015010

Крепеж

Код

Описание

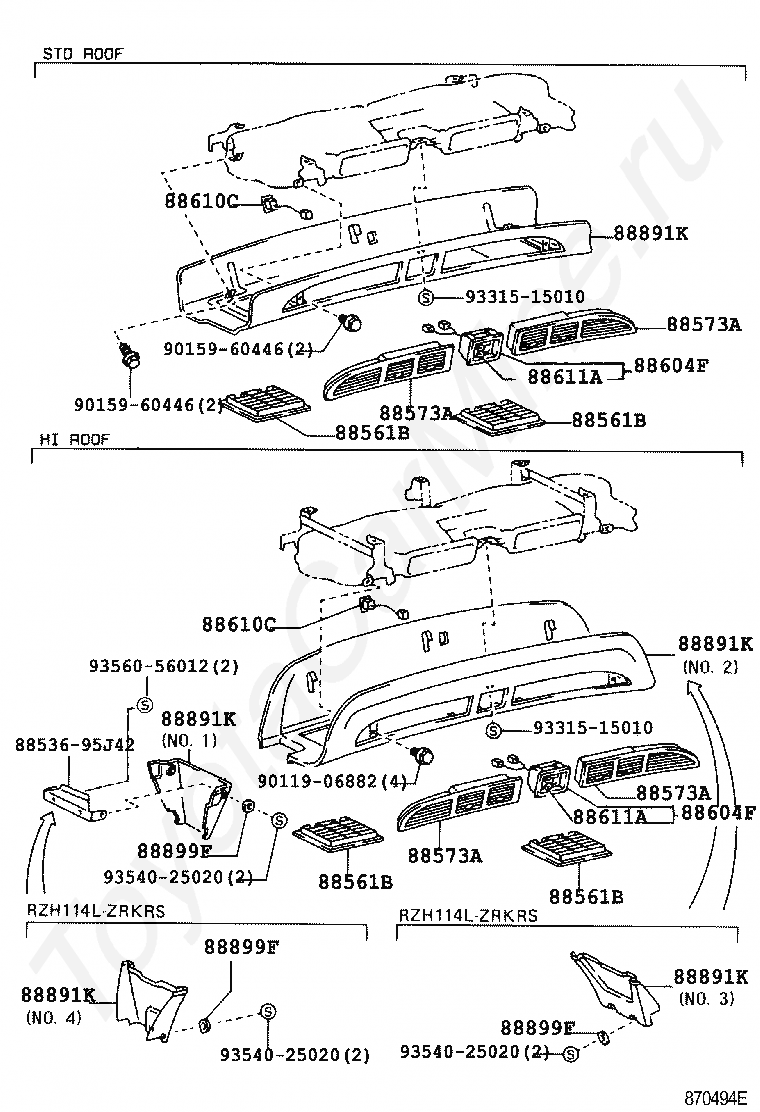

8853695J42

Крепеж

88561B

GRILLE, COOLER AIR INLET

88561B

GRILLE, COOLER AIR INLET

88561B

GRILLE, COOLER AIR INLET

88561B

GRILLE, COOLER AIR INLET

88573A

BASE, GRILLE

88573A

BASE, GRILLE

88573A

BASE, GRILLE

88573A

BASE, GRILLE

88604F

PANEL SUB-ASSY, COOLER CONTROL

88604F

PANEL SUB-ASSY, COOLER CONTROL

88610C

SWITCH ASSY, COOLER CONTROL

88610C

SWITCH ASSY, COOLER CONTROL

88611A

KNOB, COOLER CONTROL SWITCH

88611A

KNOB, COOLER CONTROL SWITCH

88891K

COVER, COOLER

88891K

COVER, COOLER

88891K

COVER, COOLER

88891K

COVER, COOLER

88891K

COVER, COOLER

88899F

SPACER

88899F

SPACER

88899F

SPACER

9011906882

Крепеж

9015960446

Крепеж

9015960446

Крепеж

9331515010

Крепеж

9331515010

Крепеж

9354025020

Крепеж

9354025020

Крепеж

9354025020

Крепеж

9356056012

Крепеж

Код

Описание

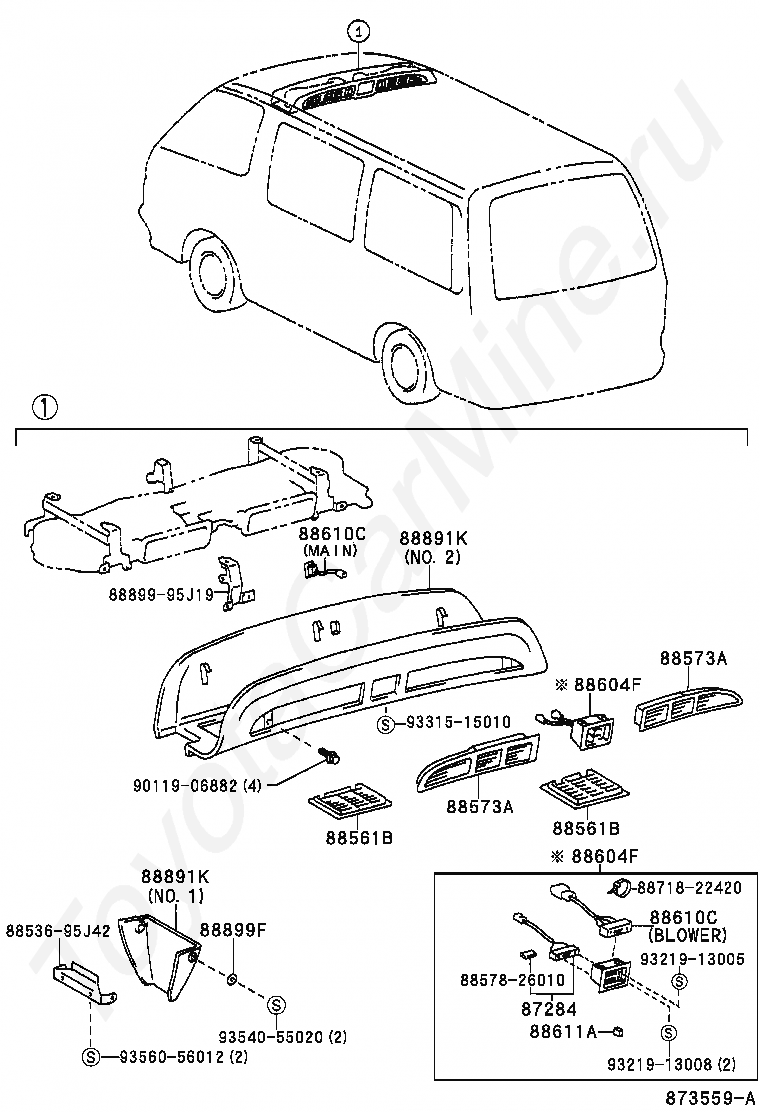

87284

RESISTOR SUB-ASSY, VARIABLE

8853695J42

Крепеж

88561B

GRILLE, COOLER AIR INLET

88561B

GRILLE, COOLER AIR INLET

88573A

BASE, GRILLE

88573A

BASE, GRILLE

8857826010

Крепеж

88604F

PANEL SUB-ASSY, COOLER CONTROL

88604F

PANEL SUB-ASSY, COOLER CONTROL

88610C

SWITCH ASSY, COOLER CONTROL

88610C

SWITCH ASSY, COOLER CONTROL

88611A

KNOB, COOLER CONTROL SWITCH

8871822420

Крепеж

88891K

COVER, COOLER

88891K

COVER, COOLER

8889995J19

Крепеж

88899F

SPACER

9011906882

Крепеж

9321913005

Крепеж

9321913008

Крепеж

9331515010

Крепеж

9354055020

Крепеж

9356056012

Крепеж

Кондиционер: управление и воздуховод TOYOTA HIACE VAN,COMMUTER
