Каталог

Европа

Модель

HIACE VAN,COMMUTER

VIN

Дата

1989/08

Двигатель

2,4 литра, дизель

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

LH102

КПП

МКПП, 5 скоростей

Опции

левый руль STANDARD ROOF 4 двери SEPARATE SEAT 03S GEN DSL

Стеклоочиститель передний TOYOTA HIACE VAN,COMMUTER

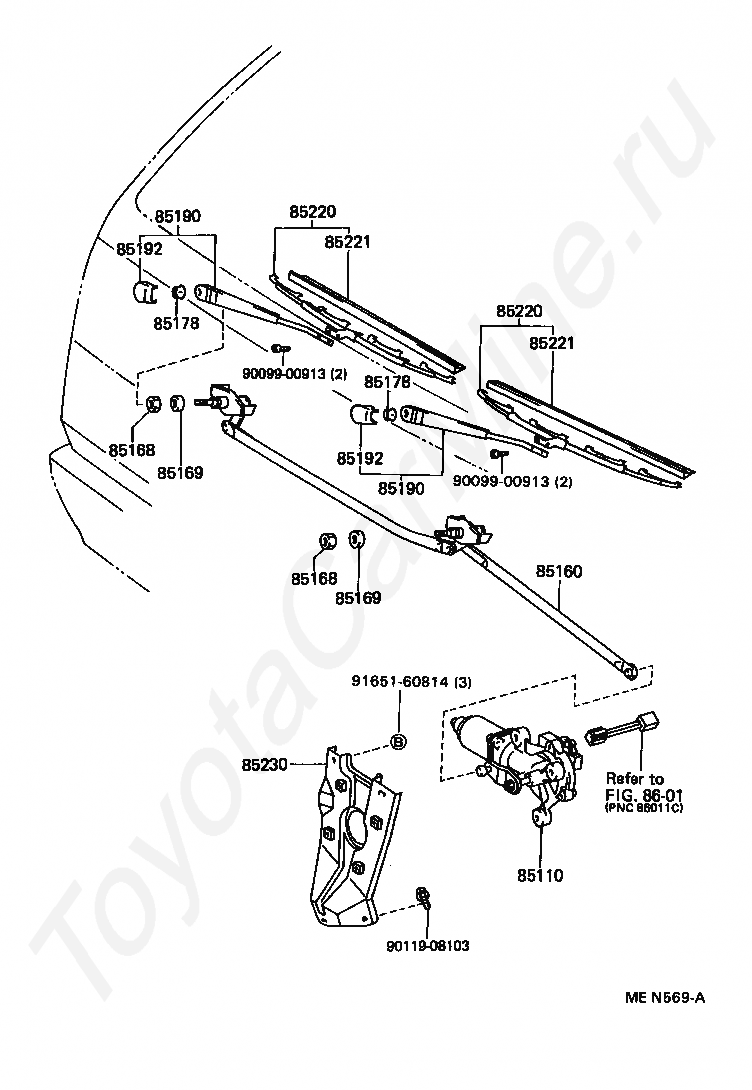

Код

Описание

85110

MOTOR ASSY, WINDSHIELD WIPER

85160

LINK ASSY, WINDSHIELD WIPER

85168

NUT, WINDSHIELD WIPER LINK PIVOT

85168

NUT, WINDSHIELD WIPER LINK PIVOT

85169

WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1

85169

WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1

85178

NUT (FOR FRONT WIPER ARM SETTING)

85178

NUT (FOR FRONT WIPER ARM SETTING)

85190

ARM ASSY, WINDSHIELD WIPER

85190

ARM ASSY, WINDSHIELD WIPER

85192

COVER, WINDSHIELD WIPER ARM

85192

COVER, WINDSHIELD WIPER ARM

85220

BLADE ASSY, WINDSHIELD WIPER

85220

BLADE ASSY, WINDSHIELD WIPER

85221

BLADE, WINDSHIELD WIPER

85221

BLADE, WINDSHIELD WIPER

85230

BRACKET ASSY, WINDSHIELD WIPER

8601

переход к группе запчастей

9009900913

Крепеж

9009900913

Крепеж

9011908103

Крепеж

9165160814

Крепеж

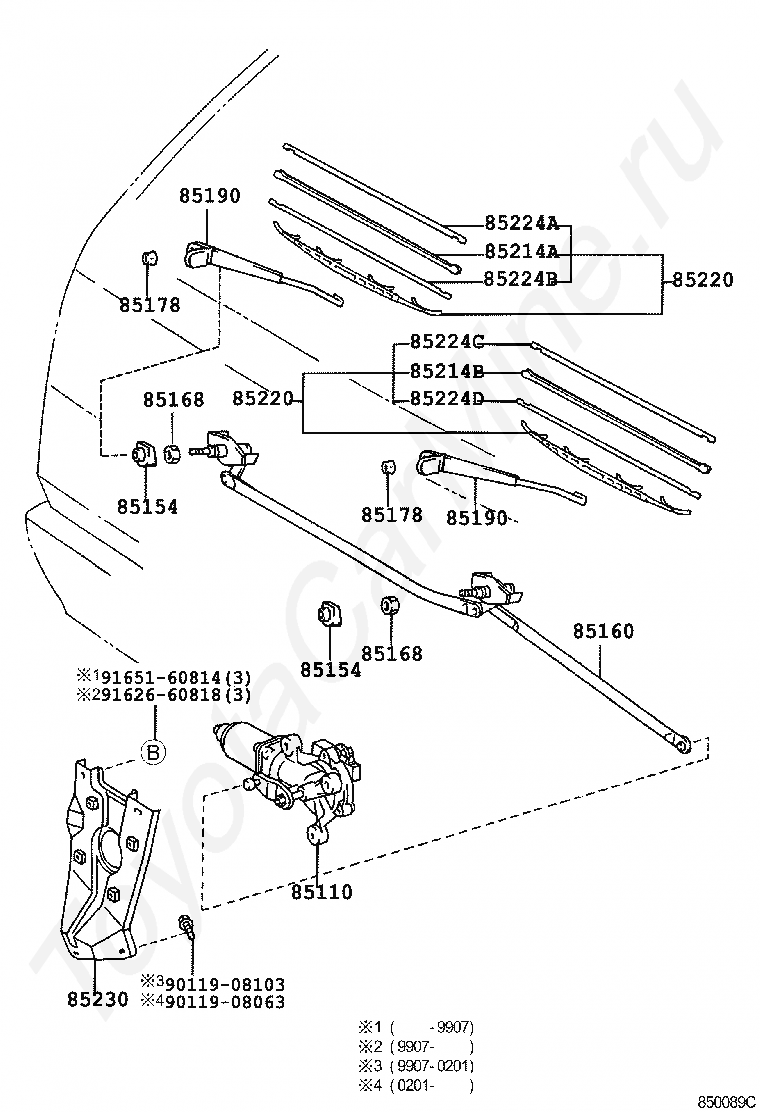

Код

Описание

85110

MOTOR ASSY, WINDSHIELD WIPER

85154

PACKING, FRONT WIPER SHAFT

85154

PACKING, FRONT WIPER SHAFT

85160

LINK ASSY, WINDSHIELD WIPER

85168

NUT, WINDSHIELD WIPER LINK PIVOT

85168

NUT, WINDSHIELD WIPER LINK PIVOT

85178

NUT (FOR FRONT WIPER ARM SETTING)

85178

NUT (FOR FRONT WIPER ARM SETTING)

85190

ARM ASSY, WINDSHIELD WIPER

85190

ARM ASSY, WINDSHIELD WIPER

85214A

RUBBER, WIPER, RH

85214B

RUBBER, WIPER, LH

85220

BLADE ASSY, WINDSHIELD WIPER

85220

BLADE ASSY, WINDSHIELD WIPER

85224A

PLATE, WIPER RUBBER BACKING, NO.1

85224B

PLATE, WIPER RUBBER BACKING, NO.2

85224C

PLATE, WIPER RUBBER BACKING, NO.3

85224D

PLATE, WIPER RUBBER BACKING, NO.4

85230

BRACKET ASSY, WINDSHIELD WIPER

9011908063

Крепеж

9011908103

Крепеж

9162660818

Крепеж

9165160814

Крепеж
