Реле и кнопки Тойота HIACE VAN,COMMUTER, Европа, 1989/08 - 2004/08, 2,4 литра, дизель, V(MODEL MARK), STANDARD TYPE, LH102, МКПП, 5 скоростей, левый руль, STANDARD ROOF, 4 двери, SEPARATE SEAT, 03S GEN DSL

Код

Описание

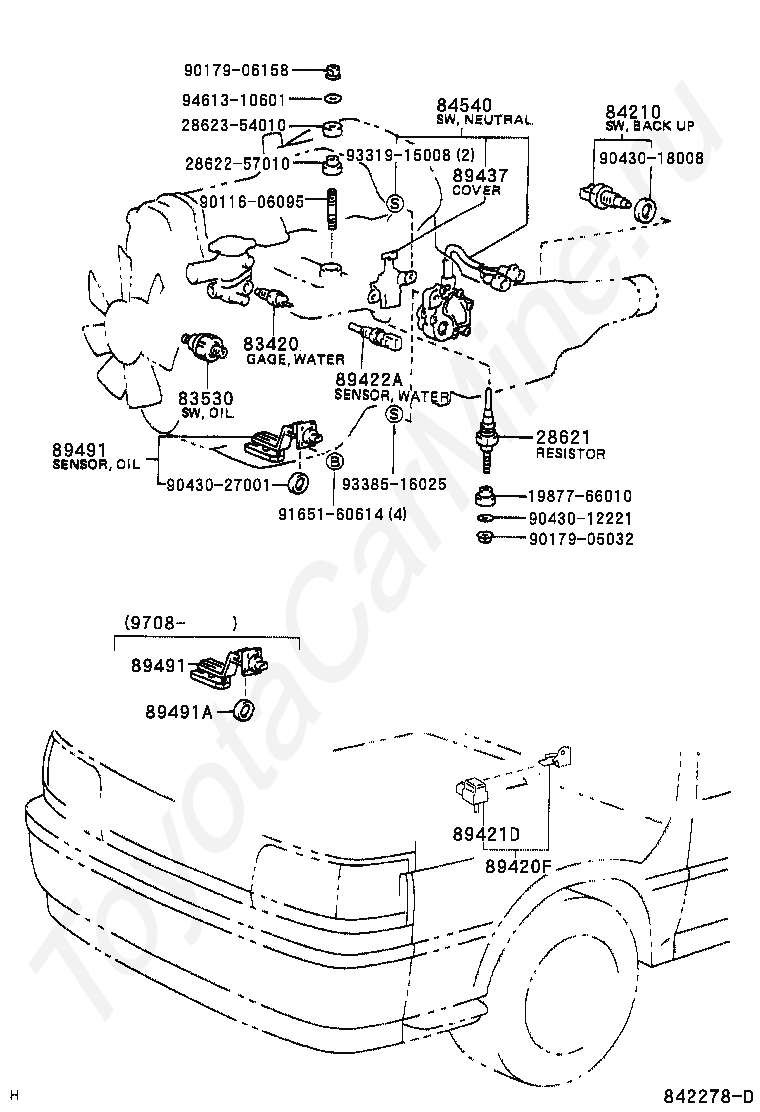

1987766010

Крепеж

28621

RESISTOR, GLOW PLUG

2862257010

Крепеж

2862354010

Крепеж

83420

GAGE ASSY, WATER TEMPERATURE SENDER

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

84210

SWITCH ASSY, BACK-UP LAMP

84540

SWITCH ASSY, NEUTRAL START

89420F

SENSOR ASSY, VACUUM

89421D

SENSOR, TURBO PRESSURE

89422A

SENSOR, WATER TEMPERATURE

89437

COVER, SENSOR

89491

SENSOR, ENGINE OIL LEVEL

89491

SENSOR, ENGINE OIL LEVEL

89491A

GASKET, ENGINE OIL LEVEL SENSOR

9011606095

Крепеж

9017905032

Крепеж

9017906158

Крепеж

9043012221

Крепеж

9043018008

Крепеж

9043027001

Крепеж

9165160614

Крепеж

9331915008

Крепеж

9338516025

Крепеж

9461310601

Крепеж

Код

Описание

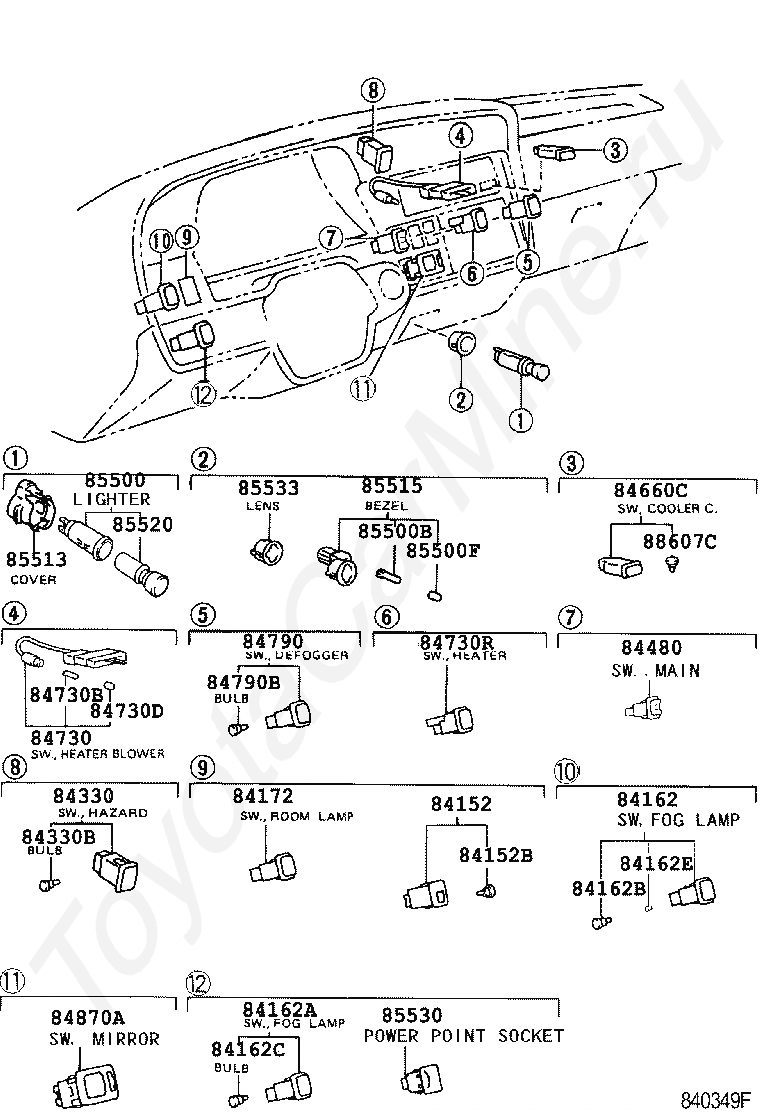

84152

SWITCH, HEADLAMP LEVELING

84152B

BULB (FOR HEADLAMP LEVELING SWITCH)

84162

SWITCH, FRONT FOG LAMP

84162A

SWITCH, REAR FOG LAMP

84162B

BULB, FOG LAMP SWITCH

84162C

BULB (FOR REAR FOG LAMP SWITCH)

84162E

CAP, FOG LAMP BULB

84172

SWITCH, ROOM LAMP

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84330B

BULB, HAZARD WARNING SIGNAL SWITCH

84480

SWITCH ASSY, MAIN

84660C

SWITCH, COOLER

84730

SWITCH ASSY, HEATER BLOWER

84730B

BULB, HEATER BLOWER SWITCH

84730D

CAP, HEATER BLOWER SWITCH BULB

84730R

SWITCH ASSY, HEATER BLOWER

84790

SWITCH ASSY, REAR WINDOW DEFOGGER

84790B

BULB(FOR REAR WINDOW DEFOGGER SWITCH)

84870A

SWITCH ASSY, OUTER MIRROR

85500

LIGHTER ASSY, CIGARETTE

85500B

BULB, CIGARETTE LIGHTER

85500F

CAP, CIGARETTE LIGHTER BULB

85513

COVER, CIGARETTE LIGHTER

85515

STAY, CIGARETTE LIGHTER BEZEL

85520

KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER

85530

SOCKET ASSY, POWER OUTLET, NO.1

85533

LENS, CIGARETTE LIGHTER INDICATOR

88607C

LAMP SUB-ASSY, INDICATOR

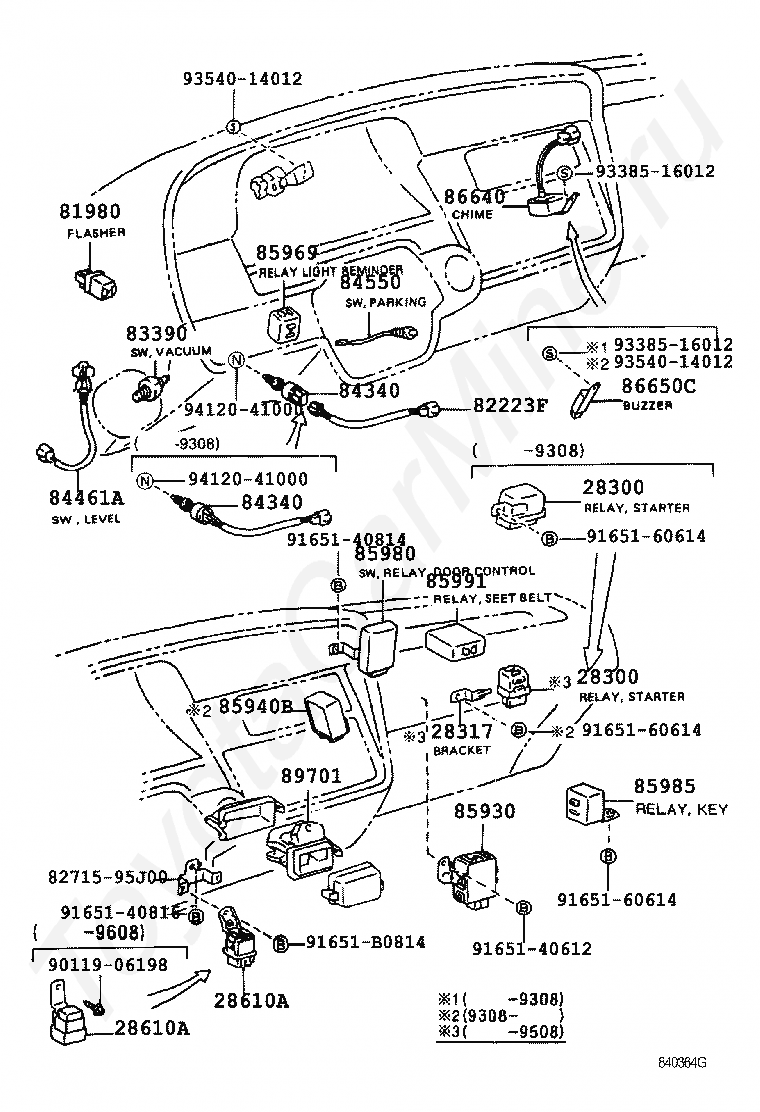

Код

Описание

28300

RELAY ASSY, STARTER

28300

RELAY ASSY, STARTER

28317

BRACKET, STARTER RELAY

28610A

RELAY ASSY, GLOW PLUG(SUB)

28610A

RELAY ASSY, GLOW PLUG(SUB)

81980

FLASHER ASSY, TURN SIGNAL

82223F

WIRE, SWITCH

8271595J00

Крепеж

83390

SWITCH ASSY, VACUUM WARNING

84340

SWITCH ASSY, STOP LAMP

84340

SWITCH ASSY, STOP LAMP

84461A

SWITCH, BRAKE RESERVOIR LEVEL WARNING

84550

SWITCH ASSY, PARKING BRAKE

85930

RELAY ASSY, POWER WINDOW

85940B

RELAY ASSY, REAR WIPER

85969

RELAY, LIGHT REMINDER

85980

RELAY ASSY, DOOR CONTROL

85985

RELAY, KEY REMINDER

85991

RELAY, SEAT BELT WARNING

86640

CHIME ASSY

86650C

BUZZER ASSY, SEDIMENTER WARNING

89701

BLOCK SUB-ASSY, ABS RELAY

9011906198

Крепеж

9165140612

Крепеж

9165140814

Крепеж

9165140816

Крепеж

9165160614

Крепеж

9165160614

Крепеж

9165160614

Крепеж

91651B0814

Крепеж

9338516012

Крепеж

9338516012

Крепеж

9354014012

Крепеж

9354014012

Крепеж

9412041000

Крепеж

9412041000

Крепеж

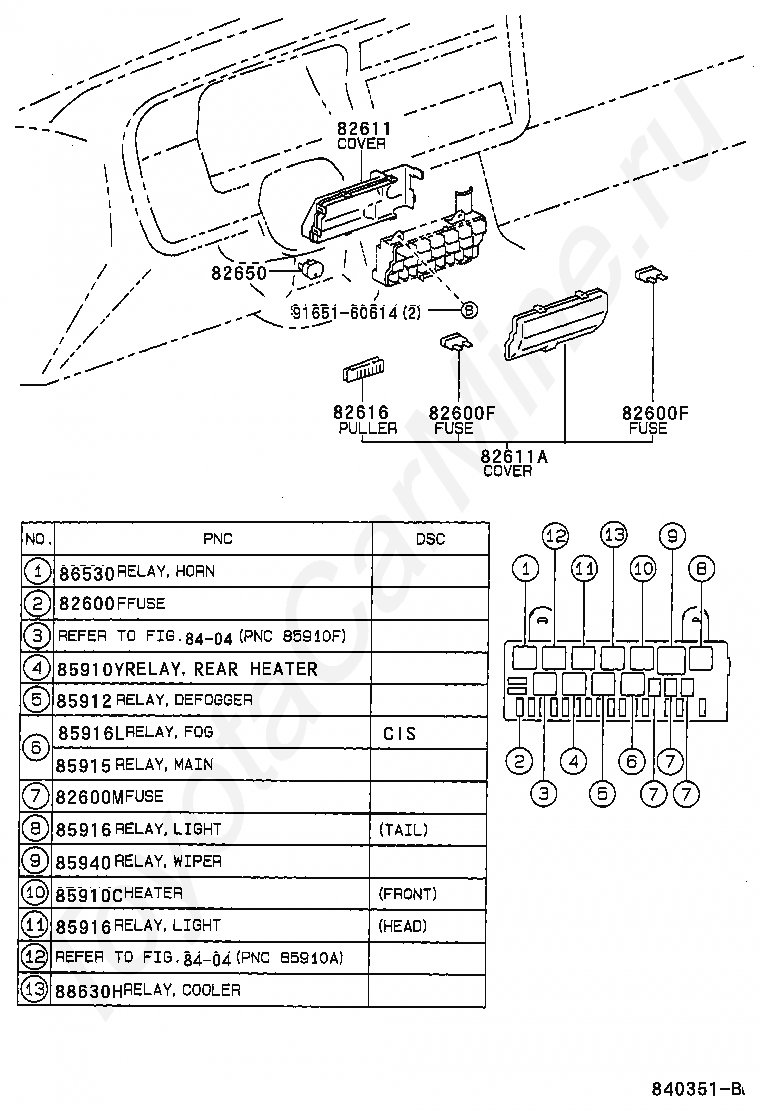

Код

Описание

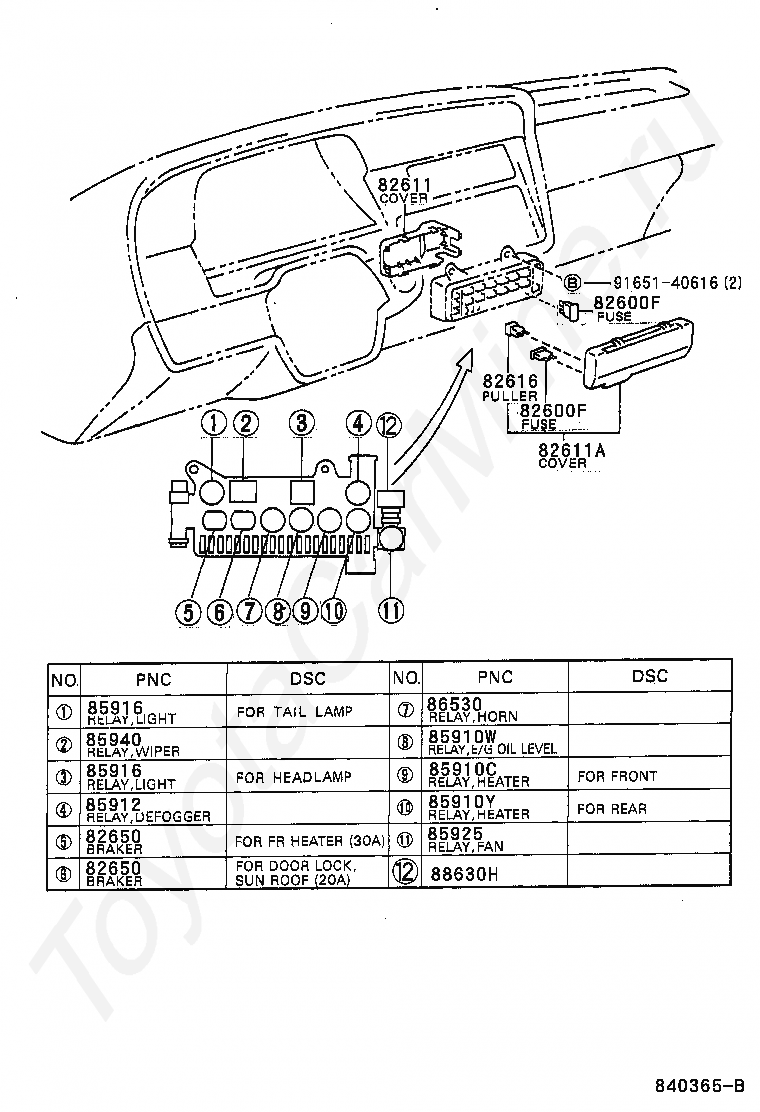

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82611

COVER, FUSE BLOCK

82611A

COVER, FUSE BLOCK, NO.2

82616

PULLER, FUSE

82650

BREAKER ASSY, WIRING CIRCUIT, NO.1

82650

BREAKER ASSY, WIRING CIRCUIT, NO.1

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85910W

RELAY, OIL LEVEL

85910Y

RELAY, REAR HEATER

85912

RELAY, DEFOGGER

85916

RELAY, LIGHT CONTROL

85916

RELAY, LIGHT CONTROL

85925

RELAY, RADIATOR FAN

85940

RELAY ASSY, WINDSHIELD WIPER

86530

RELAY ASSY, HORN

88630H

RELAY ASSY, COOLER

9165140616

Крепеж

Код

Описание

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82600M

FUSE, MEDIUM CURRENT

82611

COVER, FUSE BLOCK

82611A

COVER, FUSE BLOCK, NO.2

82616

PULLER, FUSE

82650

BREAKER ASSY, WIRING CIRCUIT, NO.1

8404

переход к группе запчастей

8404

переход к группе запчастей

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85910Y

RELAY, REAR HEATER

85912

RELAY, DEFOGGER

85915

RELAY, MAIN

85916

RELAY, LIGHT CONTROL

85916

RELAY, LIGHT CONTROL

85916L

RELAY, REAR FOG LAMP

85940

RELAY ASSY, WINDSHIELD WIPER

86530

RELAY ASSY, HORN

88630H

RELAY ASSY, COOLER

9165160614

Крепеж

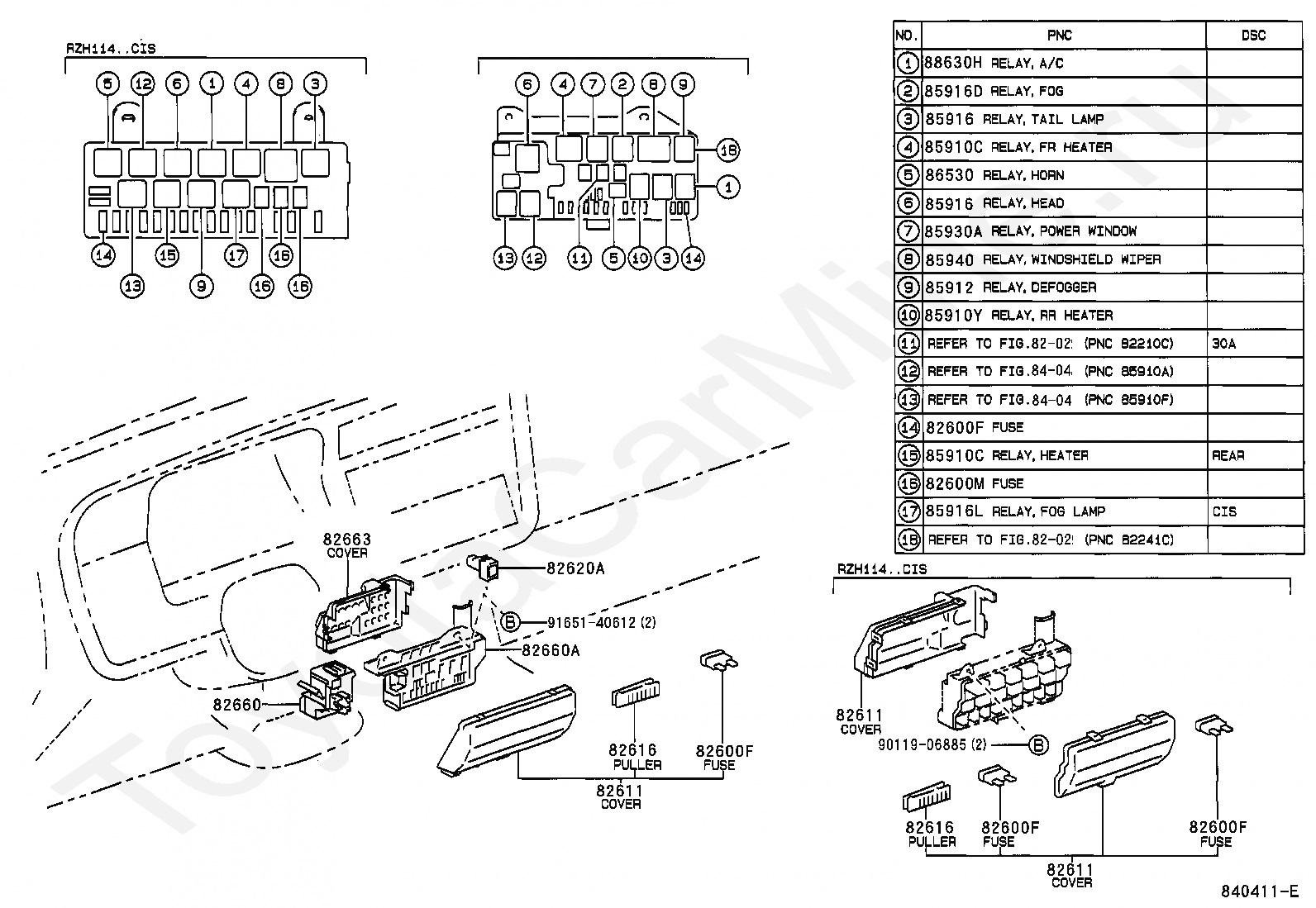

Код

Описание

8202

переход к группе запчастей

8202

переход к группе запчастей

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82600M

FUSE, MEDIUM CURRENT

82611

COVER, FUSE BLOCK

82611

COVER, FUSE BLOCK

82611

COVER, FUSE BLOCK

82616

PULLER, FUSE

82616

PULLER, FUSE

82620A

BLOCK ASSY, FUSIBLE LINK

82660

BLOCK ASSY, RELAY, ENGINE ROOM

82660A

BLOCK ASSY, RELAY, COWL SIDE

82663

COVER, RELAY BLOCK, LOWER

8404

переход к группе запчастей

8404

переход к группе запчастей

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85910Y

RELAY, REAR HEATER

85912

RELAY, DEFOGGER

85916

RELAY, LIGHT CONTROL

85916

RELAY, LIGHT CONTROL

85916D

RELAY, FOG LAMP

85916L

RELAY, REAR FOG LAMP

85930A

RELAY ASSY, POWER WINDOW, NO.1

85940

RELAY ASSY, WINDSHIELD WIPER

86530

RELAY ASSY, HORN

88630H

RELAY ASSY, COOLER

9011906885

Крепеж

9165140612

Крепеж

Код

Описание

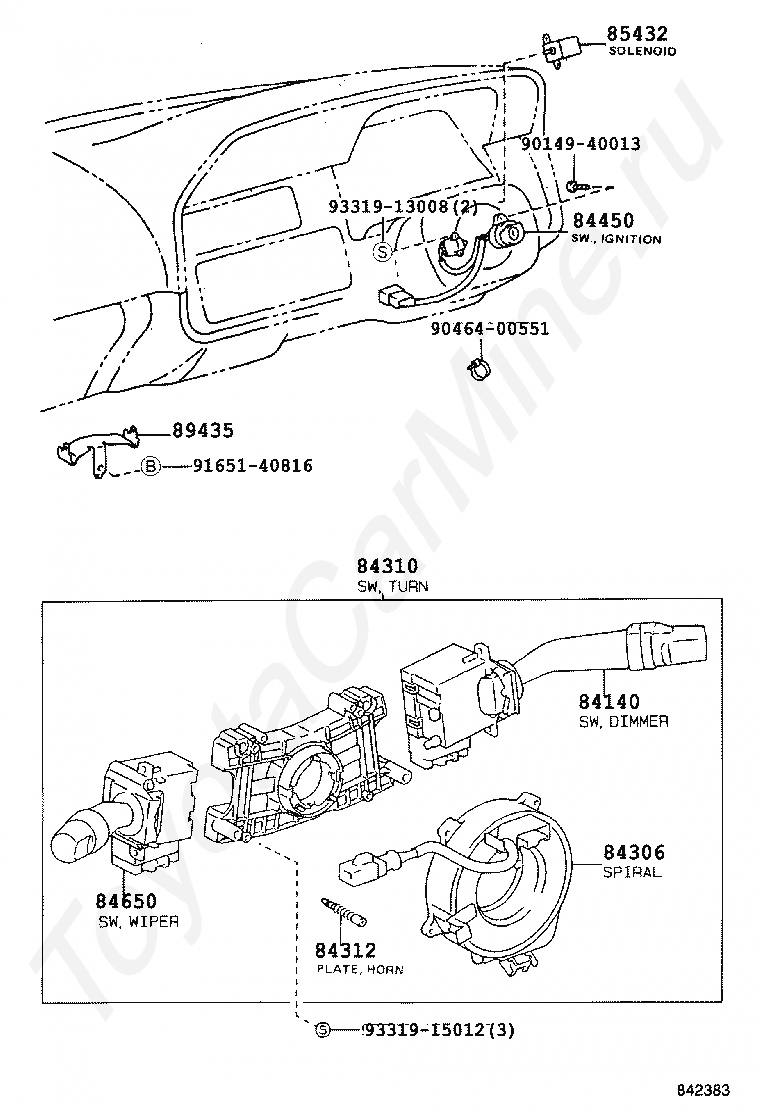

84110

SWITCH ASSY, LIGHT CONTROL, NO.1

84140

SWITCH ASSY, HEADLAMP DIMMER

84310

SWITCH ASSY, TURN SIGNAL

84312

PLATE, HORN CONTACT

84450

SWITCH ASSY, IGNITION OR STARTER

84450

SWITCH ASSY, IGNITION OR STARTER

84650

SWITCH ASSY, WINDSHIELD WIPER

85432

SOLENOID, KEY INTER LOCK

89435

BRACKET, CONNECTOR COVER

9014940013

Крепеж

9014940013

Крепеж

9046400551

Крепеж

9165140816

Крепеж

9331913008

Крепеж

9331915012

Крепеж

Код

Описание

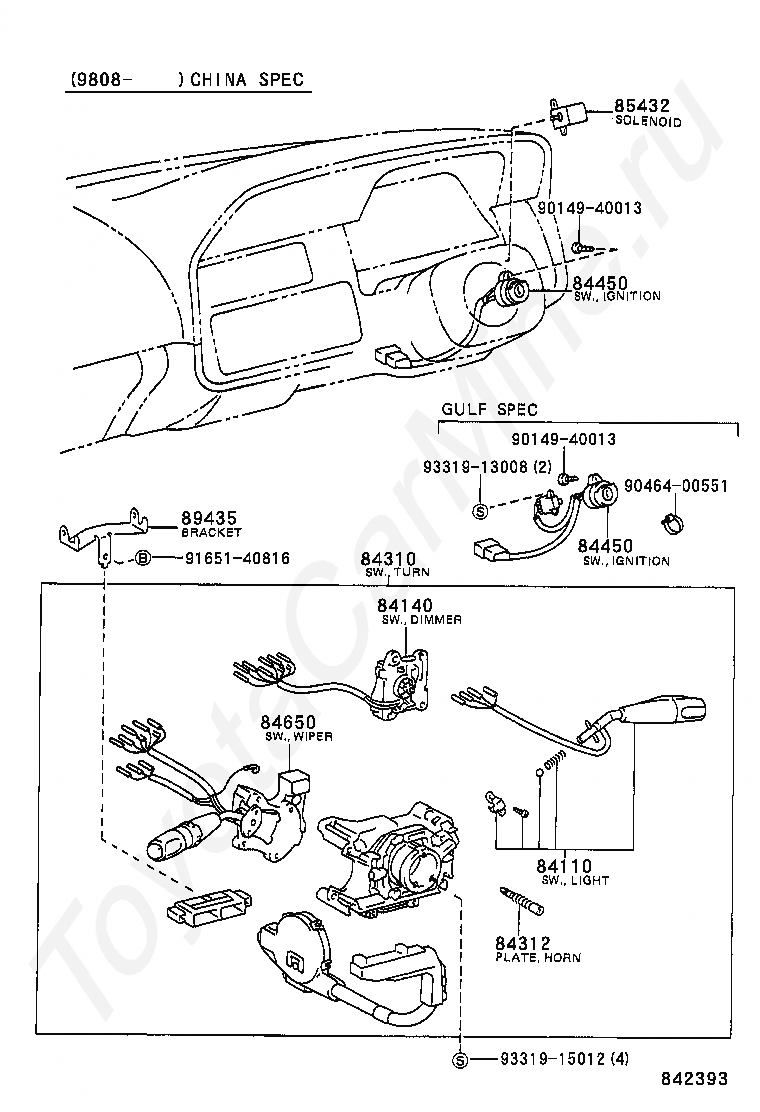

84140

SWITCH ASSY, HEADLAMP DIMMER

84306

CABLE SUB-ASSY, SPIRAL

84310

SWITCH ASSY, TURN SIGNAL

84312

PLATE, HORN CONTACT

84450

SWITCH ASSY, IGNITION OR STARTER

84650

SWITCH ASSY, WINDSHIELD WIPER

85432

SOLENOID, KEY INTER LOCK

89435

BRACKET, CONNECTOR COVER

9014940013

Крепеж

9046400551

Крепеж

9165140816

Крепеж

9331913008

Крепеж

9331915012

Крепеж

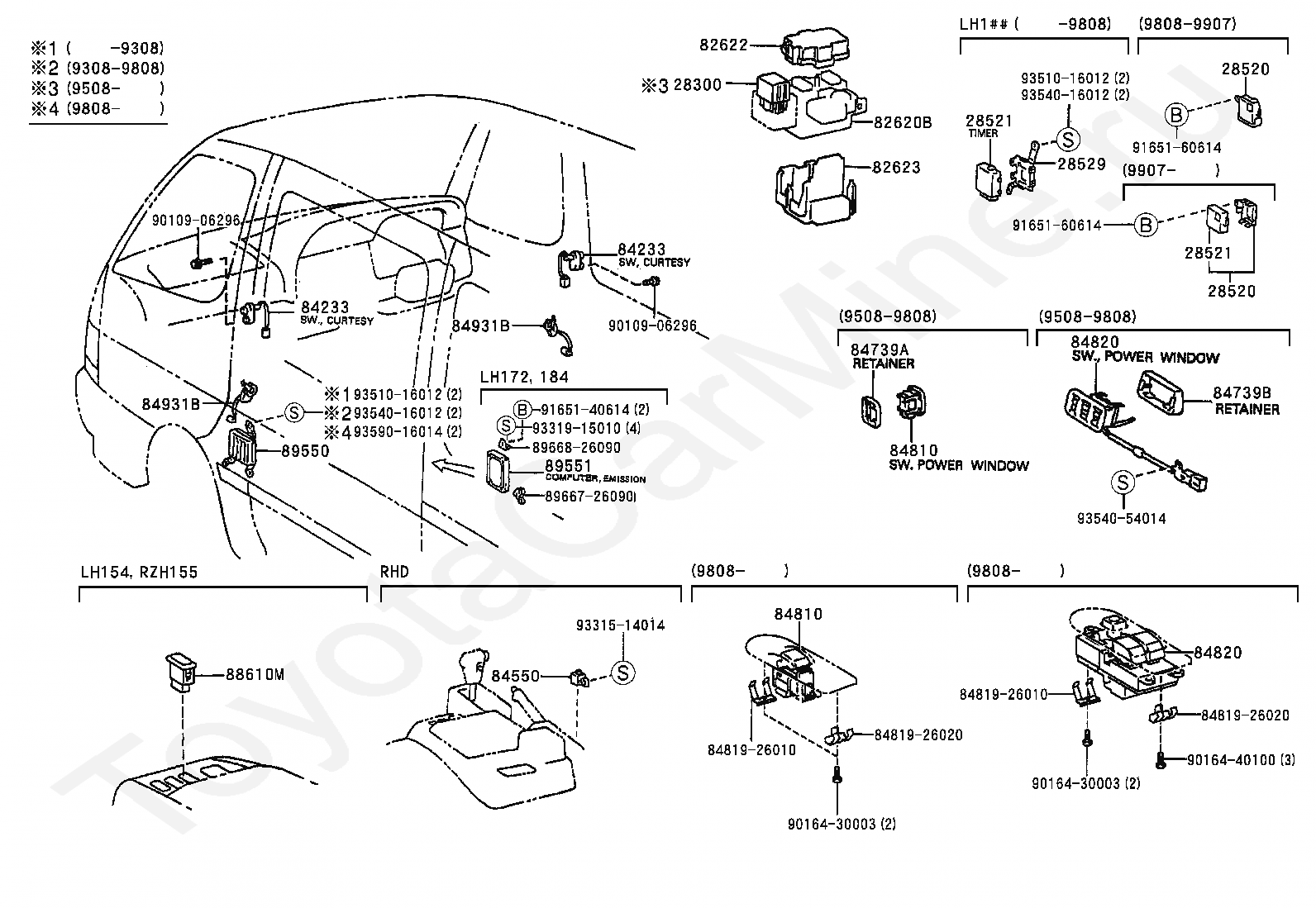

Код

Описание

28300

RELAY ASSY, STARTER

28520

TIMER ASSY, PREHEATING

28520

TIMER ASSY, PREHEATING

28521

TIMER, PREHEATING

28521

TIMER, PREHEATING

28529

BRACKET, PREHEATING TIMER, NO.1

82620B

BLOCK ASSY, FUSIBLE LINK

82622

COVER, FUSIBLE LINK, UPPER

82623

COVER, FUSIBLE LINK, LOWER

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84550

SWITCH ASSY, PARKING BRAKE

84739A

RETAINER, SWITCH

84739B

RETAINER, SWITCH

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810

SWITCH ASSY, POWER WINDOW REGULATOR

8481926010

Крепеж

8481926010

Крепеж

8481926020

Крепеж

8481926020

Крепеж

84820

MASTER SWITCH ASSY, POWER WINDOW REGULATOR

84820

MASTER SWITCH ASSY, POWER WINDOW REGULATOR

84931B

SWITCH, DOOR CONTROL

84931B

SWITCH, DOOR CONTROL

88610M

SWITCH ASSY, COOLER CONTROL

89550

COMPUTER ASSY, EMISSION CONTROL

89551

COMPUTER, EMISSION CONTROL

8966726090

Крепеж

8966826090

Крепеж

9010906296

Крепеж

9010906296

Крепеж

9016430003

Крепеж

9016430003

Крепеж

9016440100

Крепеж

9165140614

Крепеж

9165160614

Крепеж

9165160614

Крепеж

9331514014

Крепеж

9331915010

Крепеж

9351016012

Крепеж

9351016012

Крепеж

9354016012

Крепеж

9354016012

Крепеж

9354054014

Крепеж

9359016014

Крепеж

Код

Описание

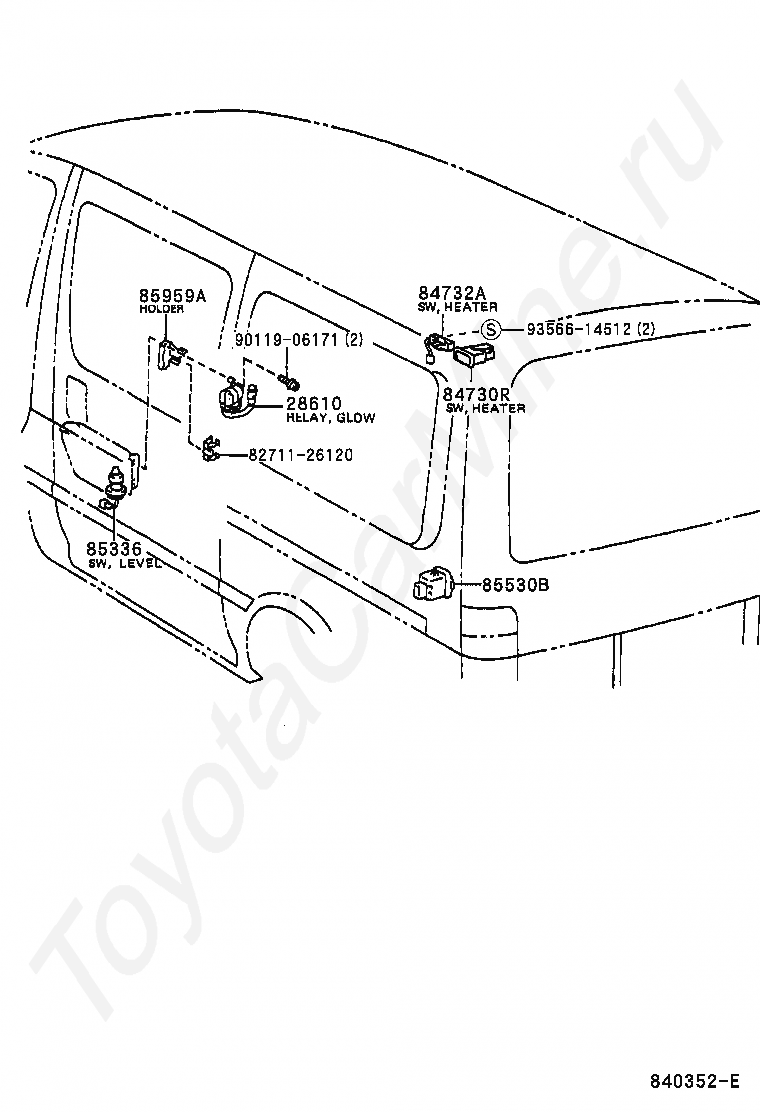

28610

RELAY ASSY, INTAKE HEATER OR GLOW PLUG

8271126120

Крепеж

84730R

SWITCH ASSY, HEATER BLOWER

84732A

SWITCH, REAR HEATER BLOWER

85336

SWITCH ASSY, RESERVE TANK LEVEL WARNING

85530B

SOCKET ASSY, POWER OUTLET, REAR NO.1

85959A

HOLDER, RELAY

9011906171

Крепеж

9356614512

Крепеж

Код

Описание

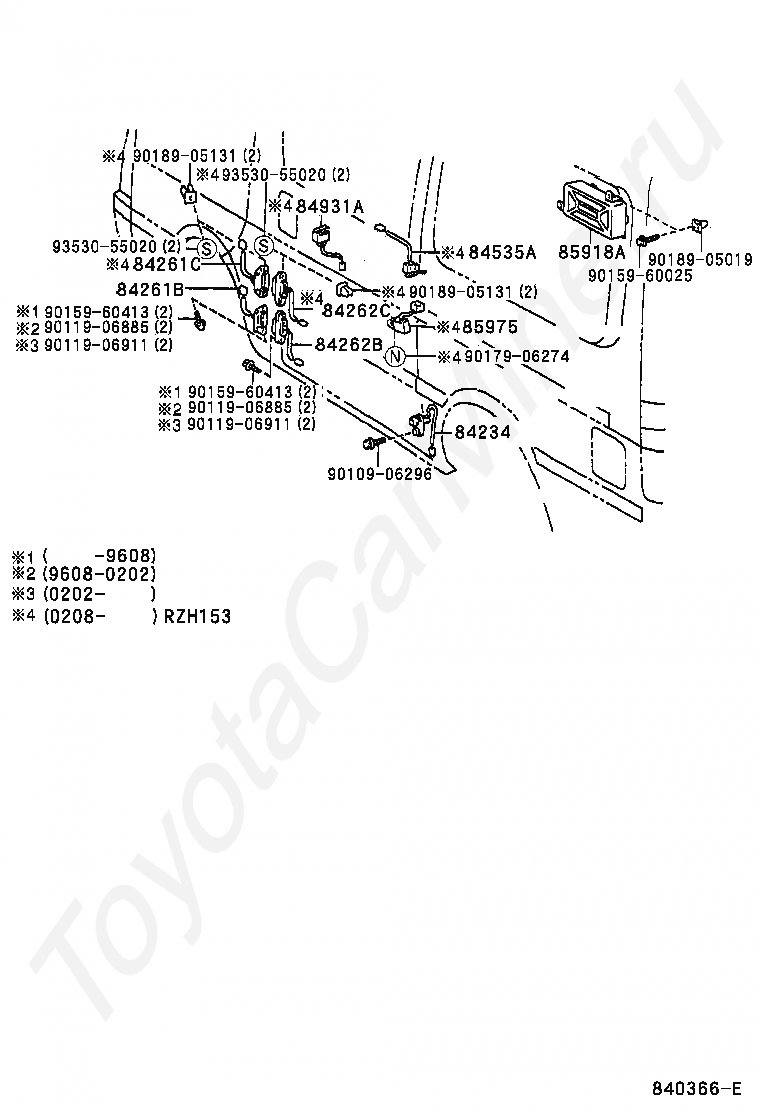

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84261B

JUNCTION, SLIDE DOOR CONTROL,MALE

84261C

JUNCTION, SLIDE DOOR CONTROL,MALE NO.1

84262B

JUNCTION, SLIDE DOOR CONTROL, FEMALE

84262C

JUNCTION, SLIDE DOOR CONTROL, FEMALE, NO.1

84535A

SWITCH, DOOR LOCK

84931A

SWITCH, AUTOMATIC DOOR CONTROL

85918A

RELAY, DOOR CONTROL

85975

RELAY, SLIDE DOOR CLOSER

9010906296

Крепеж

9011906885

Крепеж

9011906885

Крепеж

9011906911

Крепеж

9011906911

Крепеж

9015960025

Крепеж

9015960413

Крепеж

9015960413

Крепеж

9017906274

Крепеж

9018905019

Крепеж

9018905131

Крепеж

9018905131

Крепеж

9353055020

Крепеж

9353055020

Крепеж

Код

Описание

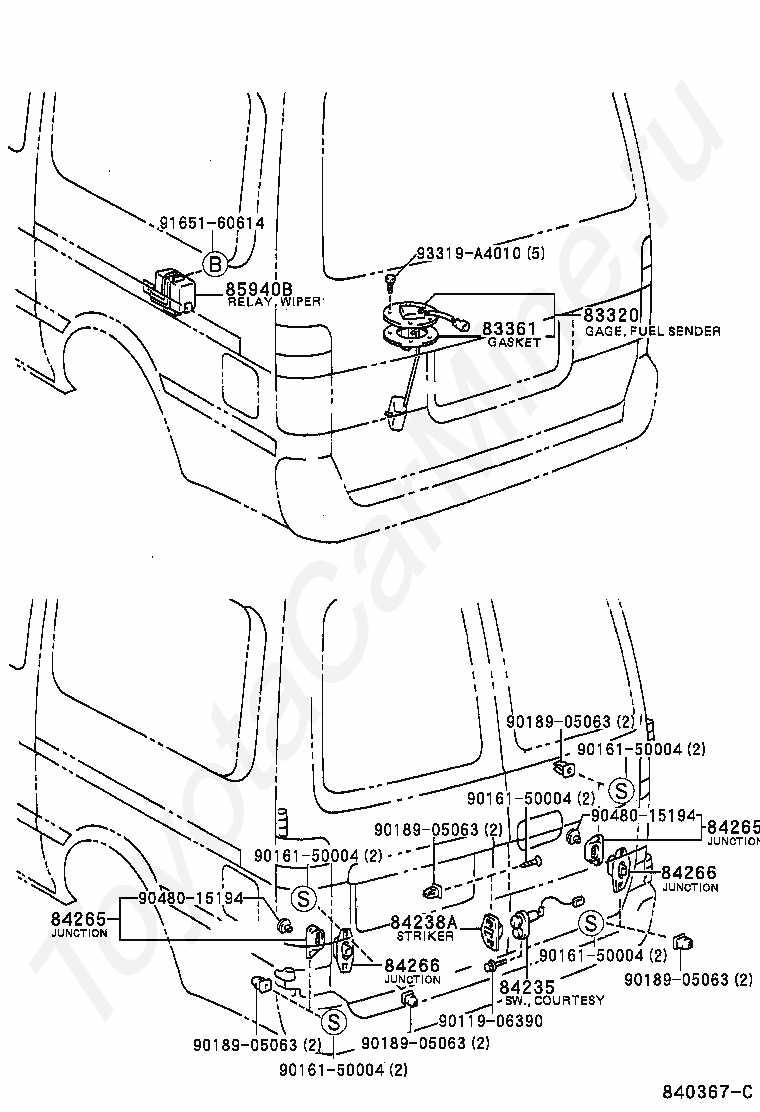

83320

GAGE ASSY, FUEL SENDER

83361

GASKET, FUEL SENDER GAGE

84235

SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR)

84238A

STRIKER, COURTESY LAMP SWITCH

84265

JUNCTION, BACK DOOR MALE

84265

JUNCTION, BACK DOOR MALE

84266

JUNCTION, BACK DOOR FEMALE

84266

JUNCTION, BACK DOOR FEMALE

85940B

RELAY ASSY, REAR WIPER

9011906390

Крепеж

9016150004

Крепеж

9016150004

Крепеж

9016150004

Крепеж

9016150004

Крепеж

9016150004

Крепеж

9018905063

Крепеж

9018905063

Крепеж

9018905063

Крепеж

9018905063

Крепеж

9018905063

Крепеж

9048015194

Крепеж

9048015194

Крепеж

9165160614

Крепеж

93319A4010

Крепеж
