Каталог

Европа

Модель

HIACE VAN,COMMUTER

VIN

Дата

1989/08

Двигатель

2,4 литра, дизель

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

LH102

КПП

МКПП, 5 скоростей

Опции

левый руль STANDARD ROOF 4 двери SEPARATE SEAT 03S GEN DSL

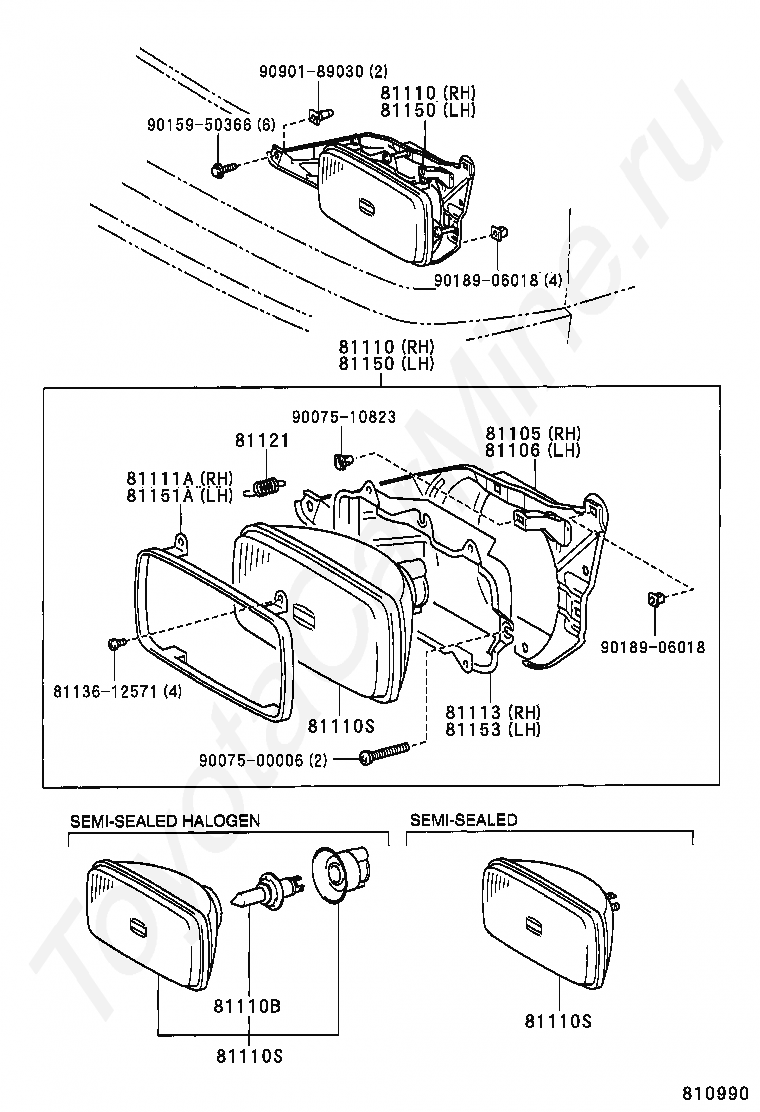

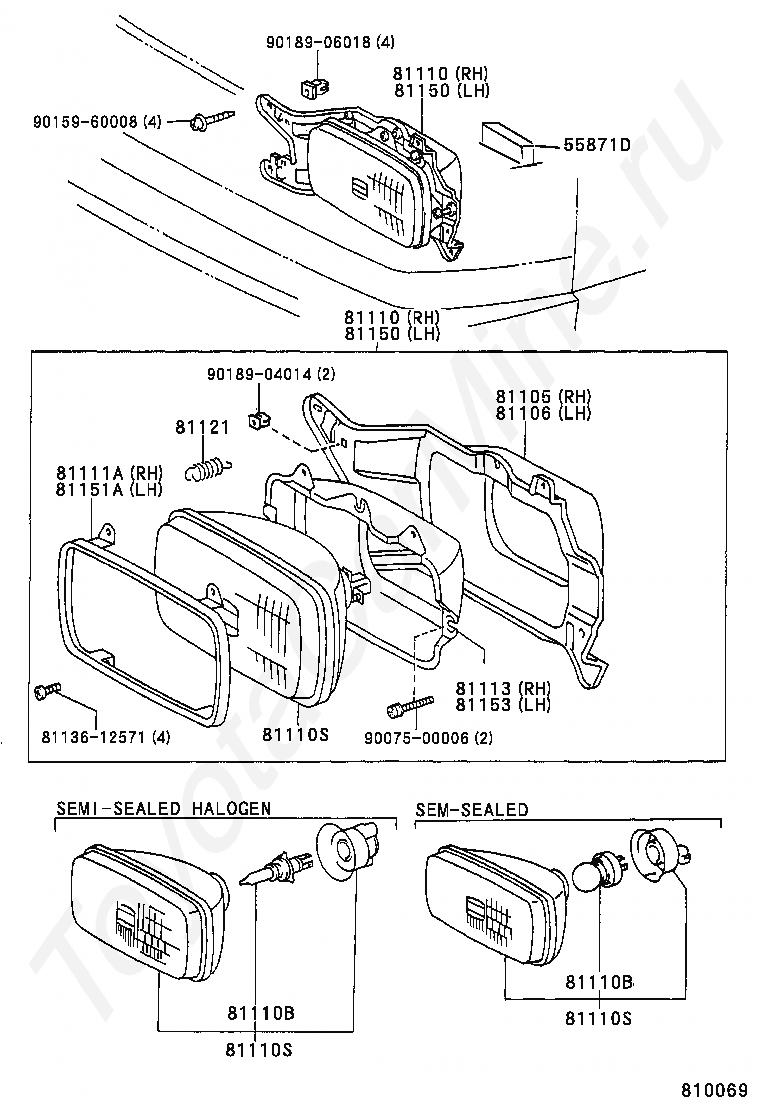

Фары TOYOTA HIACE VAN,COMMUTER

Код

Описание

55871D

SEAL, AIR DUCT

81105

HOUSING SUB-ASSY, HEADLAMP, RH

81106

HOUSING SUB-ASSY, HEADLAMP, LH

81110

HEADLAMP ASSY, RH

81110

HEADLAMP ASSY, RH

81110B

BULB(FOR HEADLAMP, NO.1)

81110B

BULB(FOR HEADLAMP, NO.1)

81110S

SEALED BEAM UNIT, NO.1

81110S

SEALED BEAM UNIT, NO.1

81110S

SEALED BEAM UNIT, NO.1

81111A

RING, SEALED BEAM RETAINING, NO.1 RH

81113

RING, SEALED BEAM MOUNTING, NO.1 RH

81121

SPRING, HEADLAMP TENSION

8113612571

Крепеж

81150

HEADLAMP ASSY, LH

81150

HEADLAMP ASSY, LH

81151A

RING, SEALED BEAM RETAINING, NO.1 LH

81153

RING, SEALED BEAM MOUNTING, NO.1 LH

9007500006

Крепеж

9015960008

Крепеж

9018904014

Крепеж

9018906018

Крепеж

Код

Описание

81105

HOUSING SUB-ASSY, HEADLAMP, RH

81106

HOUSING SUB-ASSY, HEADLAMP, LH

81110

HEADLAMP ASSY, RH

81110

HEADLAMP ASSY, RH

81110B

BULB(FOR HEADLAMP, NO.1)

81110S

SEALED BEAM UNIT, NO.1

81110S

SEALED BEAM UNIT, NO.1

81110S

SEALED BEAM UNIT, NO.1

81111A

RING, SEALED BEAM RETAINING, NO.1 RH

81113

RING, SEALED BEAM MOUNTING, NO.1 RH

81121

SPRING, HEADLAMP TENSION

8113612571

Крепеж

81150

HEADLAMP ASSY, LH

81150

HEADLAMP ASSY, LH

81151A

RING, SEALED BEAM RETAINING, NO.1 LH

81153

RING, SEALED BEAM MOUNTING, NO.1 LH

9007500006

Крепеж

9007510823

Крепеж

9015950366

Крепеж

9018906018

Крепеж

9018906018

Крепеж

9090189030

Крепеж
