Каталог

Ближний Восток

Модель

HIACE VAN,COMMUTER

VIN

Дата

1986/12

Двигатель

2,2 литра

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

YH66

КПП

механика МКПП, 5 скоростей

Опции

левый руль STANDARD ROOF 4-дверный вэн SIDE GLASS VAN R EUR N1

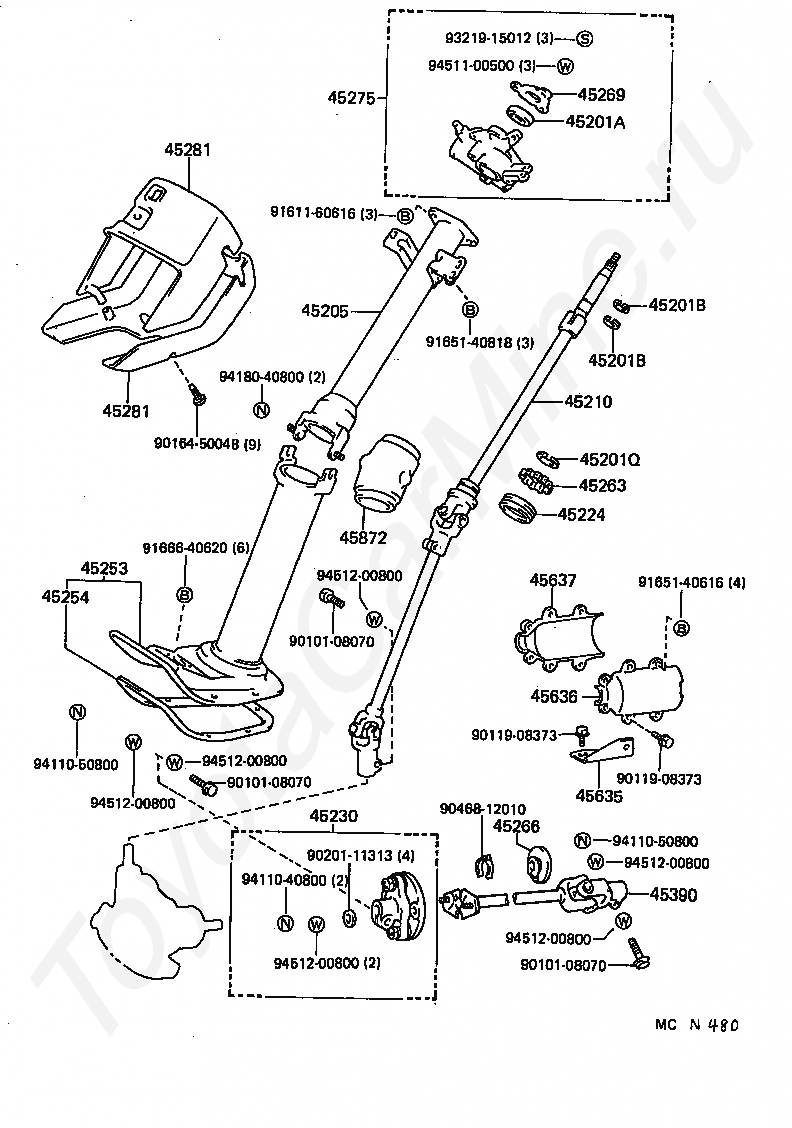

Рулевая колонка TOYOTA HIACE VAN,COMMUTER

Код

Описание

45201A

BEARING(FOR STEERING MAIN SHAFT)

45201B

RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

45201B

RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

45201Q

RING(FOR STEERING COLUMN RING)

45205

TUBE SUB-ASSY, STEERING COLUMN

45210

SHAFT ASSY, STEERING MAIN

45224

BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING)

45230

COUPLING ASSY, FLEXIBLE

45253

COVER, STEERING COLUMN HOLE

45254

SHIELD, STEERING COLUMN HOLE

45263

RING, STEERING COLUMN, NO.1

45266

COVER, STEERING INTERMEDIATE SHAFT DUST

45269

RETAINER, MAIN SHAFT BEARING

45275

BRACKET, STEERING COLUMN, UPPER

45281

HOUSING, STEERING COLUMN

45281

HOUSING, STEERING COLUMN

45390

SHAFT ASSY, STEERING TORQUE

45635

SUPPORT, INTERMEDIATE LINK JOINT PROTECTOR

45636

PROTECTOR, INTERMEDIATE LINK JOINT, UPPER

45637

PROTECTOR, INTER LINK JOINT, LWR NO.1

45872

COVER, STEERING COLUMN TUBE

9010108070

Крепеж

9010108070

Крепеж

9010108070

Крепеж

9011908373

Крепеж

9011908373

Крепеж

9016450048

Крепеж

9020111313

Крепеж

9046812010

Крепеж

9161160616

Крепеж

9165140616

Крепеж

9165140818

Крепеж

9166640620

Крепеж

9321915012

Крепеж

9411040800

Крепеж

9411050800

Крепеж

9411050800

Крепеж

9418040800

Крепеж

9451100500

Крепеж

9451200800

Крепеж

9451200800

Крепеж

9451200800

Крепеж

9451200800

Крепеж

9451200800

Крепеж

9451200800

Крепеж

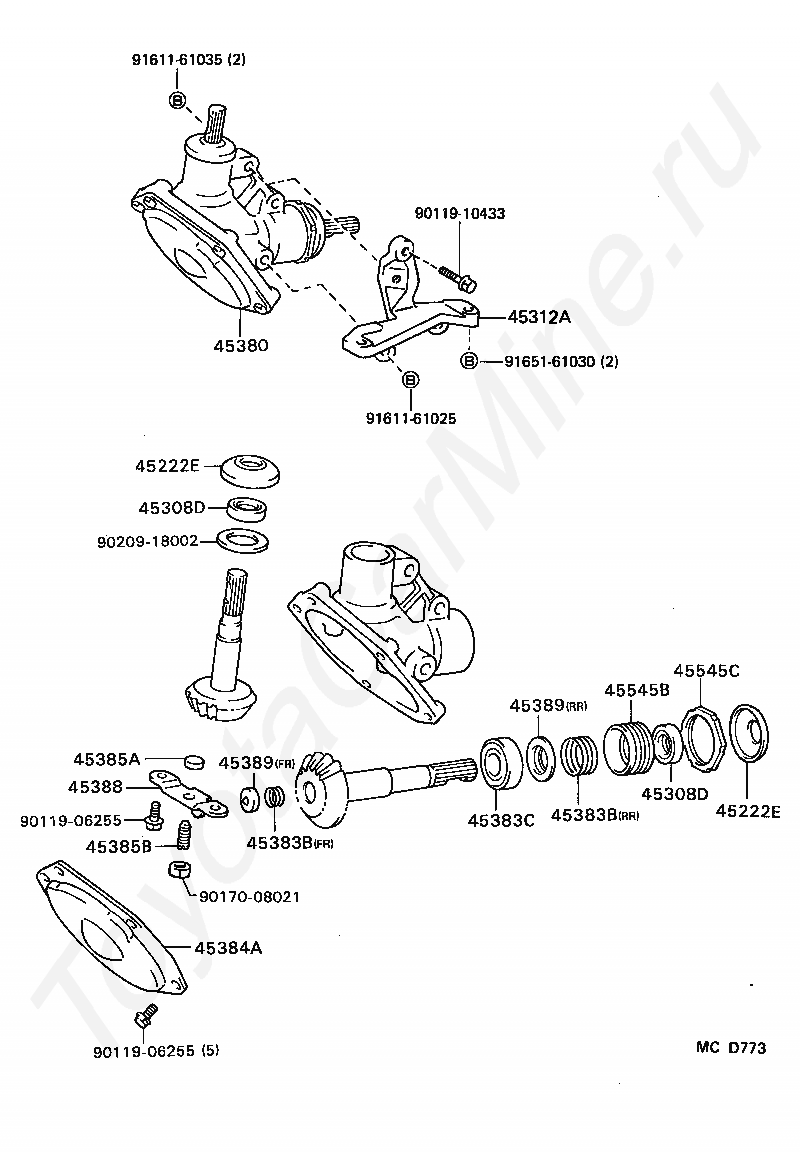

Код

Описание

45222E

COVER, DUST(FOR STEERING BEVEL GEAR)

45222E

COVER, DUST(FOR STEERING BEVEL GEAR)

45308D

SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING)

45308D

SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING)

45312A

BRACKET, STEERING BEVEL GEAR HOUSING

45380

GEAR ASSY, STEERING BEVEL

45383B

SPRING, COMPRESSION(FOR STEERING BEVEL GEAR)

45383B

SPRING, COMPRESSION(FOR STEERING BEVEL GEAR)

45383C

BEARING, RADIAL BALL(FOR STEERING BEVEL GEAR)

45384A

COVER, STEERING BEVEL GEAR

45385A

SEAT, LOCK BOLT(FOR STEERING BEVEL GEAR)

45385B

BOLT, SET(FOR LOCK BOLT SEAT)

45388

PLATE, STEERING BEVEL GEAR

45389

HOLDER, STEERING BEVEL GEAR SPRING

45389

HOLDER, STEERING BEVEL GEAR SPRING

45545B

SCREW, PINION BEARING ADJUSTING(FOR STEERING BEVEL GEAR)

45545C

NUT(FOR STEERING BEVEL GEAR PINION BEARING ADJUST SCREW)

9011906255

Крепеж

9011906255

Крепеж

9011910433

Крепеж

9017008021

Крепеж

9020918002

Крепеж

9161161025

Крепеж

9161161035

Крепеж

9165161030

Крепеж

Рулевая колонка TOYOTA HIACE VAN,COMMUTER
