Каталог

Ближний Восток

Модель

HIACE VAN,COMMUTER

VIN

Дата

1986/12

Двигатель

2,2 литра

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

YH66

КПП

механика МКПП, 5 скоростей

Опции

левый руль STANDARD ROOF 4-дверный вэн SIDE GLASS VAN R EUR N1

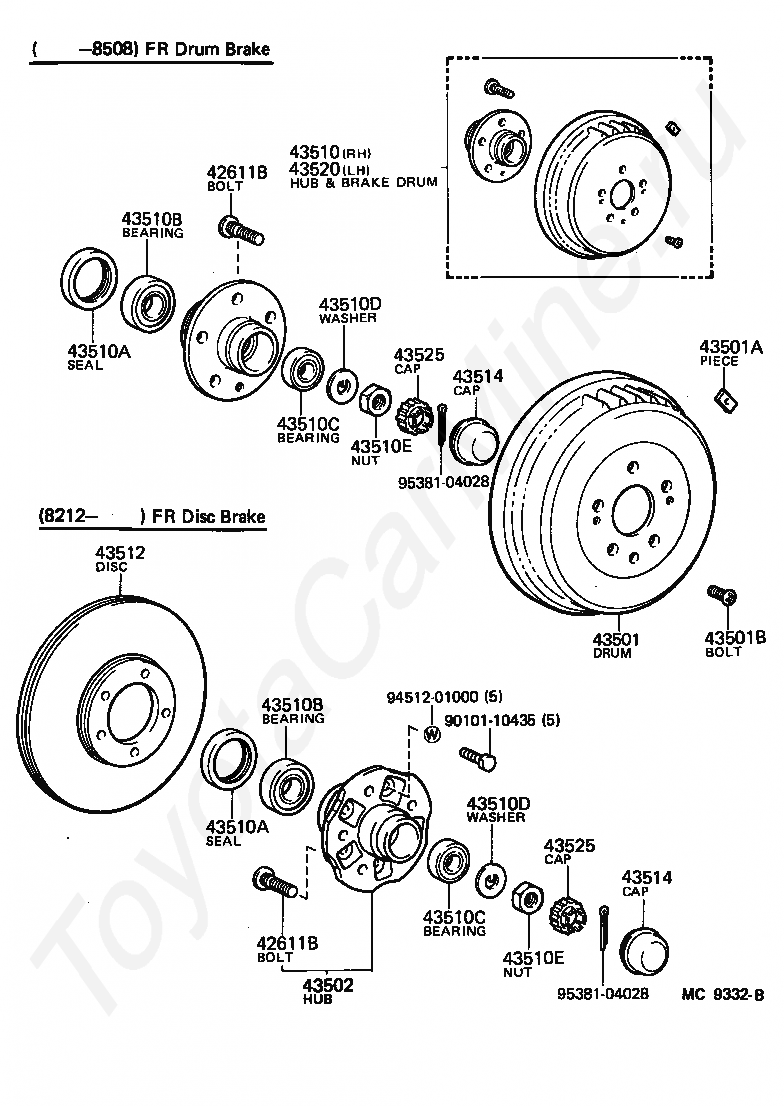

Передняя ступица и тормозной диск TOYOTA HIACE VAN,COMMUTER

Код

Описание

42611B

BOLT, HUB (FOR FRONT AXLE)

42611B

BOLT, HUB (FOR FRONT AXLE)

43501

DRUM SUB-ASSY, FRONT BRAKE

43501A

PIECE, BALANCE (FOR FRONT BRAKE DRUM)

43501B

BOLT, SET (FOR FRONT BRAKE DRUM SETTING)

43502

HUB SUB-ASSY, FRONT AXLE

43510

HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

43510A

SEAL, OIL (FOR FRONT AXLE HUB)

43510A

SEAL, OIL (FOR FRONT AXLE HUB)

43510B

BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

43510B

BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

43510C

BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

43510C

BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

43510D

WASHER, CLAW (FOR STEERING KNUCKLE WASHER)

43510D

WASHER, CLAW (FOR STEERING KNUCKLE WASHER)

43510E

NUT (FOR STEERING KNUCKLE)

43510E

NUT (FOR STEERING KNUCKLE)

43512

DISC, FRONT

43514

CAP, FRONT HUB GREASE

43514

CAP, FRONT HUB GREASE

43520

HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

43525

CAP, FRONT WHEEL ADJUSTING LOCK

43525

CAP, FRONT WHEEL ADJUSTING LOCK

9010110435

Крепеж

9451201000

Крепеж

9538104028

Крепеж

9538104028

Крепеж

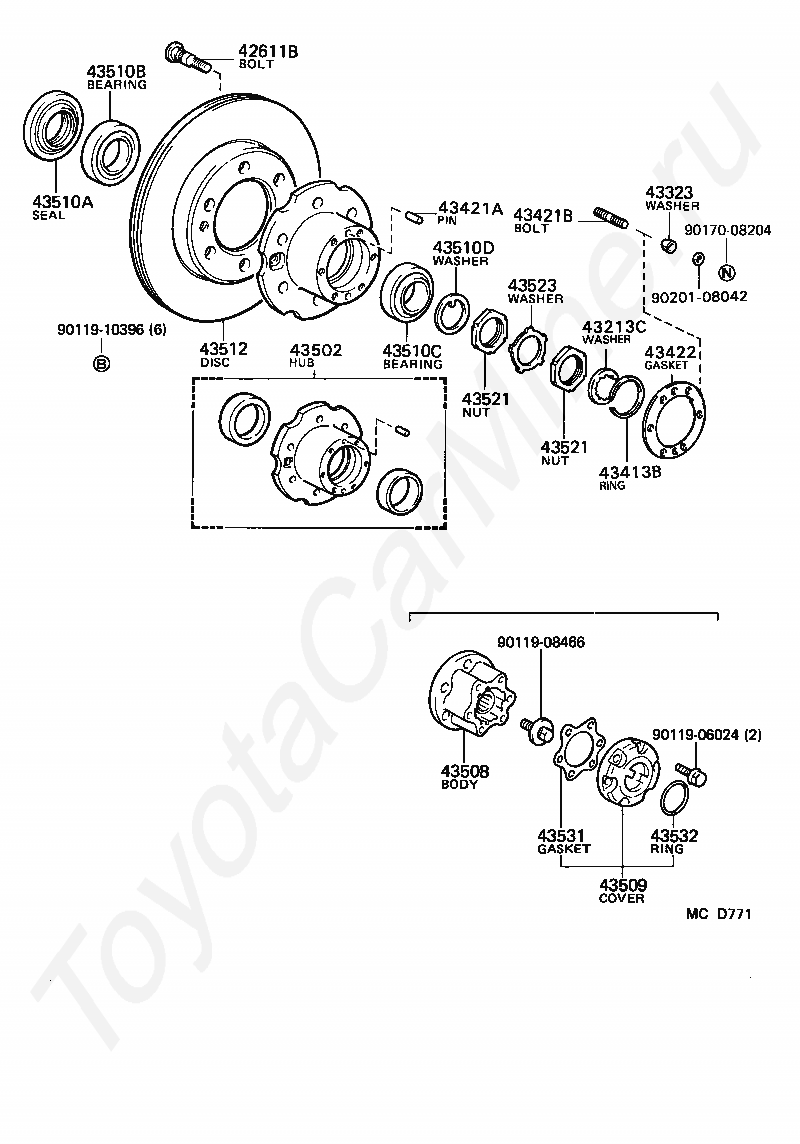

Код

Описание

42611B

BOLT, HUB (FOR FRONT AXLE)

43213C

SPACER (FOR DRIVE SHAFT)

43323

WASHER, CONE (FOR FRONT AXLE SHAFT)

43413B

RING, DRIVE SHAFT SNAP

43421A

PIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE)

43421B

BOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE)

43422

GASKET, FRONT AXLE OUTER SHAFT FLANGE

43502

HUB SUB-ASSY, FRONT AXLE

43508

BODY SUB-ASSY, FREE WHEEL HUB

43509

COVER SUB-ASSY, FREE WHEEL HUB

43510A

SEAL, OIL (FOR FRONT AXLE HUB)

43510B

BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

43510C

BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

43510D

WASHER, CLAW (FOR STEERING KNUCKLE WASHER)

43512

DISC, FRONT

43521

NUT, FRONT WHEEL ADJUSTING

43521

NUT, FRONT WHEEL ADJUSTING

43523

WASHER, FRONT WHEEL ADJUSTING LOCK

43531

GASKET, FREE WHEEL HUB

43532

RING, FREE WHEEL HUB

9011906024

Крепеж

9011908466

Крепеж

9011910396

Крепеж

9017008204

Крепеж

9020108042

Крепеж

Передняя ступица и тормозной диск TOYOTA HIACE VAN,COMMUTER
