Каталог

Ближний Восток

Модель

HIACE VAN,COMMUTER

VIN

Дата

1986/12

Двигатель

2,2 литра

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

YH66

КПП

механика МКПП, 5 скоростей

Опции

левый руль STANDARD ROOF 4-дверный вэн SIDE GLASS VAN R EUR N1

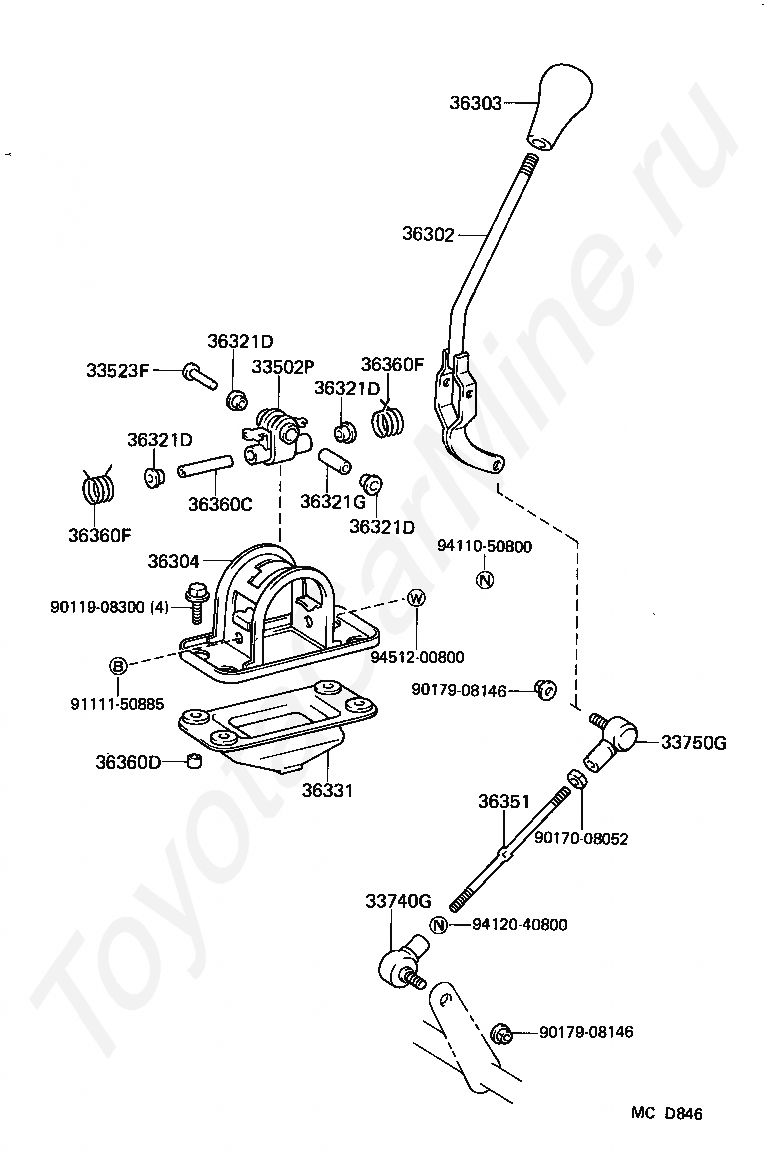

TRANSFER LEVER & SHIFT ROD TOYOTA HIACE VAN,COMMUTER

Код

Описание

33502P

PLATE SUB-ASSY, SHIFT LEVER (FOR TRANSFER)

33523F

PIN, SHIFT LEVER (FOR TRANSFER)

33740G

END ASSY, CONNECTING ROD, NO.1(FOR TRANSFER SHIFT ROD)

33750G

END ASSY, CONNECTING ROD, NO.2 (FOR TRANSFER SHIFT ROD)

36302

LEVER SUB-ASSY, TRANSFER HIGH & LOW SHIFT

36303

KNOB SUB-ASSY, SHIFT LEVER

36304

RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER

36321D

BUSH (FOR TRANSFER SHIFT LEVER)

36321D

BUSH (FOR TRANSFER SHIFT LEVER)

36321D

BUSH (FOR TRANSFER SHIFT LEVER)

36321D

BUSH (FOR TRANSFER SHIFT LEVER)

36321G

COLLER (FOR TRANSFER SHIFT LEVER)

36331

BOOT, TRANSFER SHIFT LEVER

36351

ROD, HIGH & LOW SHIFT, NO.1

36360C

COLLAR (FOR TRANSFER SHIFT LEVER RETAINER)

36360D

COLLAR (FOR TRANSFER SHIFT LEVER)

36360F

SPRING, TORSION (FOR TRANSFER SHIFT LEVER RETAINER)

36360F

SPRING, TORSION (FOR TRANSFER SHIFT LEVER RETAINER)

9011908300

Крепеж

9017008052

Крепеж

9017908146

Крепеж

9017908146

Крепеж

9111150885

Крепеж

9411050800

Крепеж

9412040800

Крепеж

9451200800

Крепеж

Код

Описание

33671B

SUPPORT, TRANSFER CONTROL ROD, NO.1

33706A

SUPPORT SUB-ASSY, CROSS SHAFT, NO.2 (FOR TRANSFER)

33740G

END ASSY, CONNECTING ROD, NO.1(FOR TRANSFER SHIFT ROD)

33750G

END ASSY, CONNECTING ROD, NO.2 (FOR TRANSFER SHIFT ROD)

33772B

BUSH, CROSS SHAFT SUPPORT (FOR TRANSFER)

33772B

BUSH, CROSS SHAFT SUPPORT (FOR TRANSFER)

33775E

COVER, CROSS SHAFT DUST (FOR TRANSFER)

33775E

COVER, CROSS SHAFT DUST (FOR TRANSFER)

36306

SHAFT SUB-ASSY, CONTROL

36351C

PIN (FOR HIGH & LOW SHIFT ROD)

36351C

PIN (FOR HIGH & LOW SHIFT ROD)

36352

ROD, HIGH & LOW SHIFT, NO.2

36353

ROD, HIGH & LOW SHIFT, NO.3

36357

LEVER SUB-ASSY, HIGH & LOW SHIFT LINK

36357A

BUSH (FOR HIGH & LOW SHIFT LINK LEVER)

36357A

BUSH (FOR HIGH & LOW SHIFT LINK LEVER)

36770

SHAFT ASSY, TRANSFER CROSS

36770A

RING, SNAP (FOR TRANSFER CROSS SHAFT)

36770A

RING, SNAP (FOR TRANSFER CROSS SHAFT)

9017008052

Крепеж

9017908146

Крепеж

9017908146

Крепеж

9046803011

Крепеж

9046803011

Крепеж

9046814004

Крепеж

9046814004

Крепеж

9165140820

Крепеж

9165140820

Крепеж

9165140820

Крепеж

9411040800

Крепеж

9412040800

Крепеж

9451200800

Крепеж

9461410800

Крепеж

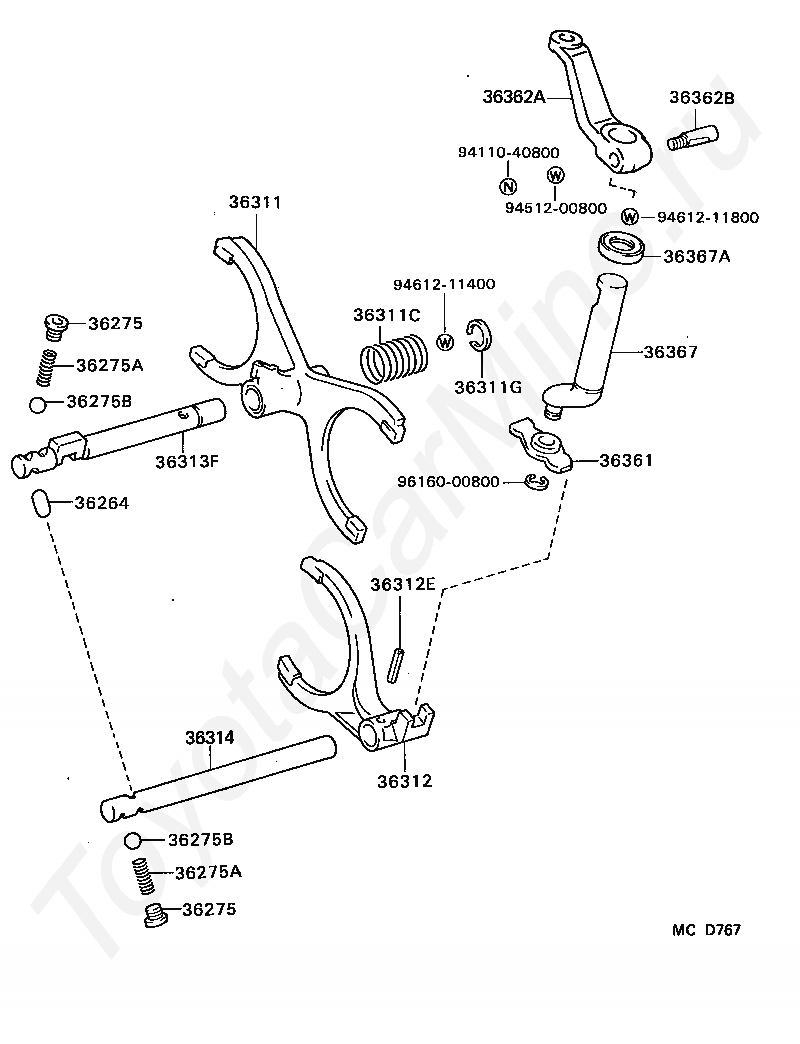

Код

Описание

36264

PIN OR ROLLER, SHIFT INTER-LOCK

36275

PLUG, SHIFT DETENT BALL SPRING

36275

PLUG, SHIFT DETENT BALL SPRING

36275A

SPRING, COMPRESSION (FOR SHIFT DETENT BALL)

36275A

SPRING, COMPRESSION (FOR SHIFT DETENT BALL)

36275B

BALL, SHIFT DETENT

36275B

BALL, SHIFT DETENT

36311

FORK, TRANSFER GEAR SHIFT, NO.1

36311C

SPRING, COMPRESION (FOR SHIFT FORK)

36311G

RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)

36312

FORK, TRANSFER GEAR SHIFT, NO.2

36312E

PIN, SLOTTED SPRING (FOR TRANSFER GEAR SHIFT FORK)

36313F

SHAFT, TRANSFER FRONT DRIVE SHIFT FORK

36314

SHAFT, TRANSFER HIGH AND LOW SHIFT FORK

36361

LEVER, TRANSFER SHIFT, INNER

36362A

LEVER, TRANSFER SHIFT, OUTER

36362B

PIN, LEVER LOCK (FOR TRANSFER SHIFT LEVER OUTER)

36367

SHAFT, TRANSFER SHIFT INNER LEVER

36367A

SEAL, OIL (FOR TRANSFER SHIFT INNER LEVER SHAFT)

9411040800

Крепеж

9451200800

Крепеж

9461211400

Крепеж

9461211800

Крепеж

9616000800

Крепеж

TRANSFER LEVER & SHIFT ROD TOYOTA HIACE VAN,COMMUTER
