Каталог

Европа

Модель

HIACE VAN,COMMUTER

VIN

Дата

1987/08

Двигатель

2 литра

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

YH61

КПП

механика МКПП, 5 скоростей, на руле

Опции

левый руль 5-дверный вэн ROUTE VAN (SIDE PANEL VAN) 3-местный

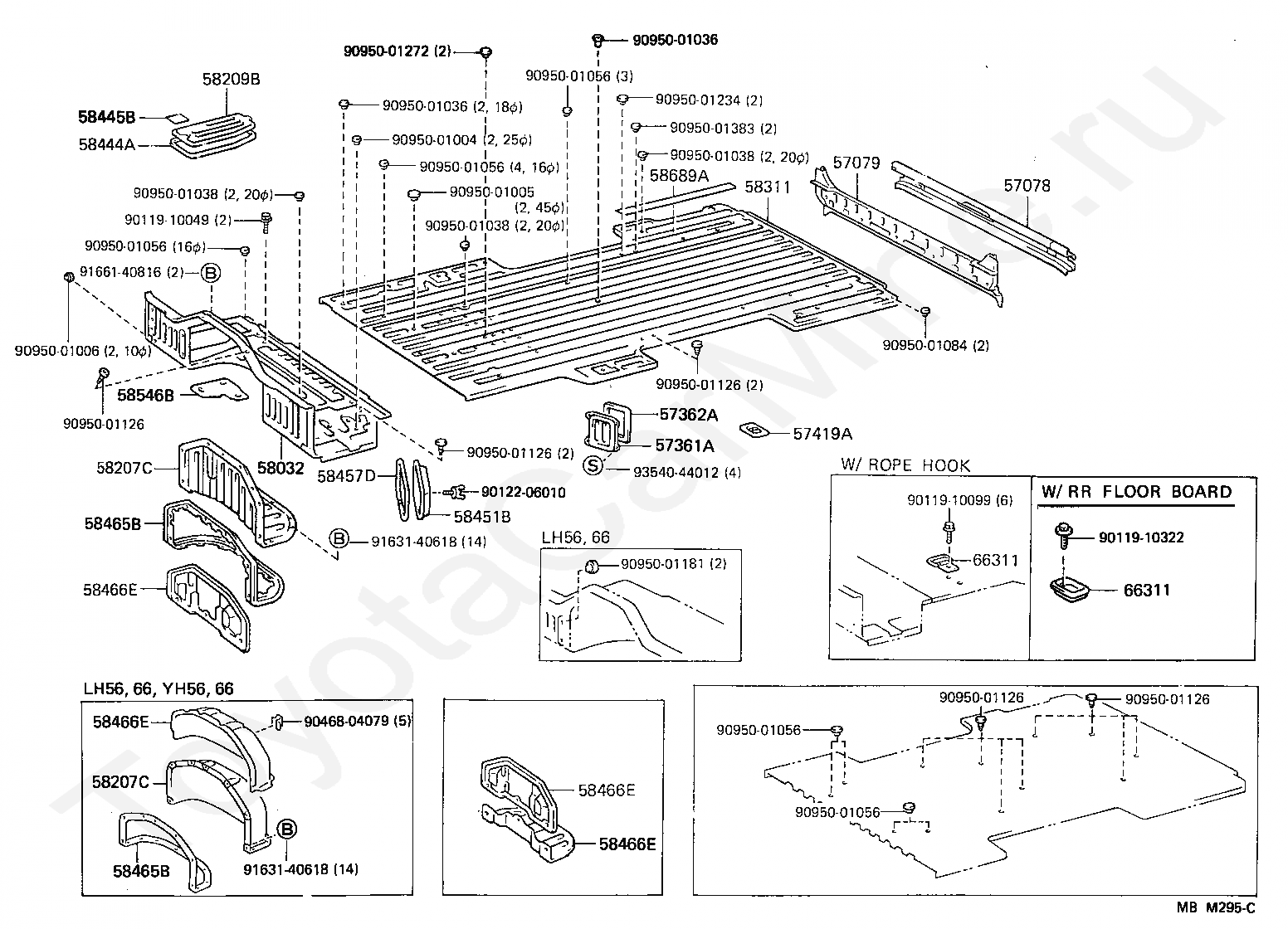

Задняя панель пола TOYOTA HIACE VAN,COMMUTER

Код

Описание

57078

MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER

57079

MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER

57361A

COVER, NO.2 OUTERIGGER HOLE

57362A

PACKING, NO.2 OUTRIGGER HOLE COVER

57419A

PLATE, REAR SEAT LOCK

58032

PANEL SUB-ASSY, HEADER

58207C

COVER SUB-ASSY, TRANSMISSION SERVICE HOLE

58207C

COVER SUB-ASSY, TRANSMISSION SERVICE HOLE

58209B

COVER SUB-ASSY, BATTERY SERVICE HOLE

58311

PAN, REAR FLOOR

58444A

PACKING, BATTERY SERVICE HOLE COVER

58445B

PAD, BATTERY SERVICE HOLE COVER

58451B

COVER, AIR CLEANER SERVICE HOLE

58457D

PACKING, AIR CLEANER SERVICE HOLE COVER

58465B

PACKING, TRANSMISSION SERVICE HOLE COVER

58465B

PACKING, TRANSMISSION SERVICE HOLE COVER

58466E

SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1

58466E

SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1

58466E

SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1

58466E

SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1

58546B

SILENCER, HEADER, NO.1

58689A

WEIGHT, REAR FLOOR

66311

HOOK, ROPE

66311

HOOK, ROPE

9011910049

Крепеж

9011910099

Крепеж

9011910322

Крепеж

9012206010

Крепеж

9046804079

Крепеж

9095001004

Крепеж

9095001005

Крепеж

9095001006

Крепеж

9095001036

Крепеж

9095001036

Крепеж

9095001038

Крепеж

9095001038

Крепеж

9095001038

Крепеж

9095001056

Крепеж

9095001056

Крепеж

9095001056

Крепеж

9095001056

Крепеж

9095001056

Крепеж

9095001084

Крепеж

9095001126

Крепеж

9095001126

Крепеж

9095001126

Крепеж

9095001126

Крепеж

9095001126

Крепеж

9095001181

Крепеж

9095001234

Крепеж

9095001272

Крепеж

9095001383

Крепеж

9163140618

Крепеж

9163140618

Крепеж

9166140816

Крепеж

9354044012

Крепеж

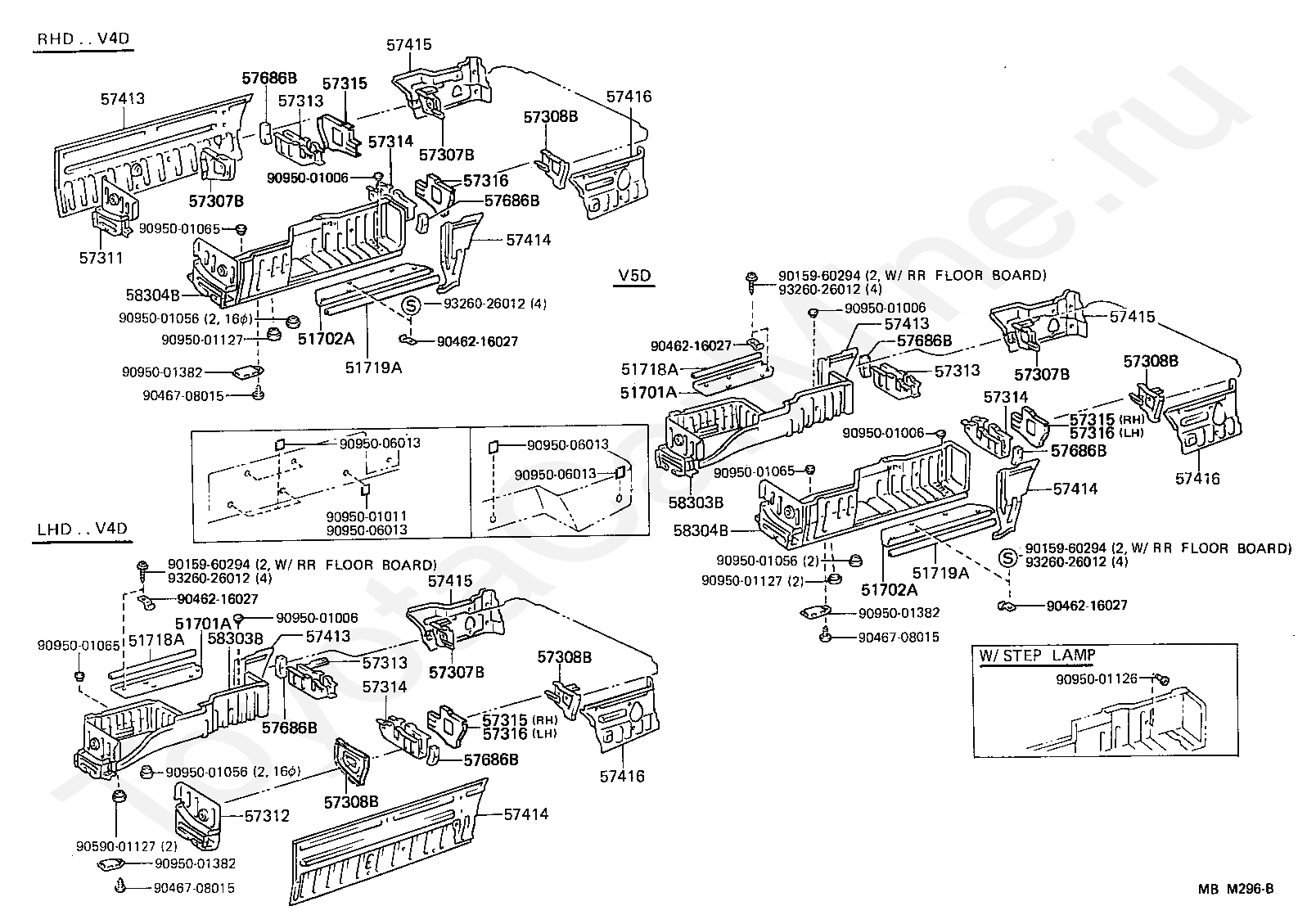

Код

Описание

51701A

COVER SUB-ASSY, SIDE DOOR STEP PANEL, RH

51701A

COVER SUB-ASSY, SIDE DOOR STEP PANEL, RH

51702A

COVER SUB-ASSY, SIDE DOOR STEP PANEL, LH

51702A

COVER SUB-ASSY, SIDE DOOR STEP PANEL, LH

51718A

PROTECTOR, STEP COVER, RH

51718A

PROTECTOR, STEP COVER, RH

51719A

PROTECTOR, STEP COVER, LH

51719A

PROTECTOR, STEP COVER, LH

57307B

OUTRIGGER SUB-ASSY, NO.4 RH

57307B

OUTRIGGER SUB-ASSY, NO.4 RH

57307B

OUTRIGGER SUB-ASSY, NO.4 RH

57307B

OUTRIGGER SUB-ASSY, NO.4 RH

57308B

OUTRIGGER SUB-ASSY, NO.4 LH

57308B

OUTRIGGER SUB-ASSY, NO.4 LH

57308B

OUTRIGGER SUB-ASSY, NO.4 LH

57308B

OUTRIGGER SUB-ASSY, NO.4 LH

57311

OUTRIGGER, NO.1 RH

57312

OUTRIGGER, NO.1 LH

57313

OUTRIGGER, NO.2 RH

57313

OUTRIGGER, NO.2 RH

57313

OUTRIGGER, NO.2 RH

57314

OUTRIGGER, NO.2 LH

57314

OUTRIGGER, NO.2 LH

57314

OUTRIGGER, NO.2 LH

57315

OUTRIGGER, NO.3 RH

57315

OUTRIGGER, NO.3 RH

57315

OUTRIGGER, NO.3 RH

57316

OUTRIGGER, NO.3 LH

57316

OUTRIGGER, NO.3 LH

57316

OUTRIGGER, NO.3 LH

57413

RAIL, FLOOR SIDE, CENTER RH

57413

RAIL, FLOOR SIDE, CENTER RH

57413

RAIL, FLOOR SIDE, CENTER RH

57414

RAIL, FLOOR SIDE, CENTER LH

57414

RAIL, FLOOR SIDE, CENTER LH

57414

RAIL, FLOOR SIDE, CENTER LH

57415

RAIL, FLOOR SIDE, REAR RH

57415

RAIL, FLOOR SIDE, REAR RH

57415

RAIL, FLOOR SIDE, REAR RH

57416

RAIL, FLOOR SIDE, REAR LH

57416

RAIL, FLOOR SIDE, REAR LH

57416

RAIL, FLOOR SIDE, REAR LH

57686B

DUST PROOF, OUTRIGGER, NO.2

57686B

DUST PROOF, OUTRIGGER, NO.2

57686B

DUST PROOF, OUTRIGGER, NO.2

57686B

DUST PROOF, OUTRIGGER, NO.2

57686B

DUST PROOF, OUTRIGGER, NO.2

57686B

DUST PROOF, OUTRIGGER, NO.2

58303B

STEP SUB-ASSY, REAR FLOOR, RH

58303B

STEP SUB-ASSY, REAR FLOOR, RH

58304B

STEP SUB-ASSY, REAR FLOOR, LH

58304B

STEP SUB-ASSY, REAR FLOOR, LH

9015960294

Крепеж

9015960294

Крепеж

9015960294

Крепеж

9046216027

Крепеж

9046216027

Крепеж

9046216027

Крепеж

9046216027

Крепеж

9046708015

Крепеж

9046708015

Крепеж

9046708015

Крепеж

9059001127

Крепеж

9095001006

Крепеж

9095001006

Крепеж

9095001006

Крепеж

9095001006

Крепеж

9095001011

Крепеж

9095001056

Крепеж

9095001056

Крепеж

9095001056

Крепеж

9095001065

Крепеж

9095001065

Крепеж

9095001065

Крепеж

9095001126

Крепеж

9095001127

Крепеж

9095001127

Крепеж

9095001382

Крепеж

9095001382

Крепеж

9095001382

Крепеж

9095006013

Крепеж

9095006013

Крепеж

9095006013

Крепеж

9095006013

Крепеж

9326026012

Крепеж

9326026012

Крепеж

9326026012

Крепеж

9326026012

Крепеж

Задняя панель пола TOYOTA HIACE VAN,COMMUTER
