Каталог

Европа

Модель

HIACE VAN,COMMUTER

VIN

Дата

1987/08

Двигатель

2 литра

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

YH61

КПП

механика МКПП, 5 скоростей, на руле

Опции

левый руль 5-дверный вэн ROUTE VAN (SIDE PANEL VAN) 3-местный

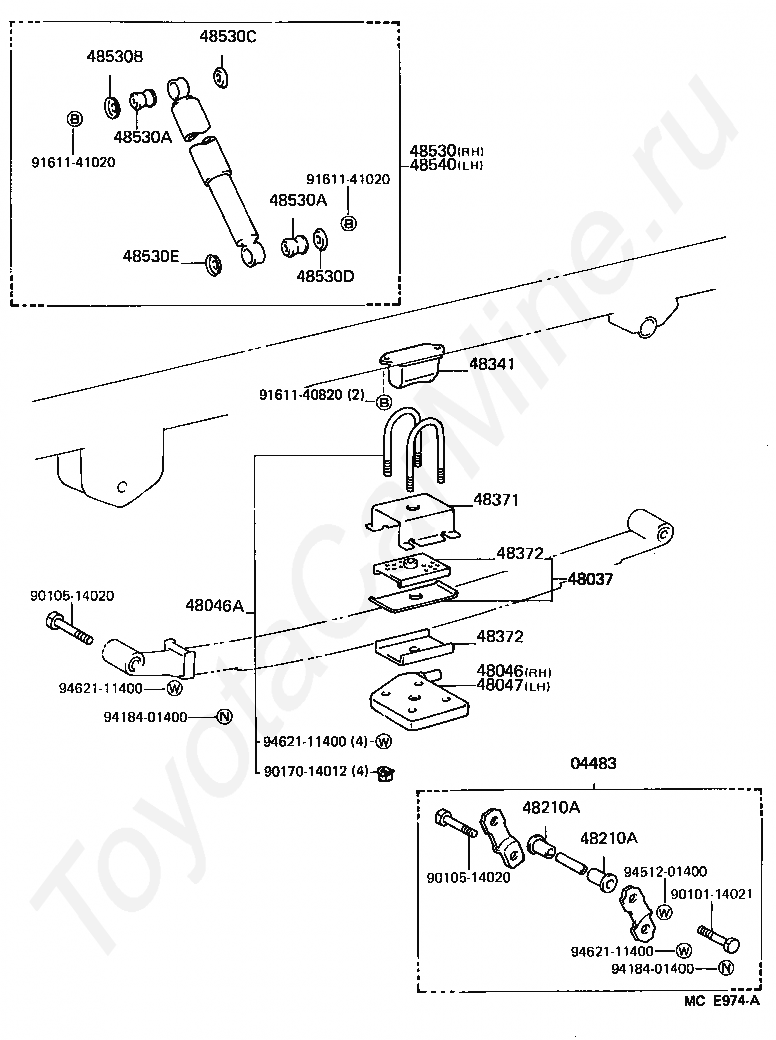

Задние амортизаторы TOYOTA HIACE VAN,COMMUTER

Код

Описание

04483

SHACKLE KIT, REAR SPRING

48037

SPACER SUB-ASSY, REAR SPRING

48046

SEAT SUB-ASSY, SPRING U BOLT, RH

48046A

BOLT, U(FOR REAR SPRING)

48047

SEAT SUB-ASSY, SPRING U BOLT, LH

48210A

BUSH(FOR REAR SPRING SHACKLE UPPER)

48210A

BUSH(FOR REAR SPRING SHACKLE UPPER)

48341

BUMPER, REAR SPRING

48371

RETAINER, REAR SPRING PAD

48372

PAD, REAR SPRING

48372

PAD, REAR SPRING

48530

ABSORBER ASSY, SHOCK, REAR RH

48530A

BUSH(FOR REAR SHOCK ABSORBER)

48530A

BUSH(FOR REAR SHOCK ABSORBER)

48530B

WASHER, REAR SHOCK ABSORBER CUSHION, NO.1

48530C

WASHER, REAR SHOCK ABSORBER CUSHION, NO.2

48530D

WASHER, REAR SHOCK ABSORBER CUSHION, NO.3

48530E

WASHER, REAR SHOCK ABSORBER CUSHION, NO.4

48540

ABSORBER ASSY, SHOCK, REAR LH

9010114021

Крепеж

9010514020

Крепеж

9010514020

Крепеж

9017014012

Крепеж

9161140820

Крепеж

9161141020

Крепеж

9161141020

Крепеж

9418401400

Крепеж

9418401400

Крепеж

9451201400

Крепеж

9462111400

Крепеж

9462111400

Крепеж

9462111400

Крепеж

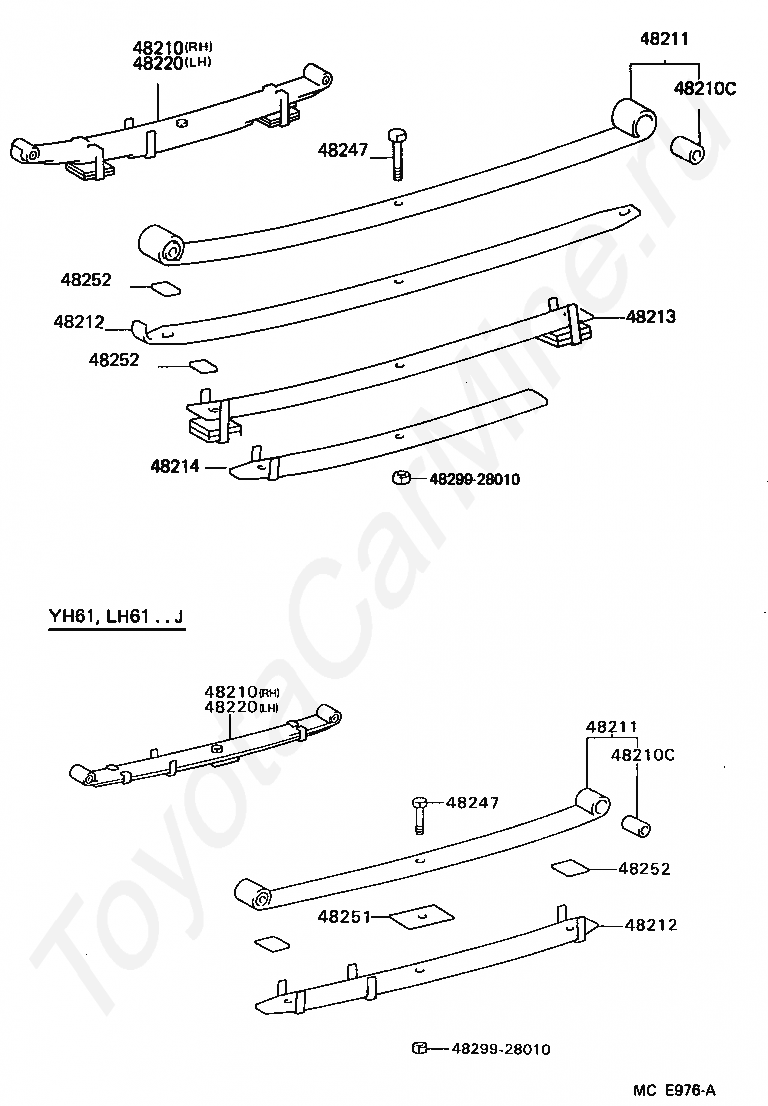

Код

Описание

48210

SPRING ASSY, REAR RH

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48212

LEAF, REAR SPRING, NO.2

48213

LEAF, REAR SPRING, NO.3

48214

LEAF, REAR SPRING, NO.4

48220

SPRING ASSY, REAR LH

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48247

BOLT, REAR SPRING, CENTER

48251

SPACER, REAR SPRING LEAF

48252

SILENCER, REAR SPRING

48252

SILENCER, REAR SPRING

48252

SILENCER, REAR SPRING

4829928010

Крепеж

4829928010

Крепеж
