Каталог

Европа

Модель

HIACE VAN,COMMUTER

VIN

Дата

1987/08

Двигатель

2 литра

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

YH61

КПП

механика МКПП, 5 скоростей, на руле

Опции

левый руль 5-дверный вэн ROUTE VAN (SIDE PANEL VAN) 3-местный

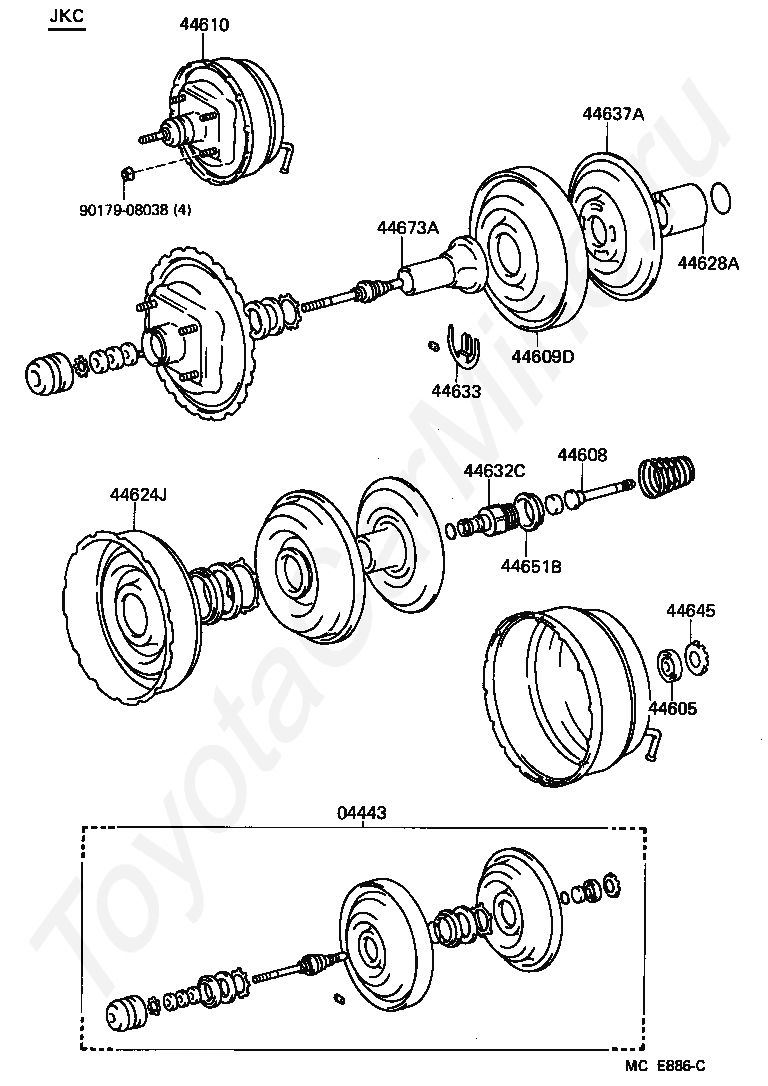

Вакуумный тормозной цилиндр TOYOTA HIACE VAN,COMMUTER

Код

Описание

04443

BOOSTER KIT, BRAKE

44605

PLATE & SEAL SUB-ASSY, BOOSTER

44608

PUSH ROD SUB-ASSY, BOOSTER

44609D

PLATE & RETAINER SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44624J

PLATE, BOOSTER CENTER

44628A

BODY, BOOSTER CENTER

44632C

PLATE, REACTION

44633

KEY, BOOSTER VALVE PLUNGER

44637A

PLATE, BOOSTER DIAPHRAGM

44645

RETAINER, BOOSTER PUSH ROD SEAL

44651B

NUT, BOOSTER

44673A

BODY, BOOSTER VALVE

9017908038

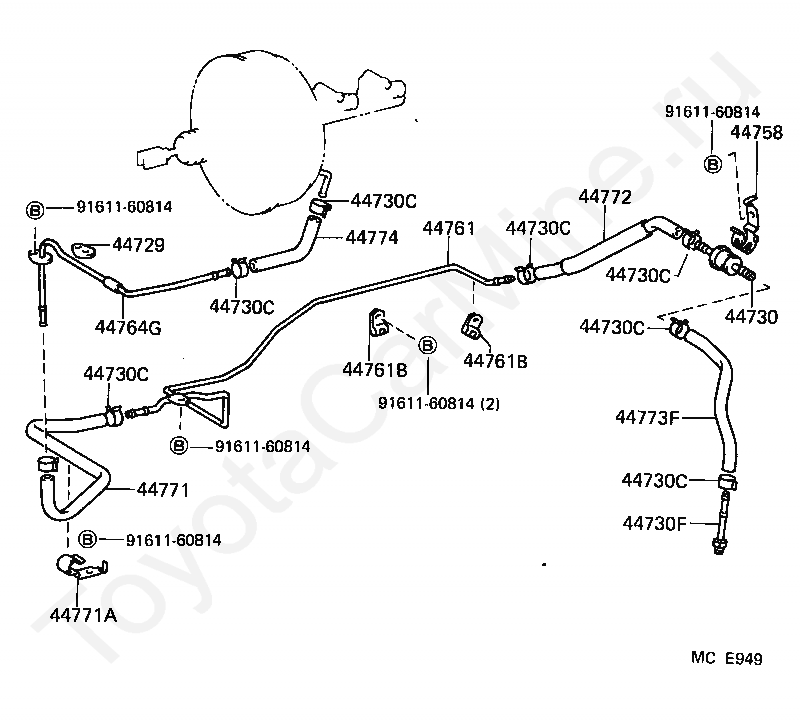

Крепеж

Код

Описание

44729

GASKET, VACUUM TUBE

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44758

BRACKET, VACUUM CHECK VALVE

44761

TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR

44761B

CLAMP, CONNEECTOR TUBE

44761B

CLAMP, CONNEECTOR TUBE

44764G

TUBE, CONNECTOR TO BRAKE BOOSTER

44771

HOSE, VACUUM TUBE CONNECTOR

44771A

CLIP(FOR VACUUM TUBE CONNECTOR HOSE)

44772

HOSE, CHECK VALVE TO CONNECTOR TUBE

44773F

HOSE, UNION TO CHECK VALVE

44774

HOSE, UNION TO CONNECTOR TUBE

9161160814

Крепеж

9161160814

Крепеж

9161160814

Крепеж

9161160814

Крепеж

9161160814

Крепеж

Вакуумный тормозной цилиндр TOYOTA HIACE VAN,COMMUTER
