Каталог

Европа

Модель

HIACE VAN,COMMUTER

VIN

Дата

1987/08

Двигатель

2 литра

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

YH61

КПП

механика МКПП, 5 скоростей, на руле

Опции

левый руль 5-дверный вэн ROUTE VAN (SIDE PANEL VAN) 3-местный

Руль TOYOTA HIACE VAN,COMMUTER

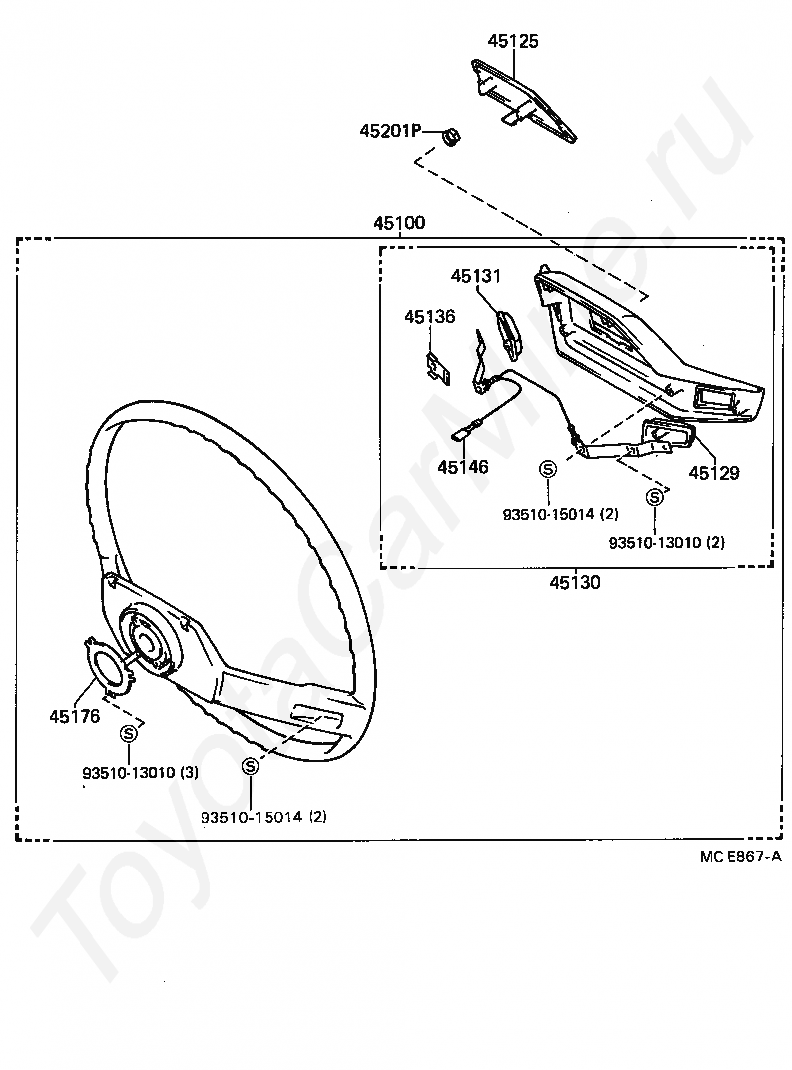

Код

Описание

45100

WHEEL ASSY, STEERING

45125

MARK, STEERING WHEEL PAD

45129

BUTTON, HORN, NO.2

45130

BUTTON ASSY, HORN

45131

BUTTON, HORN, NO.1

45136

PLATE, HORN BUTTON CONTACT

45146

SPRING, HORN BUTTON CONTACT

45176

RING, HORN CONTACT

45201P

NUT, STEERING WHEEL SET

9351013010

Крепеж

9351013010

Крепеж

9351015014

Крепеж

9351015014

Крепеж

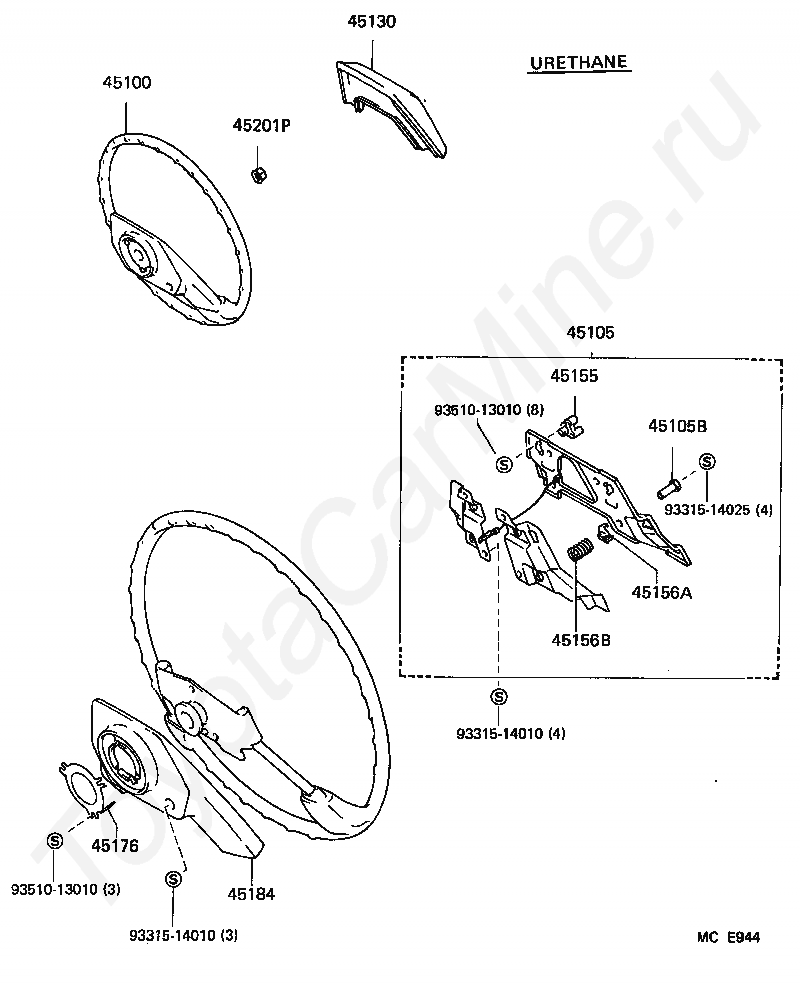

Код

Описание

45100

WHEEL ASSY, STEERING

45105

PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

45105B

SPACER(FOR HORN BUTTON CONTACT PLATE)

45130

BUTTON ASSY, HORN

45155

SPACER, HORN BUTTON CONTACT PLATE

45156A

SEAT, HORN CONTACT SPRING SET

45156B

SPRING(FOR HORN CONTACT SPRING SET SEAT)

45176

RING, HORN CONTACT

45184

COVER, STEERING WHEEL BOSS, LOWER

45201P

NUT, STEERING WHEEL SET

9331514010

Крепеж

9331514010

Крепеж

9331514025

Крепеж

9351013010

Крепеж

9351013010

Крепеж

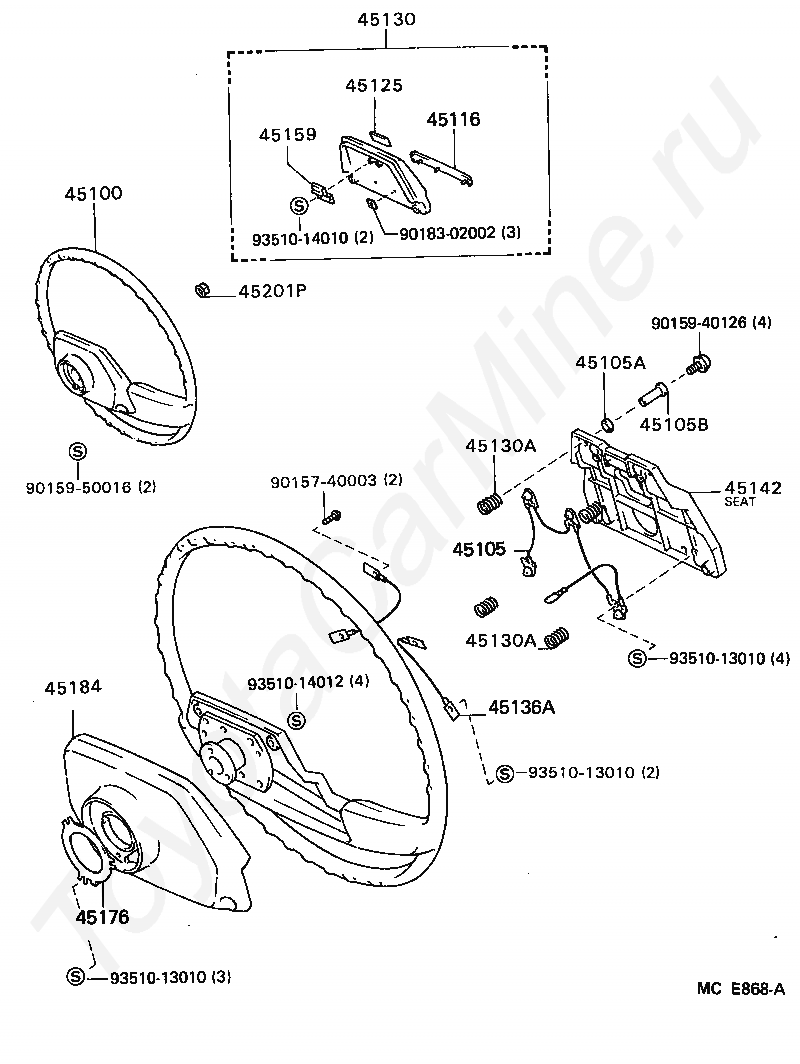

Код

Описание

45100

WHEEL ASSY, STEERING

45105

PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

45105A

CUSHION(FOR HORN BUTTON CONTACT PLATE)

45105B

SPACER(FOR HORN BUTTON CONTACT PLATE)

45116

ORNAMENT, STEERING WHEEL, NO.1

45125

MARK, STEERING WHEEL PAD

45130

BUTTON ASSY, HORN

45130A

SPRING, COMPRESSION(FOR HORN BUTTON)

45130A

SPRING, COMPRESSION(FOR HORN BUTTON)

45136A

CORD(FOR HORN CONTACT RING)

45142

SEAT, HORN BUTTON CONTACT, NO.1

45159

RETAINER, STEERING WHEEL PAD SET

45176

RING, HORN CONTACT

45184

COVER, STEERING WHEEL BOSS, LOWER

45201P

NUT, STEERING WHEEL SET

9015740003

Крепеж

9015940126

Крепеж

9015950016

Крепеж

9018302002

Крепеж

9351013010

Крепеж

9351013010

Крепеж

9351013010

Крепеж

9351014010

Крепеж

9351014012

Крепеж
