Каталог

Япония

Модель

HIACE TRUCK

VIN

Дата

1995/05

Двигатель

2,8 литра, дизель

Фрейм

LY101

КПП

механика

Опции

HIGH FLAT DECK OPENING ON THREE SIDES STEEL-MADE DECK COMPLETED VEHICLE

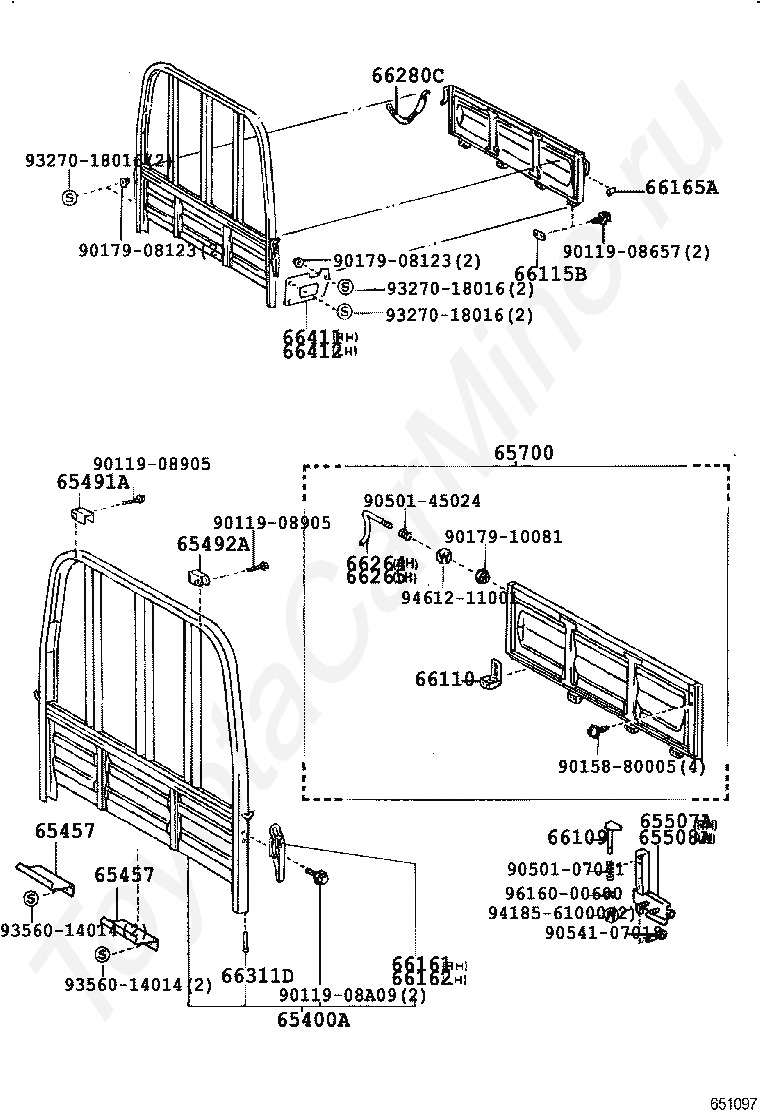

REAR BODY GUARD FRAME & TAIL GATE TOYOTA HIACE TRUCK

Код

Описание

65400A

GUARD ASSY, REAR BODY

65457

PLATE, BAFFLE DUST REAR BODY

65457

PLATE, BAFFLE DUST REAR BODY

65491A

STOP, GUARD FRAME LOAD SLIDE, RH

65492A

STOP, GUARD FRAME LOAD SLIDE, LH

65507A

SUPPORT SUB-ASSY, CORNER, RH

65508A

SUPPORT SUB-ASSY, CORNER, LH

65700

GATE ASSY, REAR BODY TAIL

66109

HANDLE SUB-ASSY, SIDE GATE SUPPORT CORNER

66110

HINGE ASSY, TAIL GATE

66115B

RETAINER, GATE HINGE

66161

HANDLE, SIDE GATE LATCH, RH

66162

HANDLE, SIDE GATE LATCH, LH

66165A

CAP, GATE LATCH HANDLE

66264

HANDLE, TAIL GATE LATCH, RH

66265

HANDLE, TAIL GATE LATCH, LH

66280C

CHAIN ASSY, TAIL GATE

66311D

HOOK, ROPE

66411

BRACKET, GUARD FRAME, RH

66412

BRACKET, GUARD FRAME, LH

9011908657

Крепеж

9011908905

Крепеж

9011908905

Крепеж

9011908A09

Крепеж

9015880005

Крепеж

9017908123

Крепеж

9017908123

Крепеж

9017910081

Крепеж

9050107041

Крепеж

9050145024

Крепеж

9054107018

Крепеж

9327018016

Крепеж

9327018016

Крепеж

9327018016

Крепеж

9356014014

Крепеж

9356014014

Крепеж

9418561000

Крепеж

9461211001

Крепеж

9616000600

Крепеж

REAR BODY GUARD FRAME & TAIL GATE TOYOTA HIACE TRUCK
