Каталог

Япония

Модель

HIACE TRUCK

VIN

Дата

1995/05

Двигатель

2,8 литра, дизель

Фрейм

LY101

КПП

механика

Опции

HIGH FLAT DECK OPENING ON THREE SIDES STEEL-MADE DECK COMPLETED VEHICLE

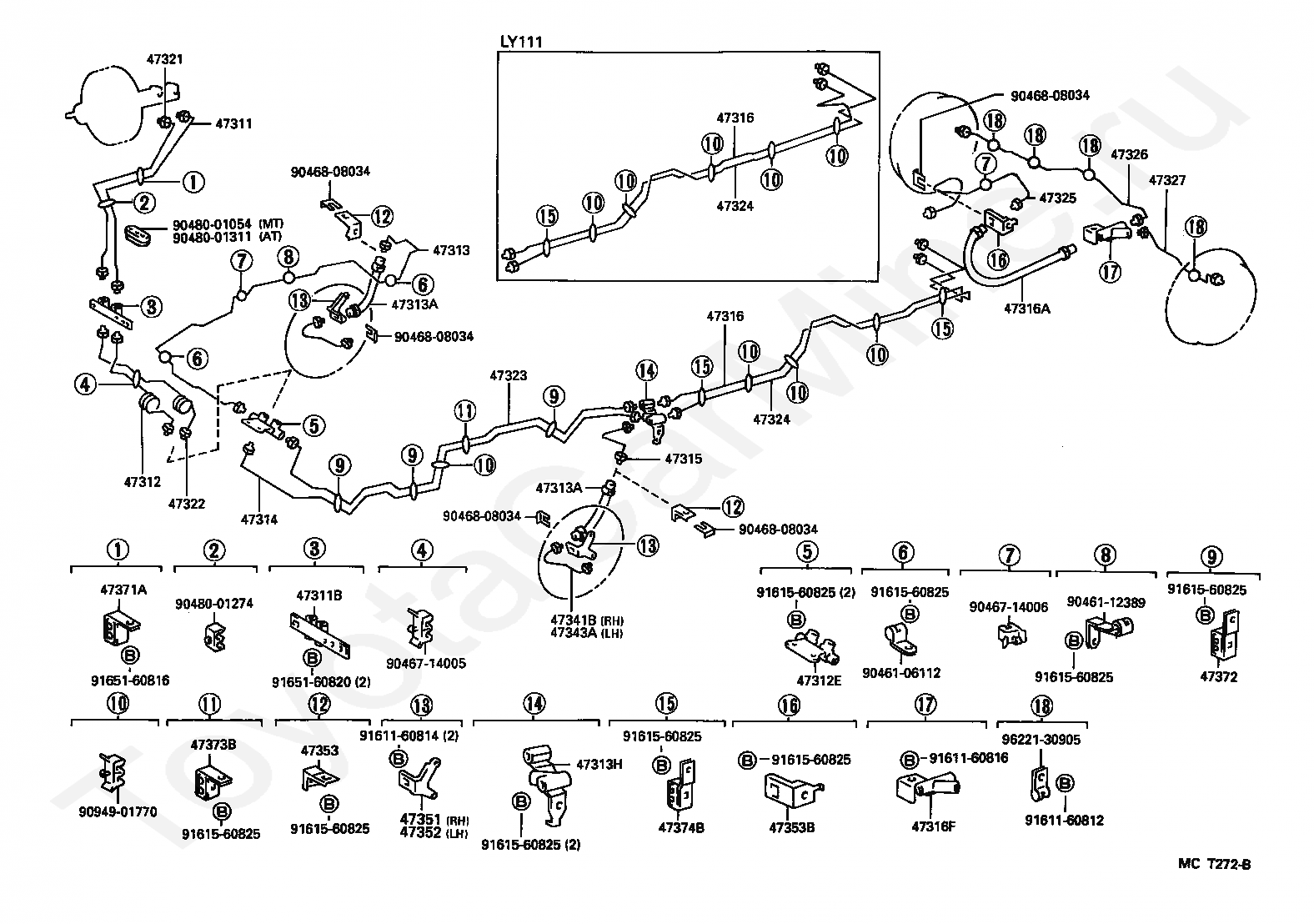

Тормозная магистраль TOYOTA HIACE TRUCK

Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47312E

WAY, NO.2(FOR FRONT BRAKE TUBE)

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313H

WAY, NO.3(FOR FRONT BRAKE TUBE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47316

TUBE, FRONT BRAKE, NO.6

47316

TUBE, FRONT BRAKE, NO.6

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47316F

WAY, 3(FOR REAR BRAKE TUBE)

47321

TUBE, REAR BRAKE, NO.1

47322

TUBE, REAR BRAKE, NO.2

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47324

TUBE, REAR BRAKE, NO.4

47325

TUBE, REAR BRAKE, NO.5

47326

TUBE, REAR BRAKE, NO.6

47327

TUBE, REAR BRAKE, NO.7

47341B

TUBE, WHEEL CYLINDER, FRONT RH NO.1

47343A

TUBE, WHEEL CYLINDER, FRONT LH NO.1

47351

BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

47352

BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

47353

BRACKET, FLEXIBLE HOSE(FOR REAR)

47353B

BRACKET, FLEXIBLE HOSE, NO.3

47371A

CLAMP, BRAKE TUBE, NO.1

47372

CLAMP, BRAKE TUBE, NO.2

47373B

CLAMP, BRAKE TUBE, NO.3

47374B

CLAMP, BRAKE TUBE, NO.4

9046106112

Крепеж

9046112389

Крепеж

9046714005

Крепеж

9046714006

Крепеж

9046808034

Крепеж

9046808034

Крепеж

9046808034

Крепеж

9046808034

Крепеж

9046808034

Крепеж

9048001054

Крепеж

9048001274

Крепеж

9048001311

Крепеж

9094901770

Крепеж

9161160812

Крепеж

9161160814

Крепеж

9161160816

Крепеж

9161560825

Крепеж

9161560825

Крепеж

9161560825

Крепеж

9161560825

Крепеж

9161560825

Крепеж

9161560825

Крепеж

9161560825

Крепеж

9161560825

Крепеж

9161560825

Крепеж

9165160816

Крепеж

9165160820

Крепеж

9622130905

Крепеж

Код

Описание

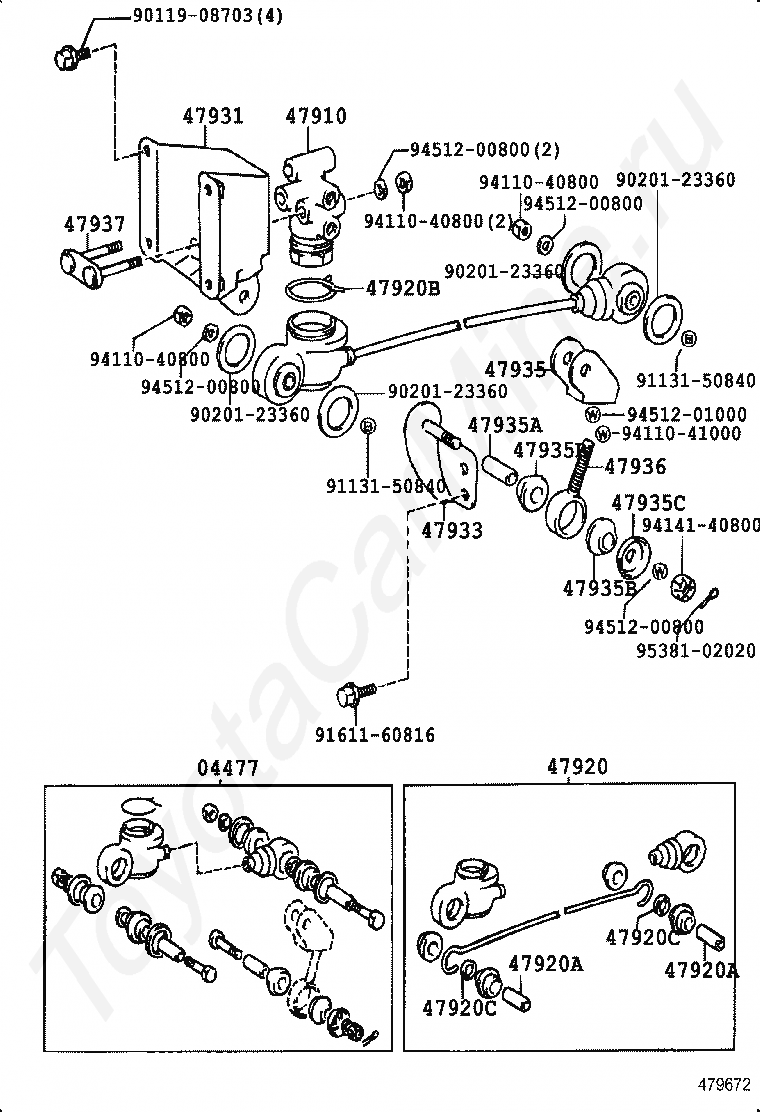

04477

BUSH & BOOT KIT, LOAD SENSING SPRING

47910

VALVE ASSY, LOAD SENSING PROPORTIONING

47920

SPRING ASSY, LOAD SENSING

47920A

COLLAR(FOR LOAD SENSING SPRING)

47920A

COLLAR(FOR LOAD SENSING SPRING)

47920B

CLIP(FOR LOAD SENSING VALVE BOOT)

47920C

WASHER(FOR LOAD SENSING SPRING)

47920C

WASHER(FOR LOAD SENSING SPRING)

47931

BRACKET, LOAD SENSING VALVE

47933

BRACKET, LOAD SENSING SHACKLE, NO.1

47935

SHACKLE, LOAD SENSING SPRING, NO.1

47935A

COLLAR(FOR LOAD SENSING SPRING SHACKLE)

47935B

BUSH(FOR LOAD SENSING SPRING SHACKLE)

47935B

BUSH(FOR LOAD SENSING SPRING SHACKLE)

47935C

RETAINER(FOR LOAD SENSING SPRING SHACKLE)

47936

SHACKLE, LOAD SENSING SPRING, NO.2

47937

PLATE, LOAD SENSING VALVE SET

9011908703

Крепеж

9020123360

Крепеж

9020123360

Крепеж

9020123360

Крепеж

9020123360

Крепеж

9113150840

Крепеж

9113150840

Крепеж

9161160816

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411041000

Крепеж

9414140800

Крепеж

9451200800

Крепеж

9451200800

Крепеж

9451200800

Крепеж

9451200800

Крепеж

9451201000

Крепеж

9538102020

Крепеж
