Каталог

Япония

Модель

HIACE TRUCK

VIN

Дата

1987/10

Двигатель

2,4 литра, дизель

Фрейм

LH85

КПП

механика МКПП, 5 скоростей

Опции

BOARDING DECK HIGH FLAT DECK OPENING ON THREE SIDES SINGAPORE TAXI COMPLETED VEHICLE

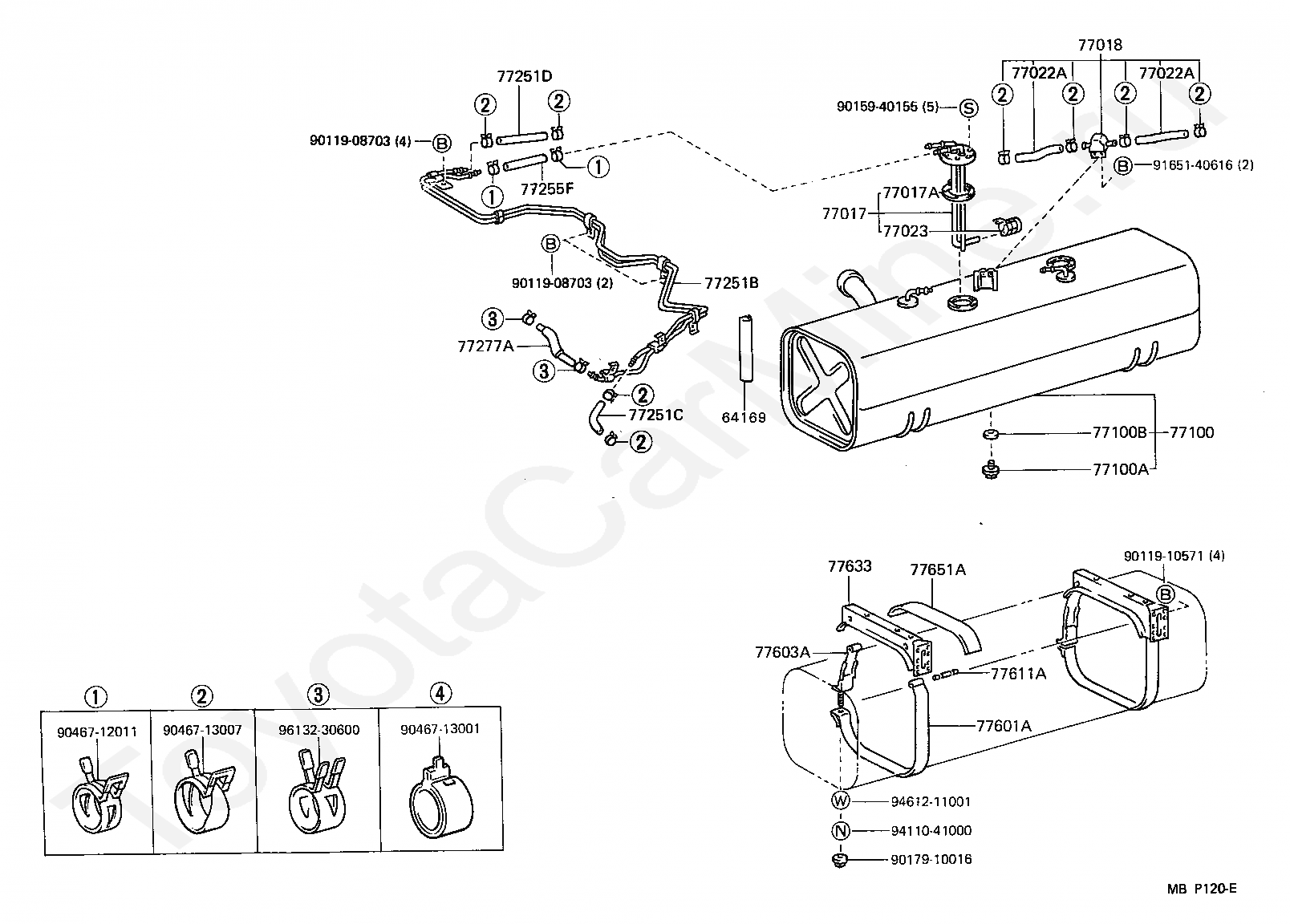

Топливный бак и горловина TOYOTA HIACE TRUCK

Код

Описание

64169

PROTECTOR, FUEL INLET

77017

TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

77017A

GASKET, FUEL TANK VENT

77018

VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77023

FILTER SUB-ASSY, FUEL SUCTION TUBE

77100

TANK ASSY, FUEL

77100A

PLUG(FOR FUEL TANK)

77100B

GASKET(FOR FUEL TANK)

77251B

TUBE, FUEL MAIN

77251C

HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)

77251D

HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)

77255F

HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)

77277A

HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

77601A

BAND SUB-ASSY, FUEL TANK, NO.1

77603A

BAND SUB-ASSY, FUEL TANK, NO.2

77611A

PIN (FOR FUEL TANK BAND)

77633

STAY, FUEL TANK

77651A

CUSHION, FUEL TANK, NO.1

9011908703

Крепеж

9011908703

Крепеж

9011910571

Крепеж

9015940155

Крепеж

9017910016

Крепеж

9046712011

Крепеж

9046713001

Крепеж

9046713007

Крепеж

9165140616

Крепеж

9411041000

Крепеж

9461211001

Крепеж

9613230600

Крепеж

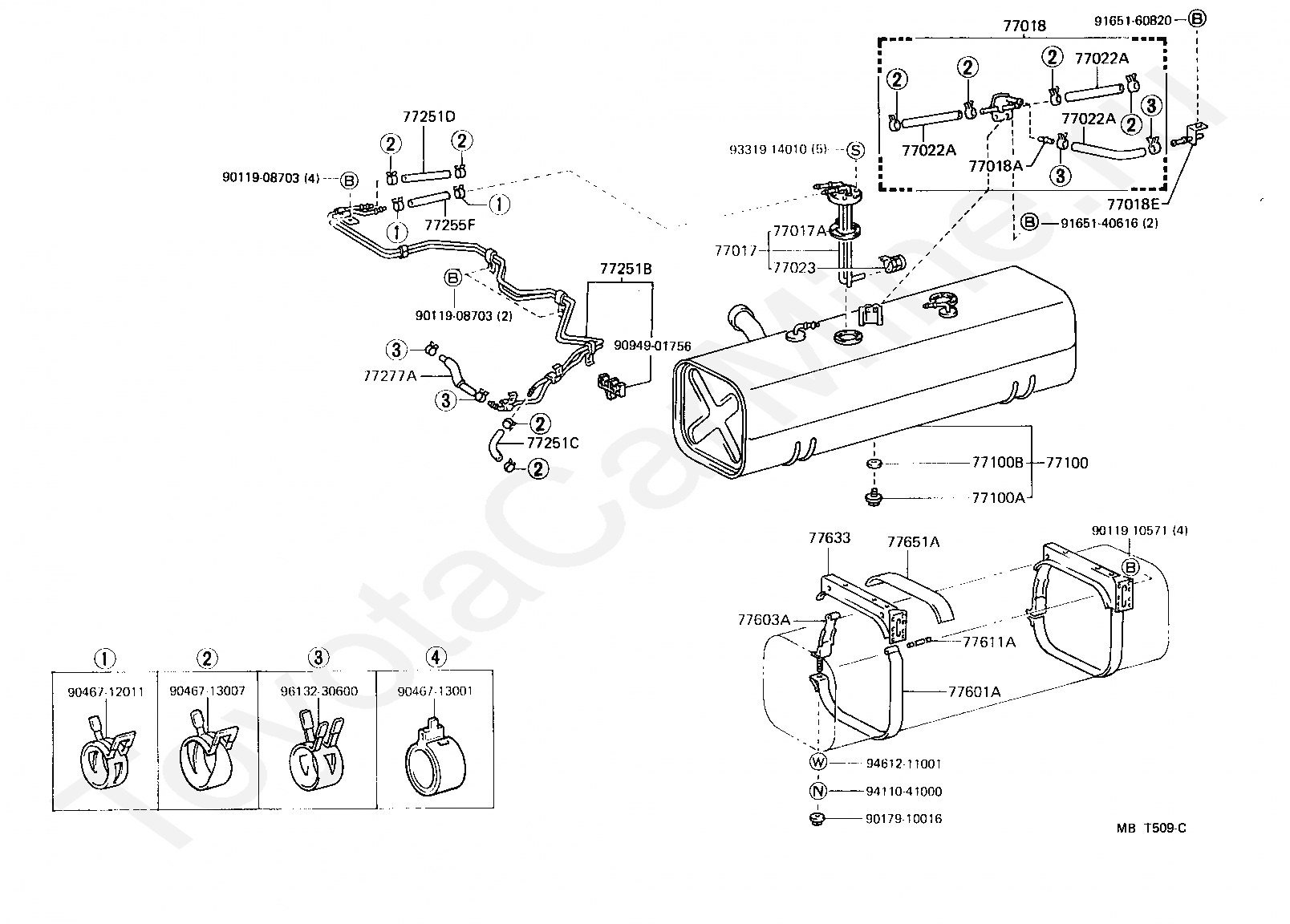

Код

Описание

77017

TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

77017A

GASKET, FUEL TANK VENT

77018

VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

77018A

ORIFICE, FUEL VAPOUR

77018E

TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77022A

HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

77023

FILTER SUB-ASSY, FUEL SUCTION TUBE

77100

TANK ASSY, FUEL

77100A

PLUG(FOR FUEL TANK)

77100B

GASKET(FOR FUEL TANK)

77251B

TUBE, FUEL MAIN

77251C

HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)

77251D

HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)

77255F

HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)

77277A

HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

77601A

BAND SUB-ASSY, FUEL TANK, NO.1

77603A

BAND SUB-ASSY, FUEL TANK, NO.2

77611A

PIN (FOR FUEL TANK BAND)

77633

STAY, FUEL TANK

77651A

CUSHION, FUEL TANK, NO.1

9011908703

Крепеж

9011908703

Крепеж

9011910571

Крепеж

9013230600

Крепеж

9017910016

Крепеж

9046712011

Крепеж

9046713001

Крепеж

9046713007

Крепеж

9094901756

Крепеж

9165140616

Крепеж

9165160820

Крепеж

9331914010

Крепеж

9411041000

Крепеж

9461211001

Крепеж
