Каталог

Япония

Модель

HIACE TRUCK

VIN

Дата

1987/10

Двигатель

2,4 литра, дизель

Фрейм

LH85

КПП

механика МКПП, 5 скоростей

Опции

BOARDING DECK HIGH FLAT DECK OPENING ON THREE SIDES SINGAPORE TAXI COMPLETED VEHICLE

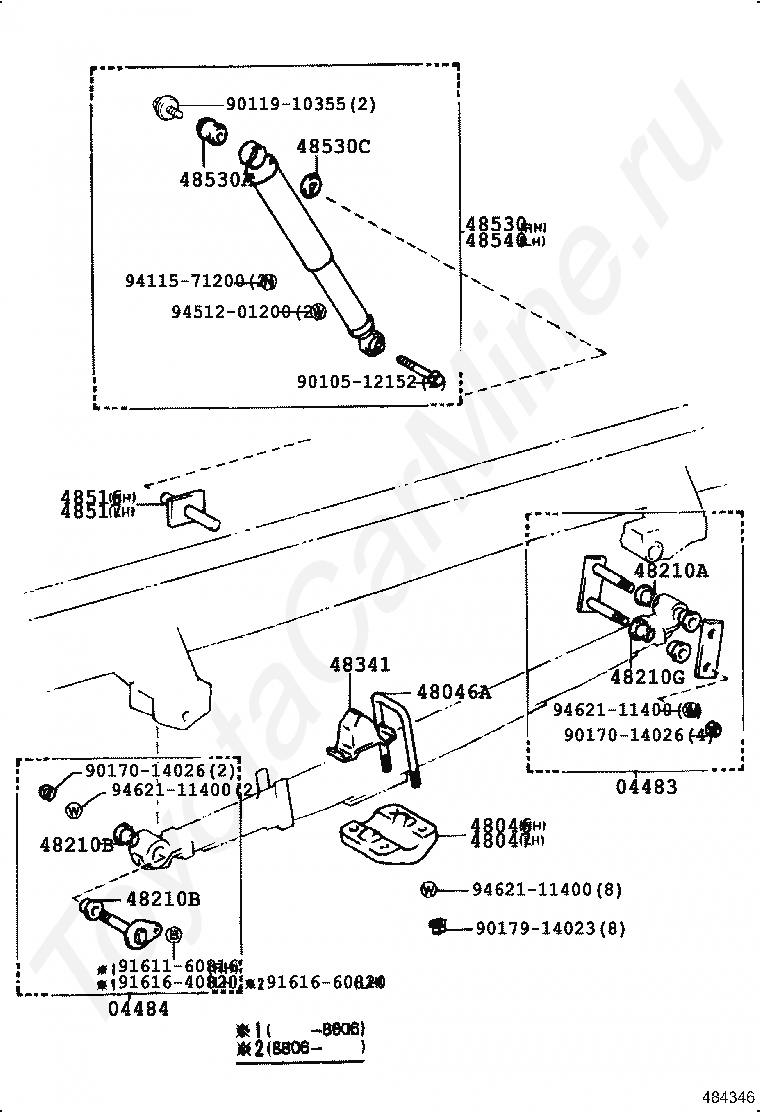

Задние амортизаторы TOYOTA HIACE TRUCK

Код

Описание

04483

SHACKLE KIT, REAR SPRING

04484

PIN KIT, REAR SPRING

48046

SEAT SUB-ASSY, SPRING U BOLT, RH

48046A

BOLT, U(FOR REAR SPRING)

48047

SEAT SUB-ASSY, SPRING U BOLT, LH

48210A

BUSH(FOR REAR SPRING SHACKLE UPPER)

48210B

BUSH(FOR REAR SPRING PIN)

48210B

BUSH(FOR REAR SPRING PIN)

48210G

BUSH(FOR REAR SPRING SHACKLE LOWER)

48341

BUMPER, REAR SPRING

48516

BRACKET, REAR SHOCK ABSORBER, UPPER RH

48517

BRACKET, REAR SHOCK ABSORBER, UPPER LH

48530

ABSORBER ASSY, SHOCK, REAR RH

48530A

BUSH(FOR REAR SHOCK ABSORBER)

48530C

WASHER, REAR SHOCK ABSORBER CUSHION, NO.2

48540

ABSORBER ASSY, SHOCK, REAR LH

9010512152

Крепеж

9011910355

Крепеж

9017014026

Крепеж

9017014026

Крепеж

9017914023

Крепеж

9161160816

Крепеж

9161640820

Крепеж

9161660820

Крепеж

9411571200

Крепеж

9451201200

Крепеж

9462111400

Крепеж

9462111400

Крепеж

9462111400

Крепеж

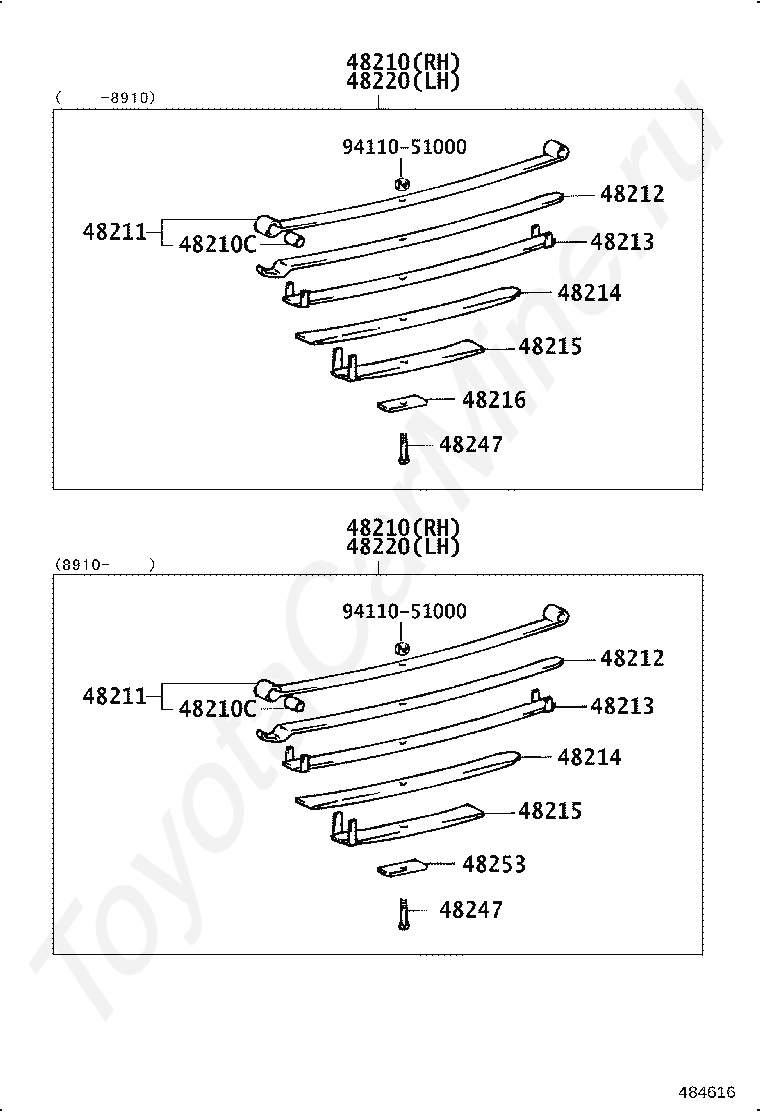

Код

Описание

48210

SPRING ASSY, REAR RH

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48212

LEAF, REAR SPRING, NO.2

48213

LEAF, REAR SPRING, NO.3

48213

LEAF, REAR SPRING, NO.3

48214

LEAF, REAR SPRING, NO.4

48214

LEAF, REAR SPRING, NO.4

48215

LEAF, REAR SPRING, NO.5

48215

LEAF, REAR SPRING, NO.5

48216

LEAF, REAR SPRING, NO.6

48220

SPRING ASSY, REAR LH

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48247

BOLT, REAR SPRING, CENTER

48253

SPACER, REAR SPRING, NO.1

9411051000

Крепеж

9411051000

Крепеж

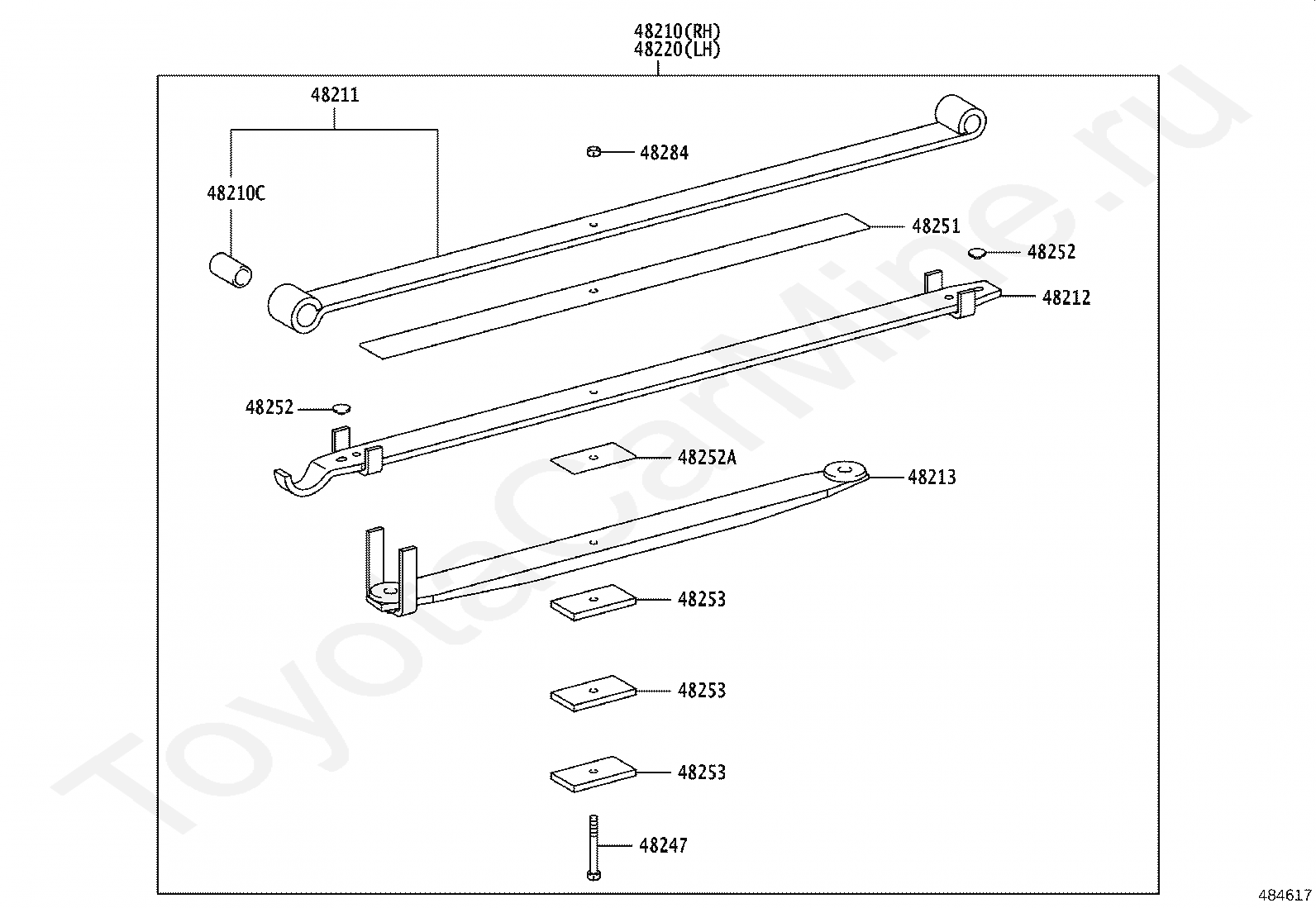

Код

Описание

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48213

LEAF, REAR SPRING, NO.3

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48251

SPACER, REAR SPRING LEAF

48252

SILENCER, REAR SPRING

48252

SILENCER, REAR SPRING

48252A

SPACER, REAR SPRING, NO.2

48253

SPACER, REAR SPRING, NO.1

48253

SPACER, REAR SPRING, NO.1

48253

SPACER, REAR SPRING, NO.1

48284

NUT, REAR SPRING CENTER BOLT
