Каталог

Япония

Модель

HIACE TRUCK

VIN

Дата

1987/10

Двигатель

2,4 литра, дизель

Фрейм

LH85

КПП

механика МКПП, 5 скоростей

Опции

BOARDING DECK HIGH FLAT DECK OPENING ON THREE SIDES SINGAPORE TAXI COMPLETED VEHICLE

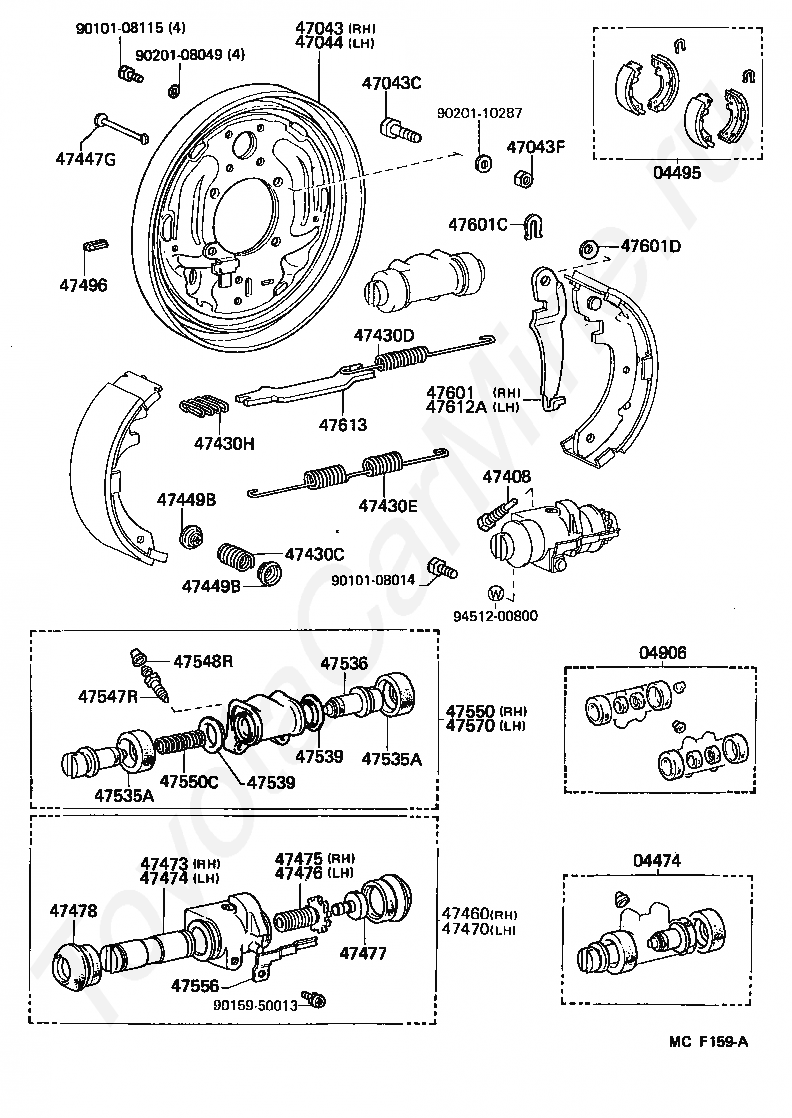

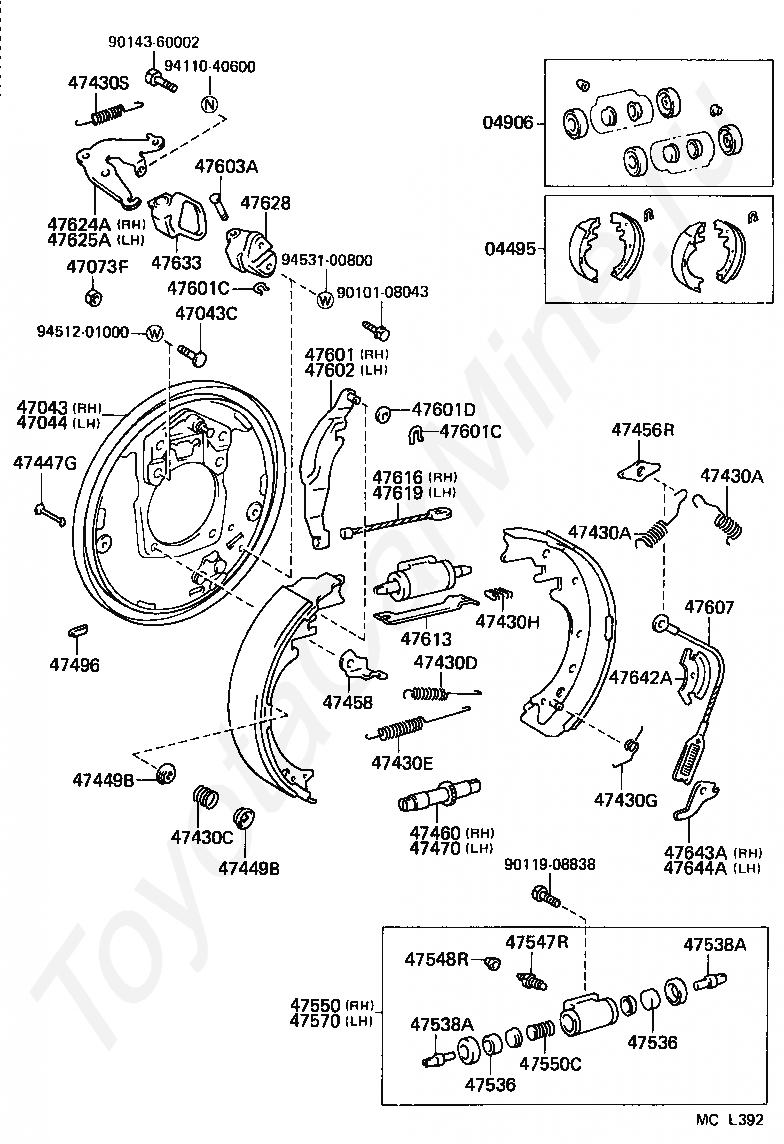

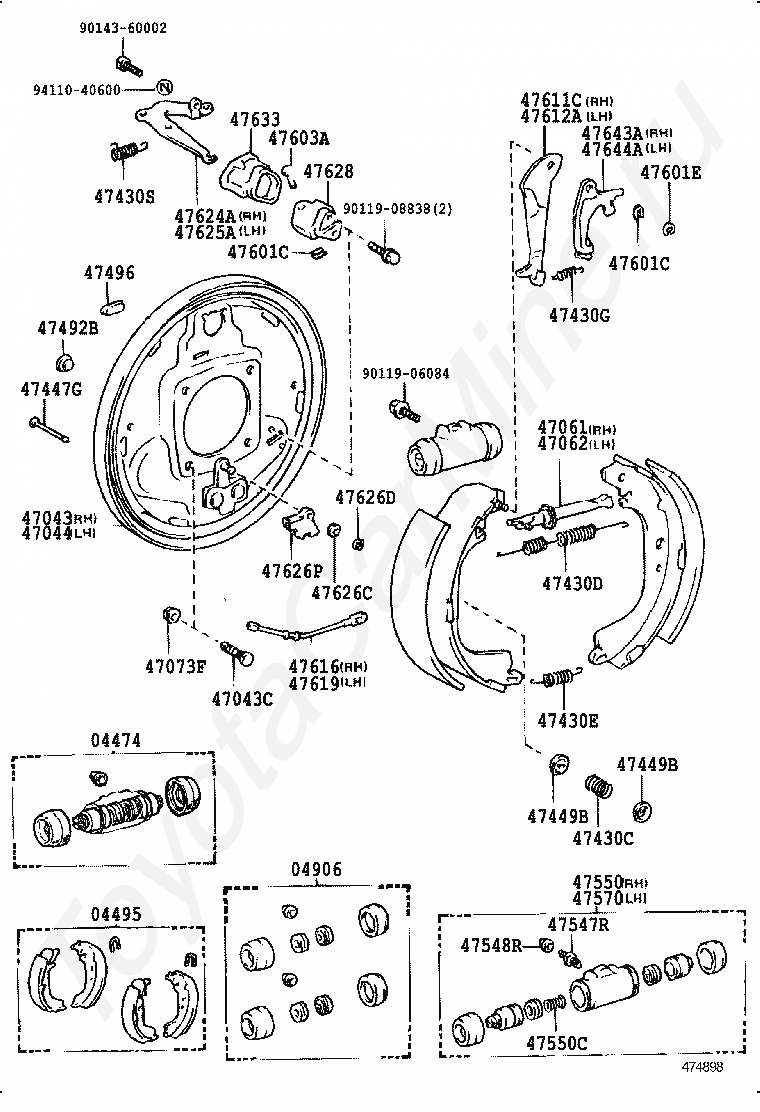

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE TOYOTA HIACE TRUCK

Код

Описание

04495

SHOE KIT, REAR BRAKE

04906

CUP KIT, REAR WHEEL CYLINDER

47043

PLATE SUB-ASSY, BRAKE BACKING, REAR RH

47043C

BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

47044

PLATE SUB-ASSY, BRAKE BACKING, REAR LH

47073F

NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

47430A

SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

47430A

SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

47430C

SPRING(FOR REAR BRAKE SHOE HOLD DOWN)

47430D

SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

47430E

SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

47430G

SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

47430H

SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)

47430S

SPRING, TENSION(FOR PARKING BRAKE SHOE STRUT)

47447G

PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

47449B

CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

47449B

CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

47456R

PLATE, REAR BRAKE SHOE GUIDE

47458

BRACKET, REAR BRAKE SHOE RETURN SPRING

47460

ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

47470

ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

47496

PLUG, HOLE(FOR REAR BRAKE)

47536

PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

47536

PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

47538A

LINK, WHEEL CYLINDER CONNECTING

47538A

LINK, WHEEL CYLINDER CONNECTING

47547R

PLUG, BLEEDER(FOR DRUM BRAKE, REAR)

47548R

CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

47550

CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

47550C

SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

47570

CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

47601

LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

47601C

WASHER, C(FOR REAR BRAKE)

47601C

WASHER, C(FOR REAR BRAKE)

47601D

WASHER, WAVE(FOR REAR BRAKE)

47602

LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

47603A

PIN, W/HOLE(FOR REAR BRAKE)

47607

CABLE SUB-ASSY, REAR BEAKE AUTOMATIC ADJUST

47613

STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)

47616

WIRE, PARKING BRAKE, RH

47619

WIRE, PARKING BRAKE, LH

47624A

CRANK, PARKING BRAKE BELL, RH

47625A

CRANK, PARKING BRAKE BELL, LH

47628

BRACKET, REAR BRAKE BELLCRANK

47633

BOOT, PARKING BRAKE BELLCRANK

47642A

GUIDE, REAR BRAKE AUTOMATIC ADJUST CABLE

47643A

LEVER, REAR BRAKE AUTOMATIC ADJUST, RH

47644A

LEVER, REAR BRAKE AUTOMATIC ADJUST, LH

9010108043

Крепеж

9011908838

Крепеж

9014360002

Крепеж

9411040600

Крепеж

9451201000

Крепеж

9453100800

Крепеж

Код

Описание

04474

CYLINDER KIT, REAR WHEEL

04495

SHOE KIT, REAR BRAKE

04906

CUP KIT, REAR WHEEL CYLINDER

47043

PLATE SUB-ASSY, BRAKE BACKING, REAR RH

47043C

BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

47043F

NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

47044

PLATE SUB-ASSY, BRAKE BACKING, REAR LH

47408

BOLT SUB-ASSY, RETRACTING SPRING CLAMP

47430C

SPRING(FOR REAR BRAKE SHOE HOLD DOWN)

47430D

SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

47430E

SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

47430H

SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)

47447G

PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

47449B

CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

47449B

CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

47460

ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

47470

ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

47473

NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)

47474

NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

47475

BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)

47476

BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

47477

PIECE, SHOE SUPPORT (FOR REAR BRAKE)

47478

BOOT, ADJUSTER CYLINDER(FOR REAR BRAKE)

47496

PLUG, HOLE(FOR REAR BRAKE)

47535A

BOOT, REAR WHEEL CYLINDER

47535A

BOOT, REAR WHEEL CYLINDER

47536

PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

47539

RETAINER, WHEEL CYLINDER BOOT

47539

RETAINER, WHEEL CYLINDER BOOT

47547R

PLUG, BLEEDER(FOR DRUM BRAKE, REAR)

47548R

CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

47550

CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

47550C

SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

47556

SPRING, ADJUSTER LOCK(FOR REAR BRAKE)

47570

CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

47601

LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

47601C

WASHER, C(FOR REAR BRAKE)

47601D

WASHER, WAVE(FOR REAR BRAKE)

47612A

LEVER, PARKING BRAKE SHOE, LH

47613

STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)

9010108014

Крепеж

9010108115

Крепеж

9015950013

Крепеж

9020108049

Крепеж

9020110287

Крепеж

9451200800

Крепеж

Код

Описание

04474

CYLINDER KIT, REAR WHEEL

04495

SHOE KIT, REAR BRAKE

04906

CUP KIT, REAR WHEEL CYLINDER

47043

PLATE SUB-ASSY, BRAKE BACKING, REAR RH

47043C

BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

47044

PLATE SUB-ASSY, BRAKE BACKING, REAR LH

47061

STRUT SET, PARKING BRAKE SHOE, RH

47062

STRUT SET, PARKING BRAKE SHOE, LH

47073F

NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

47430C

SPRING(FOR REAR BRAKE SHOE HOLD DOWN)

47430D

SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

47430E

SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

47430G

SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

47430S

SPRING, TENSION(FOR PARKING BRAKE SHOE STRUT)

47447G

PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

47449B

CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

47449B

CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

47492B

PLUG, SHOE INSPECTION(FOR REAR BRAKE)

47496

PLUG, HOLE(FOR REAR BRAKE)

47547R

PLUG, BLEEDER(FOR DRUM BRAKE, REAR)

47548R

CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

47550

CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

47550C

SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

47570

CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

47601C

WASHER, C(FOR REAR BRAKE)

47601C

WASHER, C(FOR REAR BRAKE)

47601E

RING, E(FOR REAR BRAKE)

47603A

PIN, W/HOLE(FOR REAR BRAKE)

47611C

LEVER, PARKING BRAKE SHOE, RH

47612A

LEVER, PARKING BRAKE SHOE, LH

47616

WIRE, PARKING BRAKE, RH

47619

WIRE, PARKING BRAKE, LH

47624A

CRANK, PARKING BRAKE BELL, RH

47625A

CRANK, PARKING BRAKE BELL, LH

47626C

WASHER, WAVE

47626D

RING, E(FOR PARKING BRAKE SEGMENTAL PULLEY)

47626P

PULLEY, PARKING BRAKE SEGMENTAL

47628

BRACKET, REAR BRAKE BELLCRANK

47633

BOOT, PARKING BRAKE BELLCRANK

47643A

LEVER, REAR BRAKE AUTOMATIC ADJUST, RH

47644A

LEVER, REAR BRAKE AUTOMATIC ADJUST, LH

9011906084

Крепеж

9011908838

Крепеж

9014360002

Крепеж

9411040600

Крепеж

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE TOYOTA HIACE TRUCK
