Каталог

Япония

Модель

HIACE TRUCK

VIN

Дата

1987/10

Двигатель

2,4 литра, дизель

Фрейм

LH85

КПП

механика МКПП, 5 скоростей

Опции

BOARDING DECK HIGH FLAT DECK OPENING ON THREE SIDES SINGAPORE TAXI COMPLETED VEHICLE

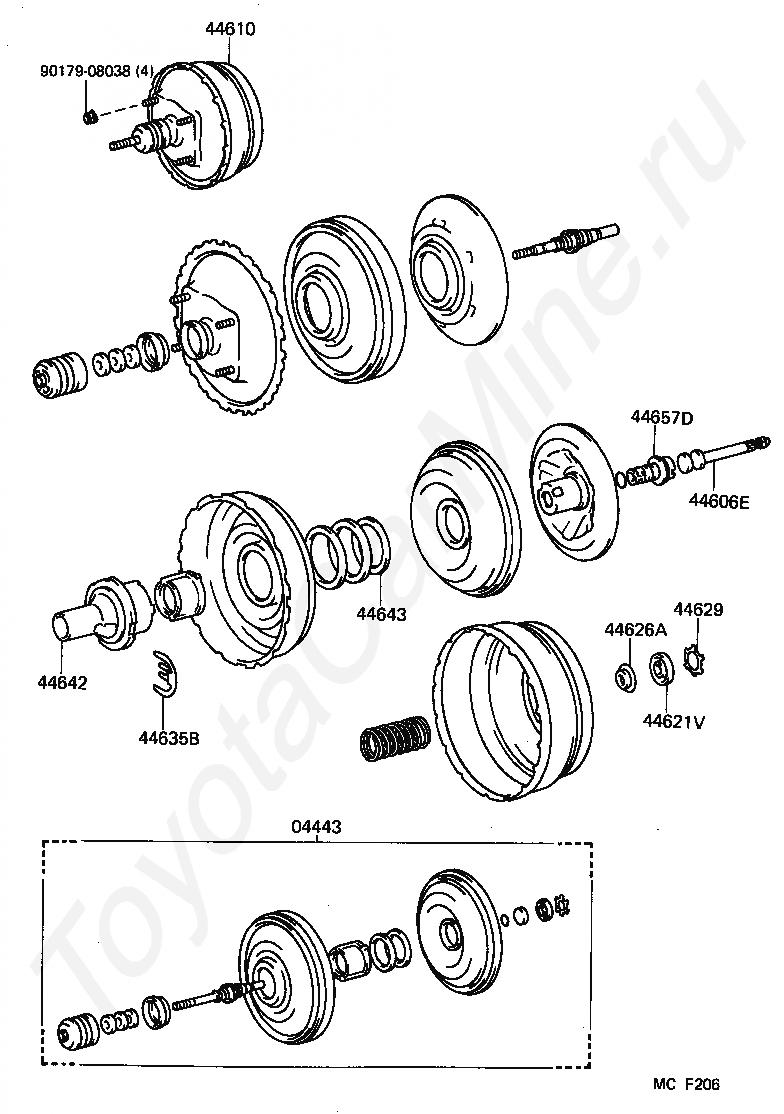

Вакуумный тормозной цилиндр TOYOTA HIACE TRUCK

Код

Описание

04443

BOOSTER KIT, BRAKE

44606E

ROD SUB-ASSY, BRAKE BOOSTER PISTON

44610

BOOSTER ASSY, BRAKE

44621V

SEAL, BOOSTER BODY

44626A

RETAINER, BOOSTER BODY SEAL

44629

RING, CIRCULAR INTERNAL

44635B

KEY, VALVE STOPPER

44642

PISTON, BRAKE BOOSTER

44643

RETAINER, DIAPHRAGM

44657D

CASE, REACTION DISC

9017908038

Крепеж

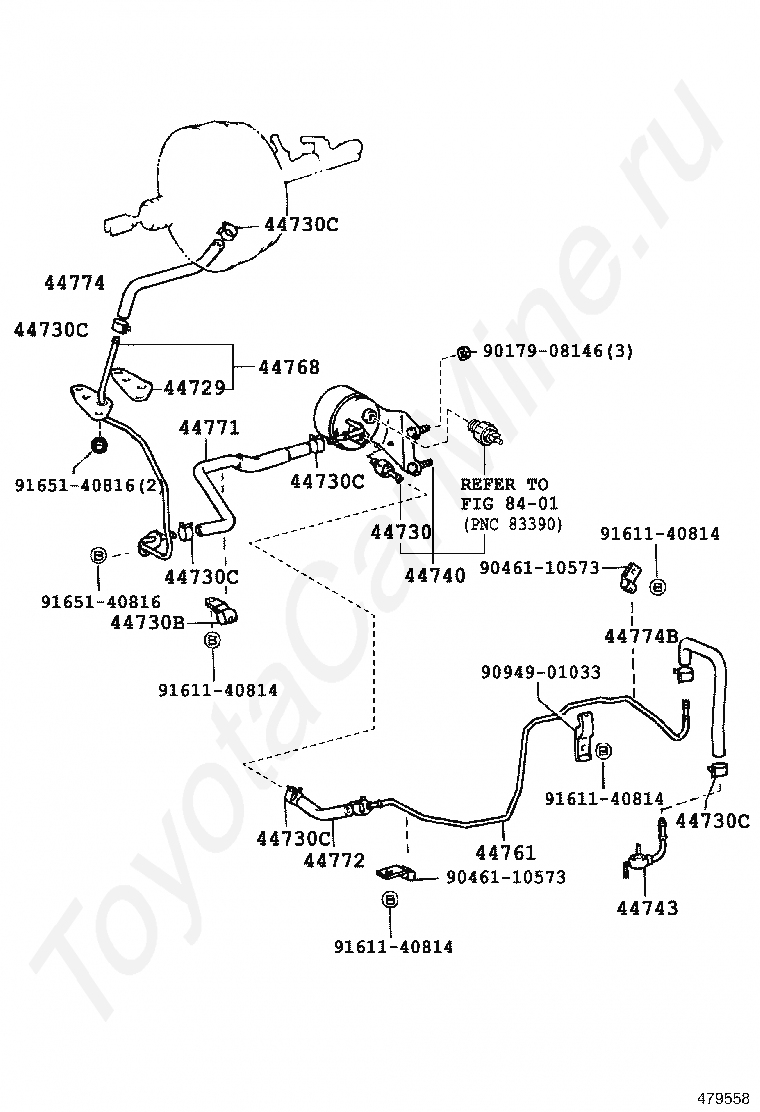

Код

Описание

44729

GASKET, VACUUM TUBE

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44730B

CLAMP, VACUUM HOSE

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44740

RESERVOIR ASSY, VACUUM

44743

UNION(FOR VACUUM PUMP)

44761

TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR

44768

TUBE, BOOSTER VACUUM

44771

HOSE, VACUUM TUBE CONNECTOR

44772

HOSE, CHECK VALVE TO CONNECTOR TUBE

44774

HOSE, UNION TO CONNECTOR TUBE

44774B

HOSE, UNION TO CONNECTOR TUBE

8401

переход к группе запчастей

9017908146

Крепеж

9046110573

Крепеж

9046110573

Крепеж

9094901033

Крепеж

9161140814

Крепеж

9161140814

Крепеж

9161140814

Крепеж

9161140814

Крепеж

9165140816

Крепеж

9165140816

Крепеж

Вакуумный тормозной цилиндр TOYOTA HIACE TRUCK
