Каталог

Япония

Модель

HIACE TRUCK

VIN

Дата

1987/10

Двигатель

2,4 литра, дизель

Фрейм

LH85

КПП

механика МКПП, 5 скоростей

Опции

BOARDING DECK HIGH FLAT DECK OPENING ON THREE SIDES SINGAPORE TAXI COMPLETED VEHICLE

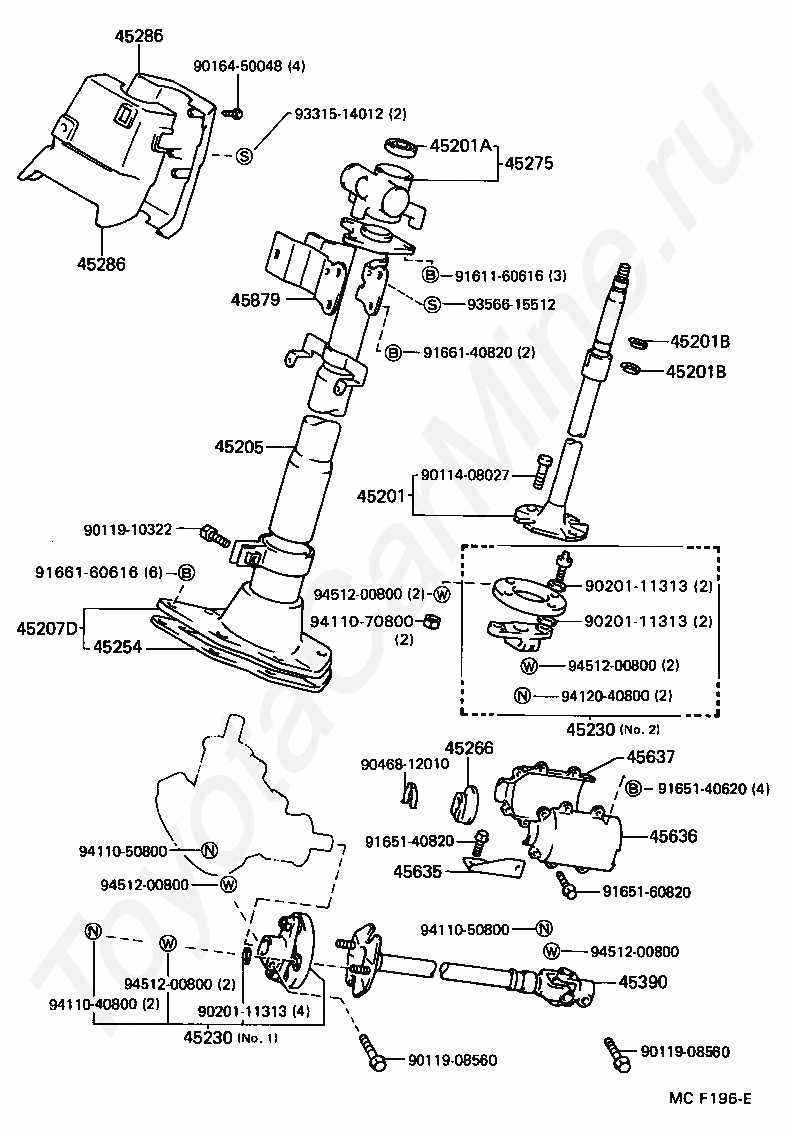

Рулевая колонка TOYOTA HIACE TRUCK

Код

Описание

45201

SHAFT SUB-ASSY, STEERING MAIN

45201A

BEARING(FOR STEERING MAIN SHAFT)

45201B

RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

45201B

RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

45205

TUBE SUB-ASSY, STEERING COLUMN

45207D

COVER SUB-ASSY, MAIN SHAFT JOINT

45230

COUPLING ASSY, FLEXIBLE

45230

COUPLING ASSY, FLEXIBLE

45254

SHIELD, STEERING COLUMN HOLE

45266

COVER, STEERING INTERMEDIATE SHAFT DUST

45275

BRACKET, STEERING COLUMN, UPPER

45286

COVER, STEERING COLUMN

45286

COVER, STEERING COLUMN

45390

SHAFT ASSY, STEERING TORQUE

45635

SUPPORT, INTERMEDIATE LINK JOINT PROTECTOR

45636

PROTECTOR, INTERMEDIATE LINK JOINT, UPPER

45637

PROTECTOR, INTER LINK JOINT, LWR NO.1

45879

BRACKET, STEERING COLUMN UPPER SUPPORT, NO.2

9011408027

Крепеж

9011908560

Крепеж

9011908560

Крепеж

9011910322

Крепеж

9016450048

Крепеж

9020111313

Крепеж

9020111313

Крепеж

9020111313

Крепеж

9046812010

Крепеж

9161160616

Крепеж

9165140620

Крепеж

9165140820

Крепеж

9165160820

Крепеж

9166140820

Крепеж

9166160616

Крепеж

9331514012

Крепеж

9356615512

Крепеж

9411040800

Крепеж

9411050800

Крепеж

9411050800

Крепеж

9411070800

Крепеж

9412040800

Крепеж

9451200800

Крепеж

9451200800

Крепеж

9451200800

Крепеж

9451200800

Крепеж

9451200800

Крепеж

Код

Описание

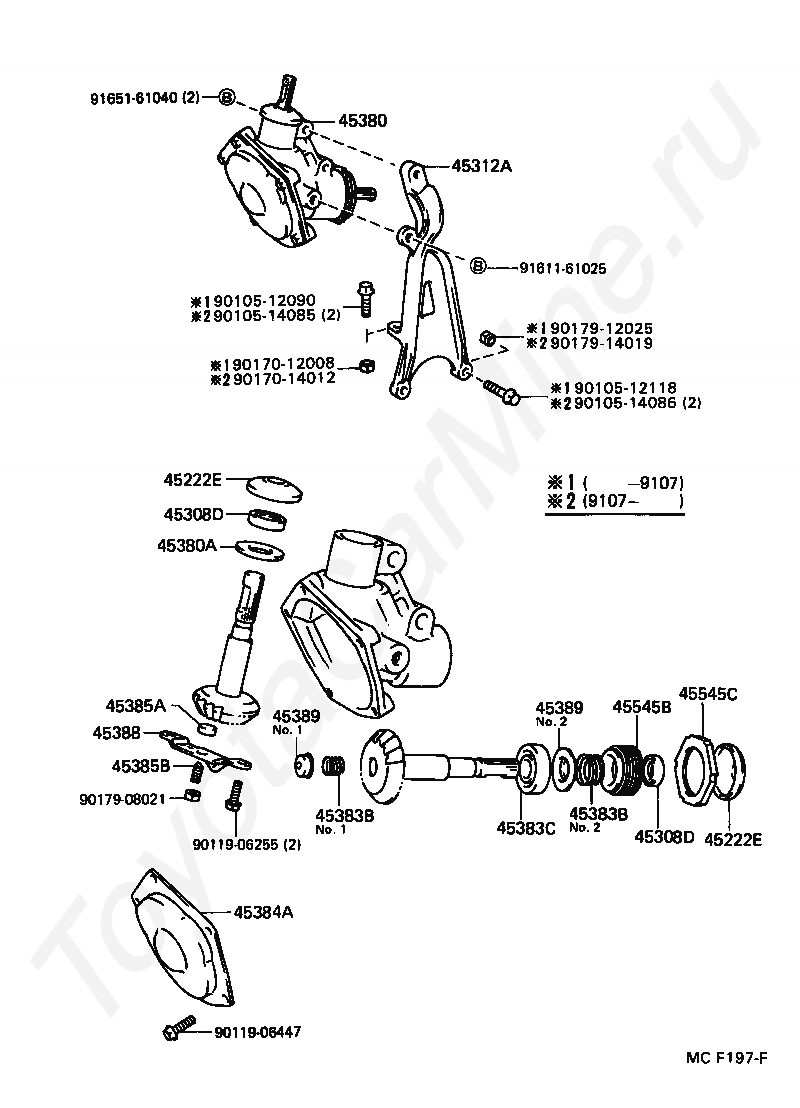

45222E

COVER, DUST(FOR STEERING BEVEL GEAR)

45222E

COVER, DUST(FOR STEERING BEVEL GEAR)

45308D

SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING)

45308D

SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING)

45312A

BRACKET, STEERING BEVEL GEAR HOUSING

45380

GEAR ASSY, STEERING BEVEL

45380A

WASHER(FOR STEERING BEVEL GEAR)

45383B

SPRING, COMPRESSION(FOR STEERING BEVEL GEAR)

45383B

SPRING, COMPRESSION(FOR STEERING BEVEL GEAR)

45383C

BEARING, RADIAL BALL(FOR STEERING BEVEL GEAR)

45384A

COVER, STEERING BEVEL GEAR

45385A

SEAT, LOCK BOLT(FOR STEERING BEVEL GEAR)

45385B

BOLT, SET(FOR LOCK BOLT SEAT)

45388

PLATE, STEERING BEVEL GEAR

45389

HOLDER, STEERING BEVEL GEAR SPRING

45389

HOLDER, STEERING BEVEL GEAR SPRING

45545B

SCREW, PINION BEARING ADJUSTING(FOR STEERING BEVEL GEAR)

45545C

NUT(FOR STEERING BEVEL GEAR PINION BEARING ADJUST SCREW)

9010512090

Крепеж

9010512118

Крепеж

9010514085

Крепеж

9010514086

Крепеж

9011906255

Крепеж

9011906447

Крепеж

9017012008

Крепеж

9017014012

Крепеж

9017908021

Крепеж

9017912025

Крепеж

9017914019

Крепеж

9161161025

Крепеж

9165161040

Крепеж

Рулевая колонка TOYOTA HIACE TRUCK
