Каталог

Япония

Модель

HIACE TRUCK

VIN

Дата

1987/10

Двигатель

2,4 литра, дизель

Фрейм

LH85

КПП

механика МКПП, 5 скоростей

Опции

BOARDING DECK HIGH FLAT DECK OPENING ON THREE SIDES SINGAPORE TAXI COMPLETED VEHICLE

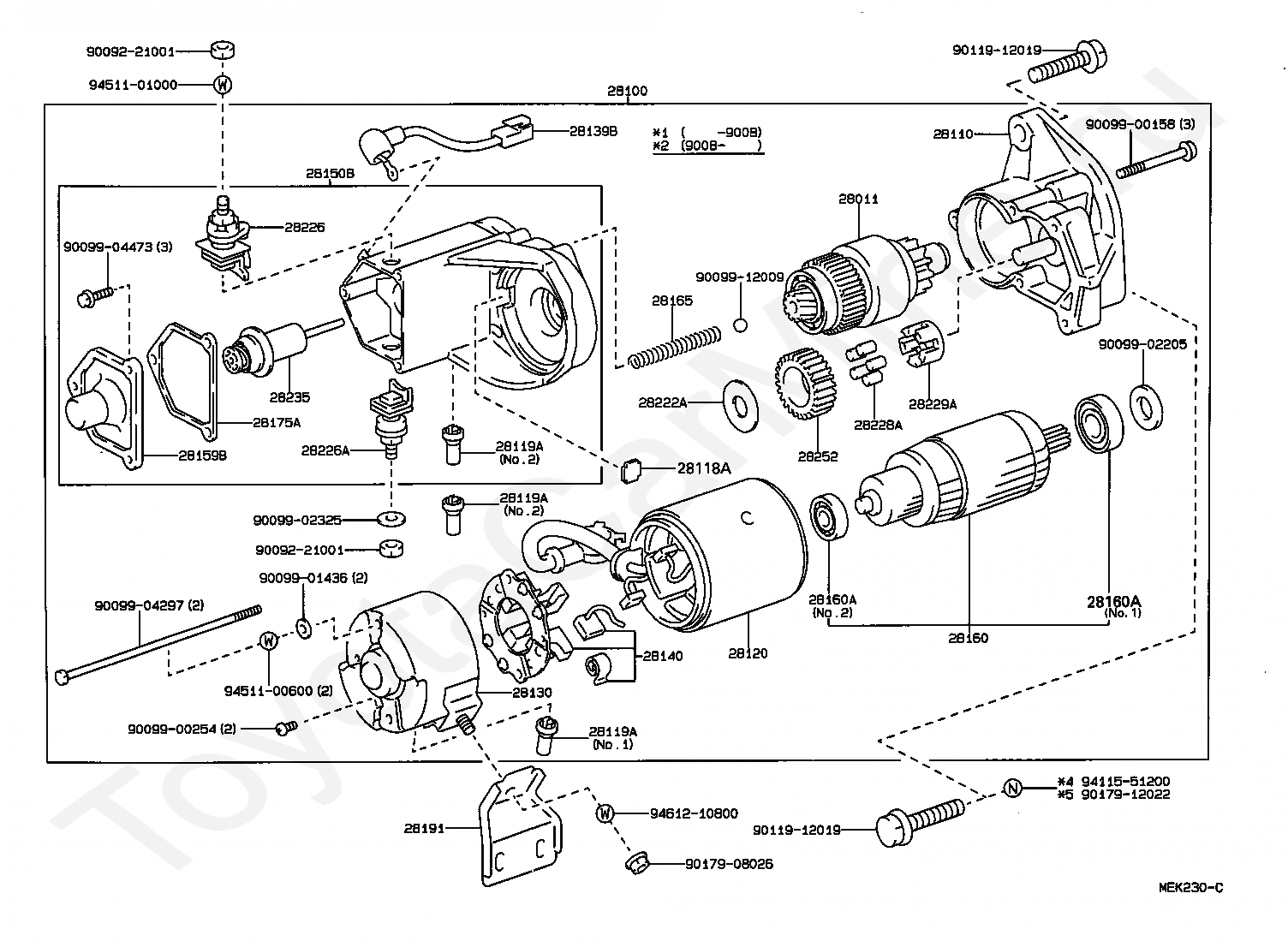

Стартер TOYOTA HIACE TRUCK

Код

Описание

28011

CLUTCH SUB-ASSY, STARTER

28100

STARTER ASSY

28110

HOUSING ASSY, STARTER DRIVE

28119A

COVER, STARTER END FRAME

28120

YOKE ASSY, STARTER

28139B

WIRE, LEAD

28140

HOLDER ASSY, STARTER BRUSH

28143

SPRING, STARTER BRUSH

28150B

SWITCH ASSY, MAGNETIC

28159B

COVER, MAGNET SWITCH

28160

ARMATURE ASSY, STARTER

28160A

BEARING, STARTER ARMATURE

28160A

BEARING, STARTER ARMATURE

28165

SPRING, STARTER MAGNET SWITCH RETURN

28169

CLAMP, STARTER MOTOR LEAD WIRE

2817187702

Крепеж

28175A

GASKET, MAGNET SWITCH COVER

28226

STARTER KIT, BATTERY TERMINAL

28226A

STARTER KIT, MOTOR TERMINAL

28228A

ROLLER, STARTER CLUTCH

28229A

RETAINER, STARTER IDLE GEAR

28235

PLUNGER, MAGNET SWITCH

28251

PINION, STARTER DRIVE

28252

GEAR, STARTER IDLE

2936287701

Крепеж

9009904473

Крепеж

9009905129

Крепеж

9009912009

Крепеж

9009914058

Крепеж

9011912019

Крепеж

9011912019

Крепеж

9017908146

Крепеж

9411040800

Крепеж

9411551200

Крепеж

9451100800

Крепеж

9671119006

Крепеж

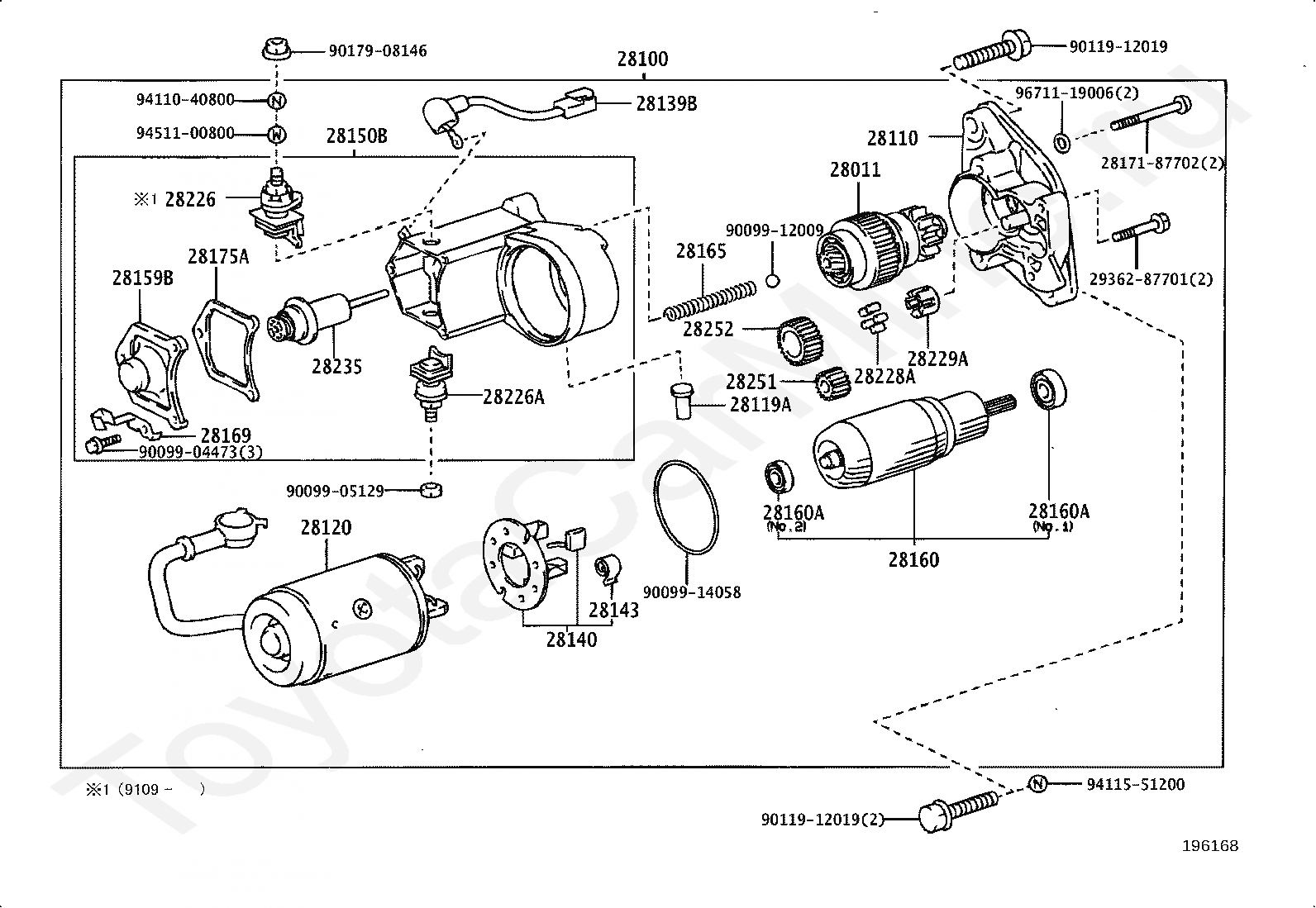

Код

Описание

28011

CLUTCH SUB-ASSY, STARTER

28100

STARTER ASSY

28110

HOUSING ASSY, STARTER DRIVE

28118A

PLATE(FOR STARTER YOKE)

28119A

COVER, STARTER END FRAME

28119A

COVER, STARTER END FRAME

28119A

COVER, STARTER END FRAME

28120

YOKE ASSY, STARTER

28130

FRAME ASSY, STARTER COMMUTATOR END

28139B

WIRE, LEAD

28140

HOLDER ASSY, STARTER BRUSH

28150B

SWITCH ASSY, MAGNETIC

28159B

COVER, MAGNET SWITCH

28160

ARMATURE ASSY, STARTER

28160A

BEARING, STARTER ARMATURE

28160A

BEARING, STARTER ARMATURE

28165

SPRING, STARTER MAGNET SWITCH RETURN

28175A

GASKET, MAGNET SWITCH COVER

28191

STAY, STARTER

28222A

WASHER, STARTER IDLE GEAR CLUTCH

28226

STARTER KIT, BATTERY TERMINAL

28226A

STARTER KIT, MOTOR TERMINAL

28228A

ROLLER, STARTER CLUTCH

28229A

RETAINER, STARTER IDLE GEAR

28235

PLUNGER, MAGNET SWITCH

28252

GEAR, STARTER IDLE

9009221001

Крепеж

9009221001

Крепеж

9009900158

Крепеж

9009900254

Крепеж

9009901436

Крепеж

9009902205

Крепеж

9009902325

Крепеж

9009904297

Крепеж

9009904473

Крепеж

9009912009

Крепеж

9011912019

Крепеж

9011912019

Крепеж

9017908026

Крепеж

9017912022

Крепеж

9411551200

Крепеж

9451100600

Крепеж

9451101000

Крепеж

9461210800

Крепеж
