Каталог

Япония

Модель

HIACE/REGIUSACE

VIN

Дата

2005/01

Двигатель

2,7 литра, 16 клапанов, DOHC, EFI

Кузов

фургон

Класс

GRAND CABIN

Фрейм

TRH229

КПП

АКПП, 4 ступени

Опции

высокая крыша 4 двери боковое стекло 10-местный CBU 4WD 286W

Кресла TOYOTA HIACE/REGIUSACE

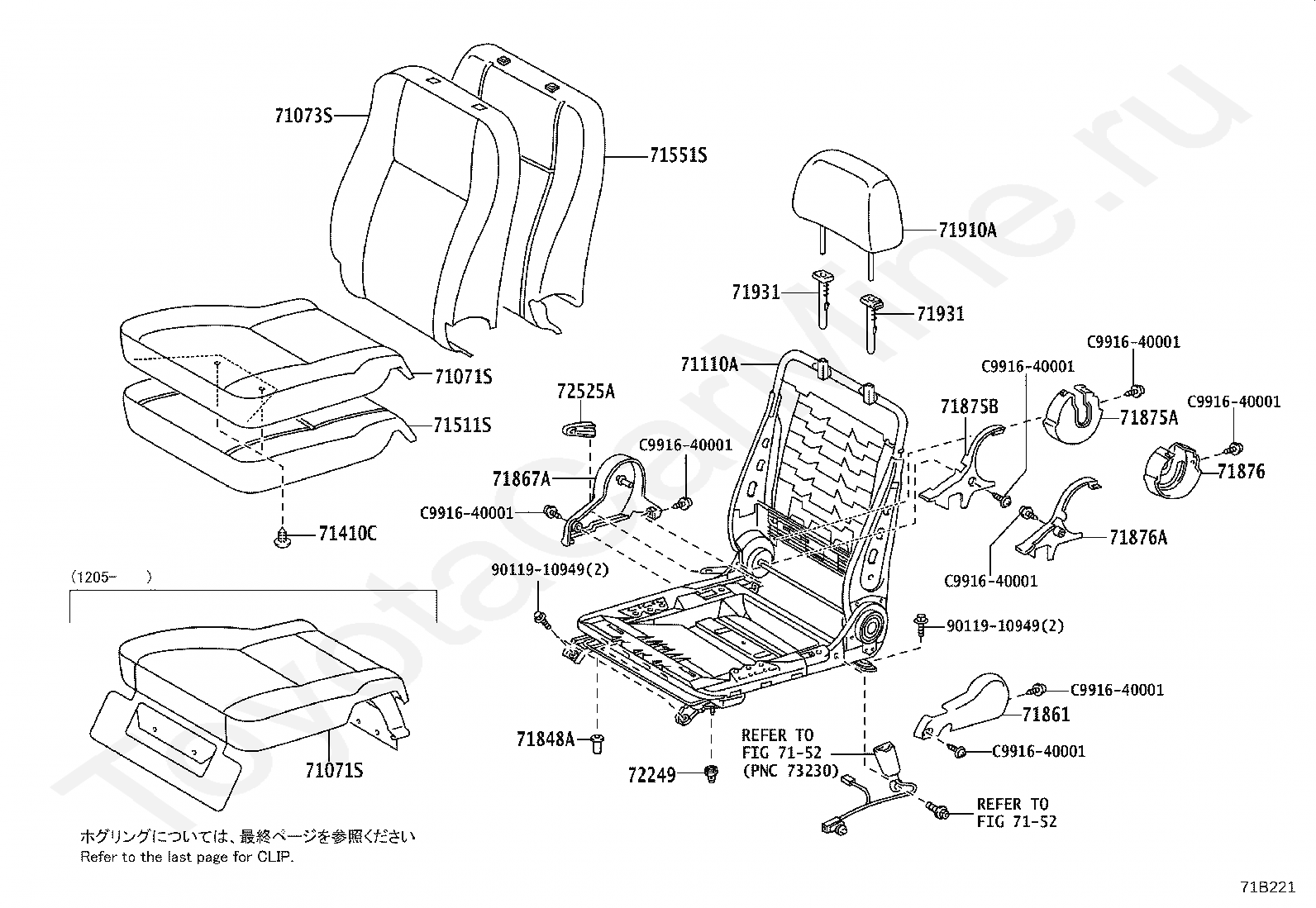

Код

Описание

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71410C

CLIP(FOR FRONT SEAT CUSHION)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71867A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72249

GUIDE, SEAT TRACK LOCKING

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

9011910949

Крепеж

9011910949

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

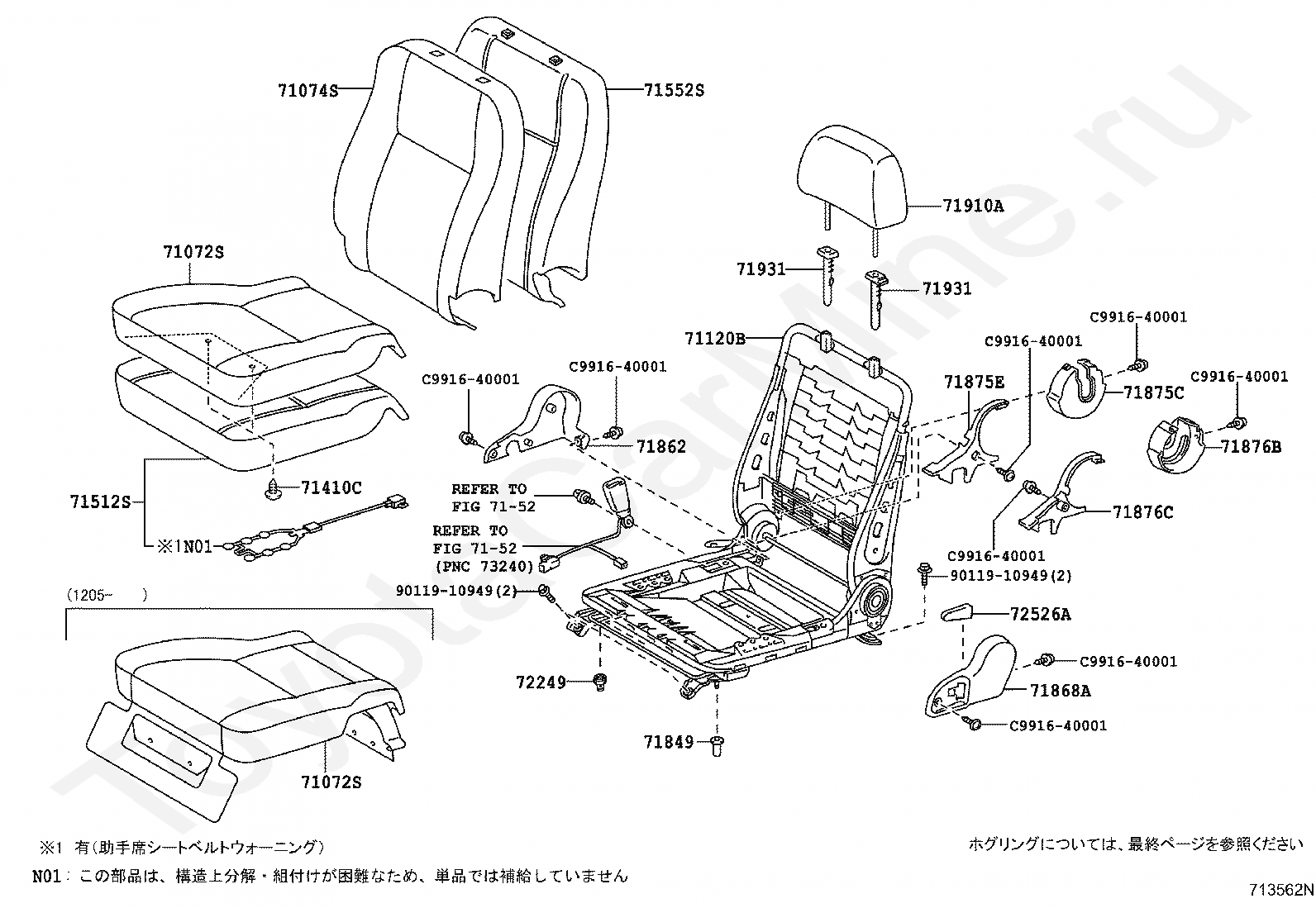

Код

Описание

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71410C

CLIP(FOR FRONT SEAT CUSHION)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71868A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

71875C

COVER, RECLINING ADJUSTER INSIDE, RH

71875E

COVER, RECLINING ADJUSTER INSIDE, RH

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

71876C

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72249

GUIDE, SEAT TRACK LOCKING

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

9011910949

Крепеж

9011910949

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

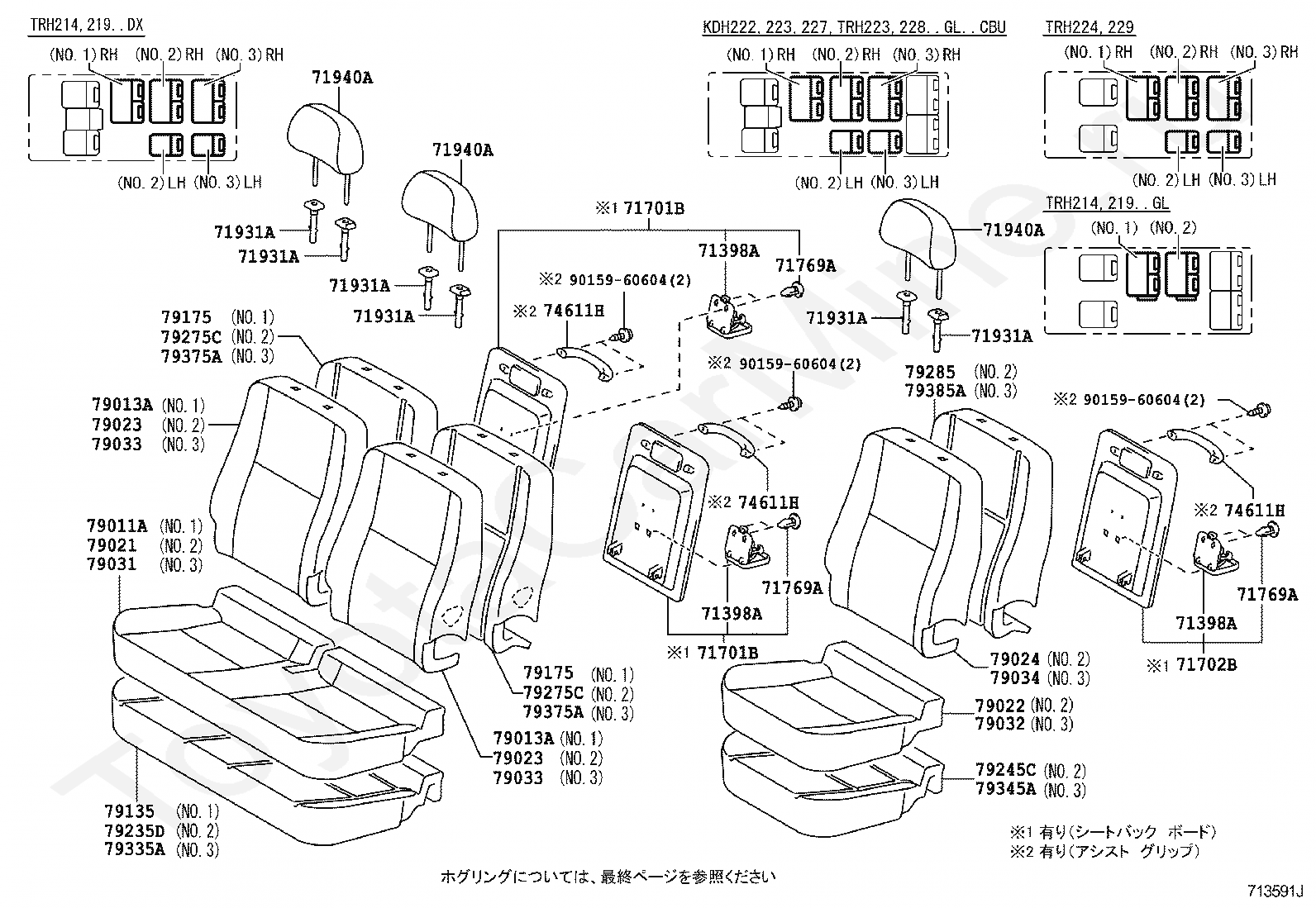

Код

Описание

71398A

HOLDER, REAR SEAT BACK

71398A

HOLDER, REAR SEAT BACK

71398A

HOLDER, REAR SEAT BACK

71701B

BOARD SUB-ASSY, REAR SEAT BACK, RH

71701B

BOARD SUB-ASSY, REAR SEAT BACK, RH

71702B

BOARD SUB-ASSY, REAR SEAT BACK, LH

71769A

CLIP, REAR SEAT BACK BOARD

71769A

CLIP, REAR SEAT BACK BOARD

71769A

CLIP, REAR SEAT BACK BOARD

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71940A

HEADREST ASSY, REAR SEAT

71940A

HEADREST ASSY, REAR SEAT

74611H

GRIP, ASSIST

74611H

GRIP, ASSIST

74611H

GRIP, ASSIST

79011A

COVER SUB-ASSY, NO.1 SEAT CUSHION

79013A

COVER SUB-ASSY, NO.1 SEAT BACK

79013A

COVER SUB-ASSY, NO.1 SEAT BACK

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79031

COVER SUB-ASSY, NO.3 SEAT CUSHION, RH

79032

COVER SUB-ASSY, NO.3 SEAT CUSHION, LH

79033

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79033

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79034

COVER SUB-ASSY, NO.3 SEAT BACK, LH

79135

PAD, NO.1 SEAT CUSHION

79175

PAD, NO.1 SEAT BACK

79175

PAD, NO.1 SEAT BACK

79235D

PAD, NO.2 SEAT CUSHION, RH

79245C

PAD, NO.2 SEAT CUSHION, LH

79275C

PAD, NO.2 SEAT BACK, RH

79275C

PAD, NO.2 SEAT BACK, RH

79285

PAD, NO.2 SEAT BACK, LH

79335A

PAD, NO.3 SEAT CUSHION, RH

79345A

PAD, NO.3 SEAT CUSHION, LH

79375A

PAD, NO.3 SEAT BACK, RH

79375A

PAD, NO.3 SEAT BACK, RH

79385A

PAD, NO.3 SEAT BACK, LH

9015960604

Крепеж

9015960604

Крепеж

9015960604

Крепеж

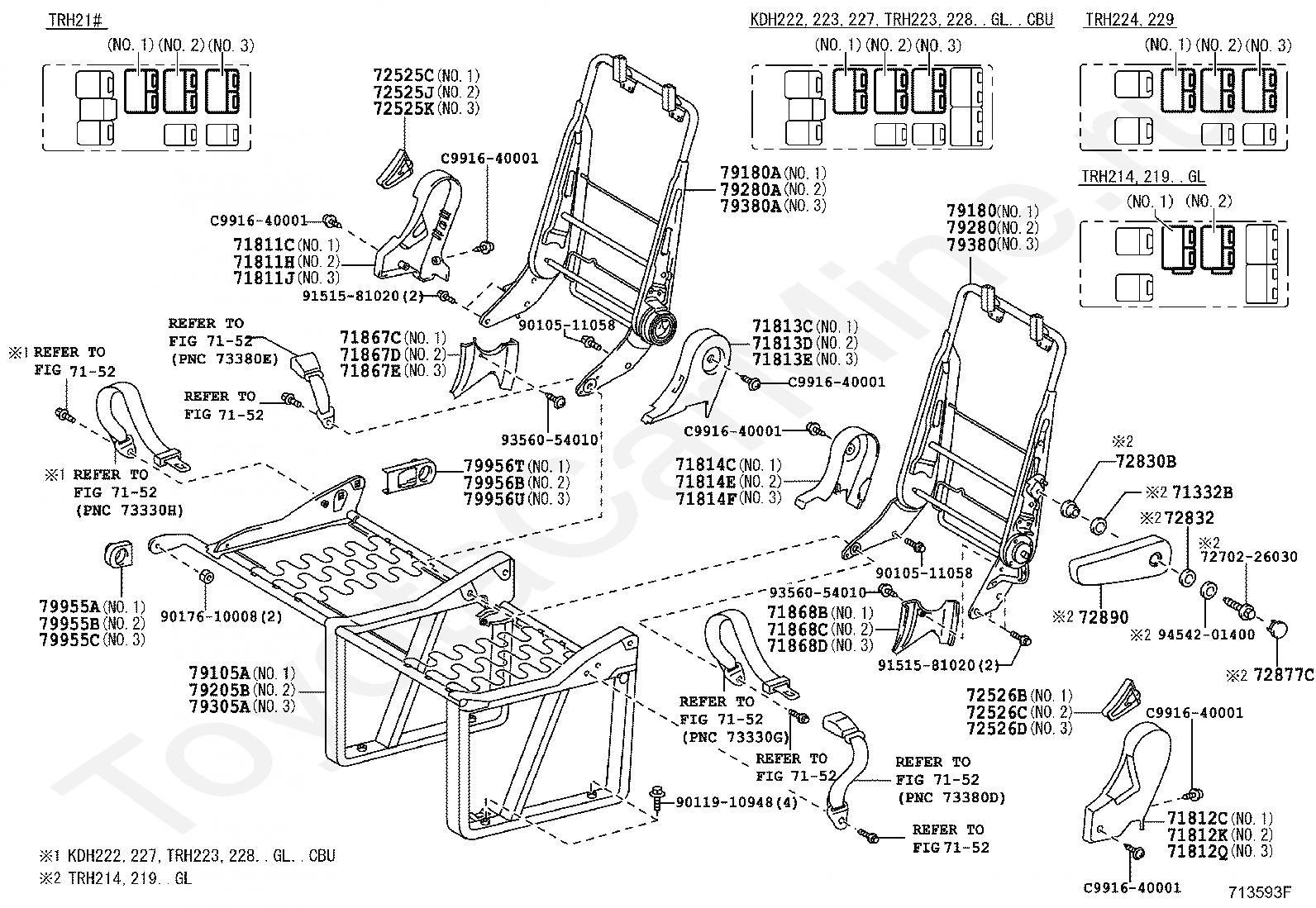

Код

Описание

71332B

SPACER, REAR SEAT BACK HINGE

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71811C

COVER, RECLINING ADJUSTER, RH

71811H

COVER, RECLINING ADJUSTER, RH

71811J

COVER, RECLINING ADJUSTER, RH

71812C

COVER, RECLINING ADJUSTER, LH

71812K

COVER, RECLINING ADJUSTER, LH

71812Q

COVER, RECLINING ADJUSTER, LH

71813C

SHIELD, FRONT SEAT BACK, RH

71813D

SHIELD, FRONT SEAT BACK, RH

71813E

SHIELD, FRONT SEAT BACK, RH

71814C

SHIELD, FRONT SEAT BACK, LH

71814E

SHIELD, FRONT SEAT BACK, LH

71814F

SHIELD, FRONT SEAT BACK, LH

71867C

SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

71867D

SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

71867E

SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

71868B

SHIELD, REAR SEAT CUSHION, INNER NO.1 LH

71868C

SHIELD, REAR SEAT CUSHION, INNER NO.1 LH

71868D

SHIELD, REAR SEAT CUSHION, INNER NO.1 LH

72525C

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

72525J

HANDLE, RECLINING ADJUSTER RELEASE, RH

72525K

HANDLE, RECLINING ADJUSTER RELEASE, NO.5 RH

72526B

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH

72526C

HANDLE, RECLINING ADJUSTER RELEASE, NO.2 LH

72526D

HANDLE, RECLINING ADJUSTER RELEASE, NO.3 LH

7270226030

Крепеж

72830B

BUSH(FOR REAR SEAT CENTER ARMREST)

72832

PLATE, REAR SEAT ARMREST

72877C

COVER, SEAT ARMREST

72890

ARMREST ASSY, SEAT, C LH

79105A

LEG SUB-ASSY, NO.1 SEAT

79180

SPRING ASSY, NO.1 SEAT BACK

79180A

SPRING ASSY, NO.1 SEAT BACK, RH

79205B

LEG SUB-ASSY, NO.2 SEAT, RH

79280

SPRING ASSY, NO.2 SEAT BACK

79280A

SPRING ASSY, NO.2 SEAT BACK, RH

79305A

LEG SUB-ASSY, NO.3 SEAT, RH

79380

SPRING ASSY, NO.3 SEAT BACK

79380A

SPRING ASSY, NO.3 SEAT BACK, RH

79955A

COVER, REAR SEAT FRONT BRACKET, RH

79955B

COVER, NO.2 SEAT FRONT BRACKET, RH

79955C

COVER, REAR SEAT FRONT BRACKET, RH

79956B

COVER, REAR SEAT LEG SIDE, RH

79956T

COVER, REAR SEAT LEG SIDE

79956U

COVER, REAR SEAT LEG SIDE

9010511058

Крепеж

9010511058

Крепеж

9011910948

Крепеж

9017610008

Крепеж

9151581020

Крепеж

9151581020

Крепеж

9356054010

Крепеж

9356054010

Крепеж

9454201400

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

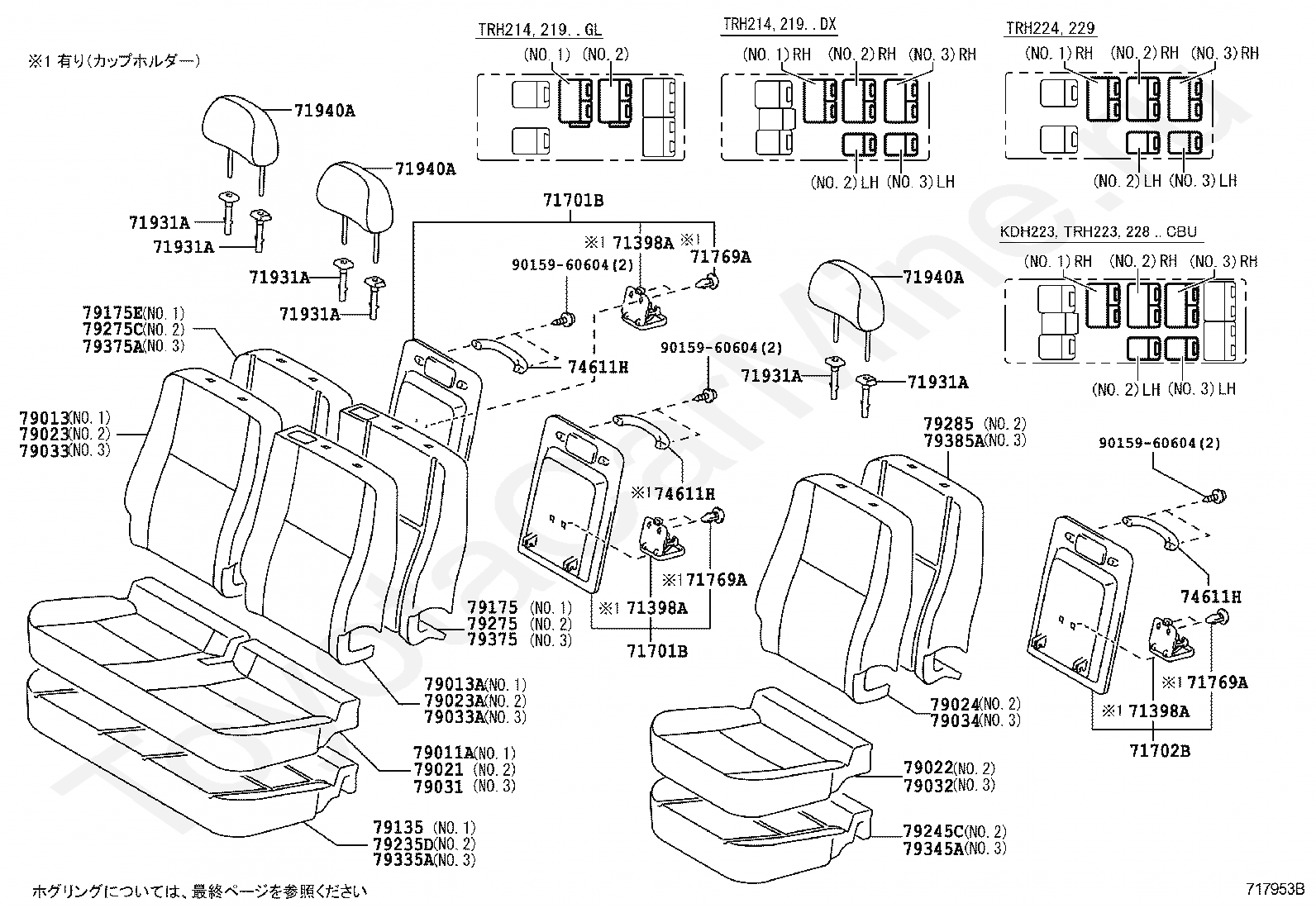

Код

Описание

71398A

HOLDER, REAR SEAT BACK

71398A

HOLDER, REAR SEAT BACK

71398A

HOLDER, REAR SEAT BACK

71701B

BOARD SUB-ASSY, REAR SEAT BACK, RH

71701B

BOARD SUB-ASSY, REAR SEAT BACK, RH

71702B

BOARD SUB-ASSY, REAR SEAT BACK, LH

71769A

CLIP, REAR SEAT BACK BOARD

71769A

CLIP, REAR SEAT BACK BOARD

71769A

CLIP, REAR SEAT BACK BOARD

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71940A

HEADREST ASSY, REAR SEAT

71940A

HEADREST ASSY, REAR SEAT

74611H

GRIP, ASSIST

74611H

GRIP, ASSIST

74611H

GRIP, ASSIST

79011A

COVER SUB-ASSY, NO.1 SEAT CUSHION

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79013A

COVER SUB-ASSY, NO.1 SEAT BACK

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79023A

COVER SUB-ASSY, NO.2 SEAT BACK

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79031

COVER SUB-ASSY, NO.3 SEAT CUSHION, RH

79032

COVER SUB-ASSY, NO.3 SEAT CUSHION, LH

79033

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79033A

COVER SUB-ASSY, NO.3 SEAT BACK

79034

COVER SUB-ASSY, NO.3 SEAT BACK, LH

79135

PAD, NO.1 SEAT CUSHION

79175

PAD, NO.1 SEAT BACK

79175E

PAD, NO.1 SEAT BACK, RH

79235D

PAD, NO.2 SEAT CUSHION, RH

79245C

PAD, NO.2 SEAT CUSHION, LH

79275

PAD, NO.2 SEAT BACK

79275C

PAD, NO.2 SEAT BACK, RH

79285

PAD, NO.2 SEAT BACK, LH

79335A

PAD, NO.3 SEAT CUSHION, RH

79345A

PAD, NO.3 SEAT CUSHION, LH

79375

PAD, NO.3 SEAT BACK

79375A

PAD, NO.3 SEAT BACK, RH

79385A

PAD, NO.3 SEAT BACK, LH

9015960604

Крепеж

9015960604

Крепеж

9015960604

Крепеж

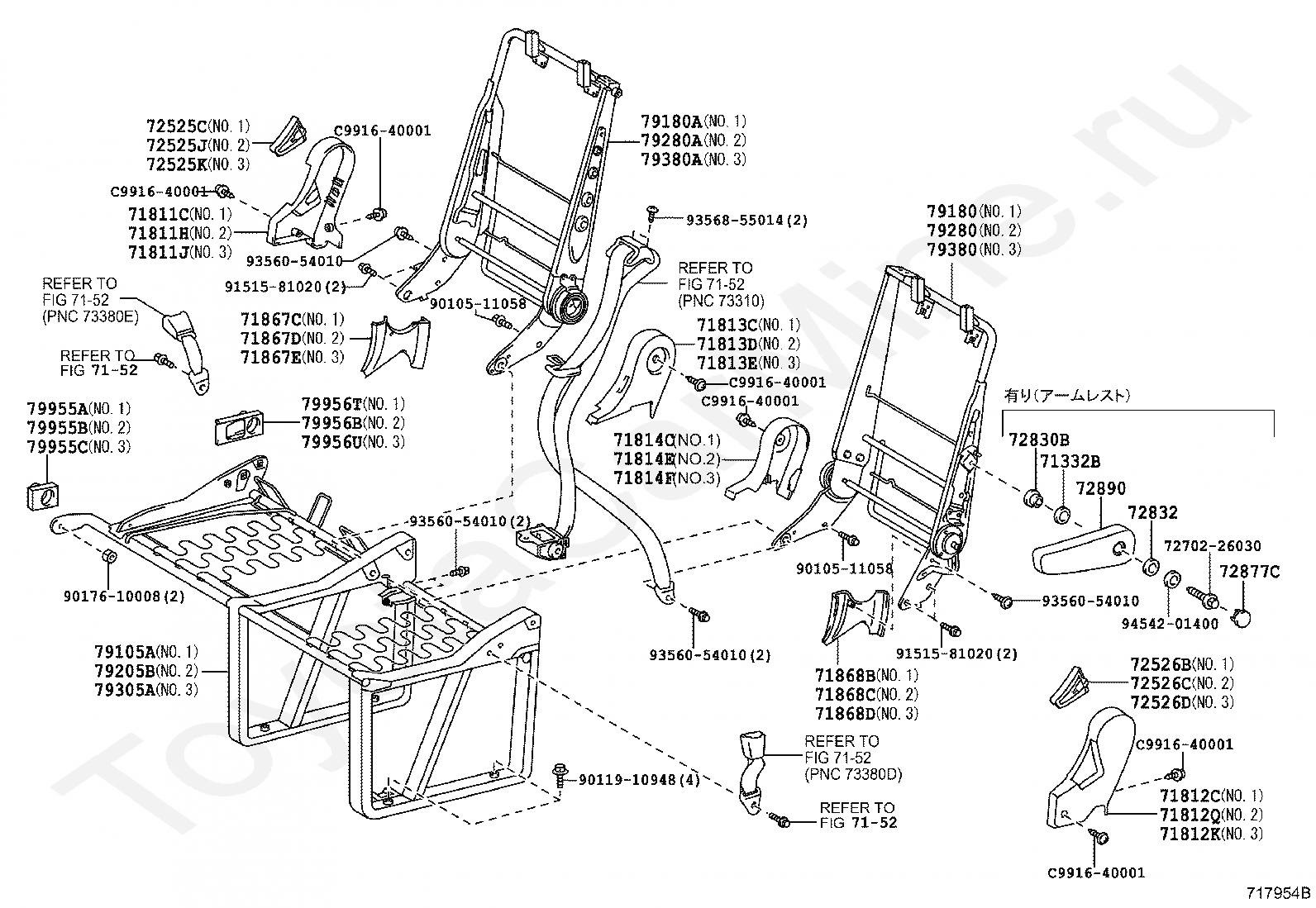

Код

Описание

71332B

SPACER, REAR SEAT BACK HINGE

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71811C

COVER, RECLINING ADJUSTER, RH

71811H

COVER, RECLINING ADJUSTER, RH

71811J

COVER, RECLINING ADJUSTER, RH

71812C

COVER, RECLINING ADJUSTER, LH

71812K

COVER, RECLINING ADJUSTER, LH

71812Q

COVER, RECLINING ADJUSTER, LH

71813C

SHIELD, FRONT SEAT BACK, RH

71813D

SHIELD, FRONT SEAT BACK, RH

71813E

SHIELD, FRONT SEAT BACK, RH

71814C

SHIELD, FRONT SEAT BACK, LH

71814E

SHIELD, FRONT SEAT BACK, LH

71814F

SHIELD, FRONT SEAT BACK, LH

71867C

SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

71867D

SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

71867E

SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

71868B

SHIELD, REAR SEAT CUSHION, INNER NO.1 LH

71868C

SHIELD, REAR SEAT CUSHION, INNER NO.1 LH

71868D

SHIELD, REAR SEAT CUSHION, INNER NO.1 LH

72525C

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

72525J

HANDLE, RECLINING ADJUSTER RELEASE, RH

72525K

HANDLE, RECLINING ADJUSTER RELEASE, NO.5 RH

72526B

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH

72526C

HANDLE, RECLINING ADJUSTER RELEASE, NO.2 LH

72526D

HANDLE, RECLINING ADJUSTER RELEASE, NO.3 LH

7270226030

Крепеж

72830B

BUSH(FOR REAR SEAT CENTER ARMREST)

72832

PLATE, REAR SEAT ARMREST

72877C

COVER, SEAT ARMREST

72890

ARMREST ASSY, SEAT, C LH

79105A

LEG SUB-ASSY, NO.1 SEAT

79180

SPRING ASSY, NO.1 SEAT BACK

79180A

SPRING ASSY, NO.1 SEAT BACK, RH

79205B

LEG SUB-ASSY, NO.2 SEAT, RH

79280

SPRING ASSY, NO.2 SEAT BACK

79280A

SPRING ASSY, NO.2 SEAT BACK, RH

79305A

LEG SUB-ASSY, NO.3 SEAT, RH

79380

SPRING ASSY, NO.3 SEAT BACK

79380A

SPRING ASSY, NO.3 SEAT BACK, RH

79955A

COVER, REAR SEAT FRONT BRACKET, RH

79955B

COVER, NO.2 SEAT FRONT BRACKET, RH

79955C

COVER, REAR SEAT FRONT BRACKET, RH

79956B

COVER, REAR SEAT LEG SIDE, RH

79956T

COVER, REAR SEAT LEG SIDE

79956U

COVER, REAR SEAT LEG SIDE

9010511058

Крепеж

9010511058

Крепеж

9011910948

Крепеж

9017610008

Крепеж

9151581020

Крепеж

9151581020

Крепеж

9356054010

Крепеж

9356054010

Крепеж

9356054010

Крепеж

9356054010

Крепеж

9356855014

Крепеж

9454201400

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

Код

Описание

7152

переход к группе запчастей

7152

переход к группе запчастей

71811F

COVER, RECLINING ADJUSTER, RH

71811L

COVER, RECLINING ADJUSTER, RH

71812E

COVER, RECLINING ADJUSTER, LH

71812N

COVER, RECLINING ADJUSTER, LH

71867F

SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

71867G

SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

71868E

SHIELD, REAR SEAT CUSHION, INNER NO.1 LH

71868F

SHIELD, REAR SEAT CUSHION, INNER NO.1 LH

72525D

HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH

72525E

HANDLE, RECLINING ADJUSTER RELEASE, NO.3 RH

79206B

LEG SUB-ASSY, NO.2 SEAT, LH

79290A

SPRING ASSY, NO.2 SEAT BACK, LH

79306

LEG SUB ASSY, NO.3 SEAT, LH

79390A

SPRING ASSY, NO.3 SEAT BACK, LH

79956C

COVER, REAR SEAT LEG SIDE, LH

79956E

CAP(FOR REAR SEAT LEG SIDE COVER)

79956S

COVER, REAR SEAT LEG SIDE

79966

COVER, REAR SEAT LEG SIDE, NO.3

9011910948

Крепеж

9011910948

Крепеж

9017610008

Крепеж

9017610008

Крепеж

9151581020

Крепеж

9151581020

Крепеж

9356054010

Крепеж

9356054010

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

C991640001

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

Кресла TOYOTA HIACE/REGIUSACE

Купить

Поиск
