1104
переход к группе запчастей

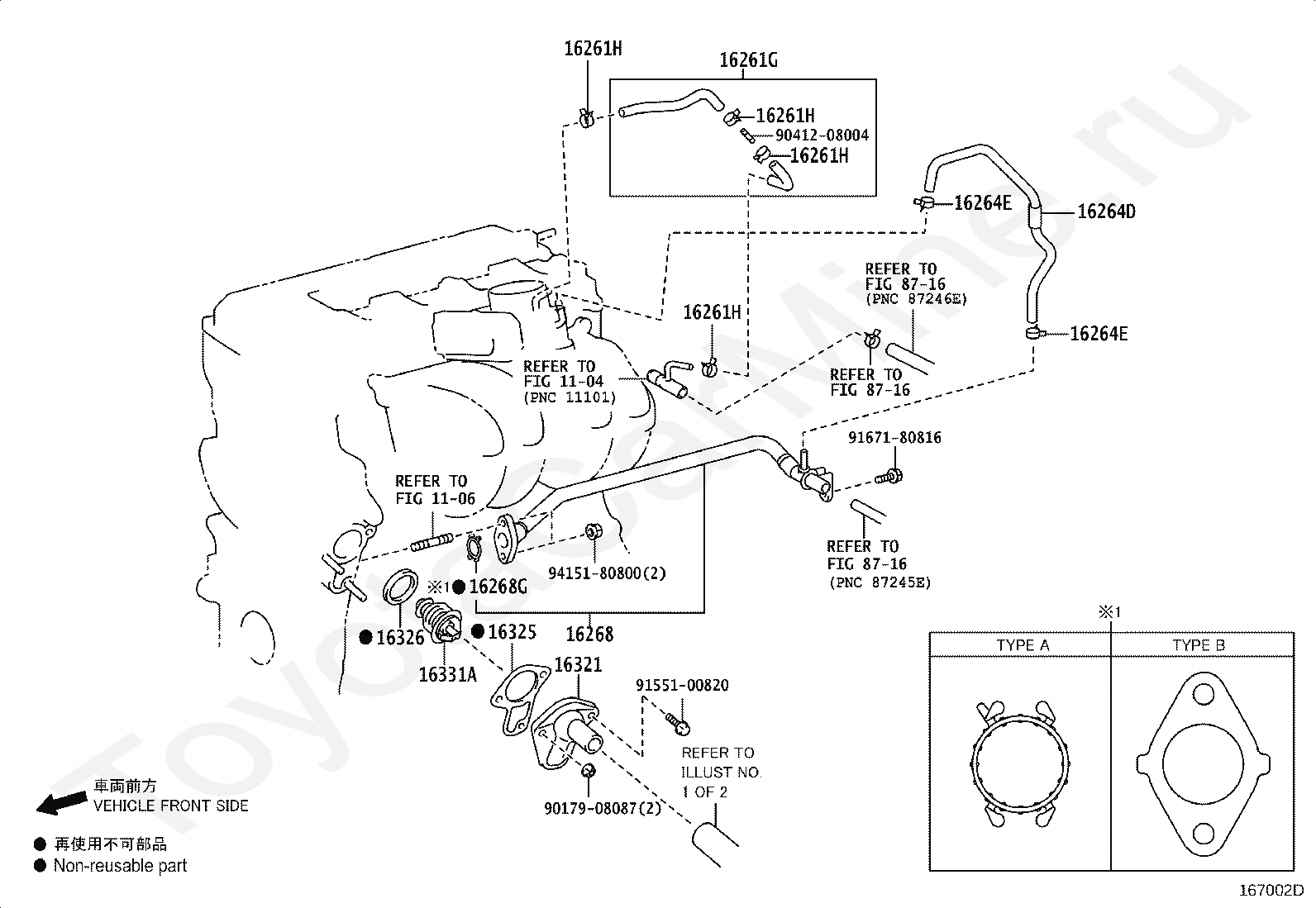

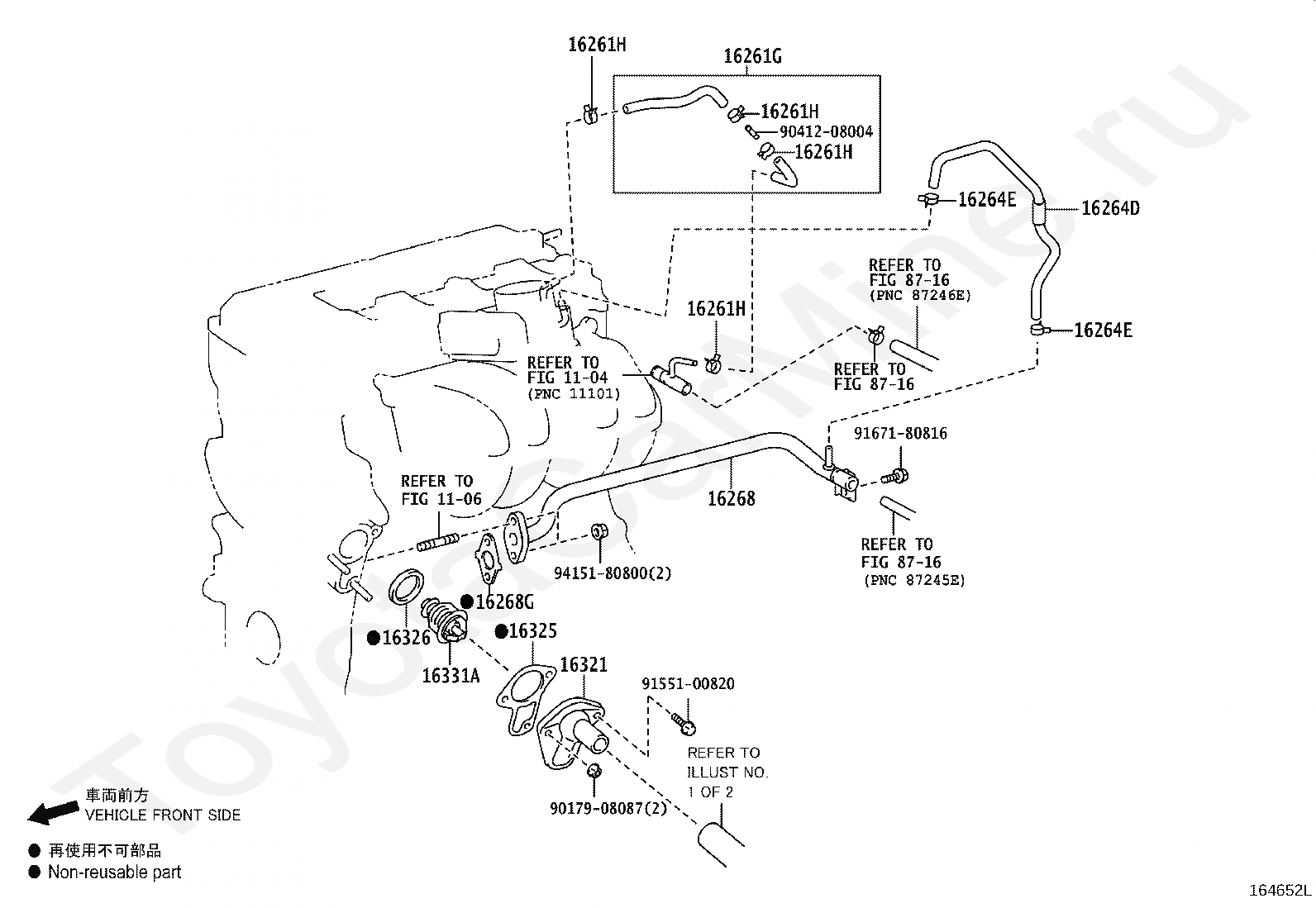

16261
HOSE, WATER BY-PASS
16261A
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16261A
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16264
HOSE, WATER BY-PASS, NO.2
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16307B
BRACKET SUB-ASSY, FAN

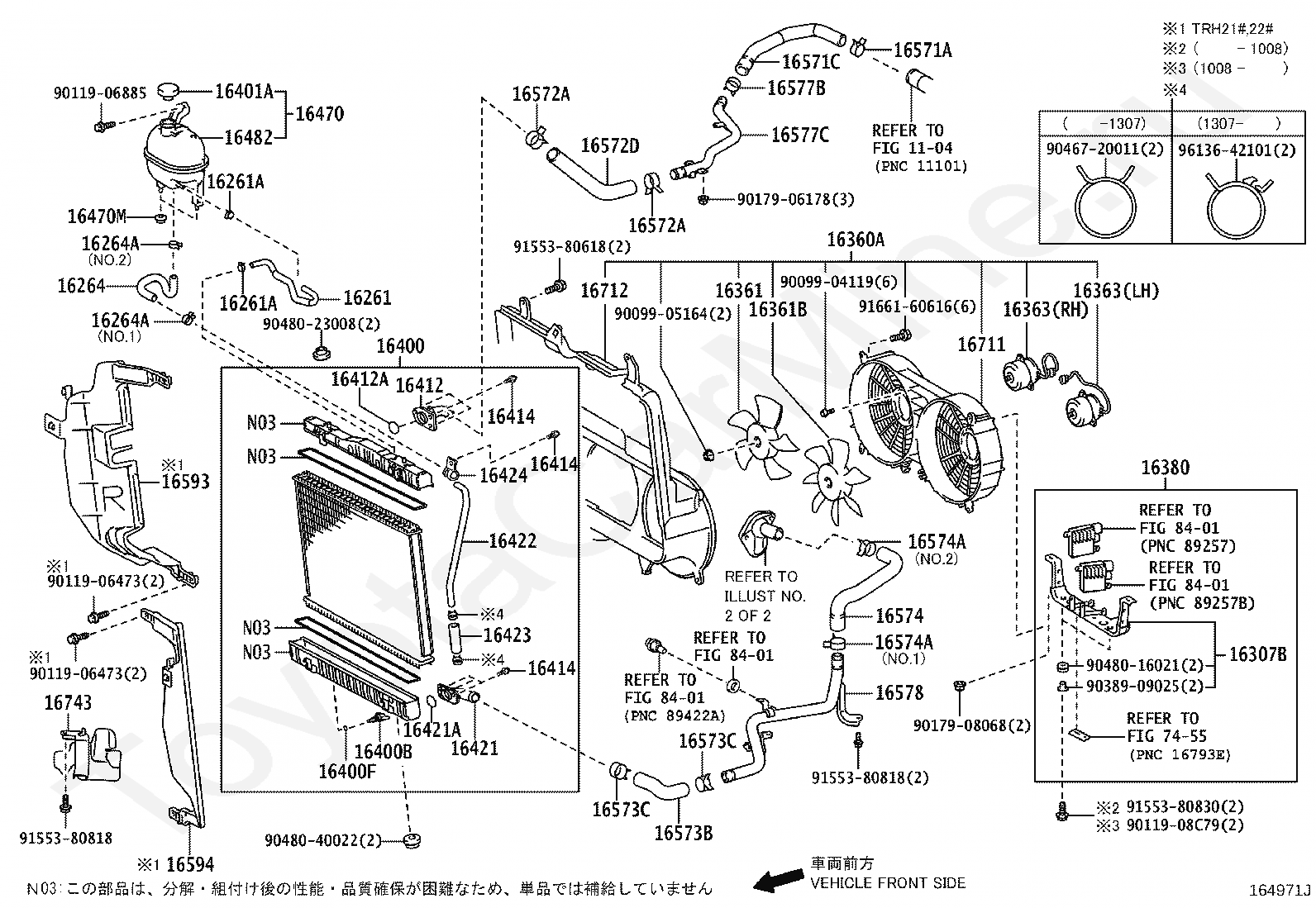

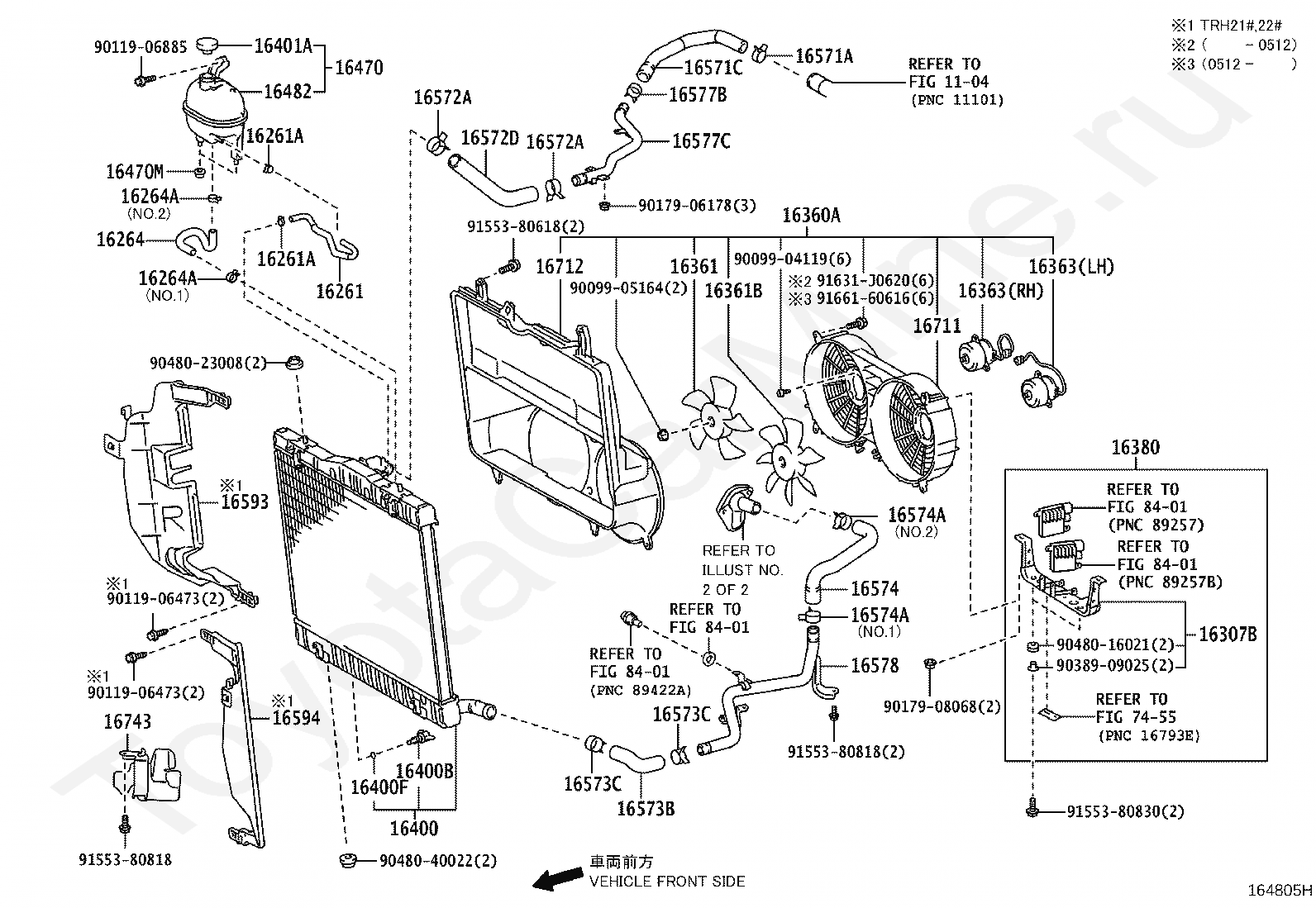

16400B
PLUG, RADIATOR DRAIN COCK
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16401A
CAP SUB-ASSY, RADIATOR RESERVE TANK
16412
PIPE, RADIATOR TANK, UPPER
16412A
RING, O(FOR RADIATOR UPPER TANK PIPE)
16414
BOLT, RADIATOR TANK PIPE
16414
BOLT, RADIATOR TANK PIPE
16414
BOLT, RADIATOR TANK PIPE
16421
PIPE, RADIATOR TANK, LOWER NO.1
16421A
RING, O(FOR RADIATOR LOWER TANK PIPE NO.1)
16422
PIPE, RADIATOR TANK, LOWER NO.2
16423
HOSE, RADIATOR TANK
16424
CLAMP, RADIATOR TANK PIPE
16470
TANK ASSY, RADIATOR RESERVE
16482
TANK SUB-ASSY, RADIATOR RESERVE
16571A
CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16571C
HOSE, RADIATOR, NO.1
16572A
CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16572A
CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16572D
HOSE, RADIATOR, NO.2
16573B
HOSE, RADIATOR, NO.3
16573C
CLAMP OR CLIP, RADIATOR HOSE, NO.3
16573C
CLAMP OR CLIP, RADIATOR HOSE, NO.3
16574
HOSE, RADIATOR, NO.4
16574A
CLIP, RADIATOR HOSE, NO.4
16574A
CLIP, RADIATOR HOSE, NO.4
16577B
CLAMP OR CLIP, HOSE(FOR RADIATOR PIPE)
16578
PIPE, RADIATOR, NO.2
16593
GUIDE, RADIATOR AIR, NO.1
16594
GUIDE, RADIATOR AIR, NO.2
16743
PROTECTOR, FAN SHROUD
7455
переход к группе запчастей
8401
переход к группе запчастей
8401
переход к группе запчастей
8401
переход к группе запчастей
8401
переход к группе запчастей
