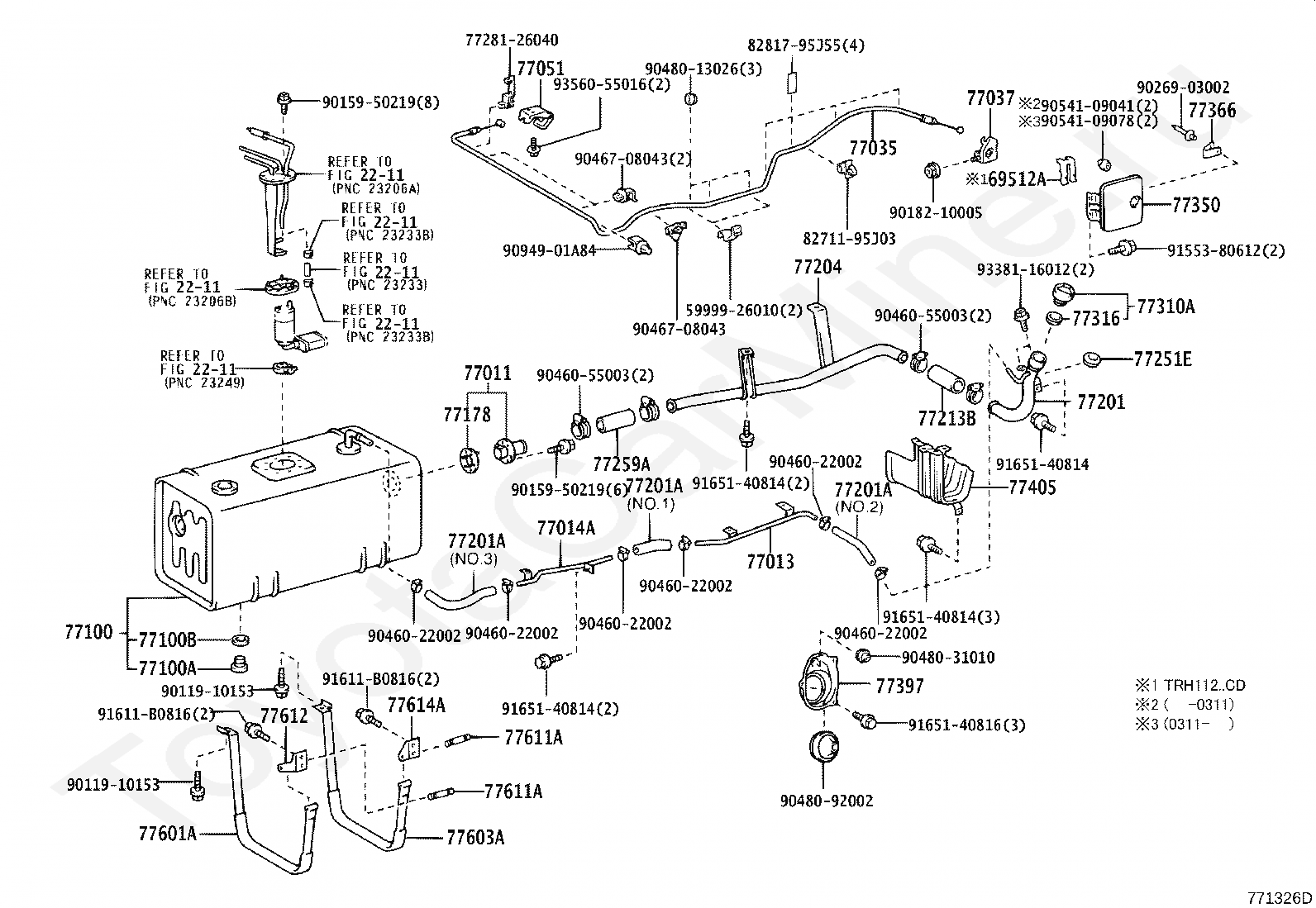

69512A
RETAINER, REAR DOOR LOCK CYLINDER
77011
PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77013
TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2
77014A
TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77037
LOCK SUB-ASSY, FUEL FILLER OPENING LID
77051
LEVER SUB-ASSY, FUEL LID OPEN
77100A
PLUG(FOR FUEL TANK)
77100B
GASKET(FOR FUEL TANK)
77178
GASKET, FUEL TANK FILLER PIPE, LOWER
77201
PIPE SUB-ASSY, FUEL TANK INLET
77201A
HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77201A
HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77201A
HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77204
PIPE SUB-ASSY, FUEL TANK FILLER, CENTER
77213B
HOSE, FUEL TANK TO FILLER PIPE
77251E
SHIELD, FUEL TANK INLET PIPE
77259A
HOSE, FUEL(FOR BREATHER TUBE)
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77350
LID ASSY, FUEL FILLER OPENING
77366
SPRING, FUEL FILLER OPENING LID HINGE
77397
PLATE, FUEL INLET PIPE SEAL
77405
PROTECTOR SUB-ASSY, FUEL INLET HOSE
77601A
BAND SUB-ASSY, FUEL TANK, NO.1
77603A
BAND SUB-ASSY, FUEL TANK, NO.2
77611A
PIN (FOR FUEL TANK BAND)
77611A
PIN (FOR FUEL TANK BAND)
77612
BRACKET SUB-ASSY, FUEL TANK
77614A
BAND, FUEL TANK, NO.2 RH
