Европа

Модель

HIACE

VIN

Дата

1977/02

Двигатель

2 литра

Кузов

V(MODEL MARK)

Фрейм

RH22

КПП

МКПП, 4 ступени, на руле

Опции

2 литра правый руль 5-дверный вэн 3-местный ARL CBU

Кондиционер: компрессор TOYOTA HIACE

Код

Описание

1603

переход к группе запчастей

16361A

BELT, V(FOR FAN & ALTERNATOR)

1705

переход к группе запчастей

17610B

BELT, V(FOR AIR PUMP)

8719

переход к группе запчастей

88310A

BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

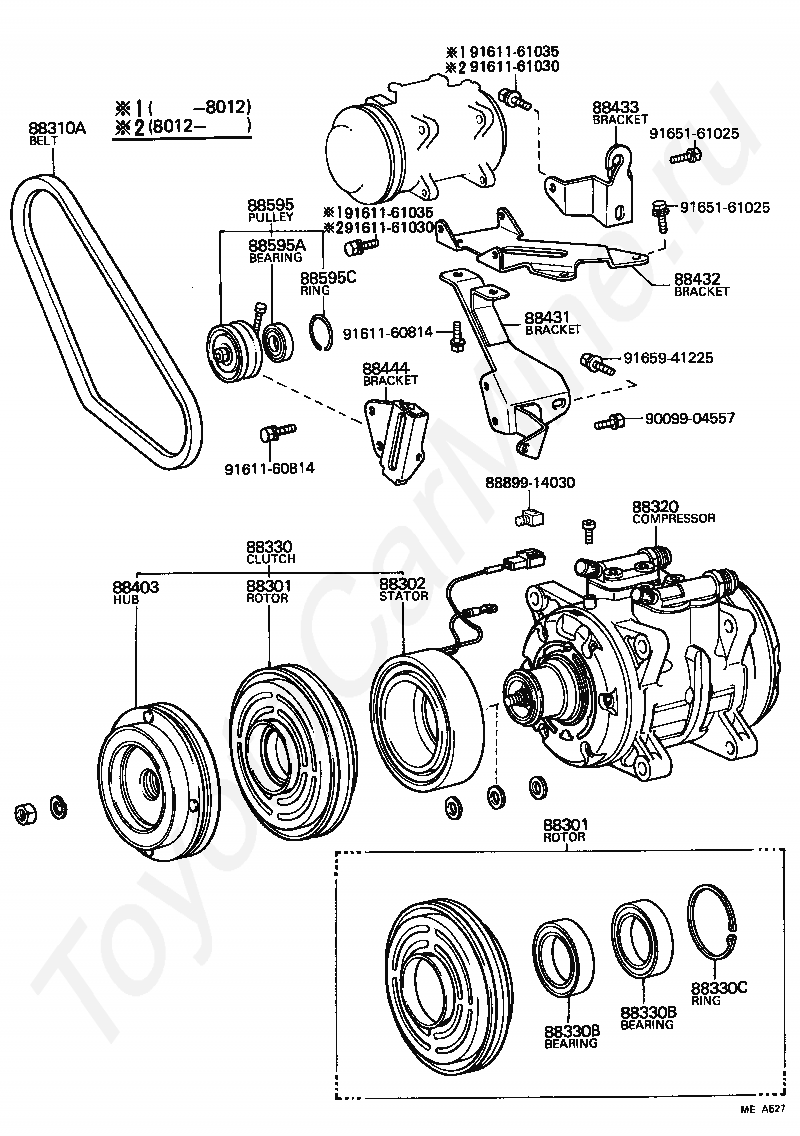

Код

Описание

88301

ROTOR SUB-ASSY, MAGNET CLUTCH

88301

ROTOR SUB-ASSY, MAGNET CLUTCH

88302

STATOR SUB-ASSY, MAGNET CLUTCH

88310A

BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

88320

COMPRESSOR ASSY, COOLER

88330

CLUTCH ASSY, MAGNET

88330B

BEARING, MAGNET CLUTCH

88330B

BEARING, MAGNET CLUTCH

88330C

RING, SNAP (FOR MAGNET CLUTCH)

88403

HUB SUB-ASSY, MAGNET CLUTCH

88431

BRACKET, COMPRESSOR MOUNTING, NO.1

88432

BRACKET, COMPRESSOR MOUNTING, NO.2

88433

BRACKET, COMPRESSOR MOUNTING, NO.3

88444

BRACKET, IDLE PULLEY

88595

PULLEY, COOLER COMPRESSOR IDLE

88595A

BEARING (FOR COOLER IDLE PULLEY)

88595C

RING, SNAP (FOR COOLER IDLE PULLEY)

8889914030

Крепеж

9009904557

Крепеж

9161160814

Крепеж

9161160814

Крепеж

9161161030

Крепеж

9161161030

Крепеж

9161161035

Крепеж

9161161035

Крепеж

9165161025

Крепеж

9165161025

Крепеж

9165941225

Крепеж

Код

Описание

88301

ROTOR SUB-ASSY, MAGNET CLUTCH

88301

ROTOR SUB-ASSY, MAGNET CLUTCH

88302

STATOR SUB-ASSY, MAGNET CLUTCH

88310A

BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

88320

COMPRESSOR ASSY, COOLER

88330

CLUTCH ASSY, MAGNET

88330B

BEARING, MAGNET CLUTCH

88330B

BEARING, MAGNET CLUTCH

88330C

RING, SNAP (FOR MAGNET CLUTCH)

88403

HUB SUB-ASSY, MAGNET CLUTCH

88431

BRACKET, COMPRESSOR MOUNTING, NO.1

88431

BRACKET, COMPRESSOR MOUNTING, NO.1

88432

BRACKET, COMPRESSOR MOUNTING, NO.2

88432

BRACKET, COMPRESSOR MOUNTING, NO.2

88433

BRACKET, COMPRESSOR MOUNTING, NO.3

88444

BRACKET, IDLE PULLEY

88444

BRACKET, IDLE PULLEY

8844522000

Крепеж

88595

PULLEY, COOLER COMPRESSOR IDLE

88595

PULLEY, COOLER COMPRESSOR IDLE

88595A

BEARING (FOR COOLER IDLE PULLEY)

88595C

RING, SNAP (FOR COOLER IDLE PULLEY)

8889912130

Крепеж

8889914020

Крепеж

9009904182

Крепеж

9009904557

Крепеж

9111251035

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9161160825

Крепеж

9161160825

Крепеж

9161160830

Крепеж

9161160840

Крепеж

9161161035

Крепеж

9165160816

Крепеж

9165160816

Крепеж

9165160816

Крепеж

9165160816

Крепеж

9165160820

Крепеж

9165161025

Крепеж

9165161025

Крепеж

9165941225

Крепеж

9451101000

Крепеж

9461211000

Крепеж

Код

Описание

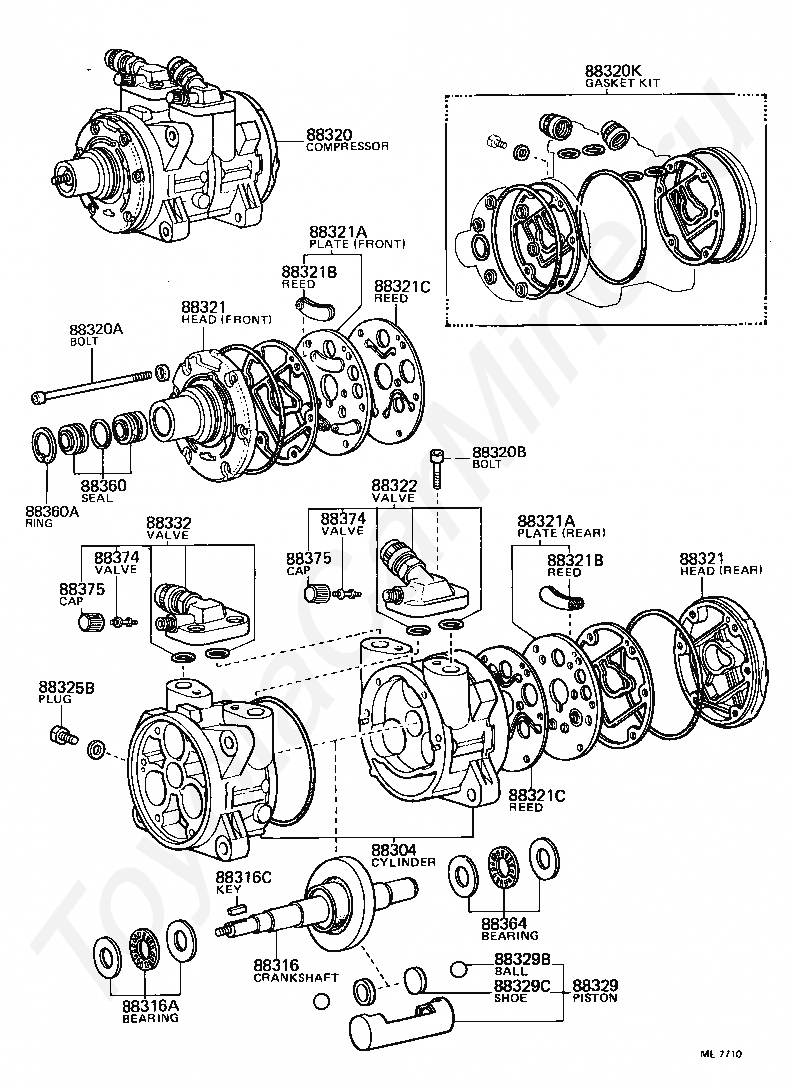

88304

CYLINDER SUB-ASSY, COOLER COMPRESSOR

88316

CRANKSHAFT, COOLER COMPRESSOR

88316A

BEARING, COMPRESSOR CRANKSHAFT, FRONT

88316C

KEY, COMPRESSOR CRANKSHAFT

88320

COMPRESSOR ASSY, COOLER

88320A

BOLT, THROUGH

88320B

BOLT, SERVICE VALVE

88320K

GASKET KIT, COOLER COMPRESSOR OVERHAUL

88321

HEAD, COOLER COMPRESSOR CYLINDER

88321

HEAD, COOLER COMPRESSOR CYLINDER

88321A

PLATE SUB-ASSY, VALVE

88321A

PLATE SUB-ASSY, VALVE

88321B

REED SUB-ASSY, VALVE

88321B

REED SUB-ASSY, VALVE

88321C

REED, SUCTION VALVE

88321C

REED, SUCTION VALVE

88322

VALVE, COOLER COMPRESSOR SUCTION SERVICE

88325B

PLUG, CYLINDER BLOCK OIL

88329

PISTON SUB-ASSY, COOLER COMPRESSOR

88329B

BALL, PISTON

88329C

SHOE, PISTON

88332

VALVE, COOLER COMPRESSOR DISCHARGE SERVICE

88360

SEAL ASSY, COOLER COMPRESSOR SHAFT

88360A

RING, COMPRESSOR SEAL PLATE SNAP

88364

BEARING, COMPRESSOR CRANKSHAFT, REAR

88374

VALVE, COOLER COMPRESSOR SERVICE

88374

VALVE, COOLER COMPRESSOR SERVICE

88375

CAP, COOLER COMPRESSOR SERVICE VALVE

88375

CAP, COOLER COMPRESSOR SERVICE VALVE

Кондиционер: компрессор TOYOTA HIACE
