Европа

Модель

HIACE

VIN

Дата

1977/02

Двигатель

2 литра

Кузов

V(MODEL MARK)

Фрейм

RH22

КПП

МКПП, 4 ступени, на руле

Опции

2 литра правый руль 5-дверный вэн 3-местный ARL CBU

Воздушный фильтр TOYOTA HIACE

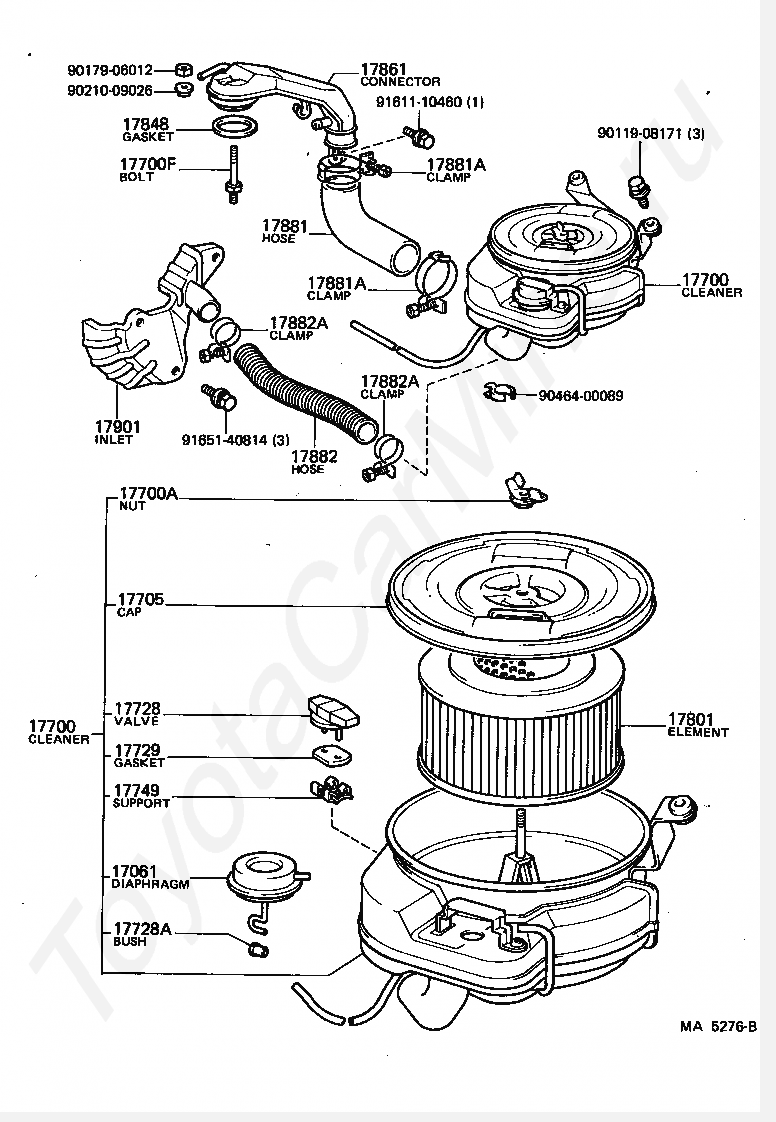

Код

Описание

17061

DIAPHRAGM SUB-ASSY

17700

CLEANER ASSY, AIR

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17705

CAP SUB-ASSY, AIR CLEANER

17728

VALVE, THERMOSTATIC

17728A

BUSH

17729

GASKET, THERMOSTAT VALVE

17749

SUPPORT, THERMOSTAT VALVE

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17848

GASKET, AIR CLEANER TO CARBURETOR

17861

CONNECTOR, INTAKE AIR

17881

HOSE, AIR CLEANER, NO.1

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17882

HOSE, AIR CLEANER, NO.2

17882A

CLAMP(FOR AIR CLEANER HOSE, NO.2)

17882A

CLAMP(FOR AIR CLEANER HOSE, NO.2)

17901

INLET SUB-ASSY, HOT AIR

9011908171

Крепеж

9017906012

Крепеж

9021009026

Крепеж

9046400089

Крепеж

9161110460

Крепеж

9165140814

Крепеж

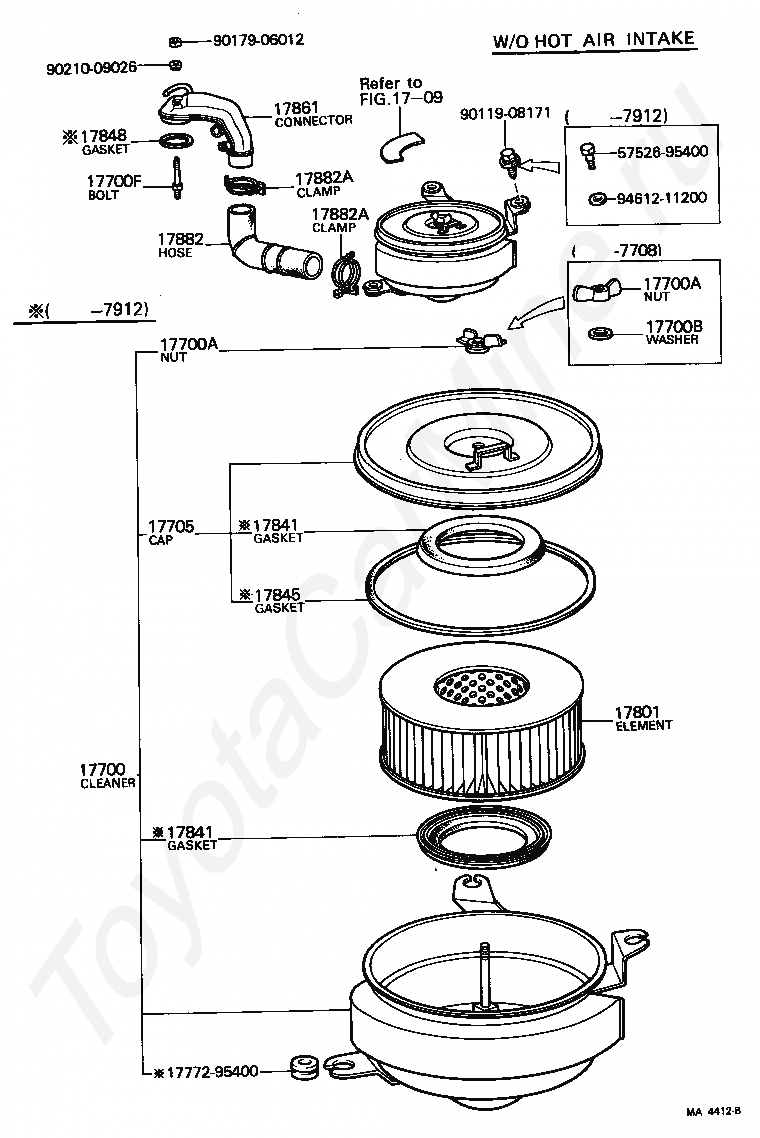

Код

Описание

1709

переход к группе запчастей

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700A

NUT, WING(FOR AIR CLEANER)

17700B

WASHER, SEAL(FOR AIR CLEANER)

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17705

CAP SUB-ASSY, AIR CLEANER

1777295400

Крепеж

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17841

GASKET, FILTER ELEMENT

17841

GASKET, FILTER ELEMENT

17845

GASKET, AIR CLEANER CAP

17848

GASKET, AIR CLEANER TO CARBURETOR

17861

CONNECTOR, INTAKE AIR

17882

HOSE, AIR CLEANER, NO.2

17882A

CLAMP(FOR AIR CLEANER HOSE, NO.2)

17882A

CLAMP(FOR AIR CLEANER HOSE, NO.2)

5752695400

Крепеж

9011908171

Крепеж

9017906012

Крепеж

9021009026

Крепеж

9461211200

Крепеж

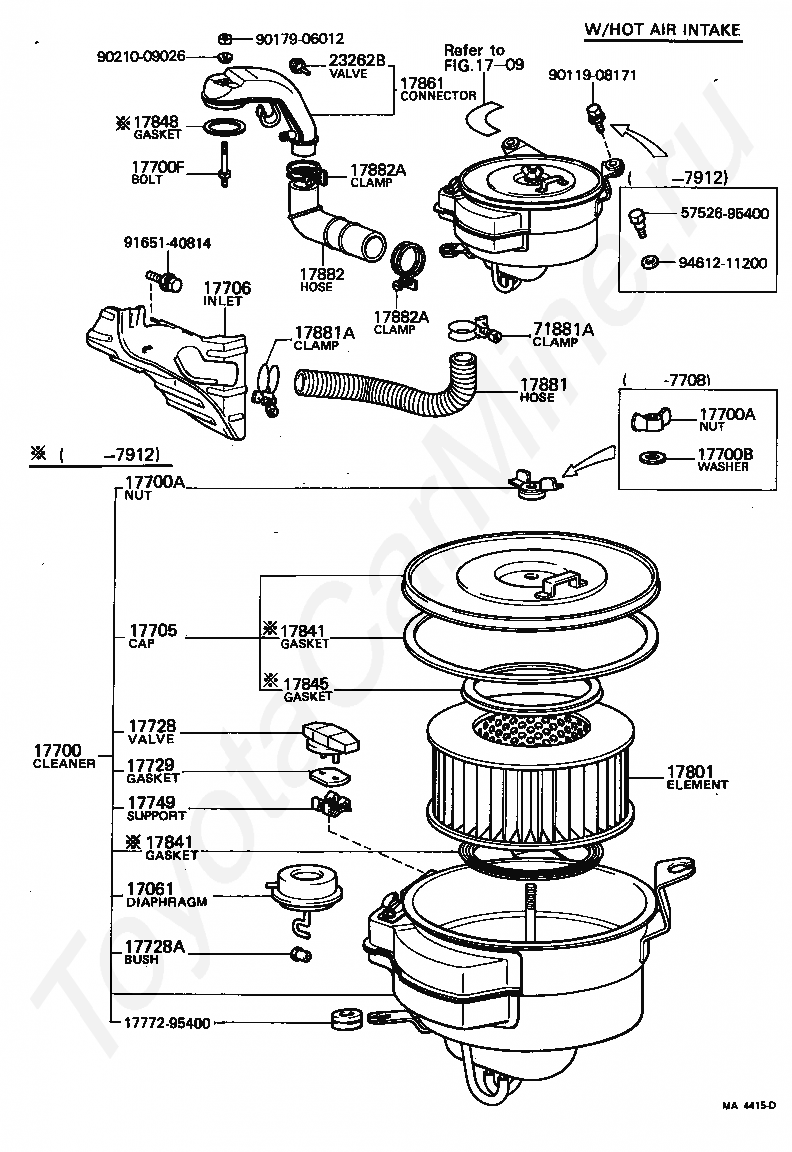

Код

Описание

17061

DIAPHRAGM SUB-ASSY

1709

переход к группе запчастей

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700A

NUT, WING(FOR AIR CLEANER)

17700B

WASHER, SEAL(FOR AIR CLEANER)

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17705

CAP SUB-ASSY, AIR CLEANER

17706

INLET SUB-ASSY, AIR CLEANER, NO.2

17728

VALVE, THERMOSTATIC

17728A

BUSH

17729

GASKET, THERMOSTAT VALVE

17749

SUPPORT, THERMOSTAT VALVE

1777295400

Крепеж

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17841

GASKET, FILTER ELEMENT

17841

GASKET, FILTER ELEMENT

17845

GASKET, AIR CLEANER CAP

17848

GASKET, AIR CLEANER TO CARBURETOR

17861

CONNECTOR, INTAKE AIR

17881

HOSE, AIR CLEANER, NO.1

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17882

HOSE, AIR CLEANER, NO.2

17882A

CLAMP(FOR AIR CLEANER HOSE, NO.2)

17882A

CLAMP(FOR AIR CLEANER HOSE, NO.2)

23262B

VALVE, BIMETAL VACUUM SWITCHING, NO.1

5752695400

Крепеж

71881A

BOARD, REAR SEAT BACK

9011908171

Крепеж

9017906012

Крепеж

9021009026

Крепеж

9165140814

Крепеж

9461211200

Крепеж

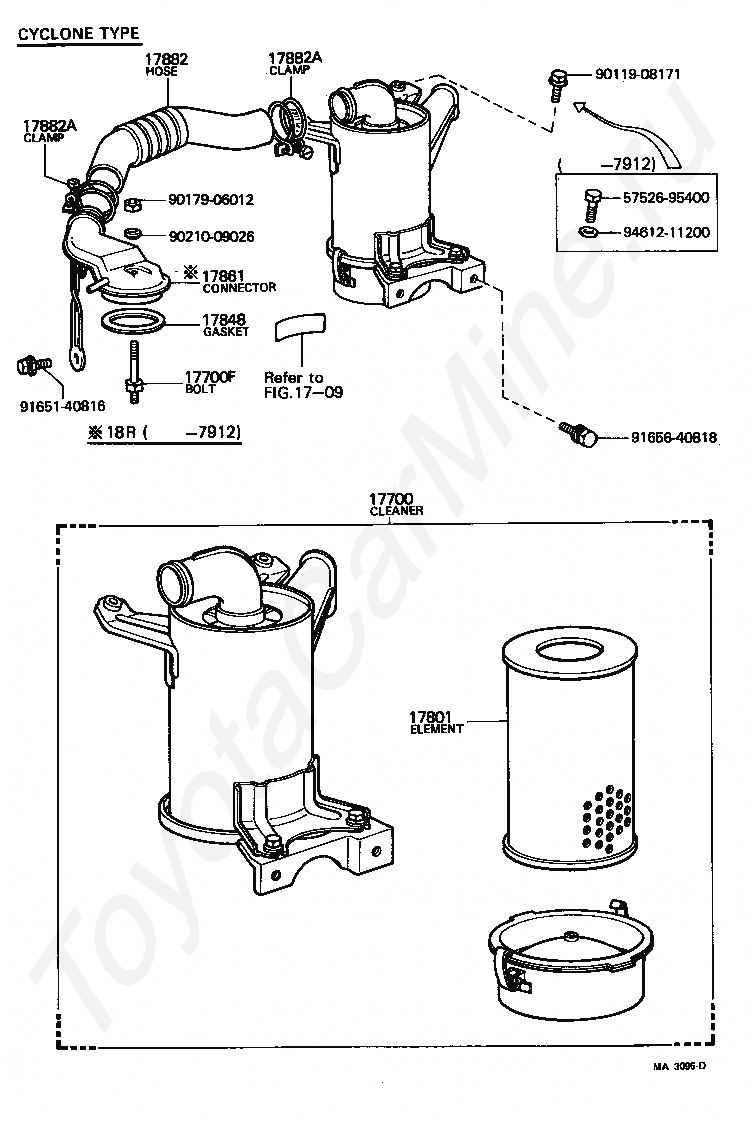

Код

Описание

1709

переход к группе запчастей

17700

CLEANER ASSY, AIR

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17848

GASKET, AIR CLEANER TO CARBURETOR

17861

CONNECTOR, INTAKE AIR

17882

HOSE, AIR CLEANER, NO.2

17882A

CLAMP(FOR AIR CLEANER HOSE, NO.2)

17882A

CLAMP(FOR AIR CLEANER HOSE, NO.2)

5752695400

Крепеж

9011908171

Крепеж

9017906012

Крепеж

9021009026

Крепеж

9165140816

Крепеж

9165640818

Крепеж

9461211200

Крепеж

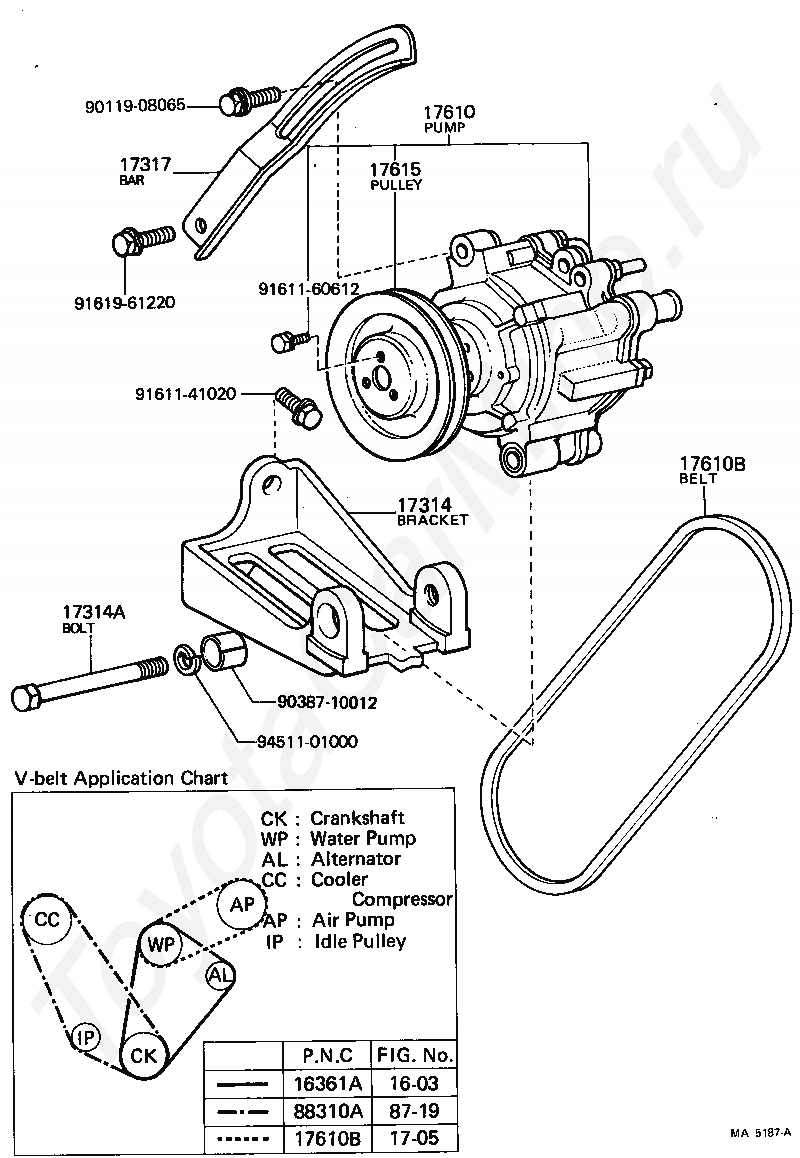

Код

Описание

1603

переход к группе запчастей

16361A

BELT, V(FOR FAN & ALTERNATOR)

1705

переход к группе запчастей

17314

BRACKET, AIR PUMP

17314A

BOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING)

17317

BAR, AIR PUMP ADJUSTING, NO.1

17610

PUMP ASSY, AIR

17610B

BELT, V(FOR AIR PUMP)

17610B

BELT, V(FOR AIR PUMP)

17615

PULLEY(FOR AIR PUMP)

8719

переход к группе запчастей

88310A

BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

9011908065

Крепеж

9038710012

Крепеж

9161141020

Крепеж

9161160612

Крепеж

9161961220

Крепеж

9451101000

Крепеж
