Ходовые запчасти

Каталог

Ближний Восток

Модель

HIACE

VIN

Дата

2013/12

Двигатель

2,5 литра, турбо-дизель

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

KDH200

КПП

МКПП, 5 скоростей

Опции

правый руль STANDARD ROOF 4 двери SEPARATE SEAT 03S SA DCR 602W

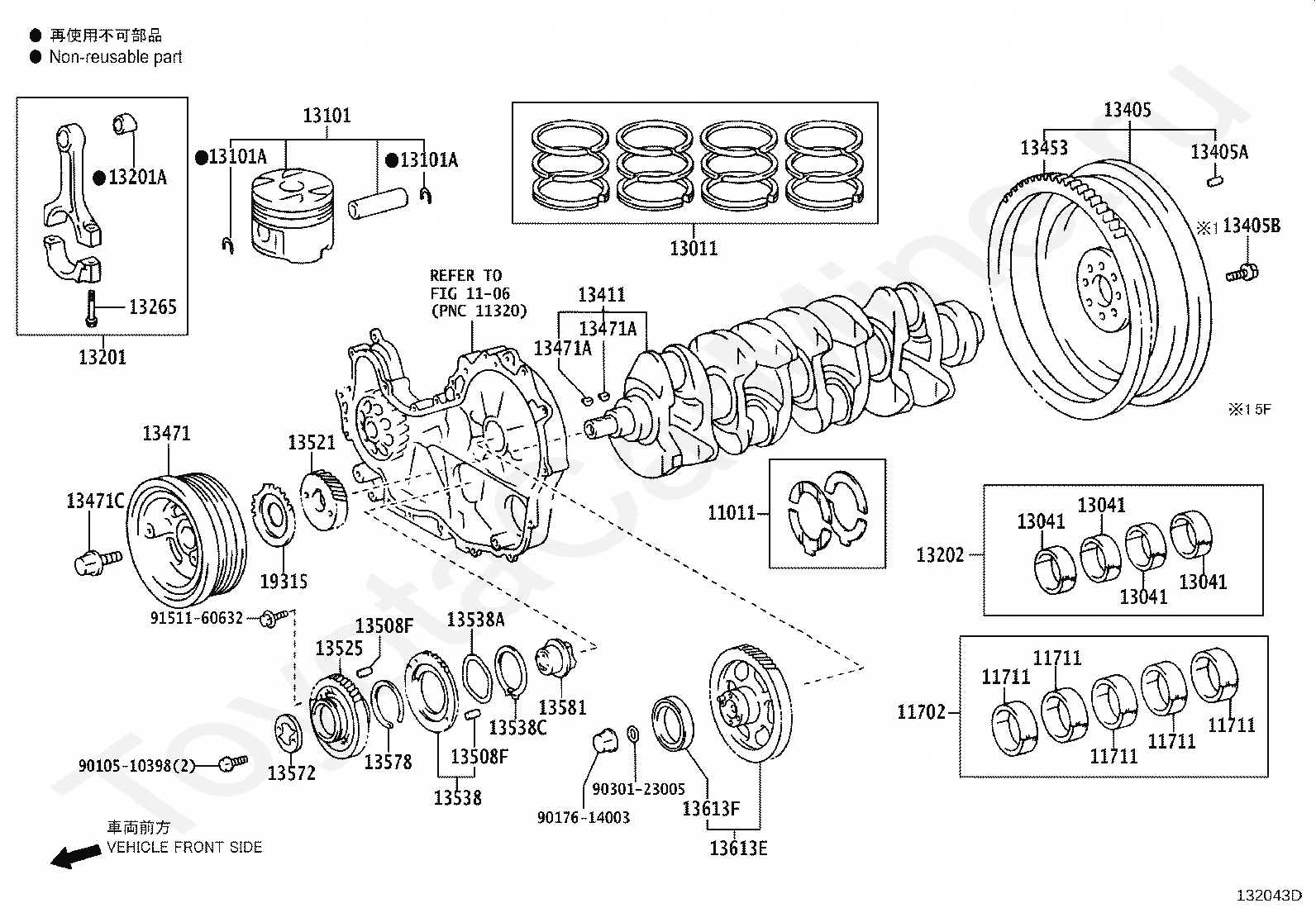

Коленвал и поршни TOYOTA HIACE

Код

Описание

11011

WASHER SET, CRANKSHAFT THRUST

1106

переход к группе запчастей

11702

BEARING SET, CRANKSHAFT

11711

BEARING, CRANKSHAFT

11711

BEARING, CRANKSHAFT

11711

BEARING, CRANKSHAFT

11711

BEARING, CRANKSHAFT

11711

BEARING, CRANKSHAFT

13011

RING SET, PISTON

13041

BEARING, CONNECTING ROD

13041

BEARING, CONNECTING ROD

13041

BEARING, CONNECTING ROD

13041

BEARING, CONNECTING ROD

13101

PISTON SUB-ASSY, W/PIN

13101A

RING, HOLE SNAP(FOR PISTON PIN)

13101A

RING, HOLE SNAP(FOR PISTON PIN)

13201

ROD SUB-ASSY, CONNECTING

13201A

BUSH(FOR CONNECTING ROD SMALL END)

13202

BEARING SET, CONNECTING ROD

13265

BOLT, CONNECTING ROD

13405

FLYWHEEL SUB-ASSY

13405A

PIN, STRAIGHT(FOR FLYWHEEL)

13405B

BOLT, FLYWHEEL SETTING

13411

CRANKSHAFT

13453

GEAR, FLYWHEEL RING

13471

PULLEY, CRANKSHAFT

13471A

KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

13471A

KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

13471C

BOLT(FOR CRANKSHAFT PULLEY SET)

13508F

PIN, STRAIGHT(FOR IDLE GEAR)

13508F

PIN, STRAIGHT(FOR IDLE GEAR)

13521

GEAR OR SPROCKET, CRANKSHAFT TIMING

13525

GEAR, IDLE, NO.1

13538

GEAR, IDLE SUB, NO.2

13538A

WASHER, WAVE

13538C

RING, SHAFT SNAP

13572

PLATE, IDLE GEAR THRUST

13578

SPRING, IDLE GEAR

13581

SHAFT, IDLE GEAR, NO.1

13613E

GEAR, INJECTION

13613F

BEARING, RADIAL BALL

19315

PLATE, CRANK ANGLE SENSOR, NO.1

9010510398

Крепеж

9017614003

Крепеж

9030123005

Крепеж

9151160632

Крепеж
