Ходовые запчасти

Каталог

Масла

Каталог

Ближний Восток

Модель

HIACE

VIN

Дата

2005/01

Двигатель

2,5 литра, турбо-дизель

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

KDH200

КПП

МКПП, 5 скоростей

Опции

правый руль STANDARD ROOF 5 дверей SEPARATE SEAT 03S GEN DCR 286W

Реле и кнопки TOYOTA HIACE

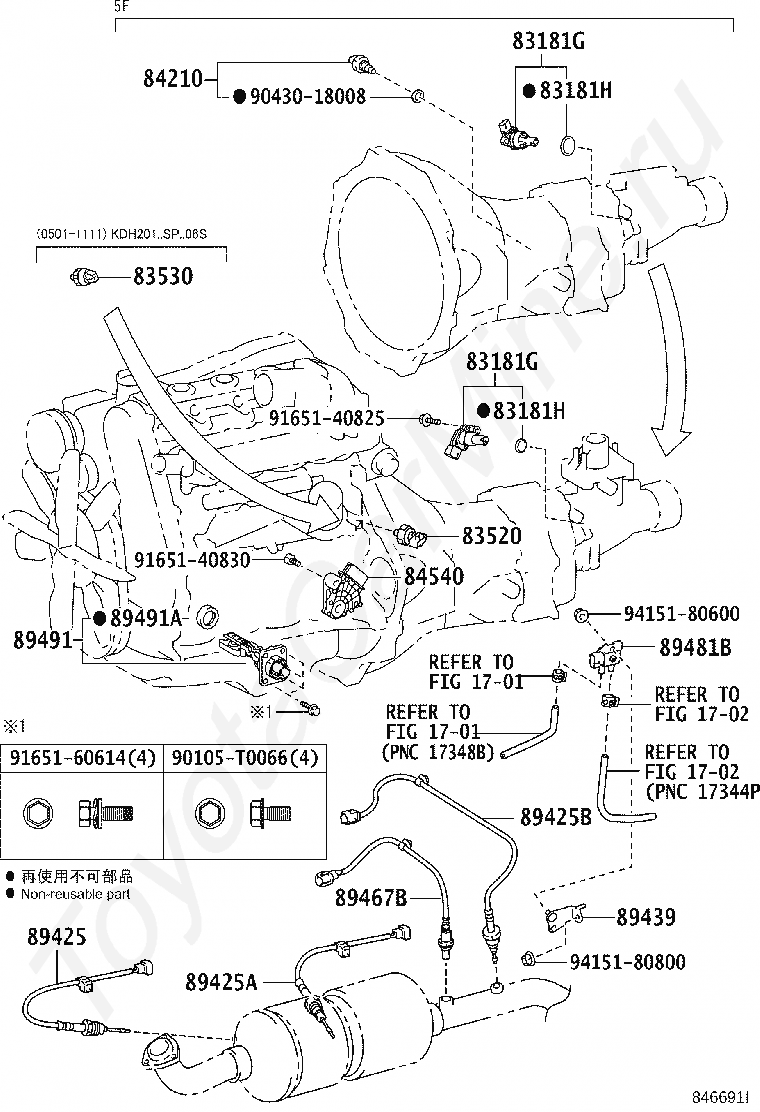

Код

Описание

1701

переход к группе запчастей

1701

переход к группе запчастей

1702

переход к группе запчастей

1702

переход к группе запчастей

83181G

SENSOR, SPEEDOMETER

83181G

SENSOR, SPEEDOMETER

83181H

RING, O (FOR SPEEDOMETER SENSOR)

83181H

RING, O (FOR SPEEDOMETER SENSOR)

83520

GAGE ASSY,OIL PRESSURE SENDER

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

84210

SWITCH ASSY, BACK-UP LAMP

84540

SWITCH ASSY, NEUTRAL START

89425

SENSOR, EXHAUST GAS TEMPERATURE

89425A

SENSOR, EXHAUST GAS TEMPERATURE, NO.2

89425B

SENSOR, EXHAUST GAS TEMPERATURE, NO.3

89439

BRACKET, SENSOR

89467B

SENSOR, AIR FUEL RATIO

89481B

SENSOR, DIFFERENTIAL PRESSURE

89491

SENSOR, ENGINE OIL LEVEL

89491A

GASKET, ENGINE OIL LEVEL SENSOR

90105T0066

Крепеж

9043018008

Крепеж

9165140825

Крепеж

9165140830

Крепеж

9165160614

Крепеж

9415180600

Крепеж

9415180800

Крепеж

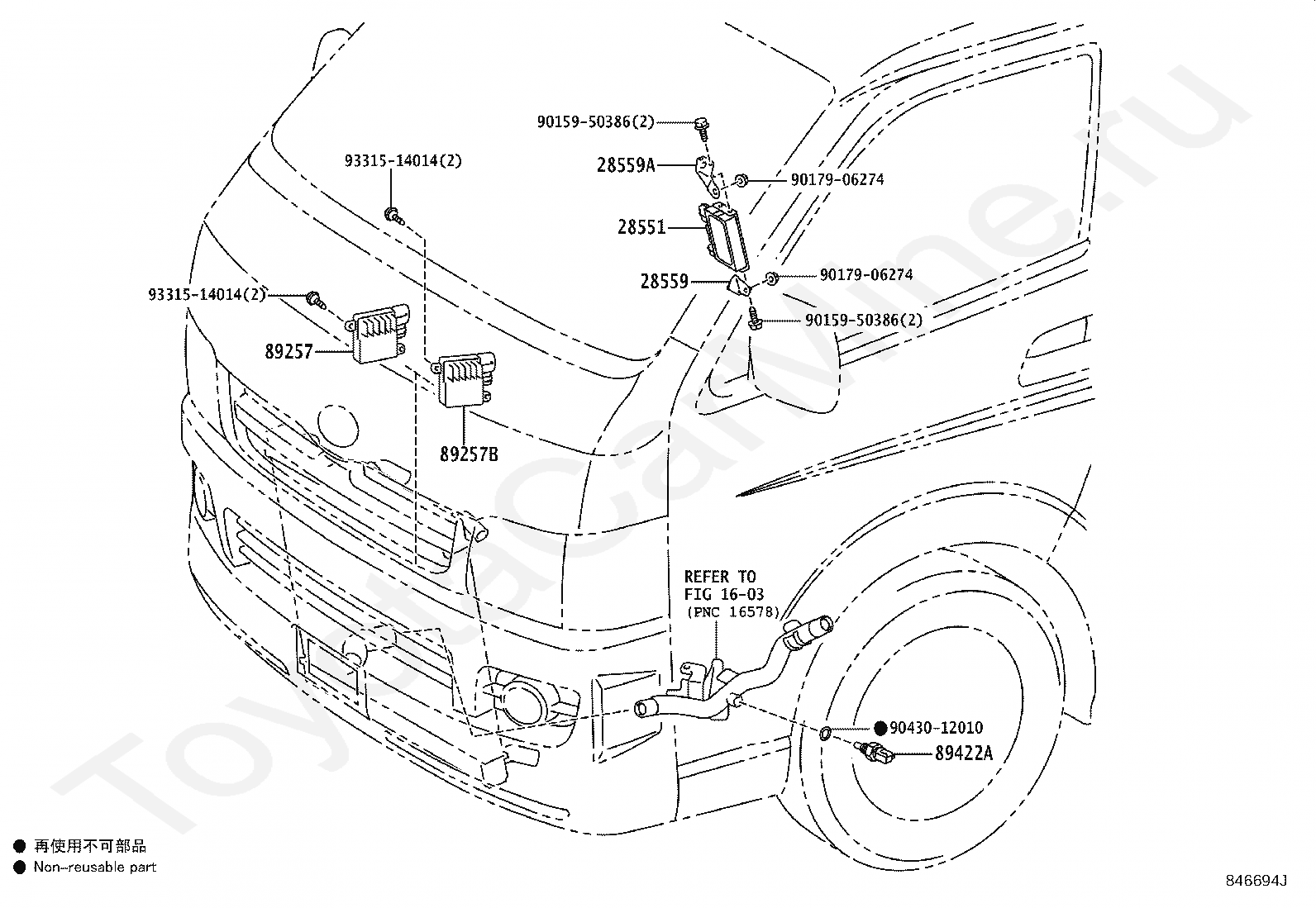

Код

Описание

1603

переход к группе запчастей

28551

CONTROLLER, GLOW PLUG

28559

BRACKET, GLOW PLUG CONTROLLER, NO.1

28559A

BRACKET, GLOW PLUG CONTROLLER, NO.2

89257

COMPUTER, COOLING FAN

89257B

COMPUTER, COOLING FAN, NO.2

89422A

SENSOR, WATER TEMPERATURE

9015950386

Крепеж

9015950386

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9043012010

Крепеж

9331514014

Крепеж

9331514014

Крепеж

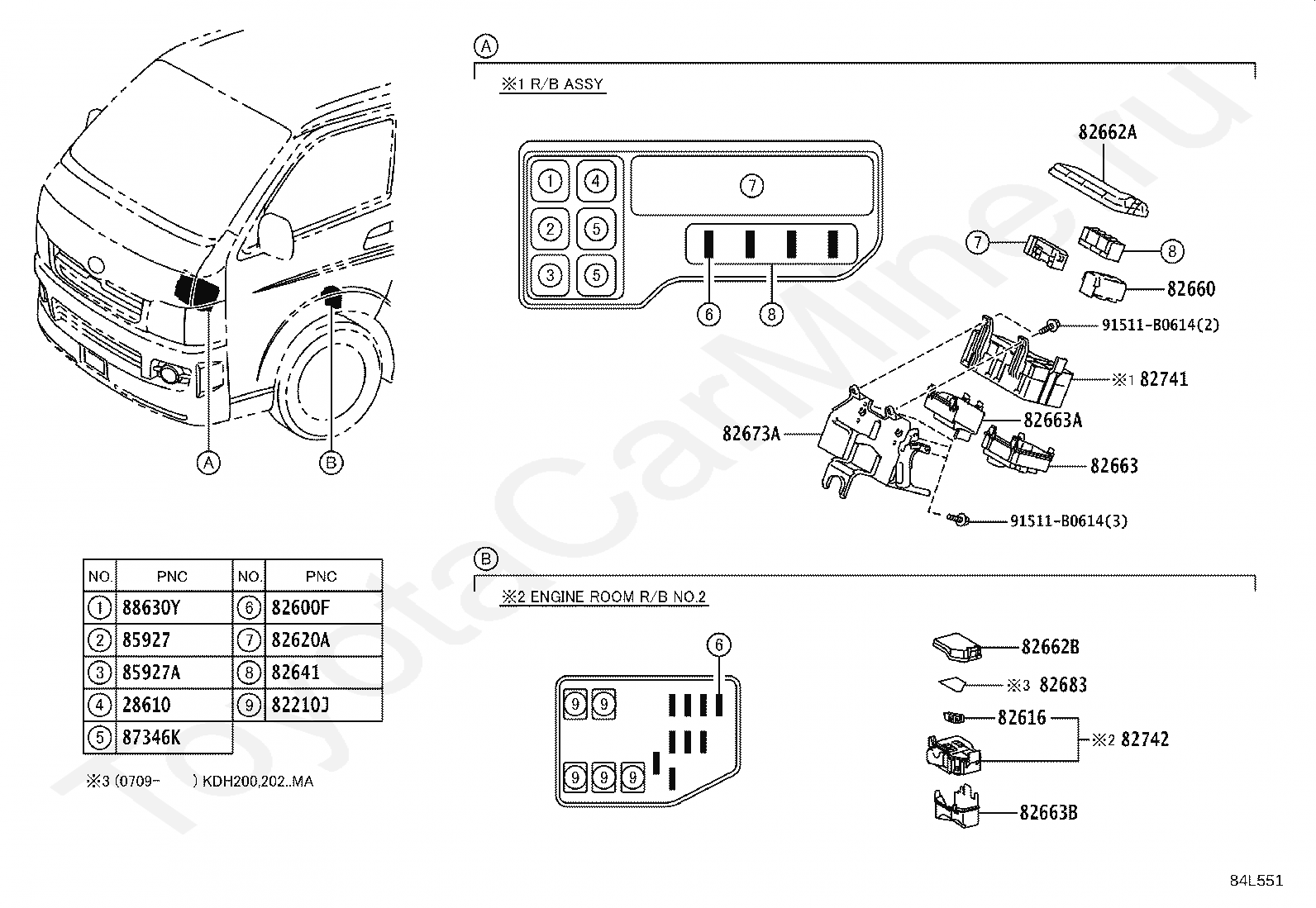

Код

Описание

28610

RELAY ASSY, INTAKE HEATER OR GLOW PLUG

82210J

FUSIBLE LINK

82600F

FUSE, FUSE BLOCK

82616

PULLER, FUSE

82620A

BLOCK ASSY, FUSIBLE LINK

82641

RELAY, INTEGRATION NO.1

82660

BLOCK ASSY, RELAY, ENGINE ROOM

82662A

COVER, RELAY BLOCK, UPPER, NO.1

82662B

COVER, RELAY BLOCK, UPPER, NO.2

82663

COVER, RELAY BLOCK, LOWER

82663A

COVER, RELAY BLOCK, LOWER, NO.2

82663B

COVER, RELAY BLOCK, LOWER, NO.3

82673A

BRACKET, JUNCTION BLOCK

82683

PLATE, FUSE BLOCK CAUTION

82741

BLOCK, ENGINE ROOM RELAY

82742

BLOCK, ENGINE ROOM RELAY, NO.2

85927

RELAY, COOLING FAN

85927A

RELAY, COOLING FAN, NO.2

87346K

RELAY, PTC HEATER

88630Y

RELAY, REAR COOLER

91511B0614

Крепеж

91511B0614

Крепеж

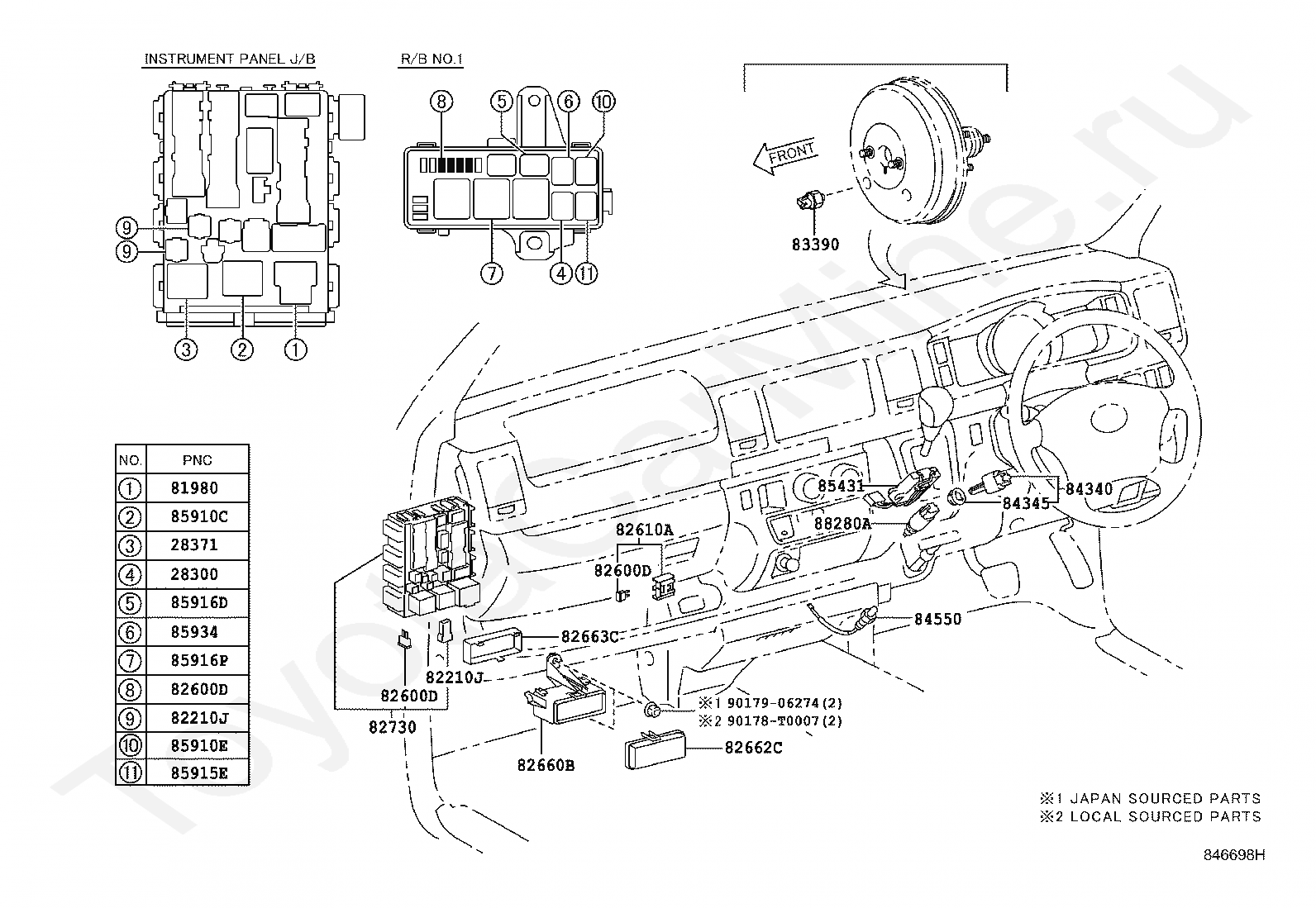

Код

Описание

28300

RELAY ASSY, STARTER

28371

RELAY, IGNITION, NO.1

81980

FLASHER ASSY, TURN SIGNAL

82210J

FUSIBLE LINK

82210J

FUSIBLE LINK

82600D

INSTRUMENT PANEL FUSE

82600D

INSTRUMENT PANEL FUSE

82600D

INSTRUMENT PANEL FUSE

82610A

BLOCK ASSY, FUSE

82660B

BLOCK ASSY, RELAY

82662C

COVER, RELAY BLOCK, UPPER, NO.3

82663C

COVER, RELAY BLOCK LOWER, NO.4

82730

BLOCK ASSY, INSTRUMENT PANEL JUNCTION

83390

SWITCH ASSY, VACUUM WARNING

84340

SWITCH ASSY, STOP LAMP

84345

ADJUSTER, STOP LAMP SWITCH MOUNTING

84550

SWITCH ASSY, PARKING BRAKE

85431

SOLENOID, SHIFT LOCK

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85910E

RELAY, INJECTOR

85915E

RELAY

85916D

RELAY, FOG LAMP

85916P

RELAY, HEADLAMP

85934

RELAY, MAGNET-CLUTCH

88280A

SWITCH ASSY, CLUTCH

90178T0007

Крепеж

9017906274

Крепеж

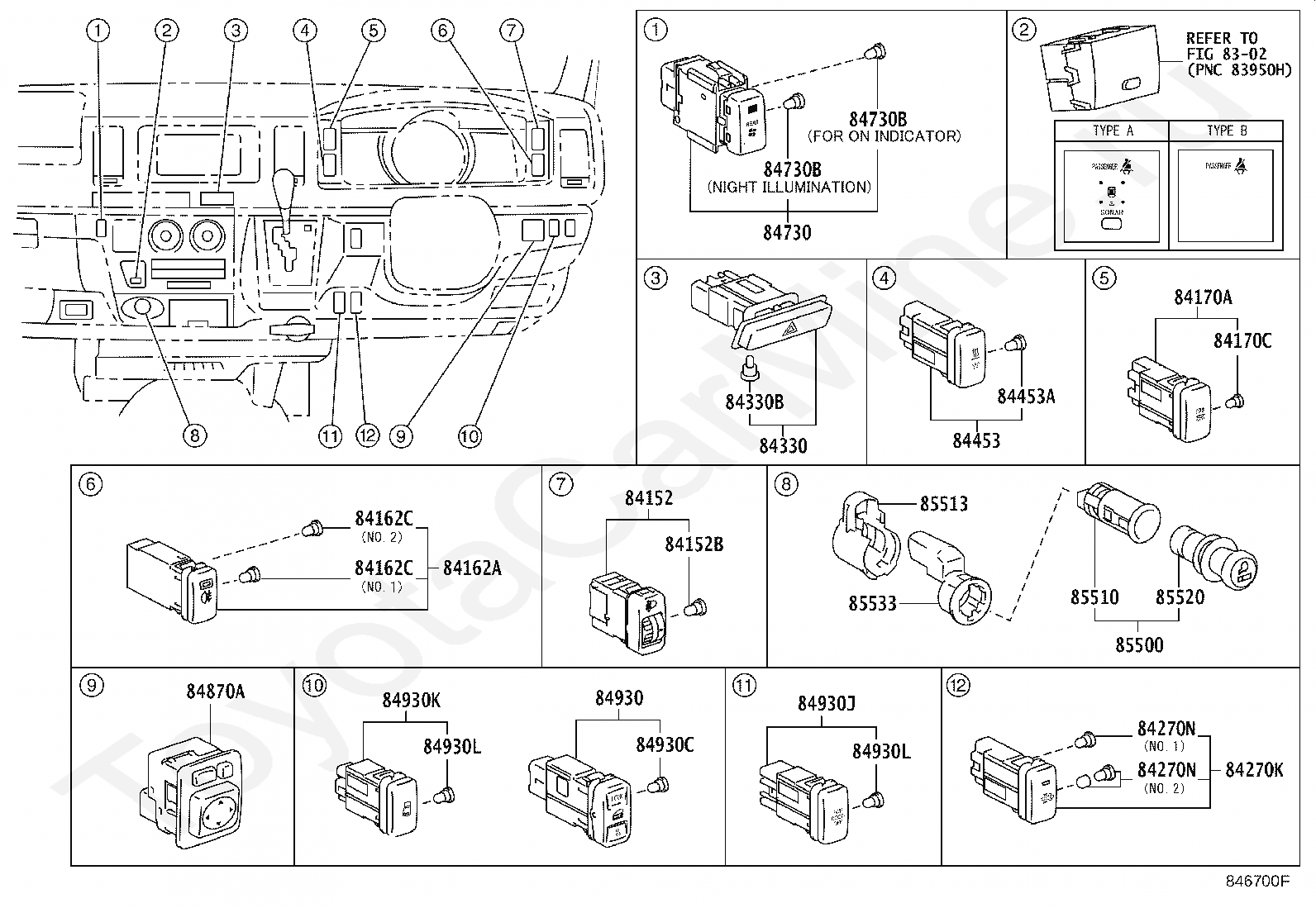

Код

Описание

8302

переход к группе запчастей

84152

SWITCH, HEADLAMP LEVELING

84152B

BULB (FOR HEADLAMP LEVELING SWITCH)

84162A

SWITCH, REAR FOG LAMP

84162C

BULB (FOR REAR FOG LAMP SWITCH)

84162C

BULB (FOR REAR FOG LAMP SWITCH)

84170A

SWITCH ASSY, ROOM LAMP NO.1

84170C

BULB,ROOM LAMP SWITCH

84270K

SWITCH ASSY, DPR

84270N

BULB, DPR SWICH ASSY

84270N

BULB, DPR SWICH ASSY

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84330B

BULB, HAZARD WARNING SIGNAL SWITCH

84453

SWITCH, IDLE UP

84453A

BULB, IDLE UP SWITCH

84730

SWITCH ASSY, HEATER BLOWER

84730B

BULB, HEATER BLOWER SWITCH

84730B

BULB, HEATER BLOWER SWITCH

84870A

SWITCH ASSY, OUTER MIRROR

84930

SWITCH ASSY, DOOR CONTROL

84930C

BULB(FOR DOOR CONTROL SWITCH)

84930J

SWITCH ASSY, AUTO SLIDE DOOR MAIN

84930K

SWITCH ASSY, AUTO SLIDE DOOR CONTROL

84930L

BULB, AUTO SLIDE DOOR CONTROL SWITCH

84930L

BULB, AUTO SLIDE DOOR CONTROL SWITCH

85500

LIGHTER ASSY, CIGARETTE

85510

SOCKET & RETAINER ASSY, CIGARLIGHTER

85513

COVER, CIGARETTE LIGHTER

85520

KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER

85533

LENS, CIGARETTE LIGHTER INDICATOR

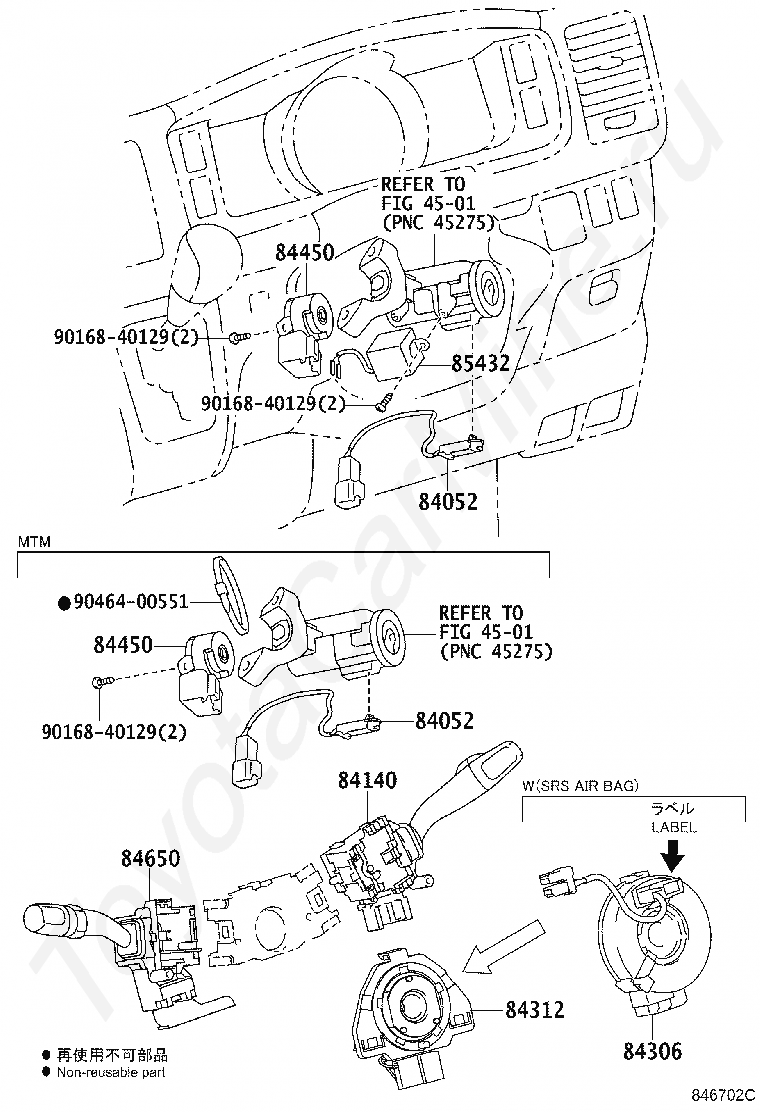

Код

Описание

4501

переход к группе запчастей

4501

переход к группе запчастей

84052

SWITCH ASSY, UN-LOCK WARNING

84052

SWITCH ASSY, UN-LOCK WARNING

84140

SWITCH ASSY, HEADLAMP DIMMER

84306

CABLE SUB-ASSY, SPIRAL

84312

PLATE, HORN CONTACT

84450

SWITCH ASSY, IGNITION OR STARTER

84450

SWITCH ASSY, IGNITION OR STARTER

84650

SWITCH ASSY, WINDSHIELD WIPER

85432

SOLENOID, KEY INTER LOCK

9016840129

Крепеж

9016840129

Крепеж

9016840129

Крепеж

9046400551

Крепеж

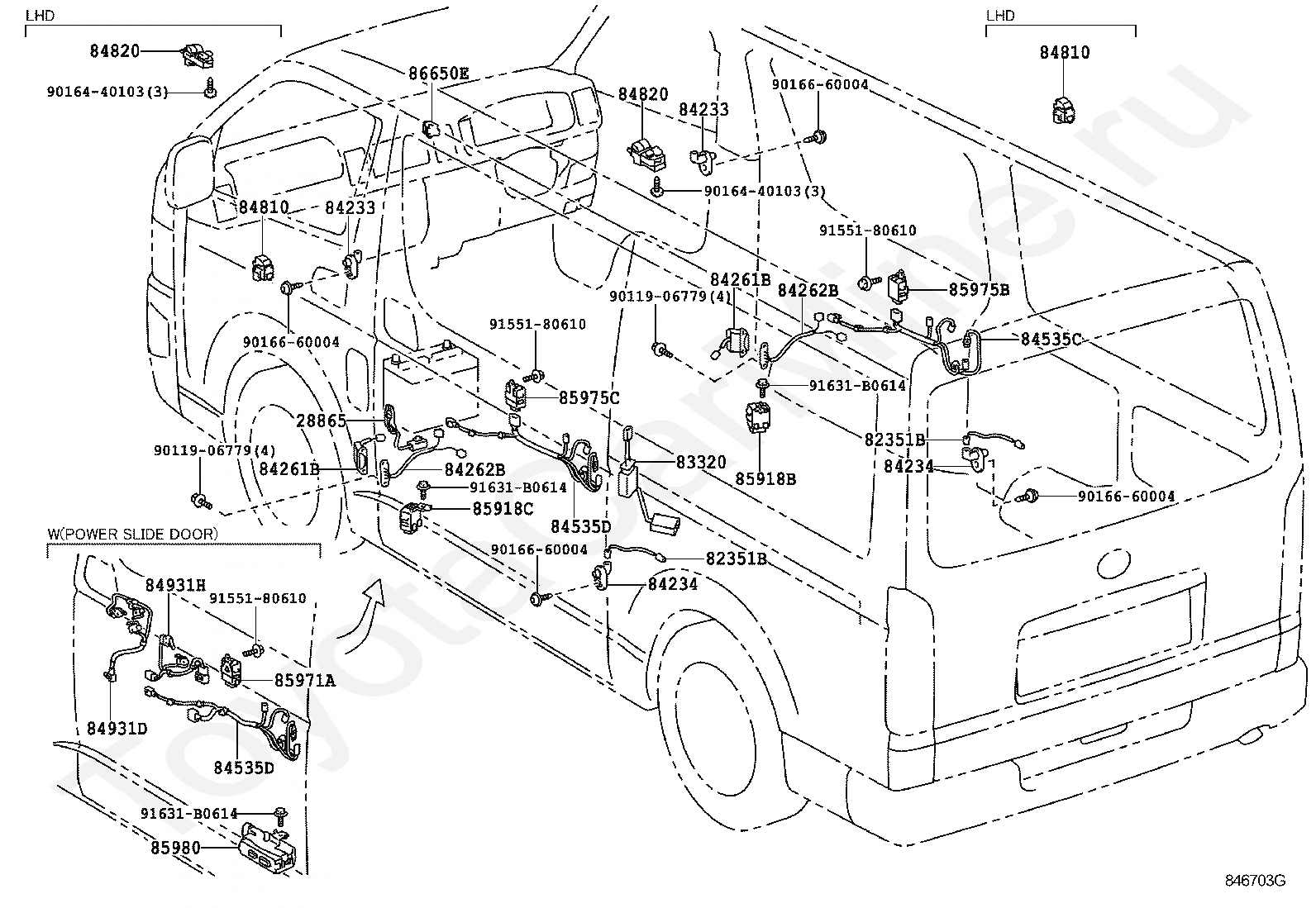

Код

Описание

28865

SENSOR, BATTERY THERMOMETER

82351B

WIRE,COURTESY LAMP

82351B

WIRE,COURTESY LAMP

83320

GAGE ASSY, FUEL SENDER

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84261B

JUNCTION, SLIDE DOOR CONTROL,MALE

84261B

JUNCTION, SLIDE DOOR CONTROL,MALE

84262B

JUNCTION, SLIDE DOOR CONTROL, FEMALE

84262B

JUNCTION, SLIDE DOOR CONTROL, FEMALE

84535C

SWITCH, DOOR LOCK, RH

84535D

SWITCH, DOOR LOCK, LH

84535D

SWITCH, DOOR LOCK, LH

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84820

MASTER SWITCH ASSY, POWER WINDOW REGULATOR

84820

MASTER SWITCH ASSY, POWER WINDOW REGULATOR

84931D

SWITCH, SLIDE DOOR CONTROL

84931H

SWITCH, SLIDE DOOR CONTROL, LH

85918B

RELAY, DOOR CONTROL, RH

85918C

RELAY, DOOR CONTROL, LH

85971A

RELAY, DOOR OPENING

85975B

RELAY, SLIDE DOOR CLOSER, RH

85975C

RELAY, SLIDE DOOR CLOSER, LH

85980

RELAY ASSY, DOOR CONTROL

86650E

BUZZER ASSY

9011906779

Крепеж

9011906779

Крепеж

9016440103

Крепеж

9016440103

Крепеж

9016660004

Крепеж

9016660004

Крепеж

9016660004

Крепеж

9016660004

Крепеж

9155180610

Крепеж

9155180610

Крепеж

9155180610

Крепеж

91631B0614

Крепеж

91631B0614

Крепеж

91631B0614

Крепеж

Реле и кнопки TOYOTA HIACE
