Ближний Восток

Модель

HIACE

VIN

Дата

2005/01

Двигатель

2,5 литра, турбо-дизель

Кузов

V(MODEL MARK)

Класс

STANDARD TYPE

Фрейм

KDH200

КПП

МКПП, 5 скоростей

Опции

правый руль STANDARD ROOF 5 дверей SEPARATE SEAT 03S GEN DCR 286W

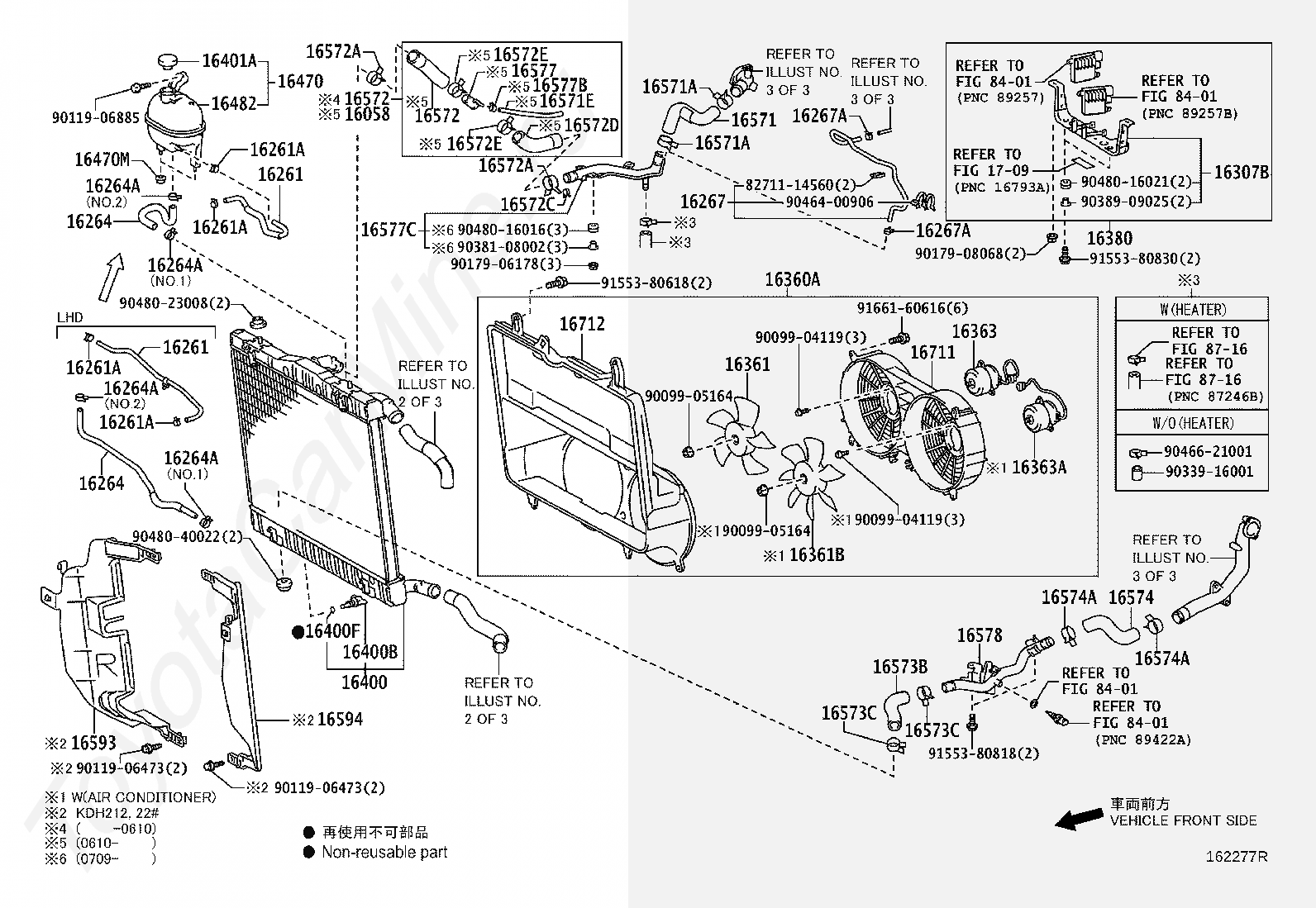

Радиатор и шланги TOYOTA HIACE







Код

Описание

16058

HOSE SUB-ASSY, RADIATOR, NO.2

16261

HOSE, WATER BY-PASS

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16307B

BRACKET SUB-ASSY, FAN

16360A

FAN ASSY, W/MOTOR

16361

FAN

16361B

FAN, NO.2

16363

MOTOR, COOLING FAN

16363A

MOTOR, COOLING FAN, NO.2

16380

BRACKET ASSY, FAN

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401A

CAP SUB-ASSY, RADIATOR RESERVE TANK

16470

TANK ASSY, RADIATOR RESERVE

16470M

GROMMET

16482

TANK SUB-ASSY, RADIATOR RESERVE

16571

HOSE, RADIATOR, INLET

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571E

HOSE, WATER

16572

HOSE, RADIATOR, OUTLET

16572

HOSE, RADIATOR, OUTLET

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572C

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16573B

HOSE, RADIATOR, NO.3

16573C

CLAMP OR CLIP, RADIATOR HOSE, NO.3

16573C

CLAMP OR CLIP, RADIATOR HOSE, NO.3

16574

HOSE, RADIATOR, NO.4

16574A

CLIP, RADIATOR HOSE, NO.4

16574A

CLIP, RADIATOR HOSE, NO.4

16577

PIPE, RADIATOR, NO.7

16577B

CLAMP OR CLIP, HOSE(FOR RADIATOR PIPE)

16577C

PIPE, RADIATOR

16578

PIPE, RADIATOR, NO.2

16593

GUIDE, RADIATOR AIR, NO.1

16594

GUIDE, RADIATOR AIR, NO.2

16711

SHROUD, FAN

16712

SHROUD, FAN, NO.2

1709

переход к группе запчастей

8271114560

Крепеж

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8716

переход к группе запчастей

8716

переход к группе запчастей

9009904119

Крепеж

9009904119

Крепеж

9009905164

Крепеж

9009905164

Крепеж

9011906473

Крепеж

9011906473

Крепеж

9011906885

Крепеж

9017906178

Крепеж

9017908068

Крепеж

9033916001

Крепеж

9038108002

Крепеж

9038909025

Крепеж

9046400906

Крепеж

9046621001

Крепеж

9048016016

Крепеж

9048016021

Крепеж

9048023008

Крепеж

9048040022

Крепеж

9155380618

Крепеж

9155380818

Крепеж

9155380830

Крепеж

9166160616

Крепеж

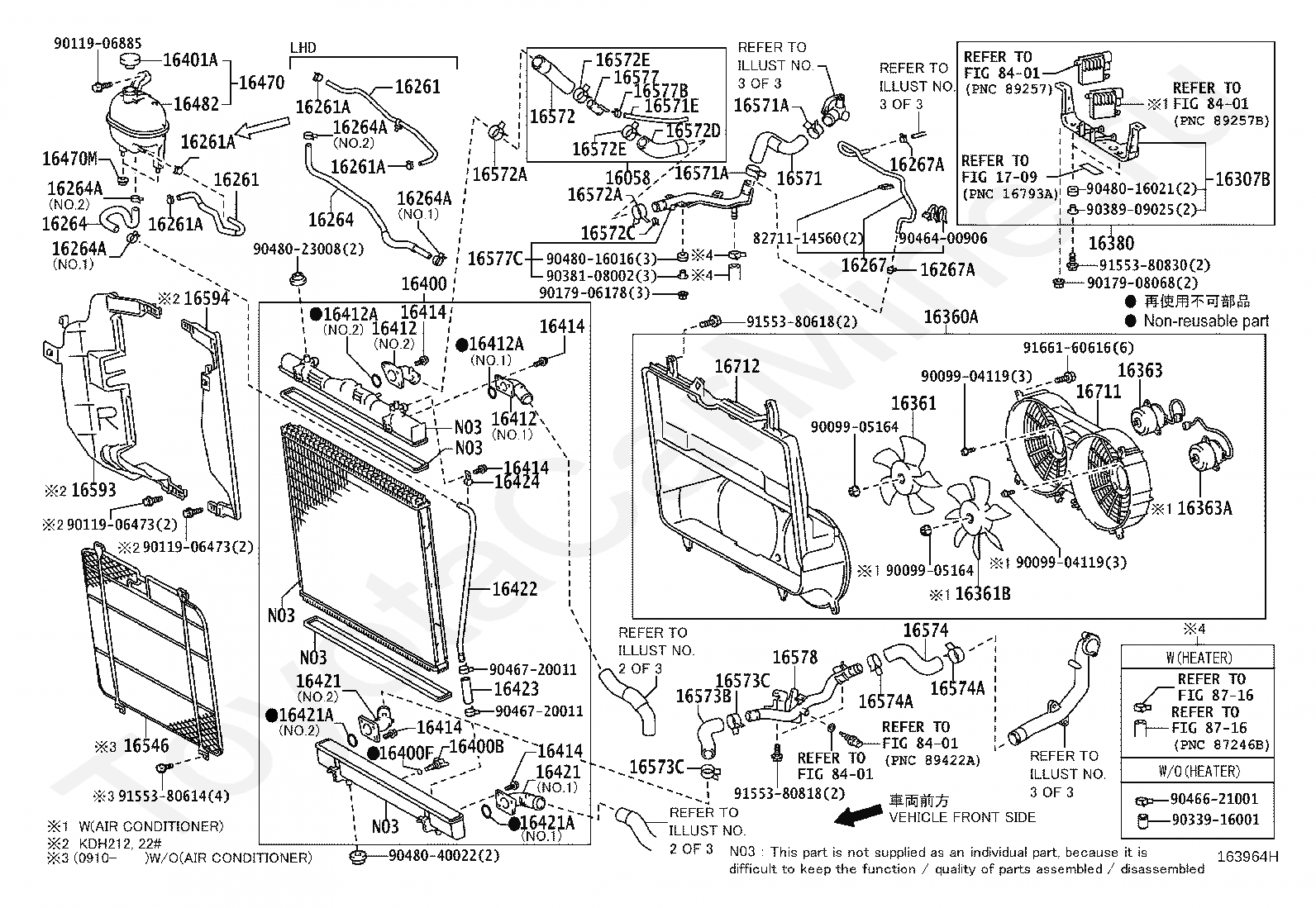

Код

Описание

16058

HOSE SUB-ASSY, RADIATOR, NO.2

16261

HOSE, WATER BY-PASS

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16307B

BRACKET SUB-ASSY, FAN

16360A

FAN ASSY, W/MOTOR

16361

FAN

16361B

FAN, NO.2

16363

MOTOR, COOLING FAN

16363A

MOTOR, COOLING FAN, NO.2

16380

BRACKET ASSY, FAN

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401A

CAP SUB-ASSY, RADIATOR RESERVE TANK

16412

PIPE, RADIATOR TANK, UPPER

16412

PIPE, RADIATOR TANK, UPPER

16412A

RING, O(FOR RADIATOR UPPER TANK PIPE)

16412A

RING, O(FOR RADIATOR UPPER TANK PIPE)

16414

BOLT, RADIATOR TANK PIPE

16414

BOLT, RADIATOR TANK PIPE

16414

BOLT, RADIATOR TANK PIPE

16414

BOLT, RADIATOR TANK PIPE

16414

BOLT, RADIATOR TANK PIPE

16421

PIPE, RADIATOR TANK, LOWER NO.1

16421

PIPE, RADIATOR TANK, LOWER NO.1

16421A

RING, O(FOR RADIATOR LOWER TANK PIPE NO.1)

16421A

RING, O(FOR RADIATOR LOWER TANK PIPE NO.1)

16422

PIPE, RADIATOR TANK, LOWER NO.2

16423

HOSE, RADIATOR TANK

16424

CLAMP, RADIATOR TANK PIPE

16470

TANK ASSY, RADIATOR RESERVE

16470M

GROMMET

16482

TANK SUB-ASSY, RADIATOR RESERVE

16546

PROTECTOR, RADIATOR

16571

HOSE, RADIATOR, INLET

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571E

HOSE, WATER

16572

HOSE, RADIATOR, OUTLET

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572C

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16573B

HOSE, RADIATOR, NO.3

16573C

CLAMP OR CLIP, RADIATOR HOSE, NO.3

16573C

CLAMP OR CLIP, RADIATOR HOSE, NO.3

16574

HOSE, RADIATOR, NO.4

16574A

CLIP, RADIATOR HOSE, NO.4

16574A

CLIP, RADIATOR HOSE, NO.4

16577

PIPE, RADIATOR, NO.7

16577B

CLAMP OR CLIP, HOSE(FOR RADIATOR PIPE)

16577C

PIPE, RADIATOR

16578

PIPE, RADIATOR, NO.2

16593

GUIDE, RADIATOR AIR, NO.1

16594

GUIDE, RADIATOR AIR, NO.2

16711

SHROUD, FAN

16712

SHROUD, FAN, NO.2

1709

переход к группе запчастей

8271114560

Крепеж

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8716

переход к группе запчастей

8716

переход к группе запчастей

9009904119

Крепеж

9009904119

Крепеж

9009905164

Крепеж

9009905164

Крепеж

9011906473

Крепеж

9011906473

Крепеж

9011906885

Крепеж

9017906178

Крепеж

9017908068

Крепеж

9033916001

Крепеж

9038108002

Крепеж

9038909025

Крепеж

9046400906

Крепеж

9046621001

Крепеж

9046720011

Крепеж

9046720011

Крепеж

9048016016

Крепеж

9048016021

Крепеж

9048023008

Крепеж

9048040022

Крепеж

9155380614

Крепеж

9155380618

Крепеж

9155380818

Крепеж

9155380830

Крепеж

9166160616

Крепеж

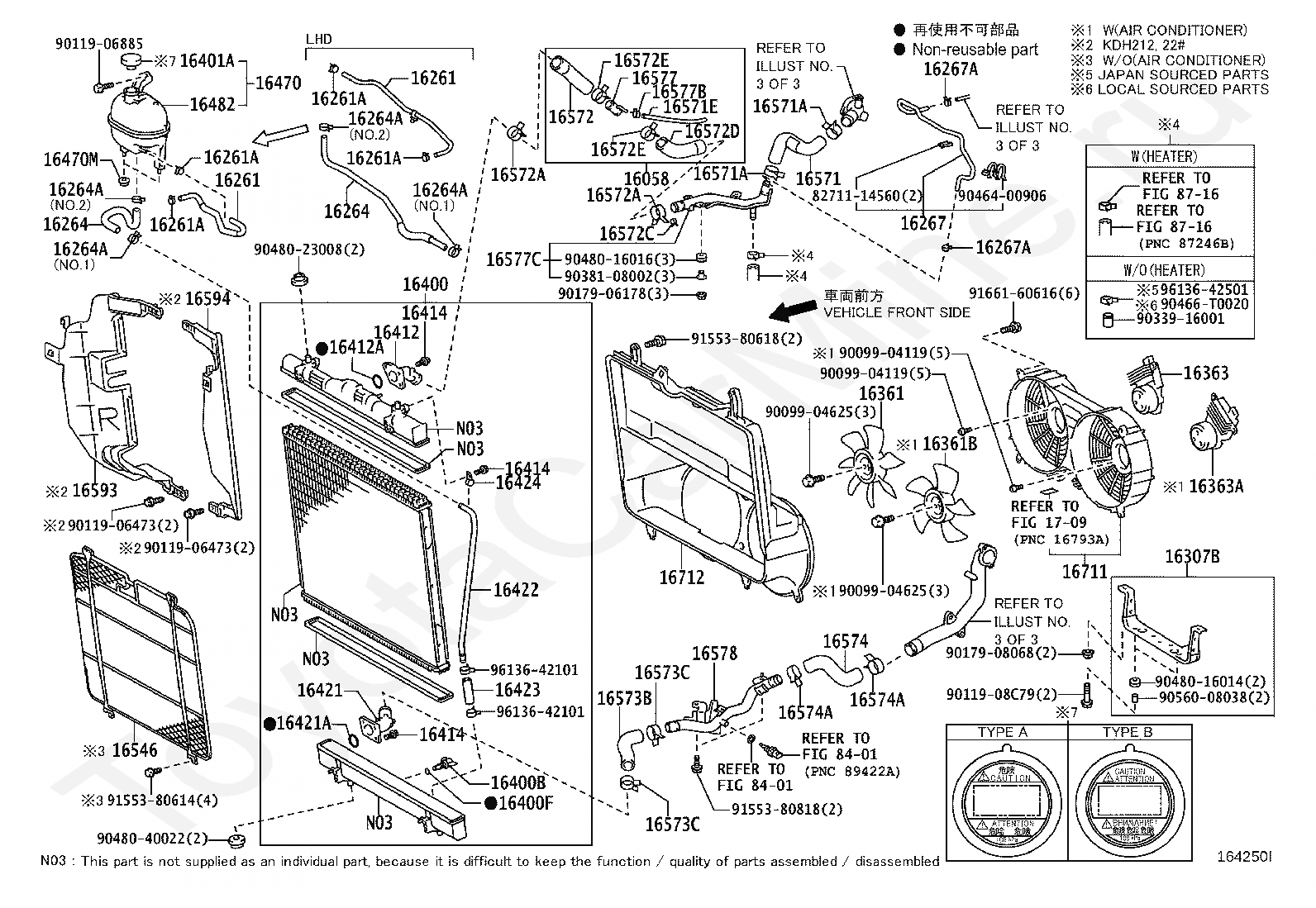

Код

Описание

16058

HOSE SUB-ASSY, RADIATOR, NO.2

16261

HOSE, WATER BY-PASS

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16307B

BRACKET SUB-ASSY, FAN

16361

FAN

16361B

FAN, NO.2

16363

MOTOR, COOLING FAN

16363A

MOTOR, COOLING FAN, NO.2

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401A

CAP SUB-ASSY, RADIATOR RESERVE TANK

16412

PIPE, RADIATOR TANK, UPPER

16412A

RING, O(FOR RADIATOR UPPER TANK PIPE)

16414

BOLT, RADIATOR TANK PIPE

16414

BOLT, RADIATOR TANK PIPE

16414

BOLT, RADIATOR TANK PIPE

16421

PIPE, RADIATOR TANK, LOWER NO.1

16421A

RING, O(FOR RADIATOR LOWER TANK PIPE NO.1)

16422

PIPE, RADIATOR TANK, LOWER NO.2

16423

HOSE, RADIATOR TANK

16424

CLAMP, RADIATOR TANK PIPE

16470

TANK ASSY, RADIATOR RESERVE

16470M

GROMMET

16482

TANK SUB-ASSY, RADIATOR RESERVE

16546

PROTECTOR, RADIATOR

16571

HOSE, RADIATOR, INLET

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571E

HOSE, WATER

16572

HOSE, RADIATOR, OUTLET

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572C

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16573B

HOSE, RADIATOR, NO.3

16573C

CLAMP OR CLIP, RADIATOR HOSE, NO.3

16573C

CLAMP OR CLIP, RADIATOR HOSE, NO.3

16574

HOSE, RADIATOR, NO.4

16574A

CLIP, RADIATOR HOSE, NO.4

16574A

CLIP, RADIATOR HOSE, NO.4

16577

PIPE, RADIATOR, NO.7

16577B

CLAMP OR CLIP, HOSE(FOR RADIATOR PIPE)

16577C

PIPE, RADIATOR

16578

PIPE, RADIATOR, NO.2

16593

GUIDE, RADIATOR AIR, NO.1

16594

GUIDE, RADIATOR AIR, NO.2

16711

SHROUD, FAN

16712

SHROUD, FAN, NO.2

1709

переход к группе запчастей

8271114560

Крепеж

8401

переход к группе запчастей

8401

переход к группе запчастей

8716

переход к группе запчастей

8716

переход к группе запчастей

9009904119

Крепеж

9009904119

Крепеж

9009904625

Крепеж

9009904625

Крепеж

9011906473

Крепеж

9011906473

Крепеж

9011906885

Крепеж

9011908C79

Крепеж

9017906178

Крепеж

9017908068

Крепеж

9033916001

Крепеж

9038108002

Крепеж

9046400906

Крепеж

90466T0020

Крепеж

9048016014

Крепеж

9048016016

Крепеж

9048023008

Крепеж

9048040022

Крепеж

9056008038

Крепеж

9155380614

Крепеж

9155380618

Крепеж

9155380818

Крепеж

9166160616

Крепеж

9613642101

Крепеж

9613642101

Крепеж

9613642501

Крепеж

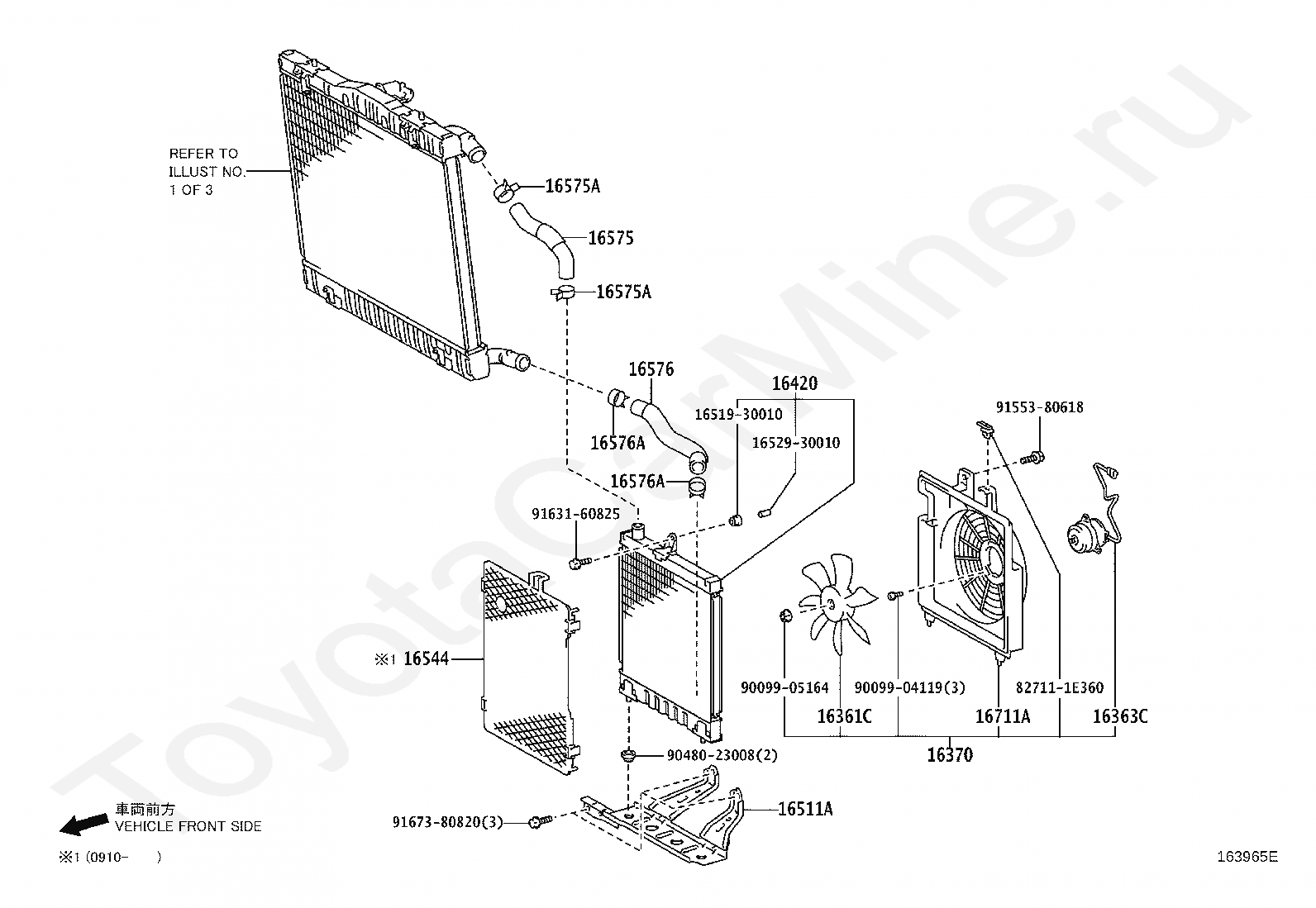

Код

Описание

16361C

FAN NO.2

16363C

MOTOR, COOLING FAN, NO.3

16370

FAN ASSY, W/MOTOR, NO.2

16420

RADIATOR ASSY, SUB

16511A

BRACKET, SUB-RADIATOR

1651930010

Крепеж

1652930010

Крепеж

16544

PROTECTOR, SUB-RADIATOR

16575

HOSE, RADIATOR, NO.5

16575A

CLIP, RADIATOR HOSE, NO.5

16575A

CLIP, RADIATOR HOSE, NO.5

16576

HOSE, RADIATOR, NO.6

16576A

CLIP, RADIATOR HOSE, NO.6

16576A

CLIP, RADIATOR HOSE, NO.6

16711A

SHROUD, FAN, NO.2

827111E360

Крепеж

9009904119

Крепеж

9009905164

Крепеж

9048023008

Крепеж

9155380618

Крепеж

9163160825

Крепеж

9167380820

Крепеж

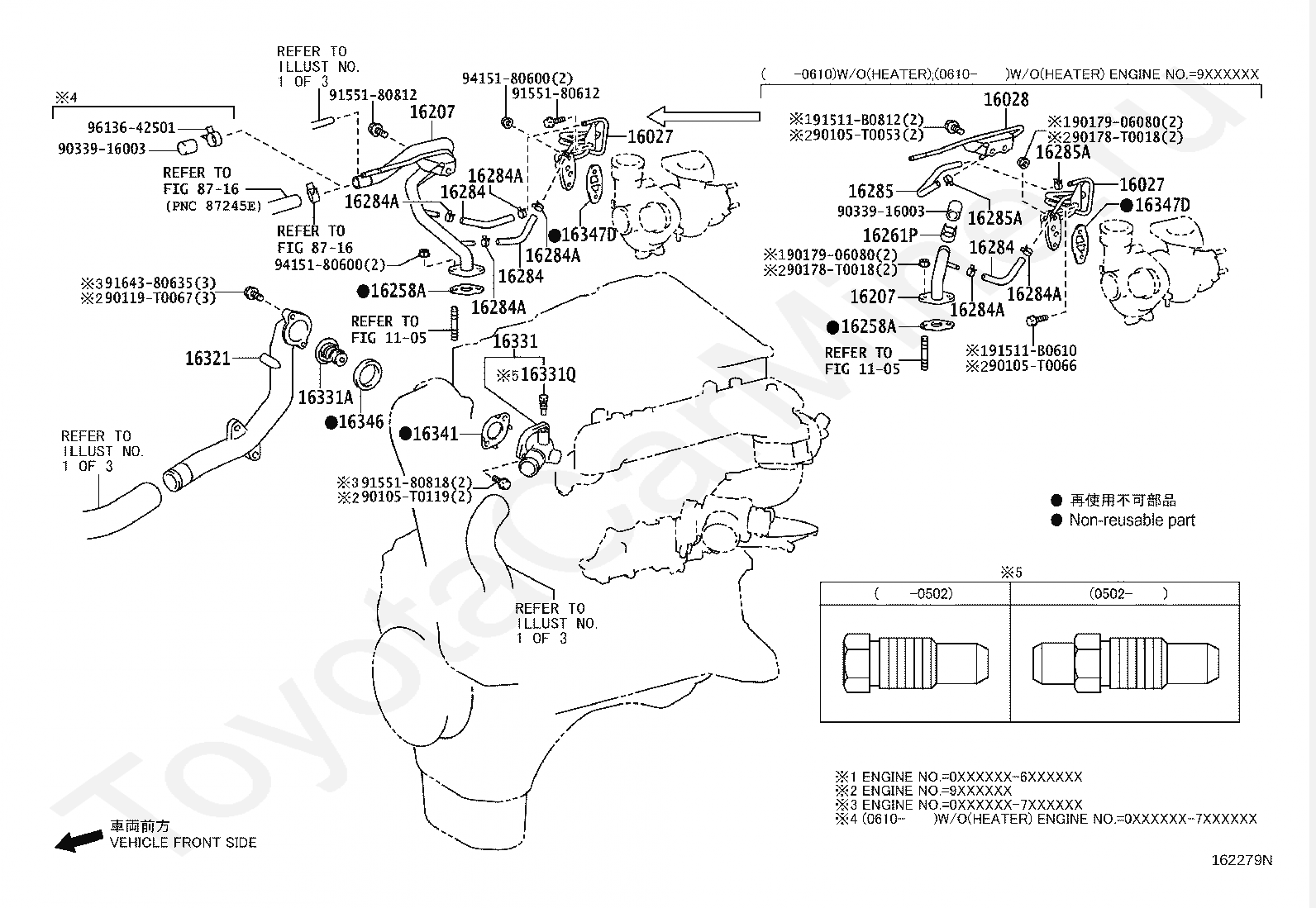

Код

Описание

1105

переход к группе запчастей

1105

переход к группе запчастей

16027

PIPE SUB-ASSY, TURBO WATER, NO.1

16027

PIPE SUB-ASSY, TURBO WATER, NO.1

16028

PIPE SUB-ASSY, TURBO WATER, NO.2

16207

PIPE SUB-ASSY, WATER BY-PASS, NO.2

16207

PIPE SUB-ASSY, WATER BY-PASS, NO.2

16258A

GASKET(FOR HEATER RETURN)

16258A

GASKET(FOR HEATER RETURN)

16261P

CLIP(FOR WATER BY-PASS HOSE NO.2)

16284

HOSE, TURBO WATER, NO.1

16284

HOSE, TURBO WATER, NO.1

16284

HOSE, TURBO WATER, NO.1

16284A

CLIP(FOR TURBO WATER HOSE NO.1)

16284A

CLIP(FOR TURBO WATER HOSE NO.1)

16284A

CLIP(FOR TURBO WATER HOSE NO.1)

16284A

CLIP(FOR TURBO WATER HOSE NO.1)

16284A

CLIP(FOR TURBO WATER HOSE NO.1)

16284A

CLIP(FOR TURBO WATER HOSE NO.1)

16285

HOSE, TURBO WATER, NO.2

16285A

CLIP(FOR TURBO WATER HOSE NO.2)

16285A

CLIP(FOR TURBO WATER HOSE NO.2)

16321

INLET, WATER

16331

OUTLET, WATER

16331A

THERMOSTAT

16331Q

PLUG(FOR WATER OUTLET)

16341

GASKET, WATER OUTLET

16346

GASKET, THERMOSTAT

16347D

GASKET, WATER BY-PASS

16347D

GASKET, WATER BY-PASS

8716

переход к группе запчастей

8716

переход к группе запчастей

90105T0053

Крепеж

90105T0066

Крепеж

90105T0119

Крепеж

90119T0067

Крепеж

90178T0018

Крепеж

90178T0018

Крепеж

9017906080

Крепеж

9017906080

Крепеж

9033916003

Крепеж

9033916003

Крепеж

91511B0610

Крепеж

91511B0812

Крепеж

9155180612

Крепеж

9155180812

Крепеж

9155180818

Крепеж

9164380635

Крепеж

9415180600

Крепеж

9415180600

Крепеж

9613642501

Крепеж

> Запчасти HIACE > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
